Chassis configuration:
B6.2NS6B230 engine, Fast 8-speed transmission, 2315 cab, 4.5T front axle, 10T rear axle, 10.00 steel tires, 25mm beam, air brake, air conditioning, electric doors and windows, central locking system.
Installation configuration:
The Q345 manganese steel high-strength plate arc-shaped box is used, with a side of 5mm and a bottom of 6mm. It is composed of a hydraulic mechanism consisting of a box body, a loading mechanism, a compression mechanism, a unloading mechanism, an oil pump, an oil cylinder, a control valve, etc. The loading mechanism consists of a bracket, a connecting rod mechanism, a cam, a hook, etc., and it undergoes bi-directional peristaltic compression. Domestic well-known brand hydraulic systems (Anhui Wanye Pump, Hunan Changsha Domestic Famous Multi way Valve, Compression Special Customized Oil Cylinder, Zhejiang Jiashan Power Takeoff); The same CAN bus control system is used for centralized electronic control inside the driver's cab and outside the vehicle; High position clearance lights/edge lights/work lighting on the vehicle, equipped with a double pressure valve and dual pump as standard.
| Product Name | Dongfeng Tianjin 18m³ Compressed Garbage Truck |
| Driving Type | 4x2 |
| Garbage container volume(cbm) | 18m³ |
| Gross vehicle weight(Kg) | 18000(Kg) |
| Curb weight(Kg) | 11250,12150(Kg) |
| Rated weight(kg) | 6620,6555,5720,5655(Kg) |
| Wheelbase(mm) | 5000(mm) |
| Overall Dimension(mm) | 8890,9090,9390,9010,9210,9510×2500×3300(mm) |
| Engine | B6.2NS6B230, Cummins 230hp |
| Axle Quantity | 2 |
| Transmission Type | Fast 8-speed gearbox |
| Steering Type | LHD or RHD with power steering |
| Brake system | Air brake |
| Tire Spec. & size | 10.00R20 steel wire tire, 6+1 spare |
| Cab | Dongfeng Tianjin cab |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |

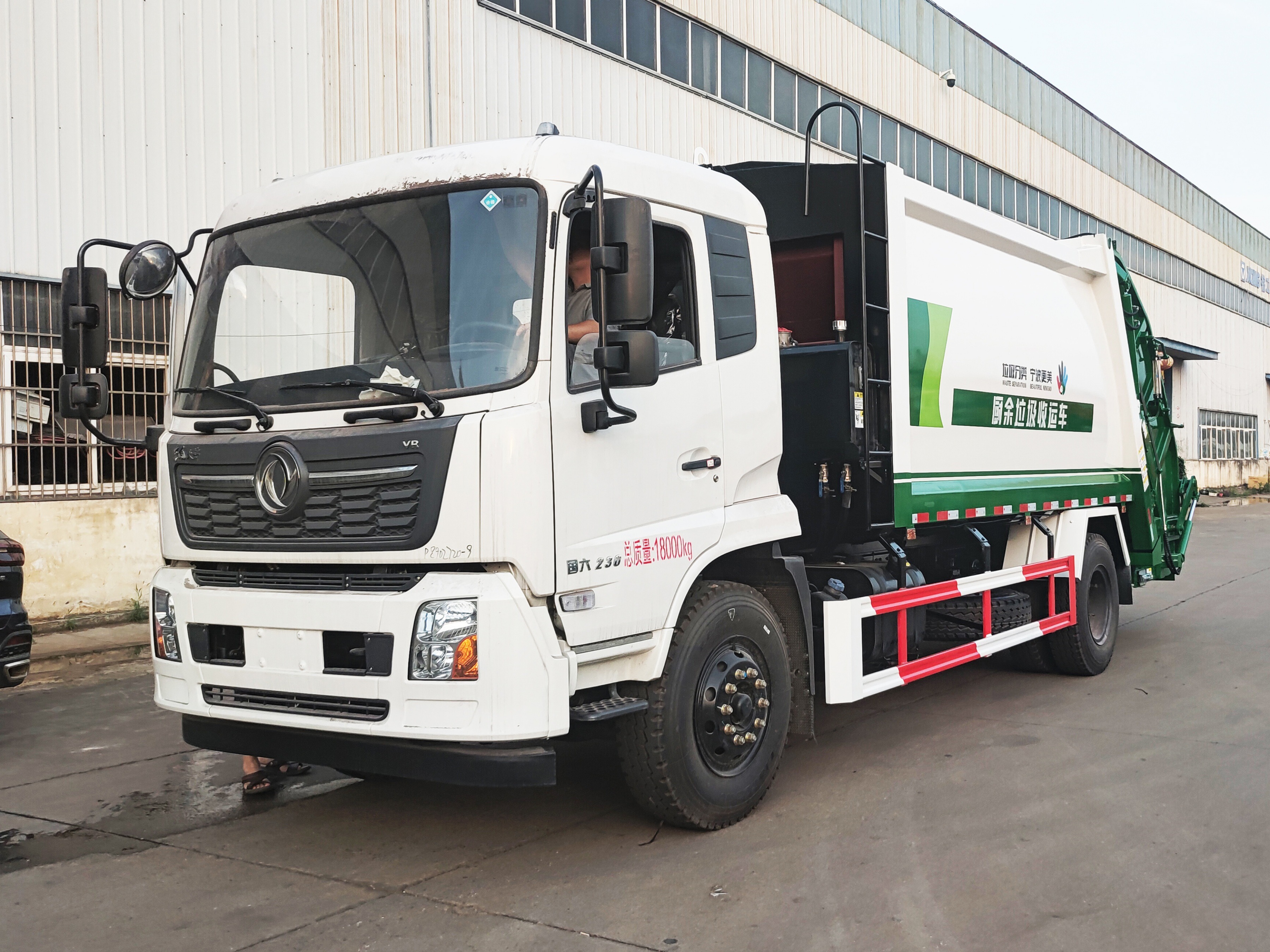

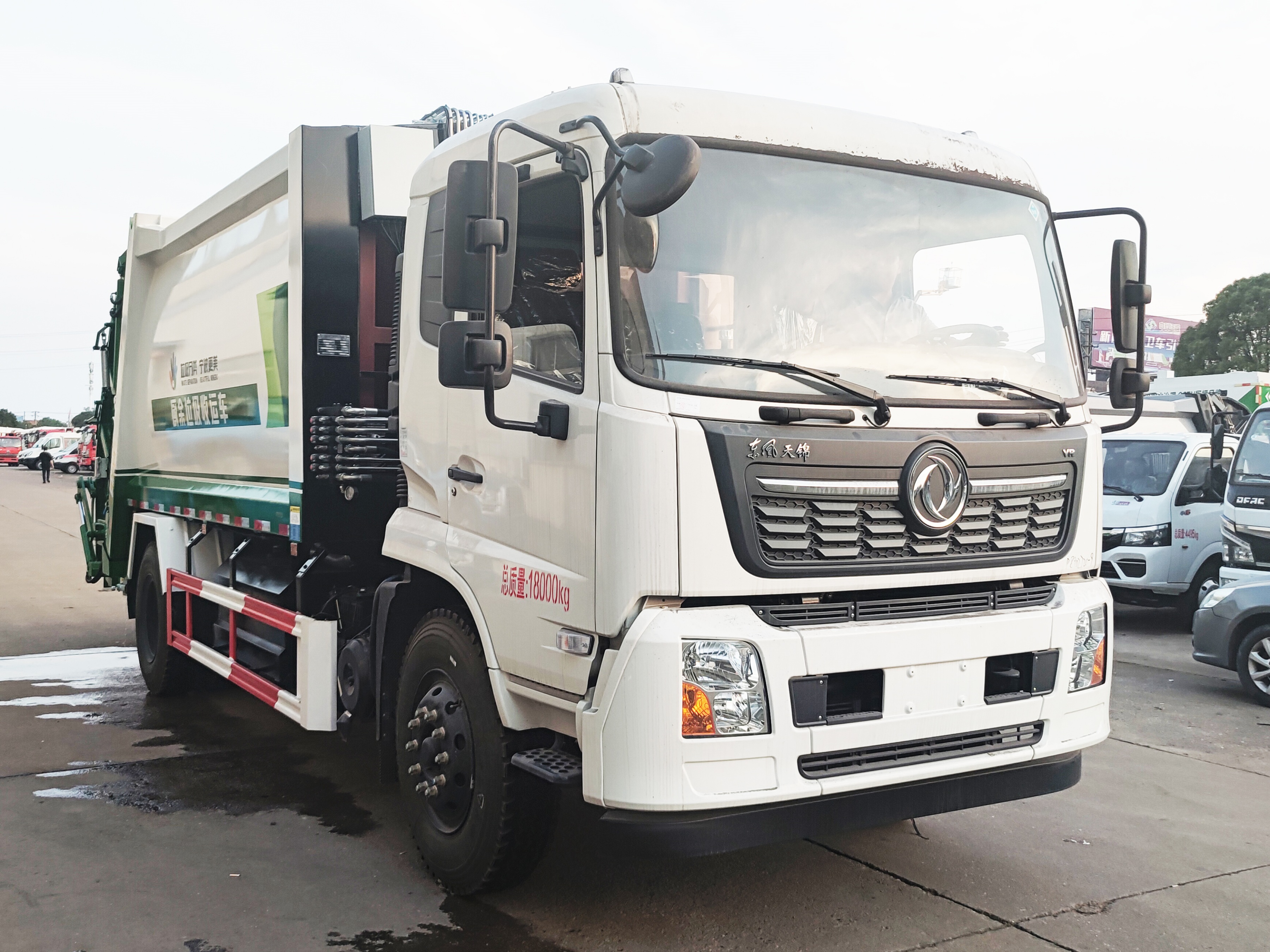

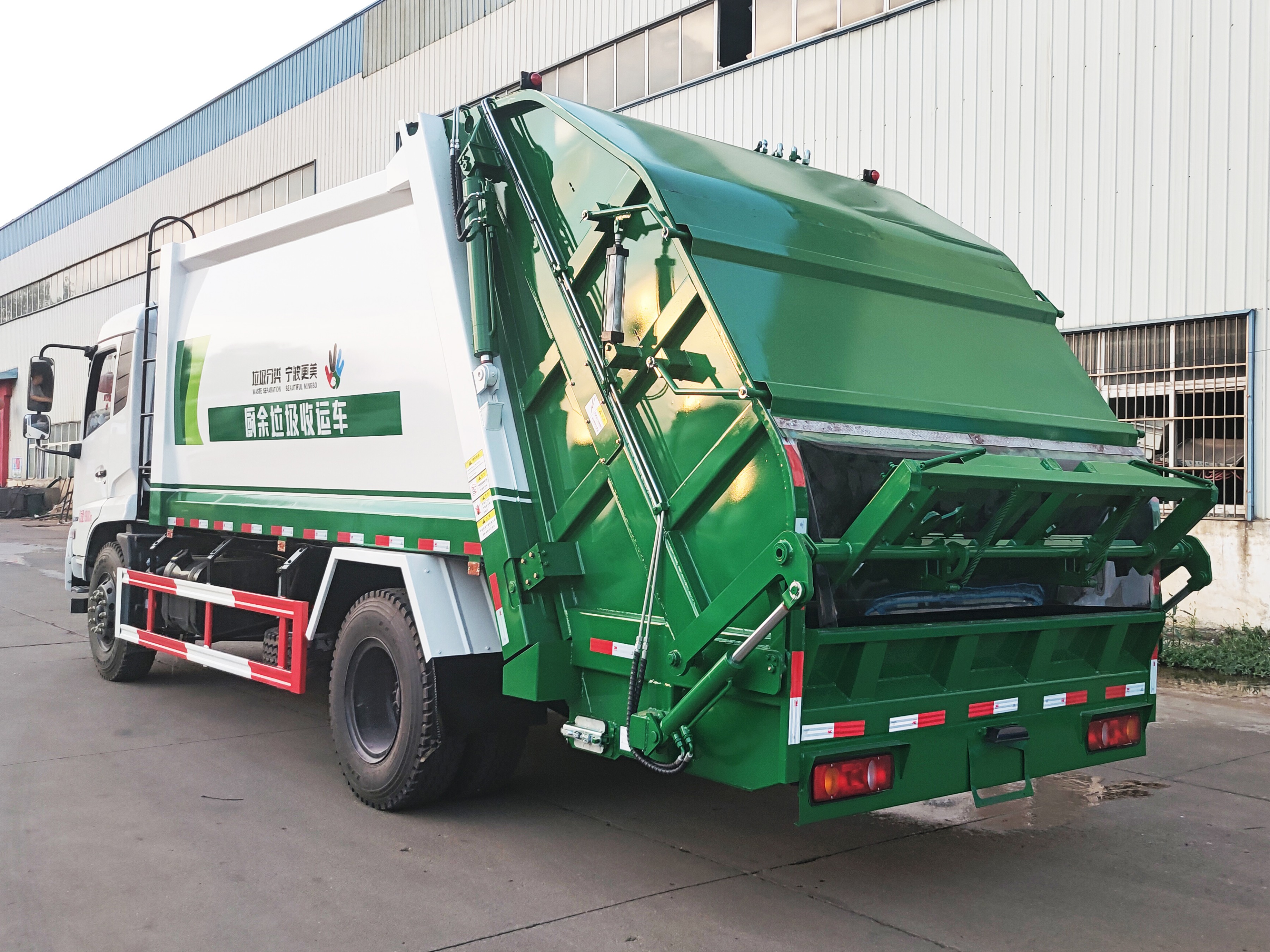

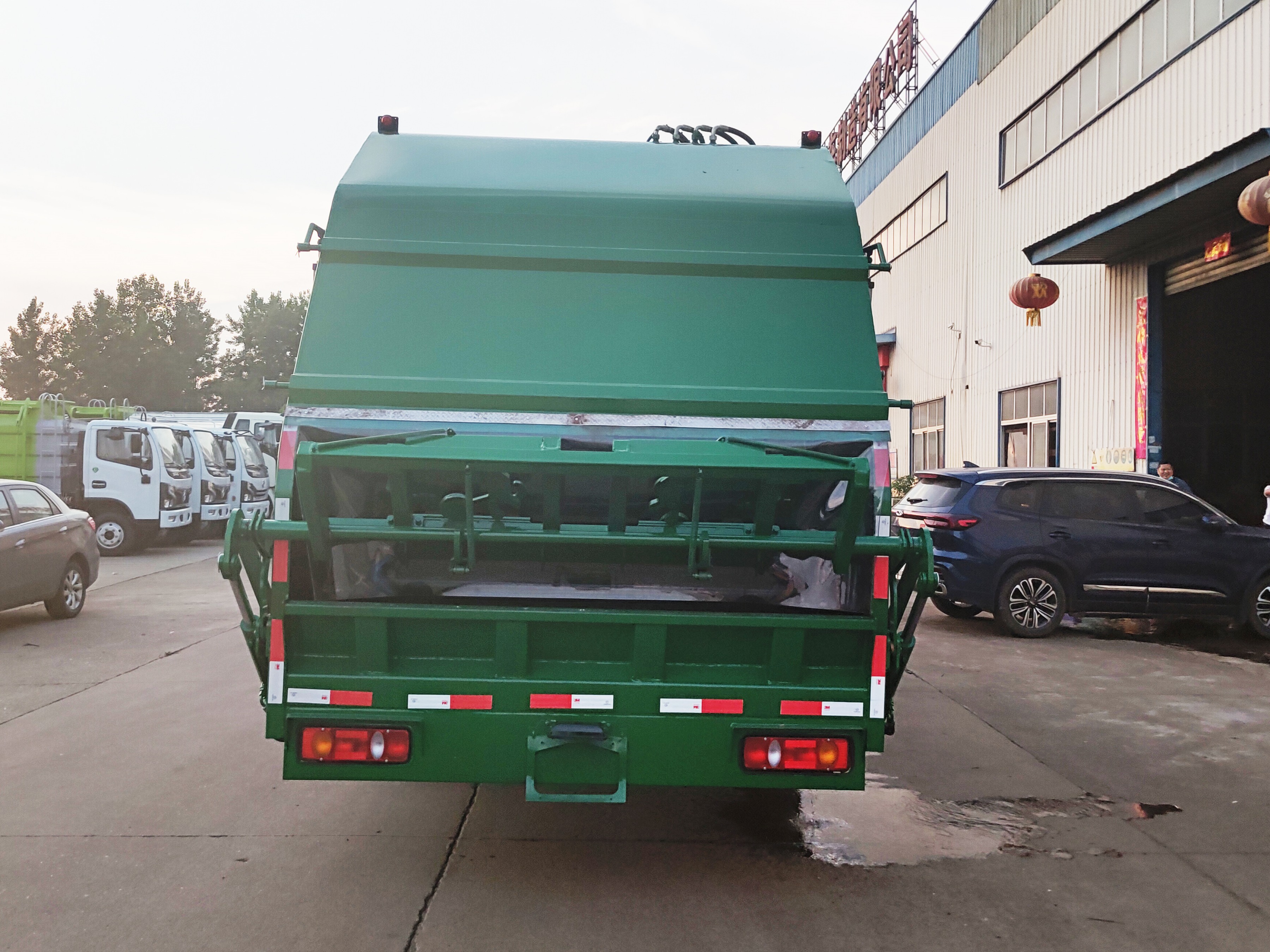

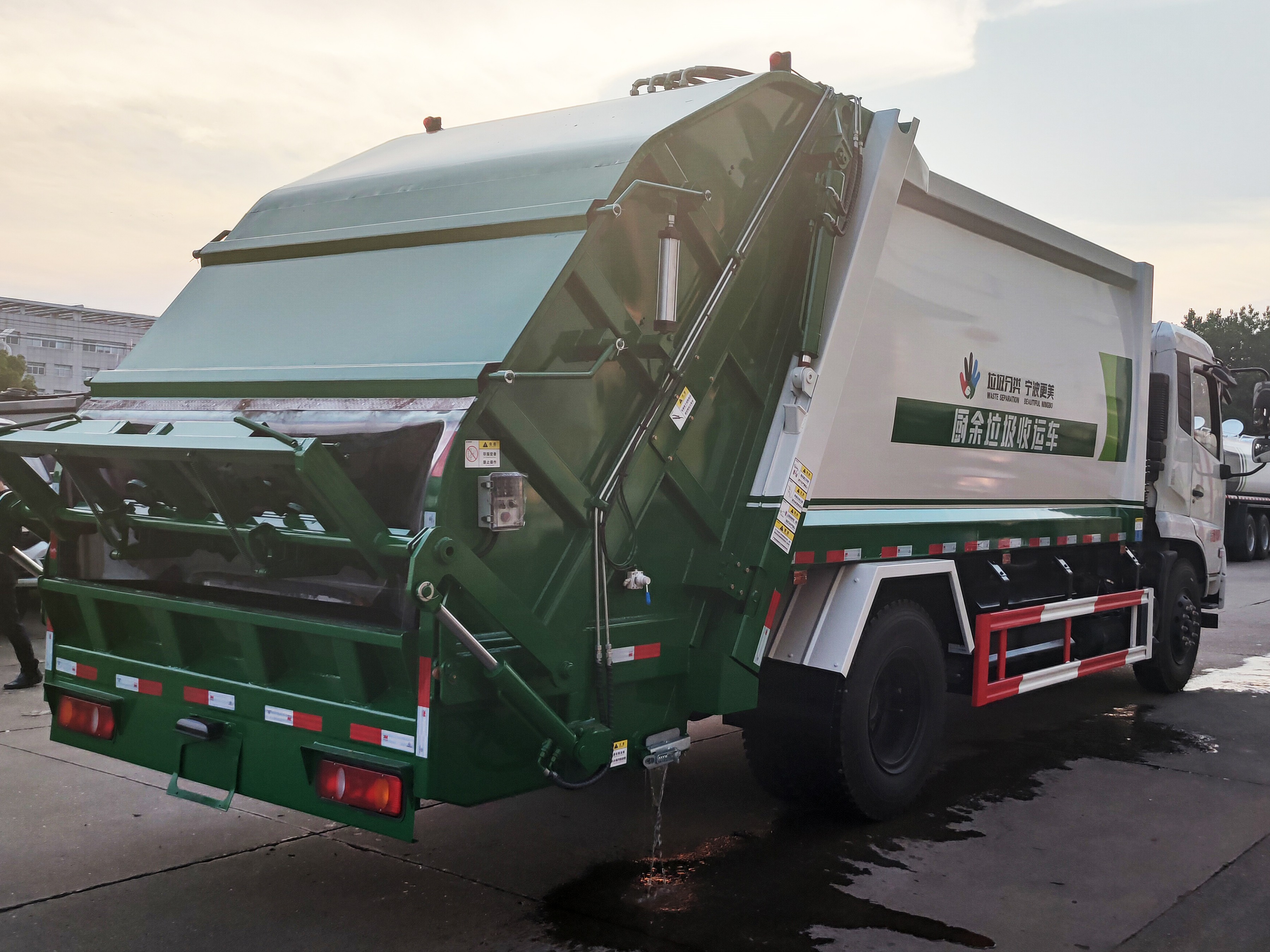

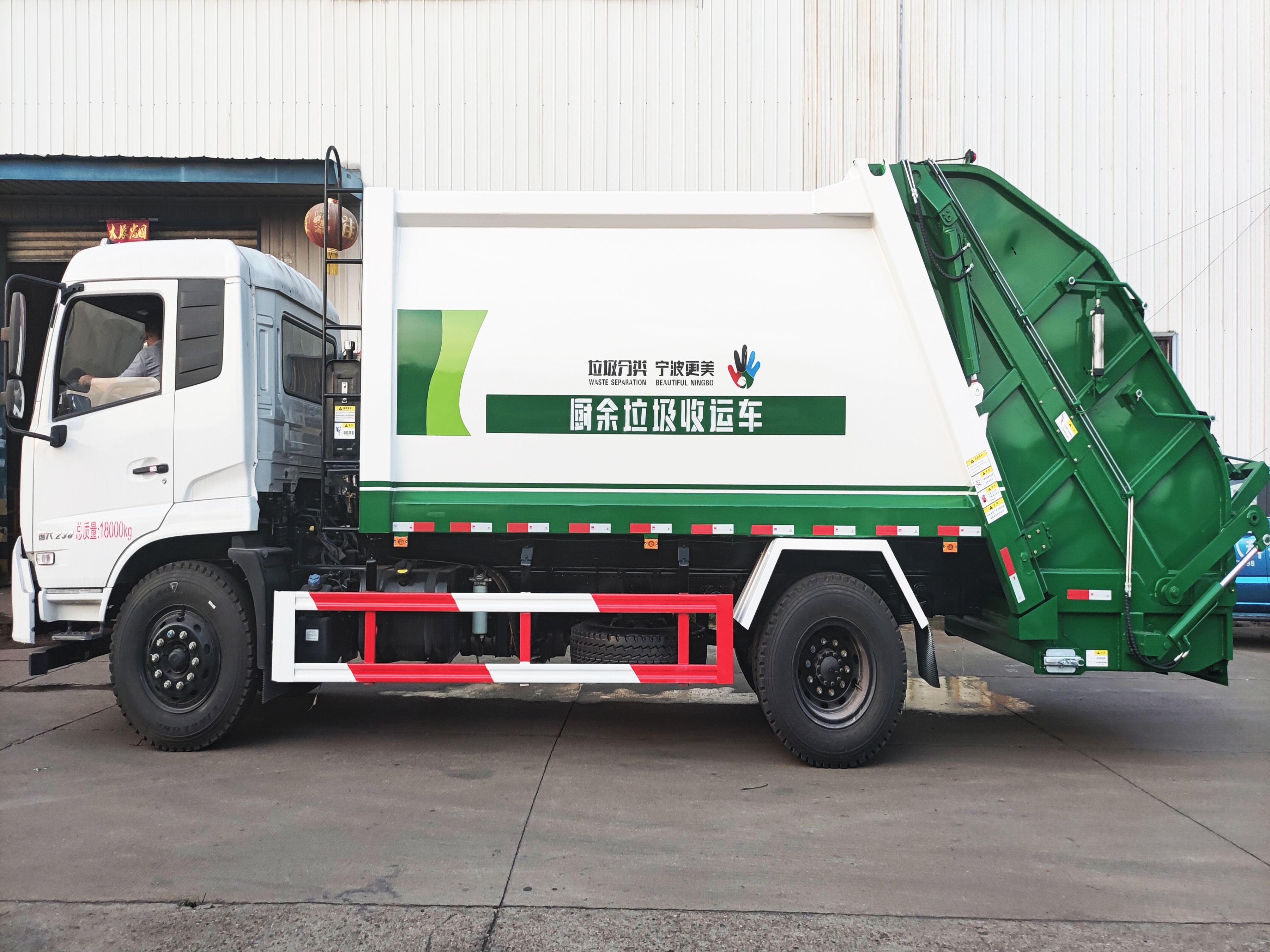

Dongfeng Tianjin 18m³ Compressed Garbage Truck
Compressed garbage truck: composed of a sealed garbage bin, hydraulic system, and operating system, it compresses and pours itself. During the compression process, all the sewage enters the sewage tank, which completely solves the problem of secondary pollution in garbage transportation.
