Chassis configuration:
Cab: Dongfeng Huashen F5
Engine: Yuchai 6-cylinder 200 horsepower National VI engine
Transmission: Fast 8-speed gearbox
Wheelbase: 4500mm
Front axle: 4.5T
Rear axle: 9T
Frame: 250mm
Tire: 10.00R20 steel wire tire
Other configurations: original air conditioning, airbag seats, electric glass doors and windows, central control car lock, air brake, original ABS, directional assistance, etc
| Product Name | Dongfeng Huashen F5 12m³ Compressed Garbage Truck |
| Driving Type | 4x2 |
| Garbage container volume(cbm) | 12m³ |
| Gross vehicle weight(Kg) | 18000(Kg) |
| Curb weight(Kg) | 9865,10100,10800(Kg) |
| Rated weight(kg) | 8005,7940,7770,7705,7070,7005(Kg) |
| Wheelbase(mm) | 4500(mm) |
| Overall Dimension(mm) | 8970,8770,8930,8360,8160,7960×2550×3290,3260(mm) |
| Engine | Yuchai 6-cylinder 200 horsepower |
| Axle Quantity | 2 |
| Transmission Type | Fast 8-speed gearbox |
| Steering Type | LHD or RHD with power steering |
| Brake system | Air brake |
| Tire Spec. & size | 10.00R20 steel wire tire, 6+1 spare |
| Cab | Dongfeng Huashen F5 |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |

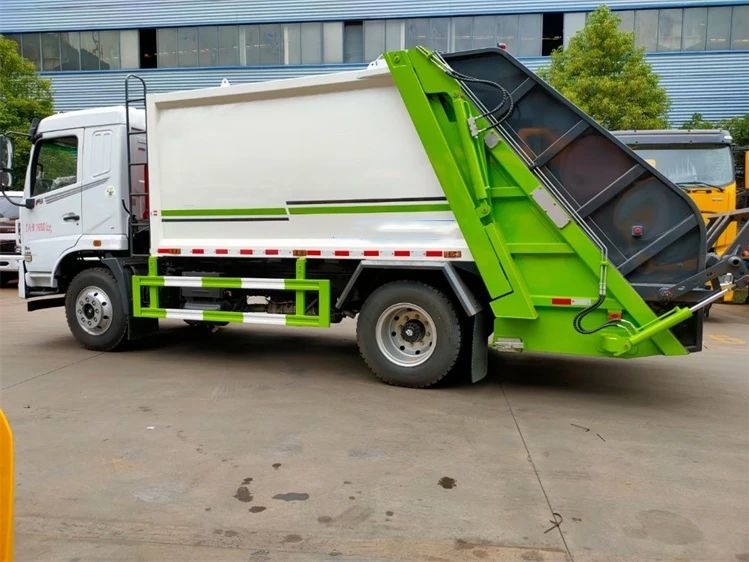

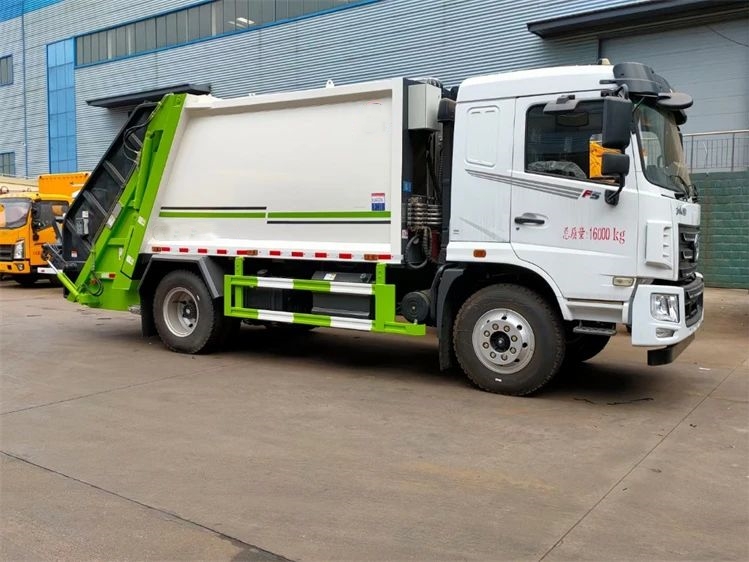

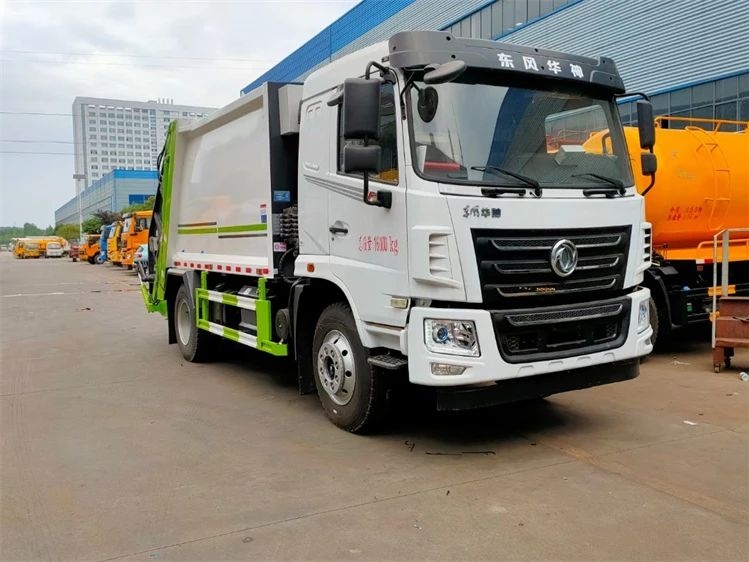

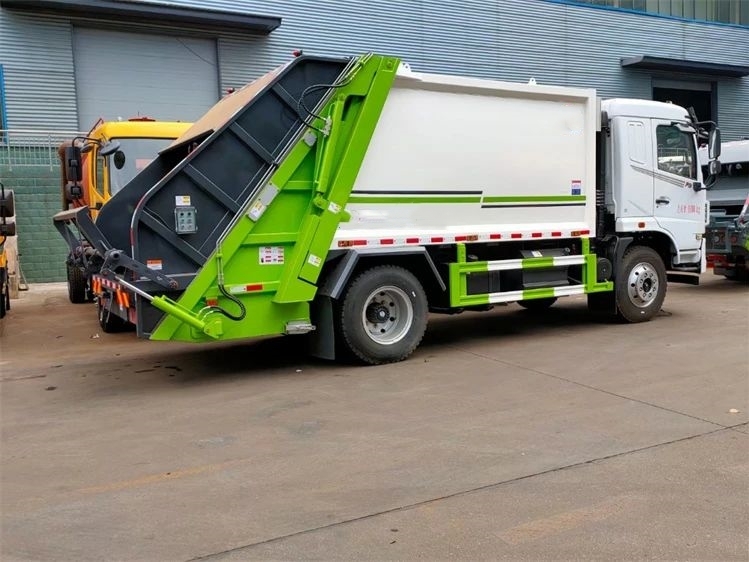

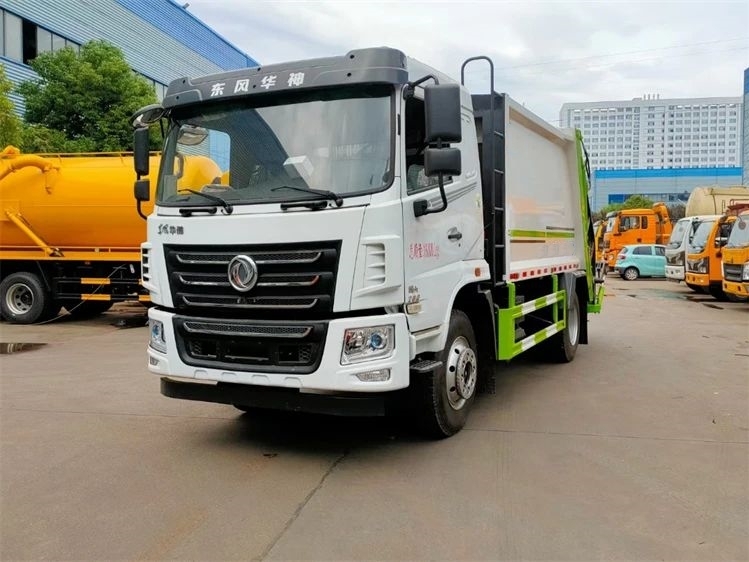

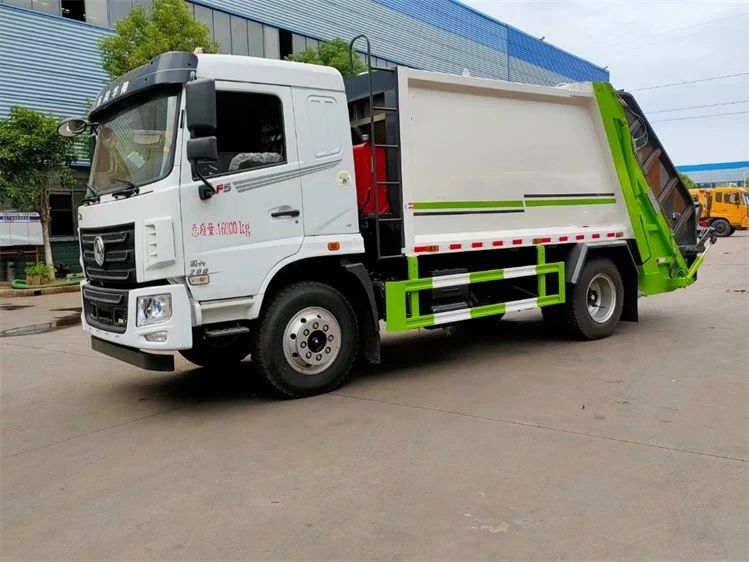

Dongfeng Huashen F5 12m³ Compressed Garbage Truck
Compressed garbage truck: composed of a sealed garbage bin, hydraulic system, and operating system, it compresses and pours itself. During the compression process, all the sewage enters the sewage tank, which completely solves the problem of secondary pollution in garbage transportation.
Product parameters
