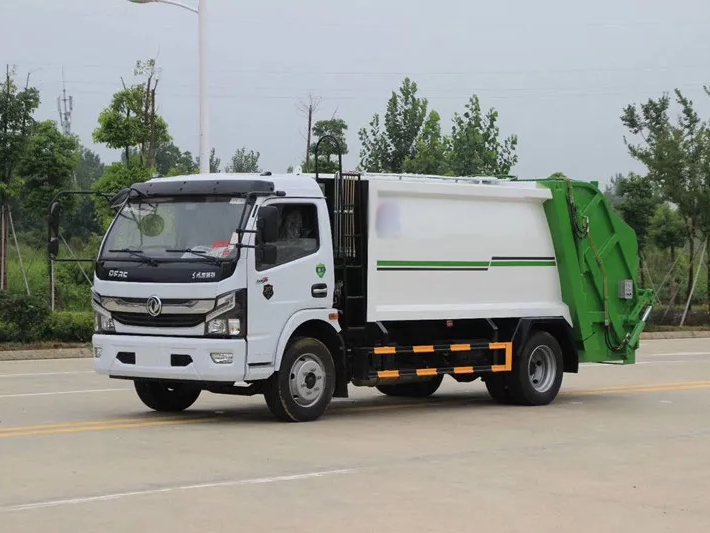

8m³ Dongfeng D7 compressed garbage truck
The introduction of 8m³ Dongfeng D7 compressed garbage truck:
Chassis configuration:Adopting the new Dongfeng D7 series cab, with a wheelbase of 3800mm, equipped with a National VI Dongfeng Chaochai 170 horsepower engine/Guangxi Yuchai 140 horsepower engine, a Wanliyang 6-speed gearbox, a 5.5T rear axle, 245/70R19.5 vacuum tires, air brake, cut-off brake, electric window, central locking, multifunctional steering wheel, daytime running LED crystal lights, Dongfeng original air conditioning, ABS, GB7258 new regulations.
Upper configuration: The material of the compartment is Q345 manganese steel, with a thickness of 4mm on the edges and 4mm on the bottom. The compartment is curved and has a larger capacity of 8 cubic meters. Bidirectional compression structure, with dual sewage tanks on the tail side, Hubei Boli or Yantai Future oil cylinder, Japanese Huarka sealing ring, Hefei Changyuan gear pump, Yangzhou Zhongmei multi way valve, Zhonglian style PLC, integrated operation mode of hand and electricity, with cab operation
| Product Name | 8m³ Dongfeng D7 compressed garbage truck |
| Driving Type | 4x2 |
| Weight /Volume | |
| Garbage container volume(cbm) | 8 |
| Rated payload weight(kg) | 2405 |
| Dimensions | |
| Wheelbase(mm) | 3800 |
| Overall Dimension(mm) | 7340×2350×2800 |
| Engine | |
| Engine brand & model | Yuchai, YCY24140-60 |
| Displacement(L)/Power(kw) | 2.36L/103KW |
| Chassis | |
| Axle Quantity | 2 |
| Transmission Type | 6 forward gears and 1 reverse gear |
| Steering Type | LHD or RHD with power steering |
| Brake system | Air brake |
| Tire Spec. & size | 245/70R19.5, 6 with a spare |
| Cab | |
| Standard configuration | D7 series cab |
| Air conditioning | YES |
| Performance parameter | |
| Garbage container material | Q345 manganese plate and carbon steel plate |
| Standard configuration | 1. Pressure filling mechanism 2. Feeding device 3. Lift the pressure filling device 4. Sewage collection tank 5. Rear electronic control operation 6. Front manual operation |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |

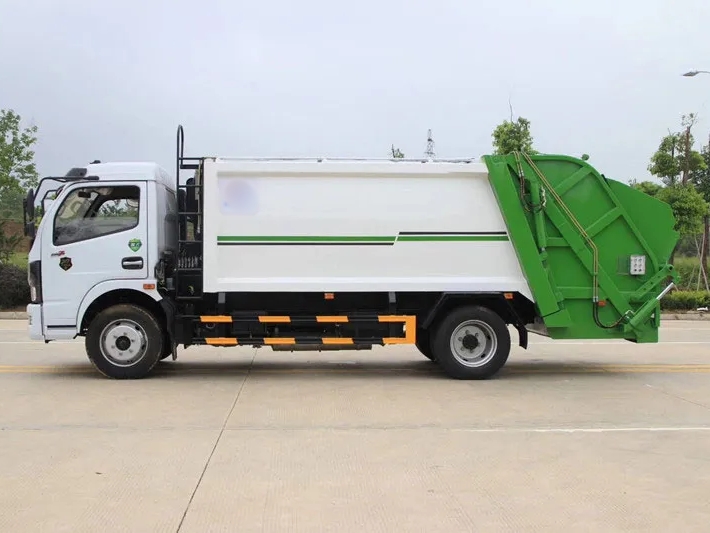

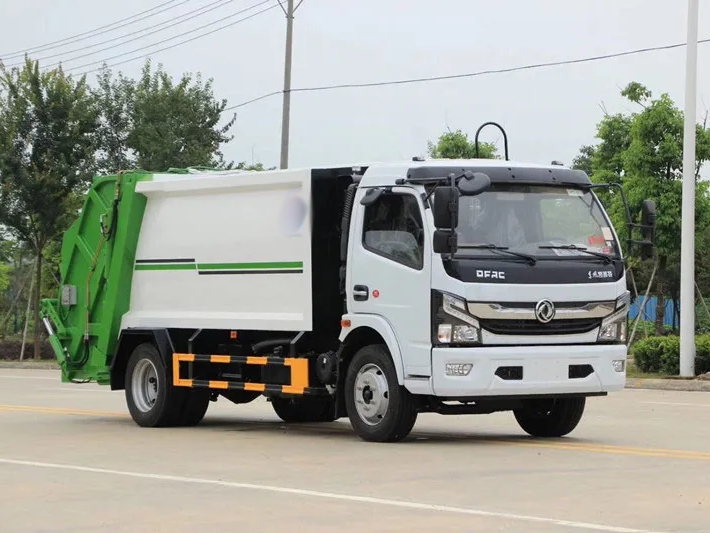

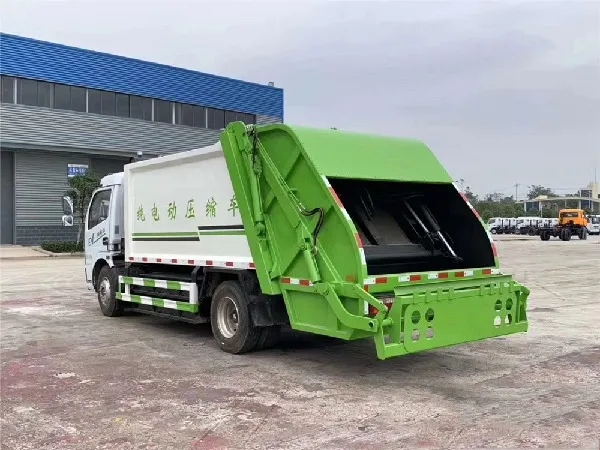

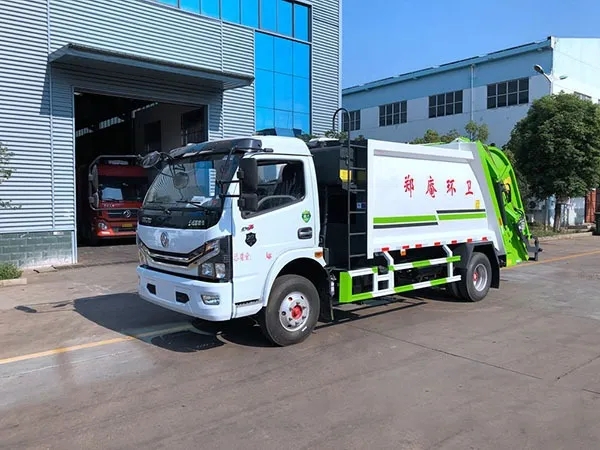

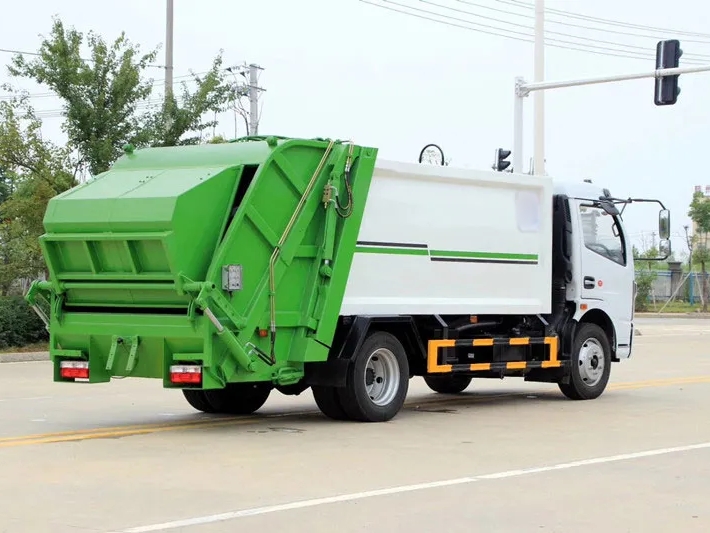

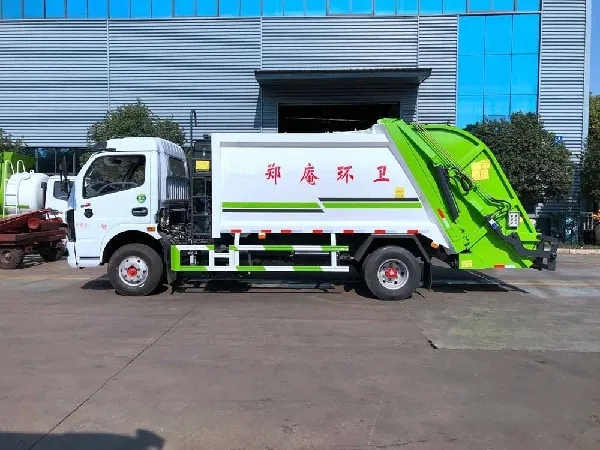

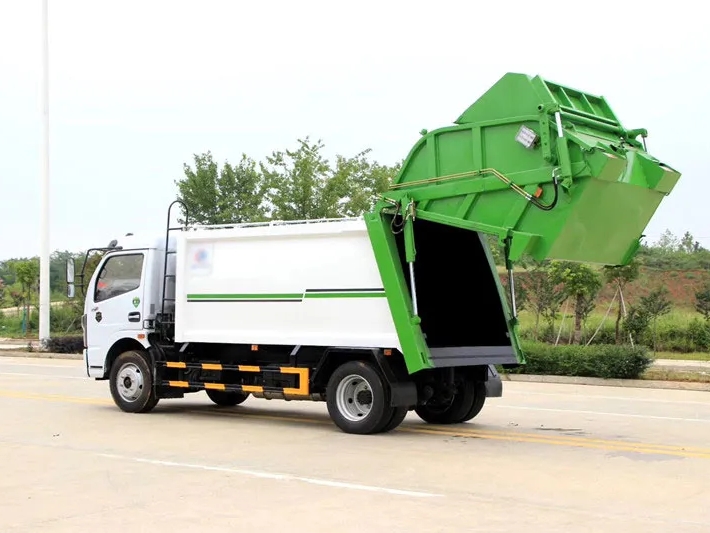

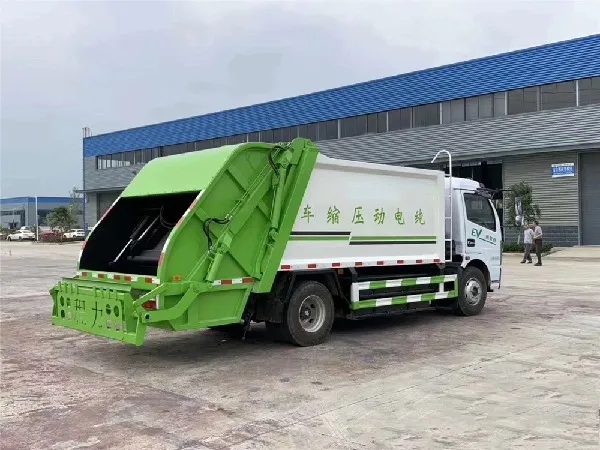

8m³ Dongfeng D7 compressed garbage truck
Compressed garbage truck: composed of a sealed garbage bin, hydraulic system, and operating system, it compresses and pours itself. During the compression process, all the sewage enters the sewage tank, which completely solves the problem of secondary pollution in garbage transportation.
Product parameters
