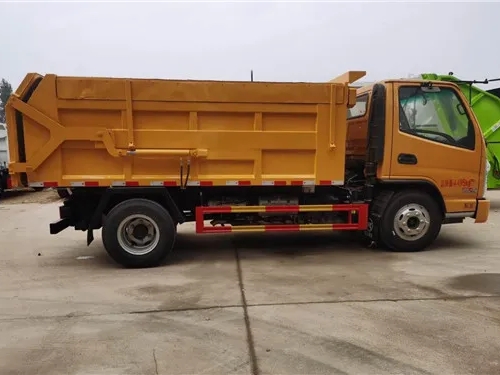

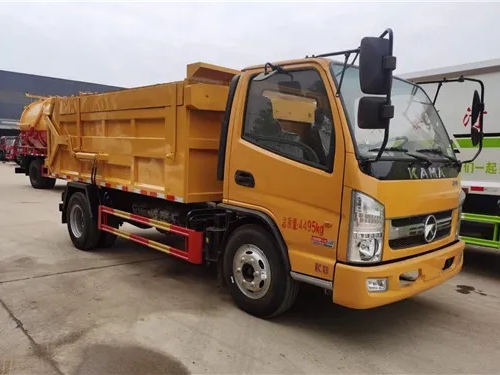

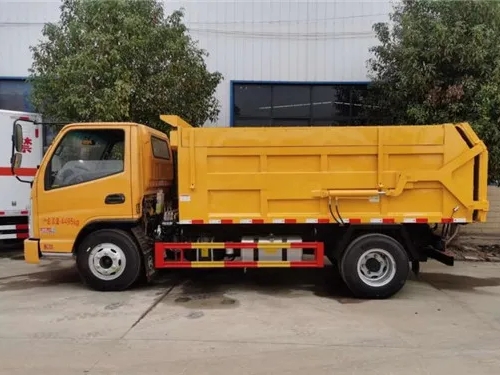

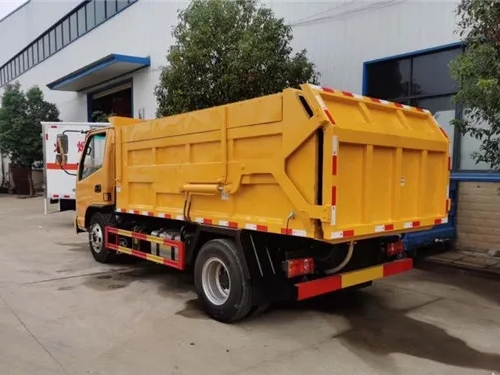

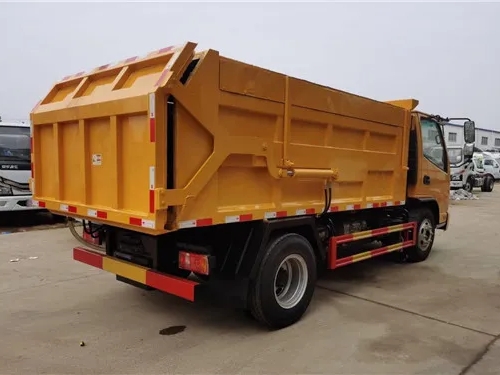

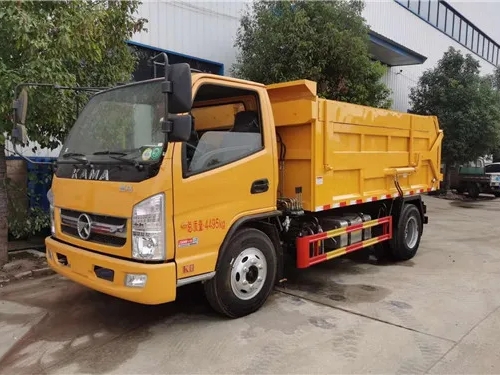

KAMA compression docking garbage truck
Chassis configuration:
Fuyunlai 1820MM single row lowered height (2150MM) cab, Weichai 130 horsepower engine, Wanliyang 5-speed with auxiliary gearbox, 200MM double deck beam, 1070 rear axle, cut-off brake, dynamic rotation, 7.50R16 all steel tires, original air conditioning, central control, electric window, power take-off, TBOX.
Installation configuration:
Square shaped cargo box, with internal dimensions of 3500 * 1850 * 850+200 (wing cover), central double roof, rear hydraulic tailgate, all-round wing cover, and integrated manual and automatic operation.
The vehicle has a height of 2180 and is easy to operate both indoors and outdoors. The curb weight is 4100kg, the actual vehicle weight is not overweight, the external dimensions are consistent, and there is no worry for households nationwide. If the payload is less than 750kg, there are no restrictions on driving in the central urban area. The wingspan cover protects garbage from scattering and avoids secondary pollution. Drive with ease and save labor costs. Weichai engines have a significant fuel saving effect, with no more than 6 cents of fuel per kilometer when unloaded. The vehicle has rich configurations and complete functions, and traditional dump truck functions in various regions have been basically fully equipped, making it versatile.
| Product Name |
KAMA compression docking garbage truck |
| Driving Type |
4×2 |
| Weight /Volume |
|
| Garbage container dimension(mm) |
3290,3590×1800×1000 |
| Rated payload weight(kg) |
465 |
| Dimensions |
|
| Wheelbase(mm) |
3300 |
| Overall Dimension(mm) |
5650×2100×2180(mm) |
| Engine |
|
| Engine brand & model |
Weichai,WP2.3NQ130E61 |
| Displacement(L)/Power(kw) |
2.3L/96KW |
| Chassis |
|
| Axle Quantity |
2 |
| Transmission Type |
5 forward gears and 1 rear gear |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
7.00R16LT 8PR, 6 with a spare |
| Cab |
|
| Standard configuration |
KAMA cab |
| Air conditioning |
YES |
| Performance parameter |
|
| Garbage container material |
High quality carbon steel plate fully sealed welded structure |
| Standard configuration |
Made of high-quality carbon plates of national standard thickness from Wugang, with a 3mm thick edge and 4mm thick bottom skeleton carriage. The skeleton carriage is designed and manufactured according to the optimized outer frame style that can withstand the maximum pressure. |
| Other |
The matching garbage bin can be customized. |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
KAMA compression docking garbage truck
The types of garbage trucks include: compression
garbage truck, self dumping garbage truck, swing arm garbage truck, pull arm
garbage truck, hook arm garbage truck (box detachable garbage truck), sealed
garbage truck, hanging bucket garbage truck (self loading and unloading garbage
truck)
Docking garbage truck, also known as garbage compression station docking garbage truck, is a specialized vehicle used for garbage transfer and unloading operations in urban garbage compression stations.
Product parameters
