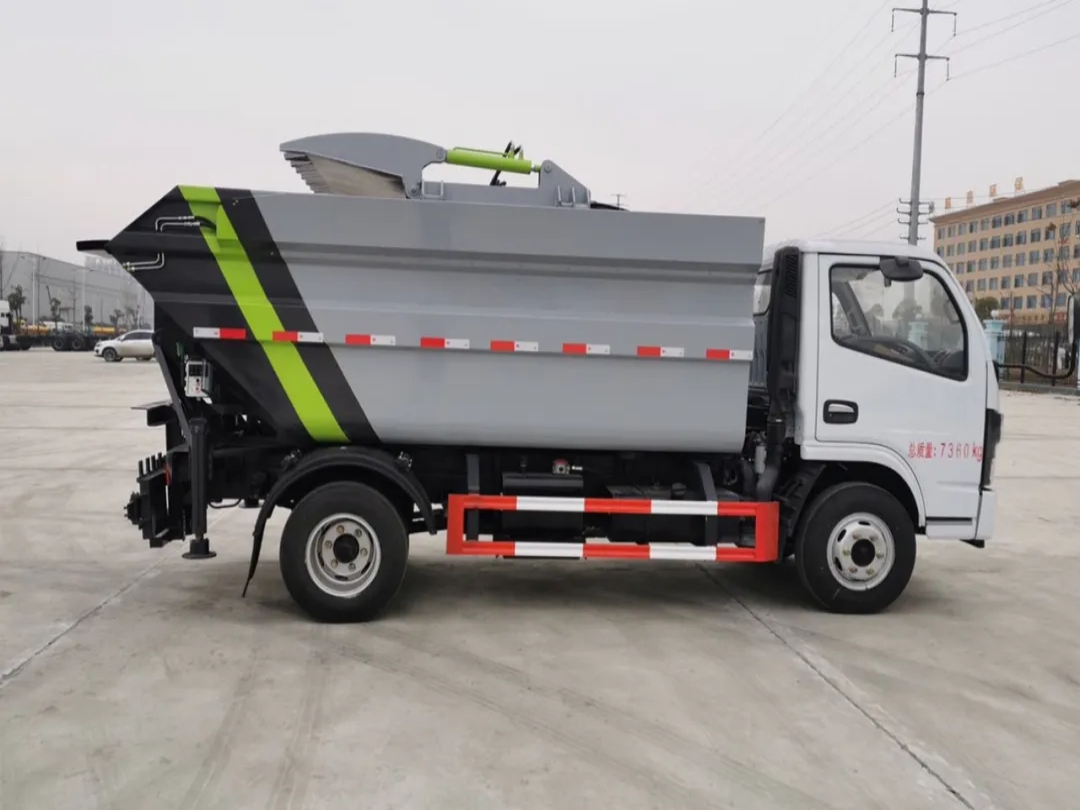

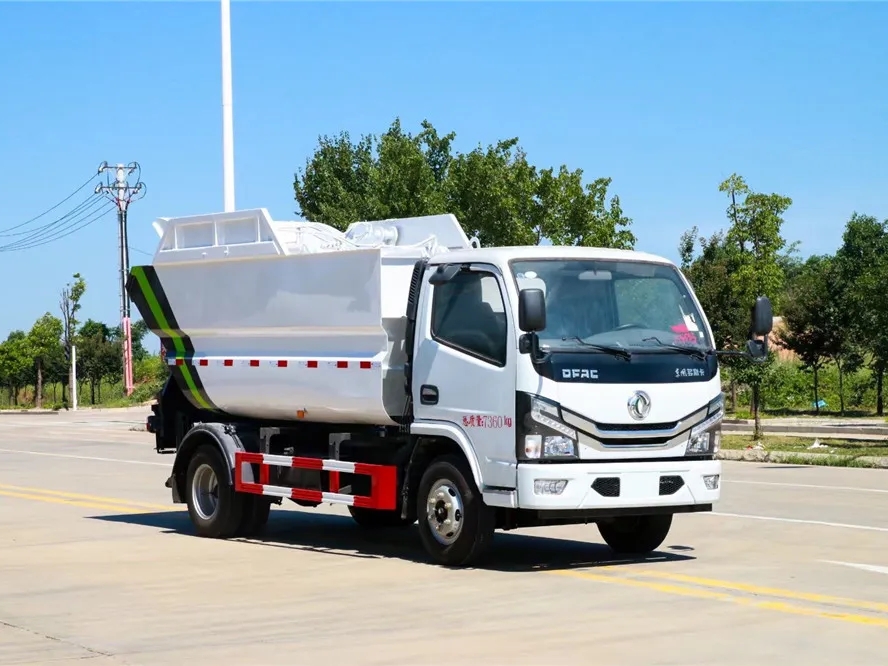

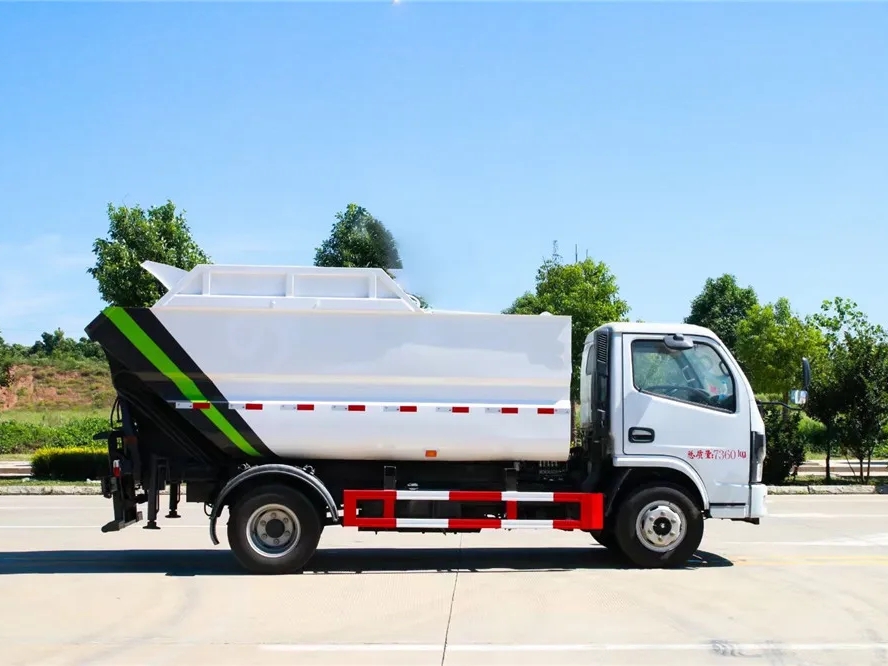

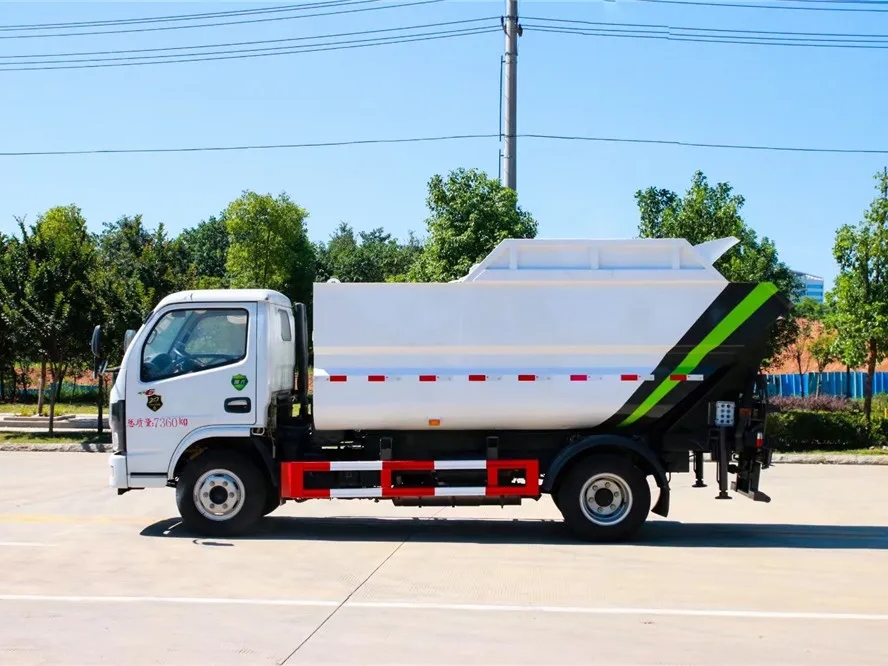

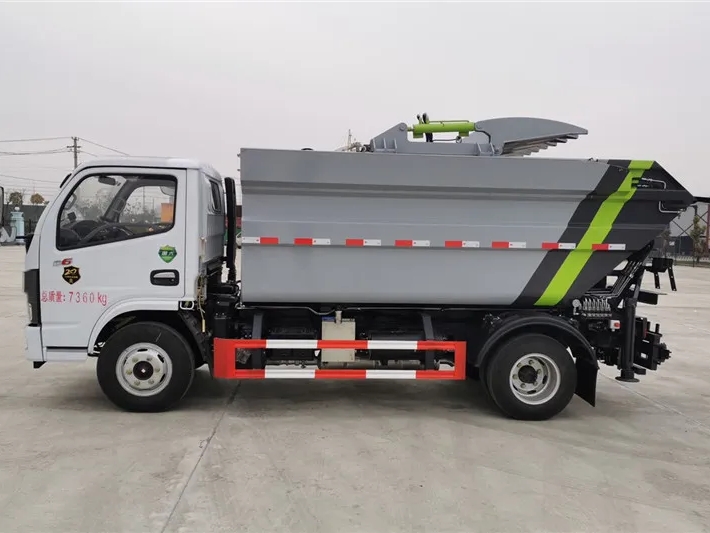

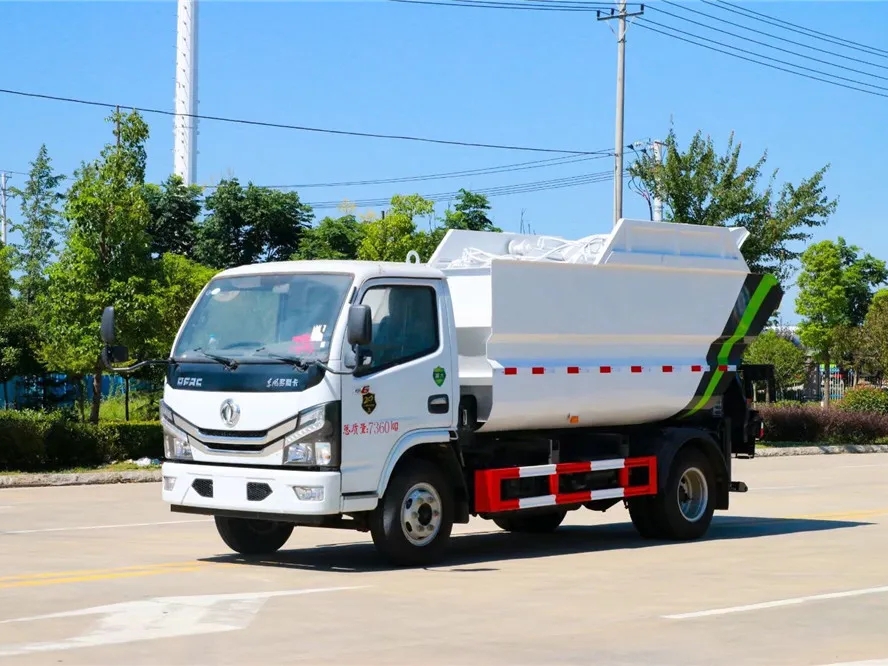

Dongfeng D6 garbage vehicle with rear hanging bucket
The introduction of 8m³ Dongfeng D7 compressed garbage truck:
Chassis configuration:Adopting Dongfeng D6 series cab, with a wheelbase of3308mm, Guangxi Yuchai 140 horsepower engine, a 6-speed gearbox, 7.00R16tires, air brake, cut-off brake, electric window, central locking, multifunctional steering wheel, daytime running LED crystal lights, Dongfeng original air conditioning, ABS,
Upper configuration: The box body is made of high-quality carbon steel with a thickness of 3mm on the edges and 4mm on the bottom. It has good anti-corrosion, rust proof and sealing properties both inside and outside, a large carrying capacity, and is safe, energy-saving and environmentally friendly. The rear door can be opened by hydraulic pressure.
| Product Name | Dongfeng D6 garbage vehicle with rear hanging bucket |
| Driving Type | 4x2 |
| Weight /Volume | |
| Garbage container volume(cbm) | 6 |
| Rated payload weight(kg) | 315(Kg) |
| Dimensions | |
| Wheelbase(mm) | 3308 |
| Overall Dimension(mm) | 5790x2120x2650 |
| Engine | |
| Engine brand & model | Yuchai, YCY24140-60 |
| Displacement(L)/Power(kw) | 2.36L/103KW |
| Chassis | |
| Axle Quantity | 2 |
| Transmission Type | 6 forward gears and 1 reverse gear |
| Steering Type | LHD or RHD with power steering |
| Brake system | Air brake |
| Tire Spec. & size | 7.00R16, 6 with a spare |
| Cab | |
| Standard configuration | D6 series cab |
| Air conditioning | YES |
| Performance parameter | |
| Garbage container material | high-quality carbon steel |
| Standard configuration | The box body is made of high-quality carbon steel with a thickness of 3mm on the edges and 4mm on the bottom. It has good anti-corrosion, rust proof and sealing properties both inside and outside, a large carrying capacity, and is safe, energy-saving and environmentally friendly. The rear door can be opened by hydraulic pressure. |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng D6 garbage vehicle with rear hanging bucket

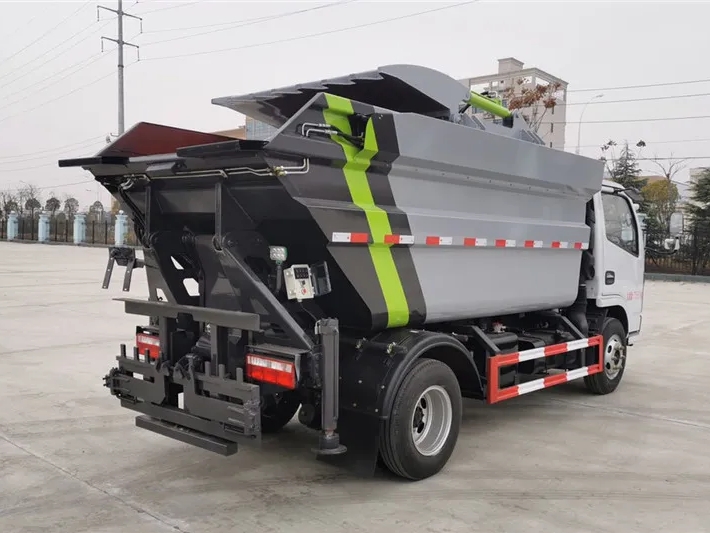

Bucket hanging garbage truck: also known as a self loading and unloading garbage truck, it pours the garbage from the garbage bin into the carriage through a specialized bucket hanging device. This garbage truck is easy to operate and suitable for collecting garbage from scattered trash cans.
Product parameters
