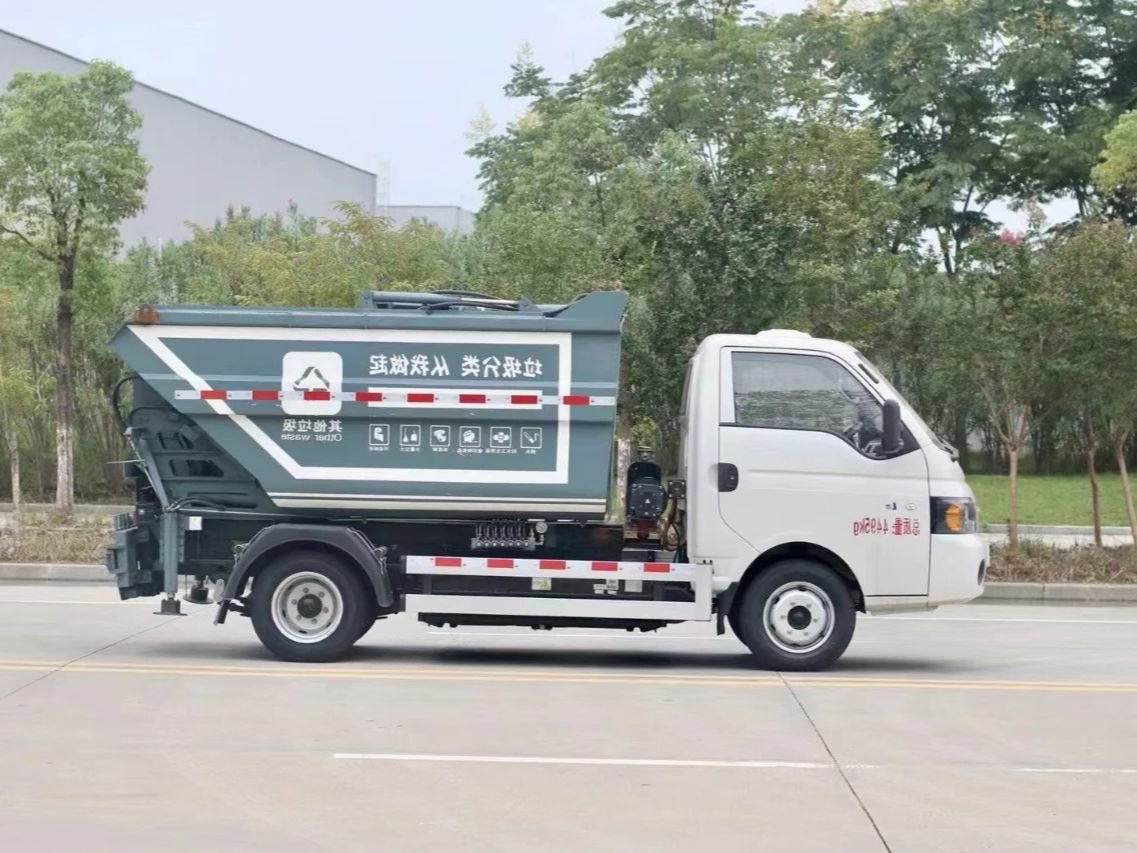

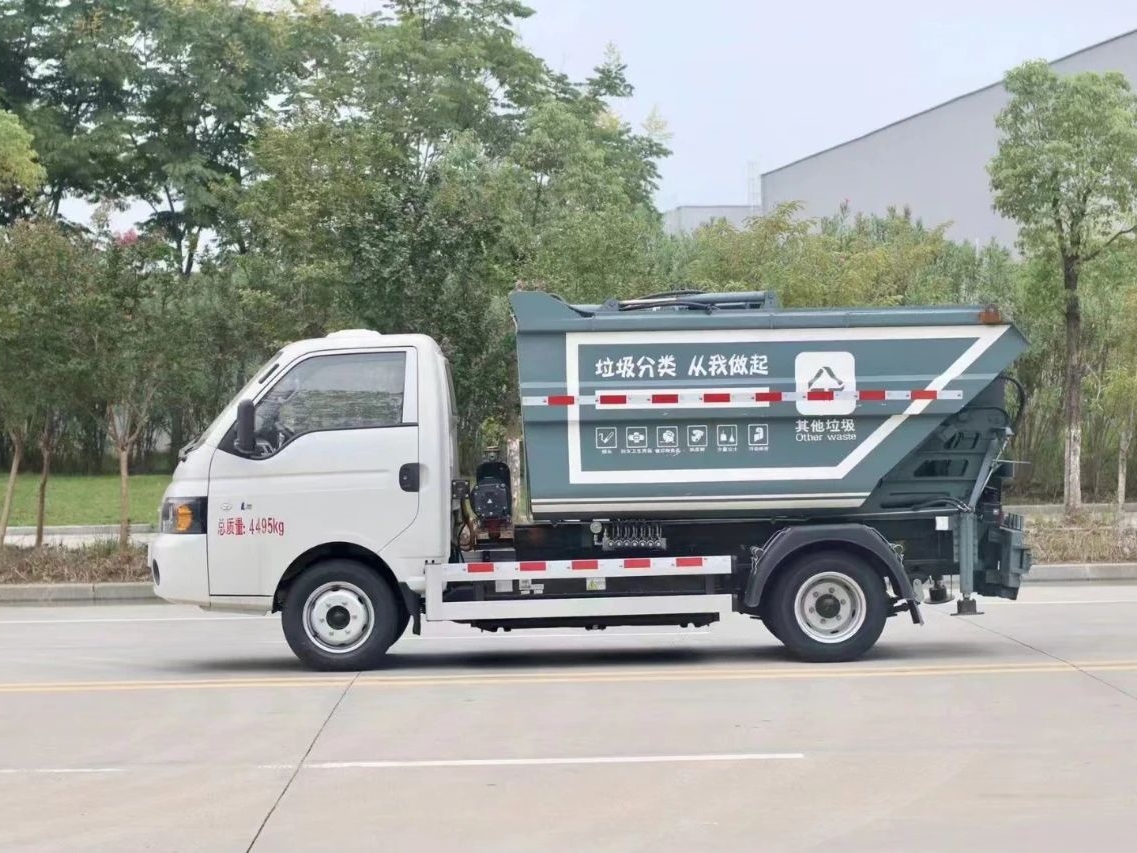

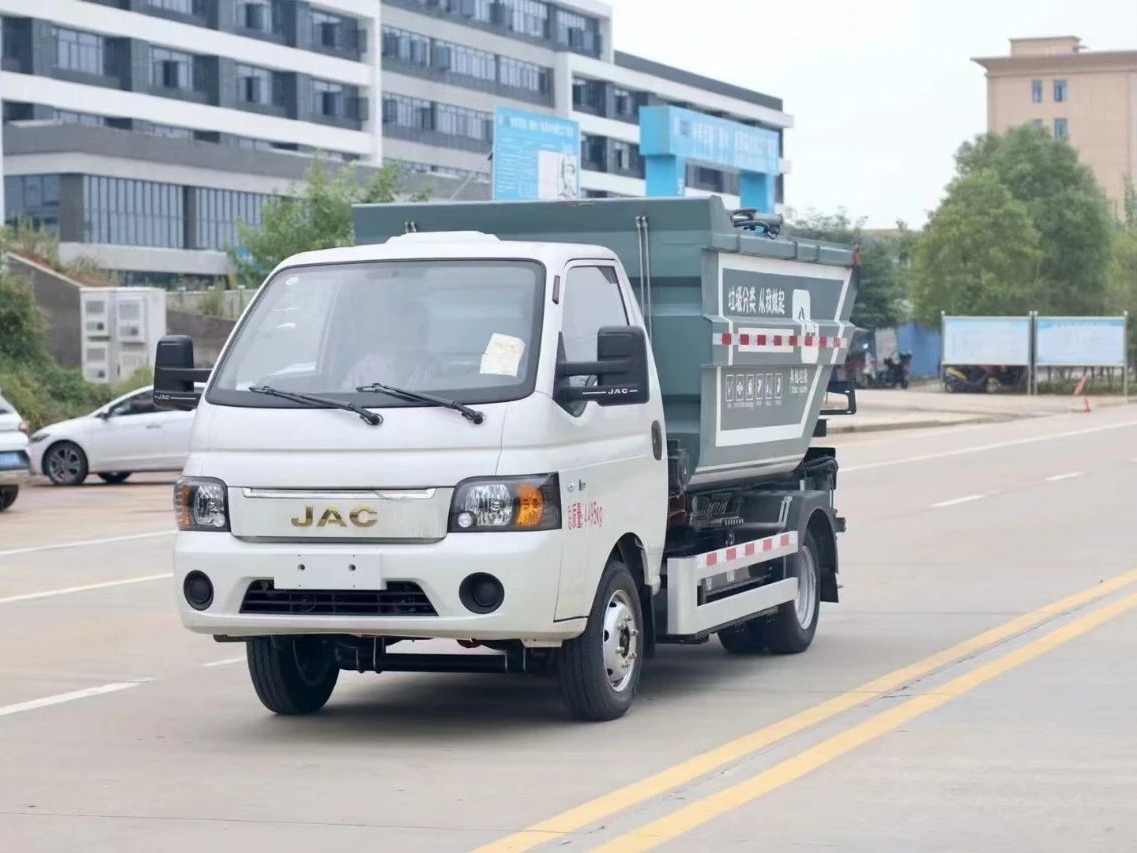

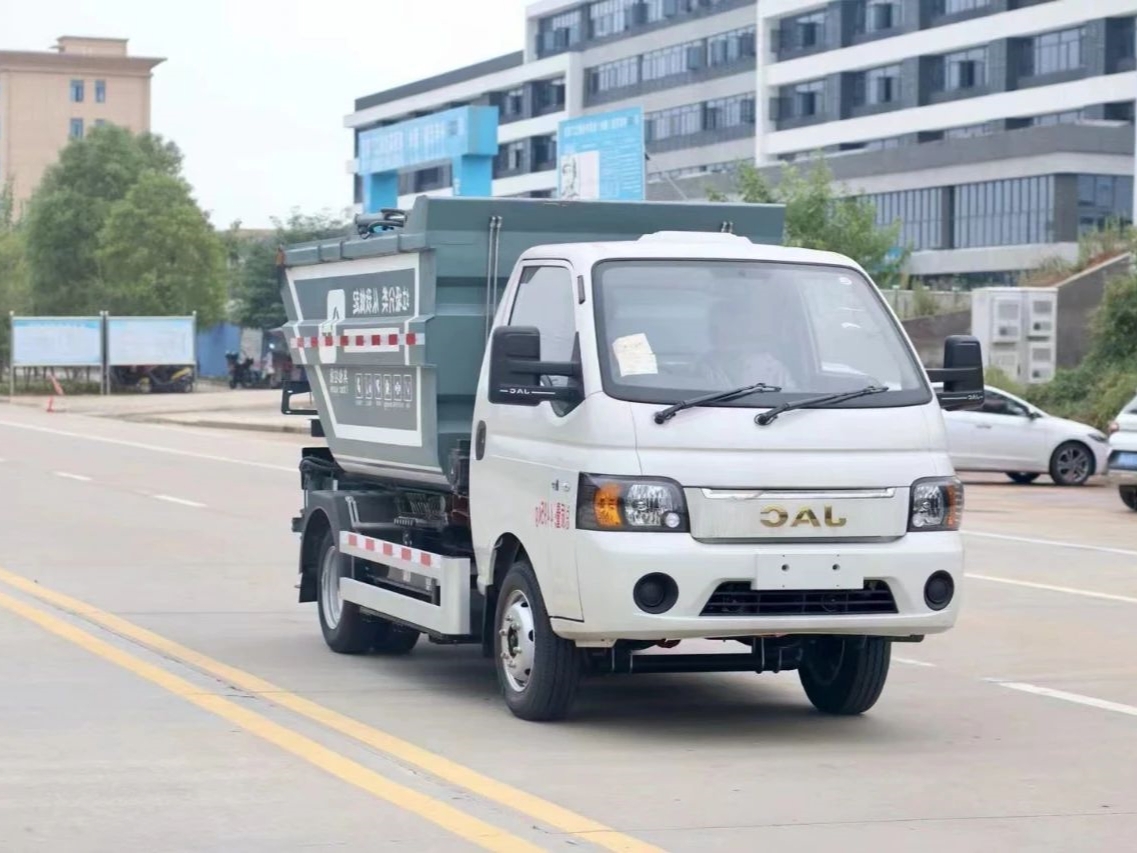

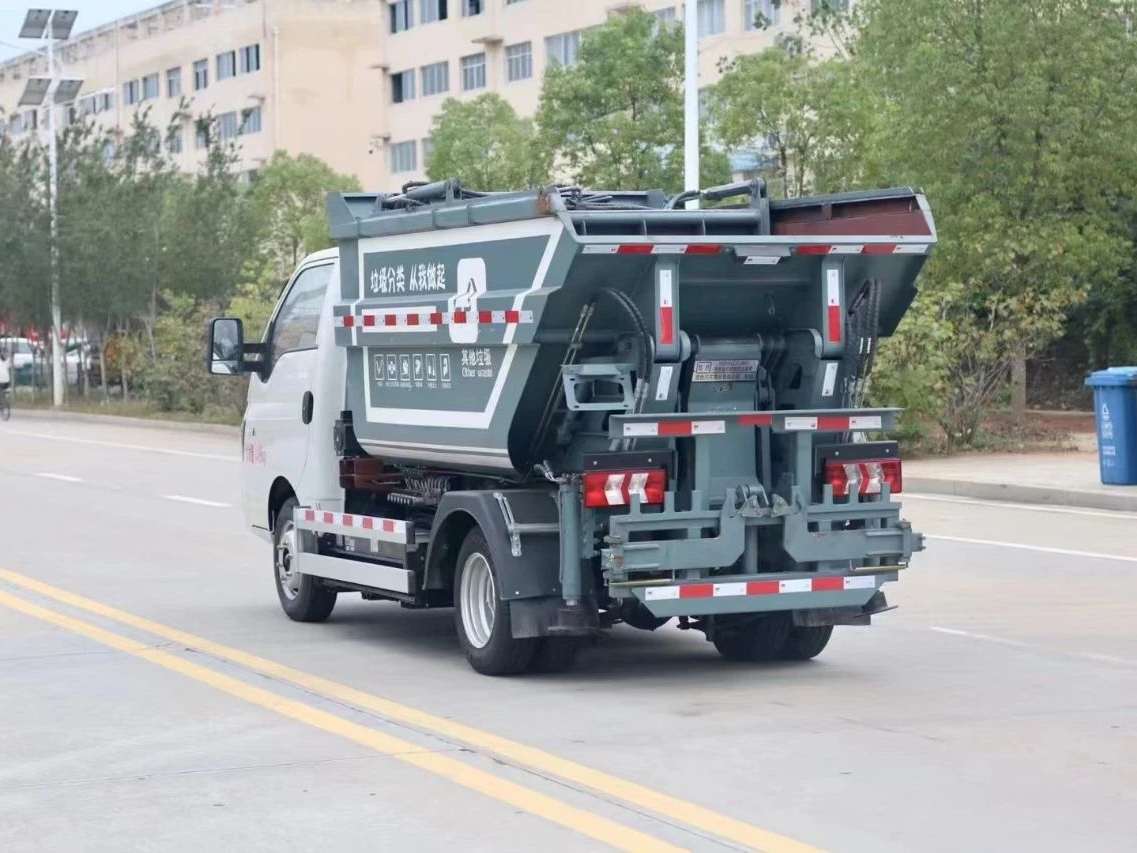

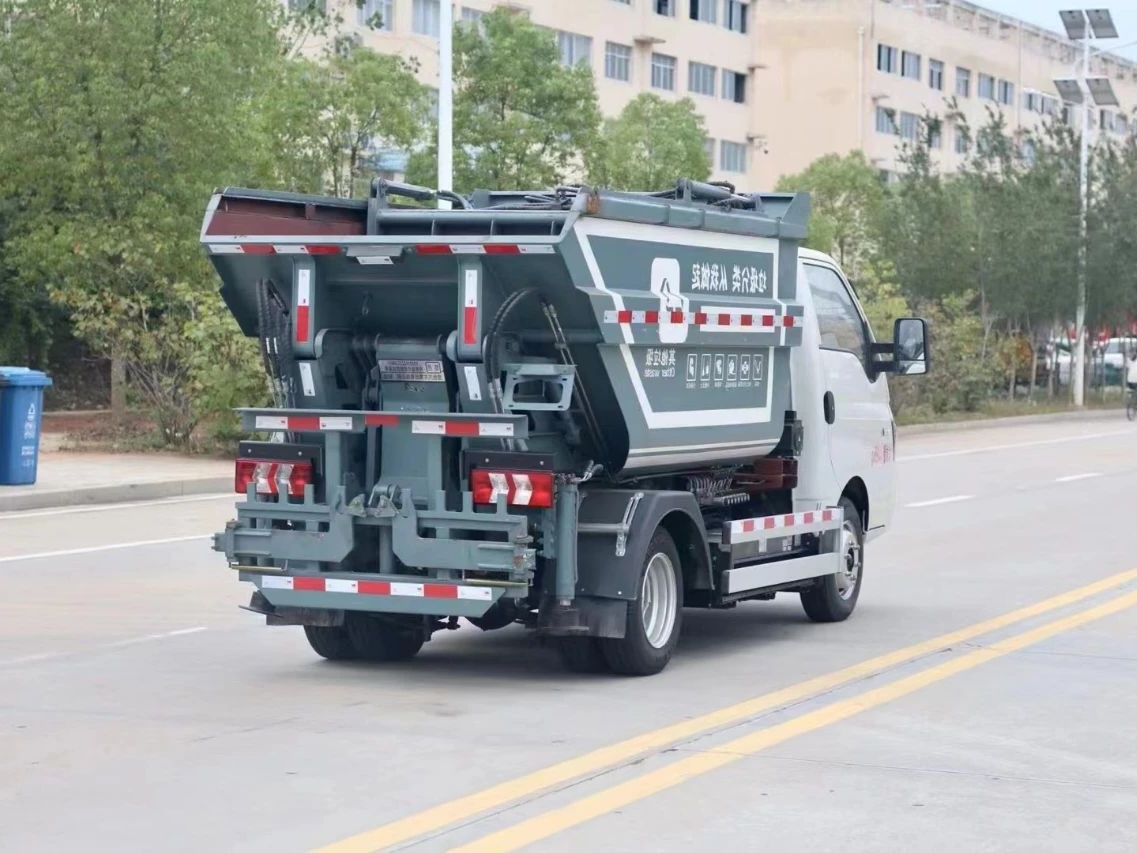

JAC pure electric high-level dump garbage truck
2024-10-07 09:54:11 Source：CLW
JAC pure electric high-level dump garbage truck
Chassis configuration:Jianghuai Shuialing I3 pure electric chassis, 2850mm wheelbase, Ningde 55.7kwh lithium iron phosphate battery, Shandong Petlai permanent magnet synchronous motor, rated power/torque/speed (Kw/N.m/r/min): 50/130/3673, peak power/torque/speed (Kw/N.m/r/min): 110/330/12000, rated voltage: 350V, Shenzhen Envision controller, MT automatic transmission, front disc and rear drum axle, 4+6 steel plate springs, with ABS, automatic adjustment arm, shoe wear alarm, central locking, electric doors and windows, air conditioning, warm air.
| Product Name |
JAC pure electric high-level dump garbage truck |
| Driving Type |
4×2 |
| Gross vehicle weight(Kg) |
4495(Kg) |
| Curb weight(Kg) |
3300(Kg) |
| Rated weight(kg) |
1065(Kg) |
| Wheelbase(mm) |
2850(mm) |
| Overall Dimension(mm) |
5260×1840×2220(mm) |
| Engine brand & model |
TZ220XSWF3 |
| Battery type |
Lithium Iron Phosphate battery |
| Axle Quantity |
2 |
| Transmission Type |
5-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
/ |
| Tire Spec. & size |
185R15 vacuum tire, 6+1 spare |
| Cab |
JAC shuailing I3 cab |
| Volume(m³) |
4m³ |
| Tank body |
Reinforced square tank body, Q710 high-strength steel |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
JAC pure electric high-level dump garbage truck
Dump garbage truck also known as bucket hanging garbage truck, self loading and unloading
garbage truck, refuse collecting truck ,it pours the garbage in the garbage bin
into the carriage through a specialized bucket hanging device. This
garbage truck is easy to operate and suitable for collecting garbage from
scattered trash cans.
The high-level self loading and unloading garbage truck is modified from a second-class chassis with specialized working devices such as garbage bins, bucket flipping mechanisms, sub frames, hydraulic systems, and electronic control systems. Widely applicable to environmental sanitation, municipal administration, property communities, residential areas with high and concentrated garbage, urban streets, etc., it has a sealed self dumping function, hydraulic operation, and convenient intelligence.
Installation configuration of JAC pure electric high-level dump garbage truck
The effective volume of the box is 4 cubic meters
Box shape curved box material bottom 4 edges 4
Loading cycle time of scraper mechanism ≤ 35s
The cycle time of the bucket flipping mechanism is ≤ 20s
Unloading cycle time ≤ 55s
Discharge port height 1150mm
Unloading height 4250mm
Two 120L/240L trash cans and one 660L trash can with flipping mechanism
Product parameters
