Chassis configuration:
JAC Junling S9 sanitation vehicle special chassis, Yuchai 220 horsepower, Fast 8-speed with synchronizer, 4.5-ton front axle and 10 ton rear axle, 1000R20 18PR radial steel tires, 160L fuel tank, double-layer frame, central locking electric glass remote key, multifunctional steering wheel, Songzhi air conditioning, airbag seat, heated rearview mirror, 4.5/10T front and rear axles, LED combination headlights.
Installation configuration:
(1) 2024 new compression, with a capacity of 15 cubic meters,
(2) Tail structure: Flip board, sewage tank, with rear night lighting
(3) Accessories: Wanye hydraulic pump, Weisenbole oil cylinder, Weisenbole complete set of valves, with back pressure valve
(4) Electronic control: The electronic control is in the form of CAN bus integrated circuit, with remote control, and the rest are standard.
| Product Name | JAC Junling S9 15m³ Compressed Garbage Truck |
| Driving Type | 4x2 |
| Garbage container volume(cbm) | 15m³ |
| Gross vehicle weight(Kg) | 18000(Kg) |
| Curb weight(Kg) | 9920,10120,10420(Kg) |
| Rated weight(kg) | 7885,7685,7385(Kg) |
| Wheelbase(mm) | 4500,5000(mm) |
| Overall Dimension(mm) | 8550,8710,8830,8930,8990,9090×2500,2550×3150,3250(mm) |
| Engine | YCS04220-61A, Yuchai 220hp |
| Axle Quantity | 2 |
| Transmission Type | Fast 8-speed gearbox |
| Steering Type | LHD or RHD with power steering |
| Brake system | Air brake |
| Tire Spec. & size | 1000R20 18PR radial steel wire tire, 6+1 spare |
| Cab | JAC Junling S9 cab |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |

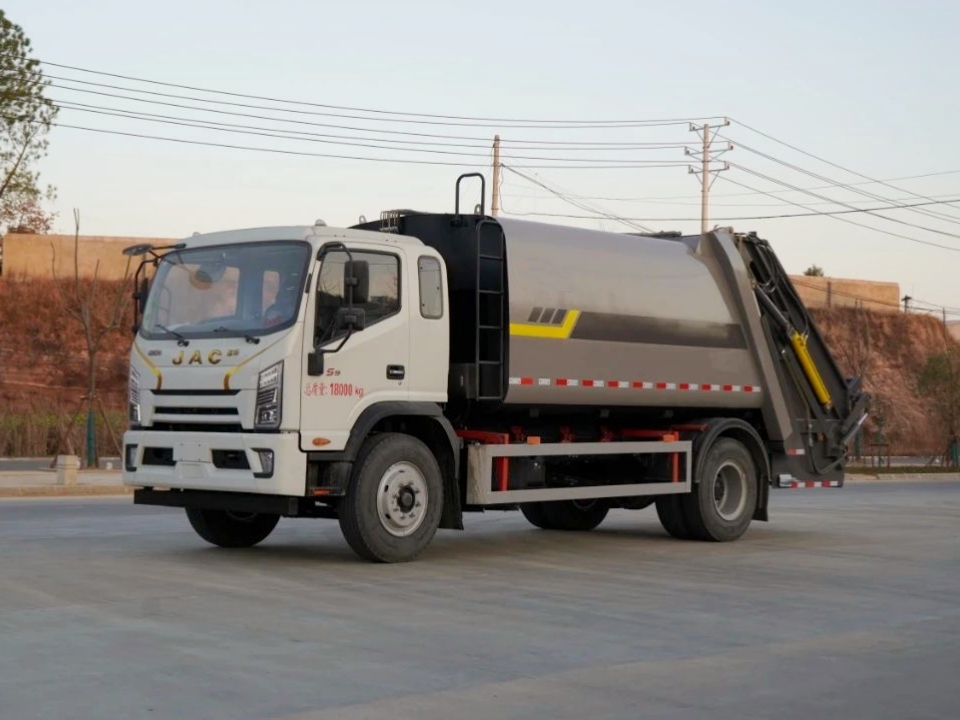

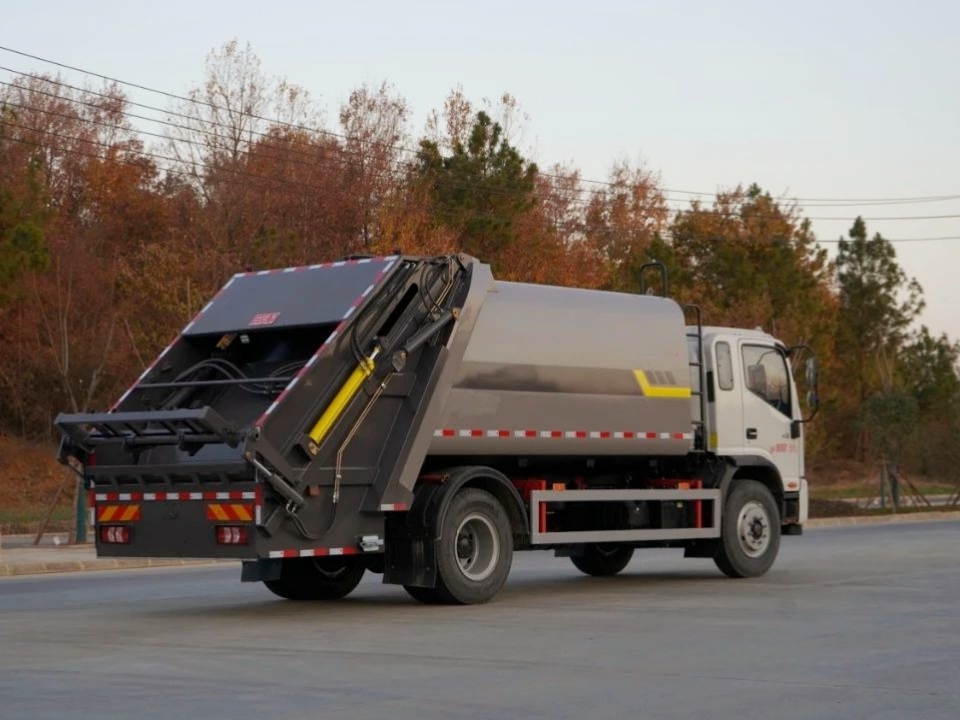

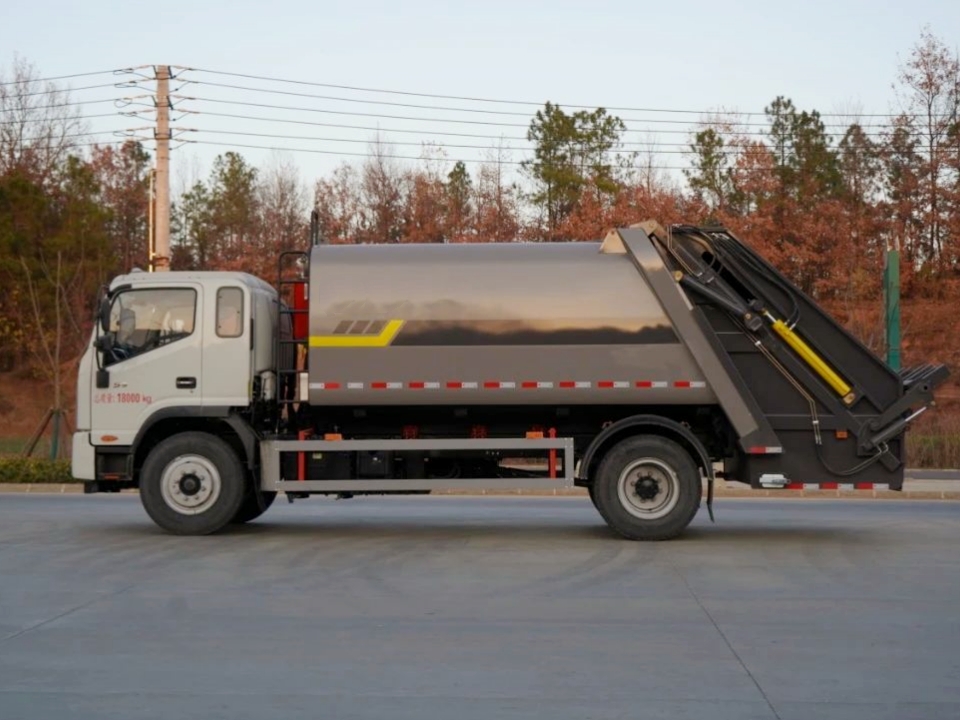

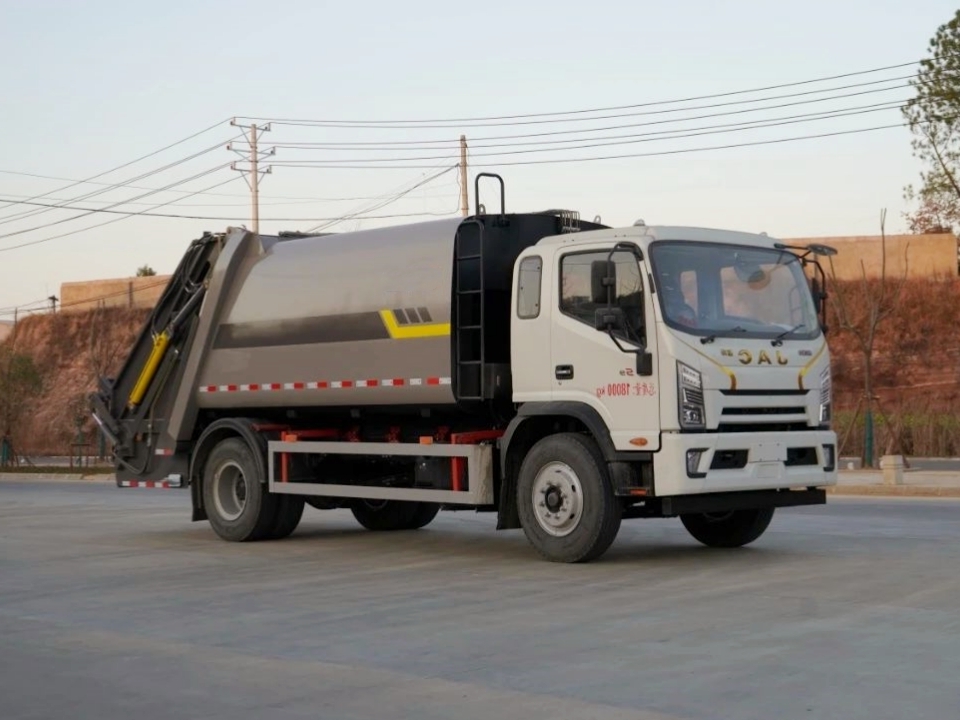

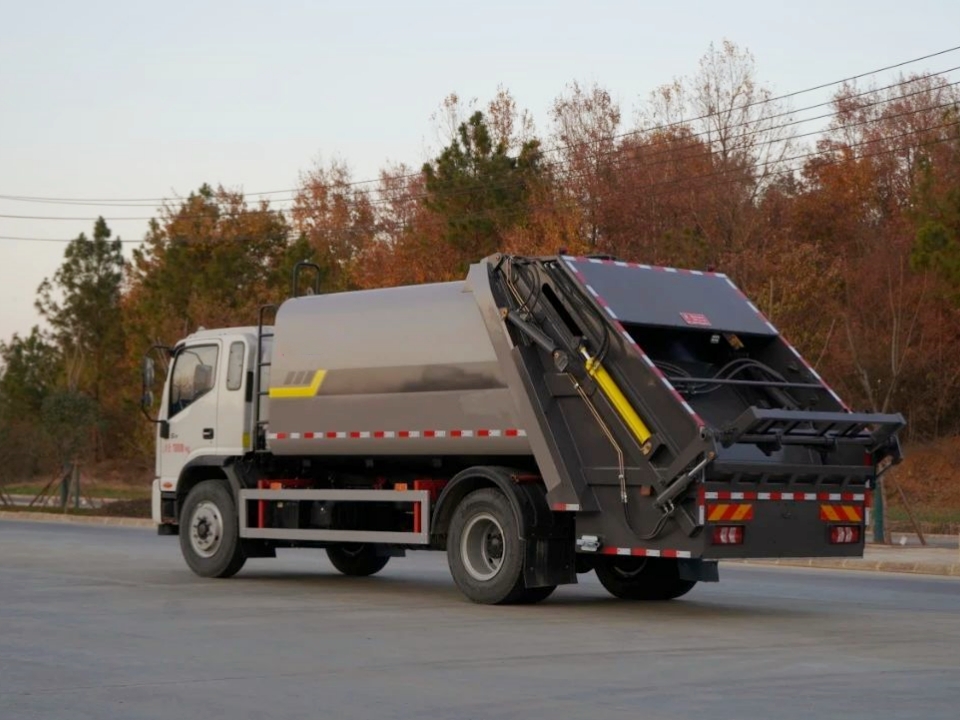

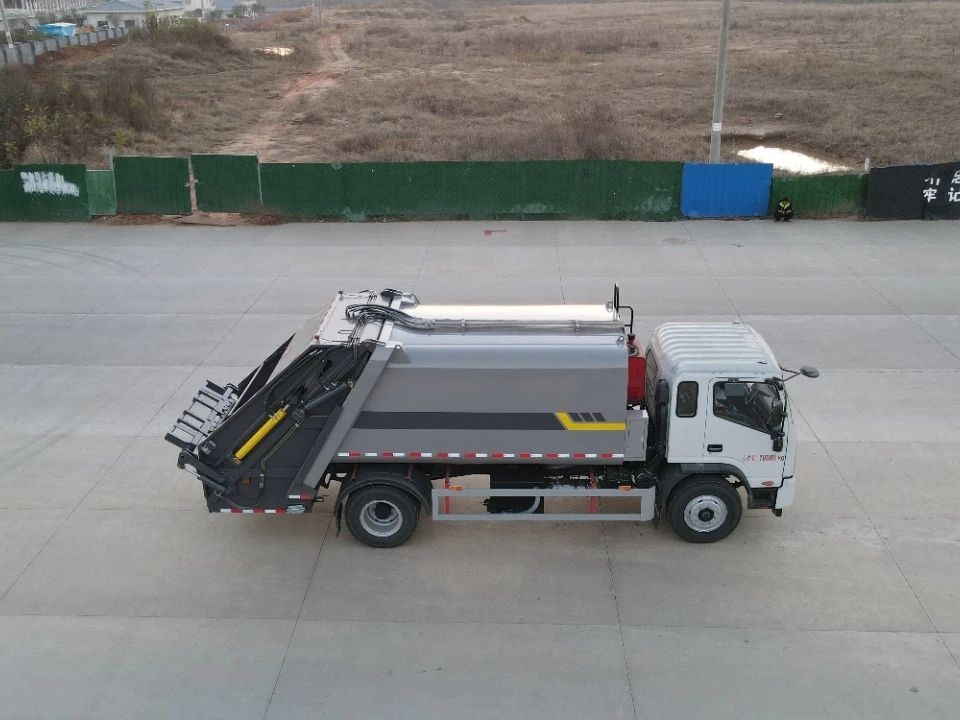

JAC Junling S9 15m³ Compressed Garbage Truck
Compressed garbage truck: composed of a sealed garbage bin, hydraulic system, and operating system, it compresses and pours itself. During the compression process, all the sewage enters the sewage tank, which completely solves the problem of secondary pollution in garbage transportation.
Product parameters
