Chassis configuration:
1. Engine: YCY24140-60, Yuchai 140hp
2.Transmission type: 5-speed gearbox
3.Wheelbase: 2700,2950,3308,3600,3800(mm)
4.Tyre: 7.00R16,7.00R16LT, 6+1 spare
5.Other: Dongfeng D6 cab
| Product Name | Dongfeng D6 7.5m³ Side mounted Bucket Garbage Truck |
| Driving Type | 4×2 |
| Gross vehicle weight(Kg) | 7360(Kg) |
| Curb weight(Kg) | 3810(Kg) |
| Rated weight(kg) | 3420(Kg) |
| Wheelbase(mm) | 2700,2950,3308,3600,3800(mm) |
| Overall Dimension(mm) | 5793×2090×2280,2350(mm) |
| Engine | YCY24140-60, Yuchai 140hp |
| Axle Quantity | 2 |
| Transmission Type | 5-speed gearbox |
| Steering Type | LHD or RHD with power steering |
| Brake system | Air brake |
| Tire Spec. & size | 7.00R16,7.00R16LT, 6+1 spare |
| Cab | Dongfeng D6 cab |
| Volume(m³) | 7.5m³ |
| Tank body | Reinforced square tank body, Q710 high-strength steel |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |

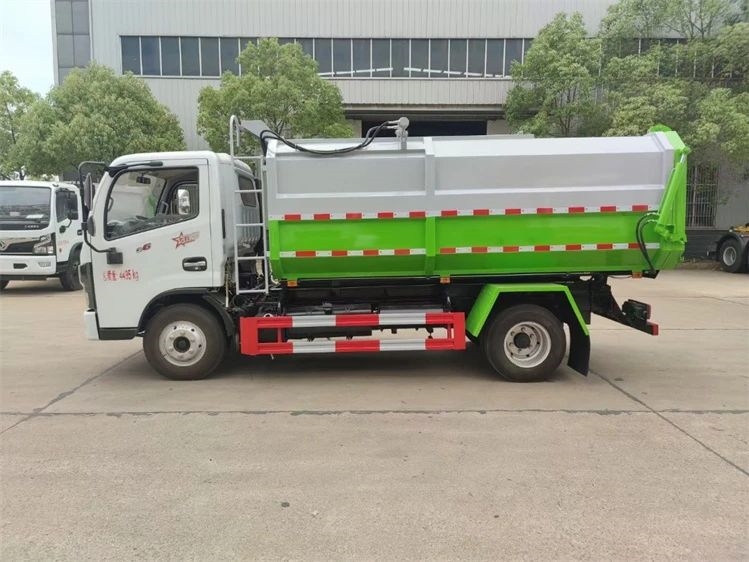

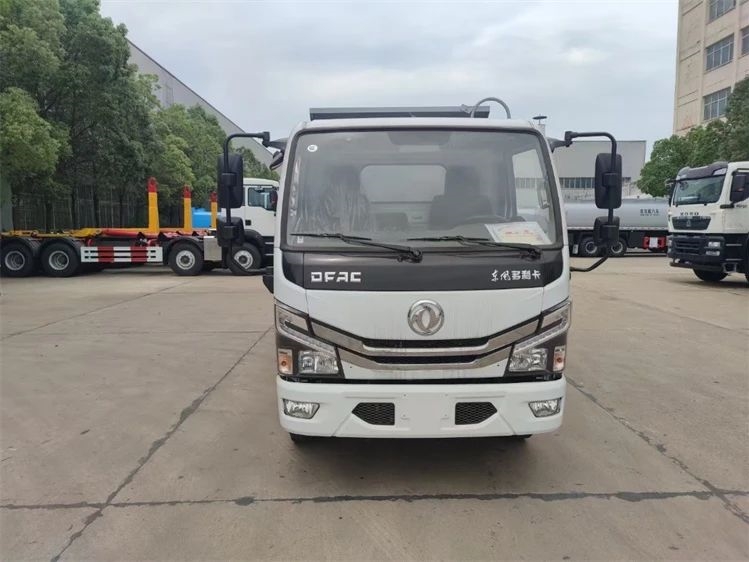

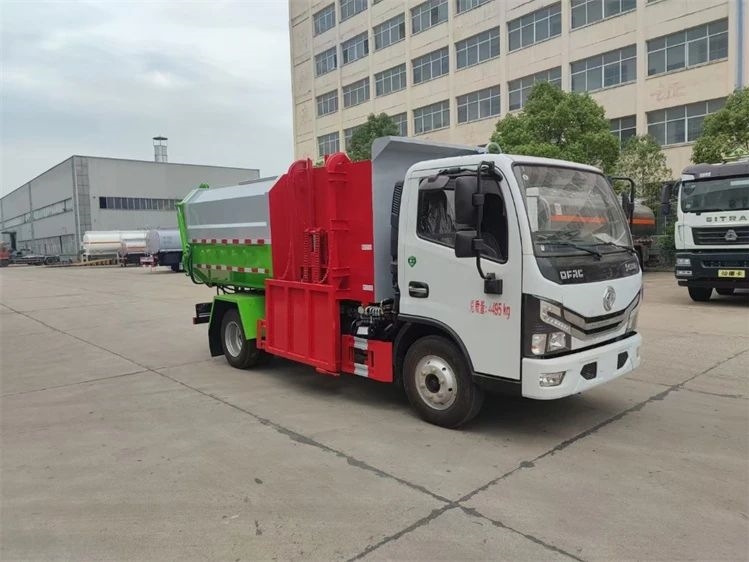

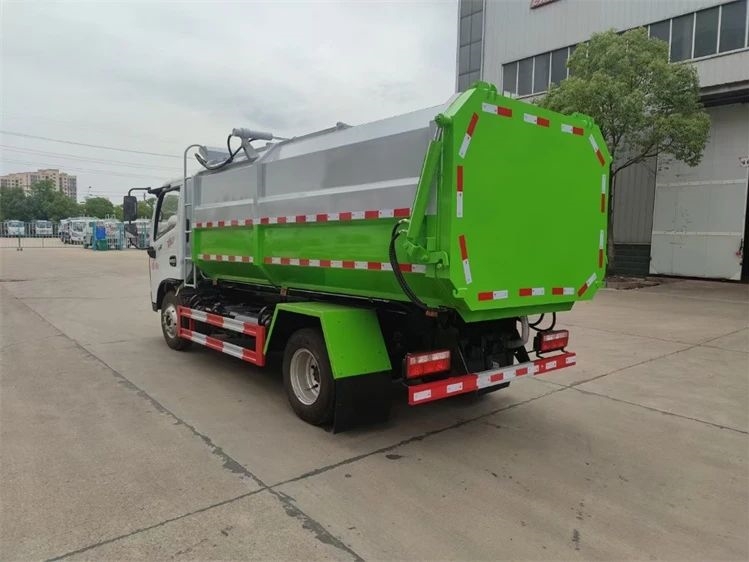

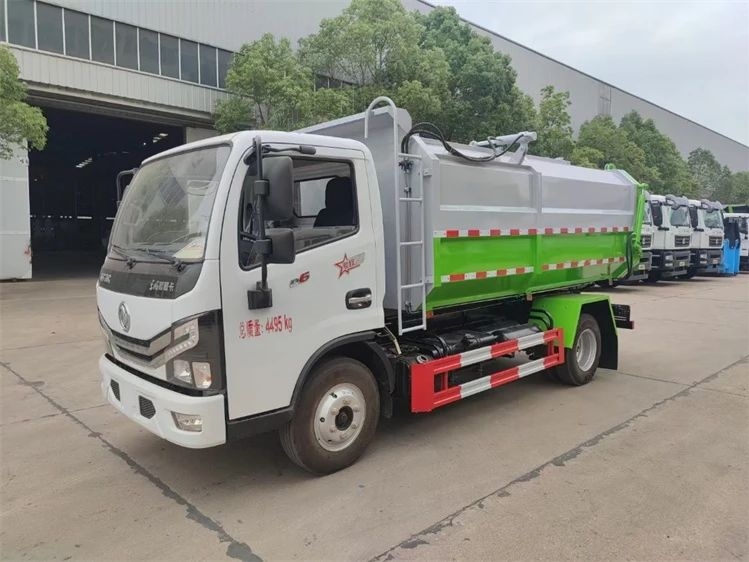

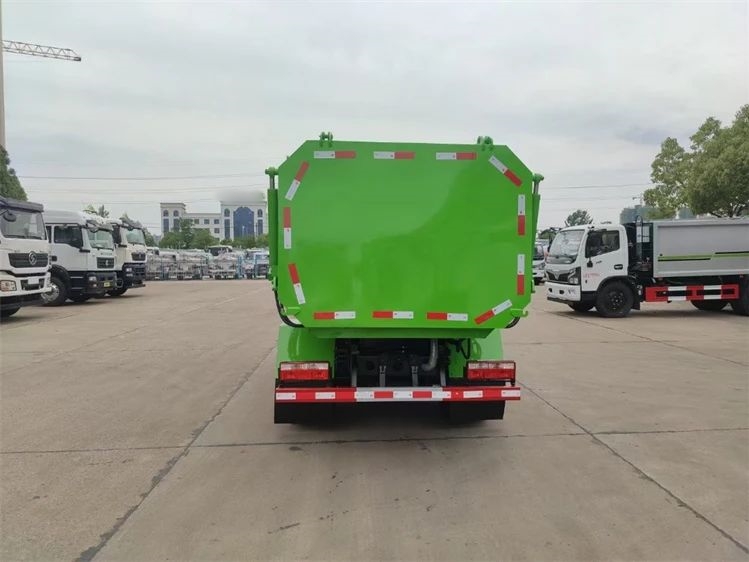

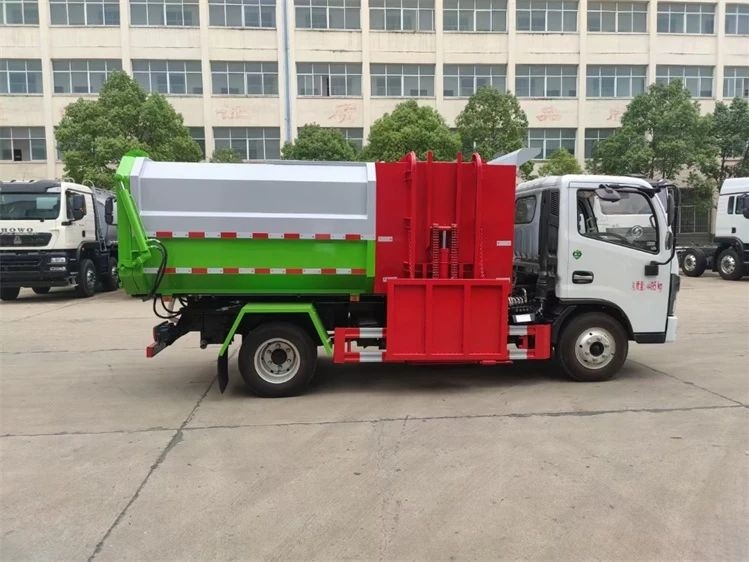

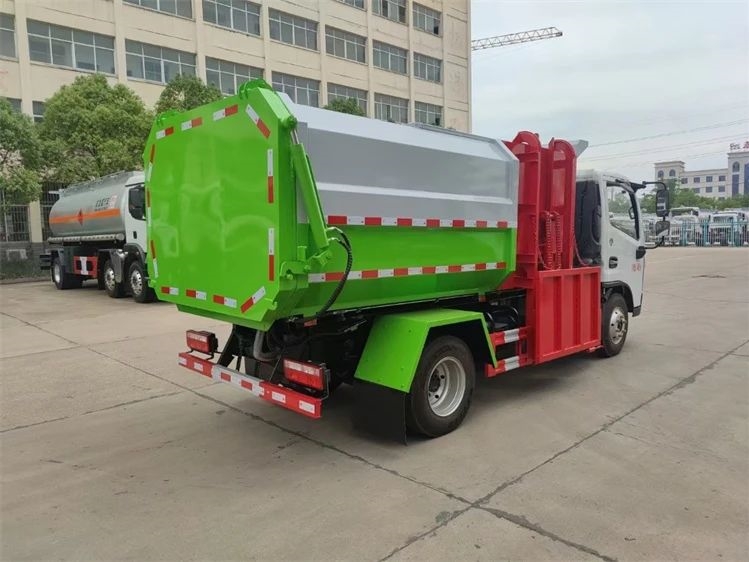

Dongfeng D6 7.5m³ Side mounted Bucket Garbage Truck
A side mounted garbage truck is a vehicle specifically designed for collecting and transporting garbage. Its main feature is to load the garbage bin from the side and compress the garbage into the vehicle through a self loading and unloading system. This type of vehicle is usually suitable for garbage collection in narrow areas such as urban alleys and rural roads.
