Chassis configuration:
1. Engine: B6.2NS6B230 , Cummins 230hp
2.Transmission type: FAST 8-speed gearbox
3.Wheelbase: 3950,4500(mm)
4.Tyre: 275/80R22.5 18PR, 6+1 spare
5.Other: Dongfeng D9 cab
| Product Name | Dongfeng D9 Side mounted Bucket Garbage Truck |
| Driving Type | 4×2 |
| Gross vehicle weight(Kg) | 18000(Kg) |
| Curb weight(Kg) | 8200,8600,7800(Kg) |
| Rated weight(kg) | 9670,9605,9270,9205,10070,10005(Kg) |
| Wheelbase(mm) | 3950,4500(mm) |
| Overall Dimension(mm) | 7300,7850×2500,2550×3100,3200,3300(mm) |
| Engine | B6.2NS6B230 , Cummins 230hp |
| Axle Quantity | 2 |
| Transmission Type | FAST 8-speed gearbox |
| Steering Type | LHD or RHD with power steering |
| Brake system | Air brake |
| Tire Spec. & size | 275/80R22.5 18PR, 6+1 spare |
| Cab | Dongfeng D9 cab |
| Volume(m³) | / |
| Tank body | Reinforced square tank body, Q710 high-strength steel |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |

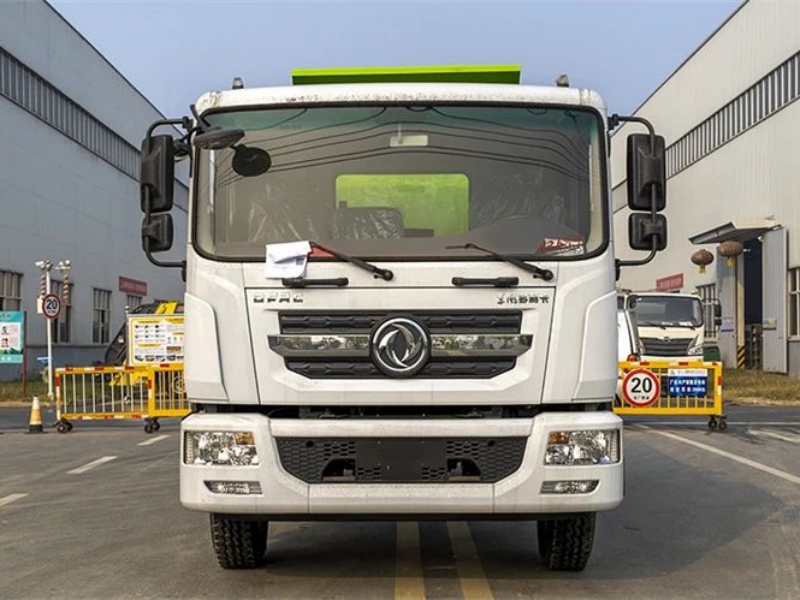

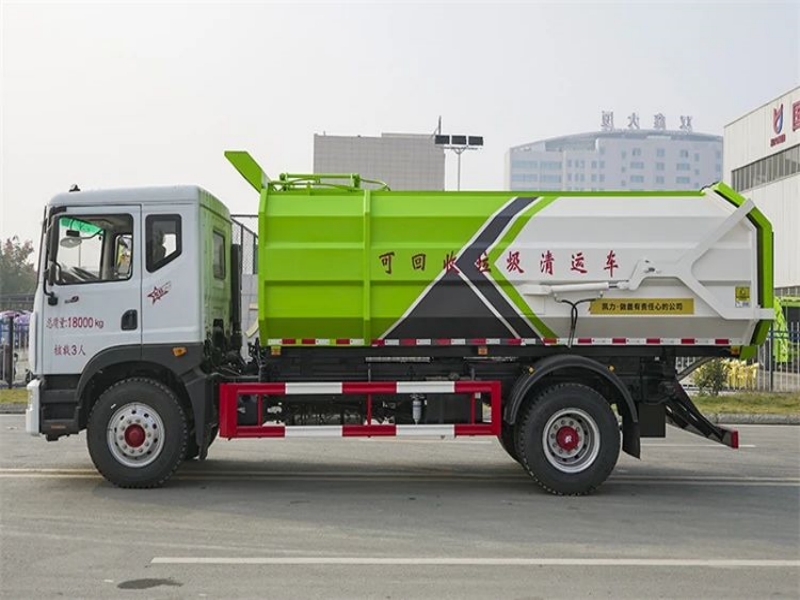

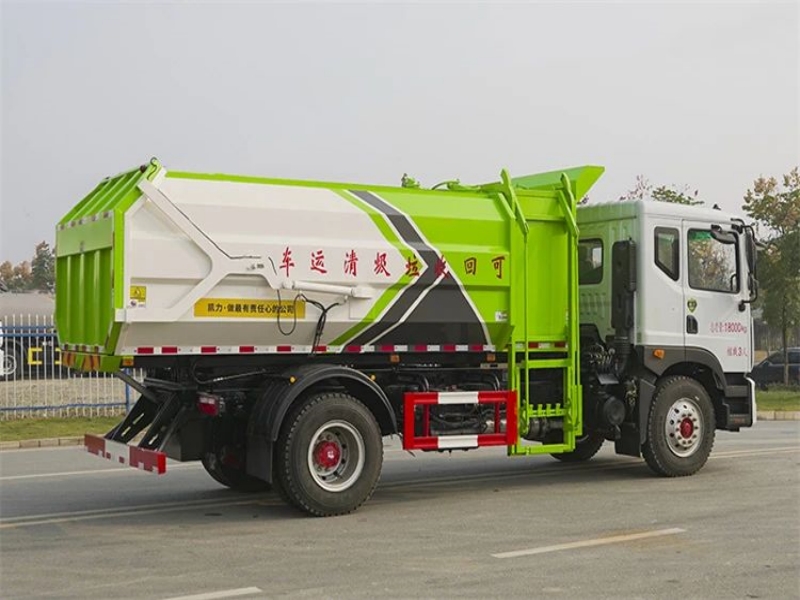

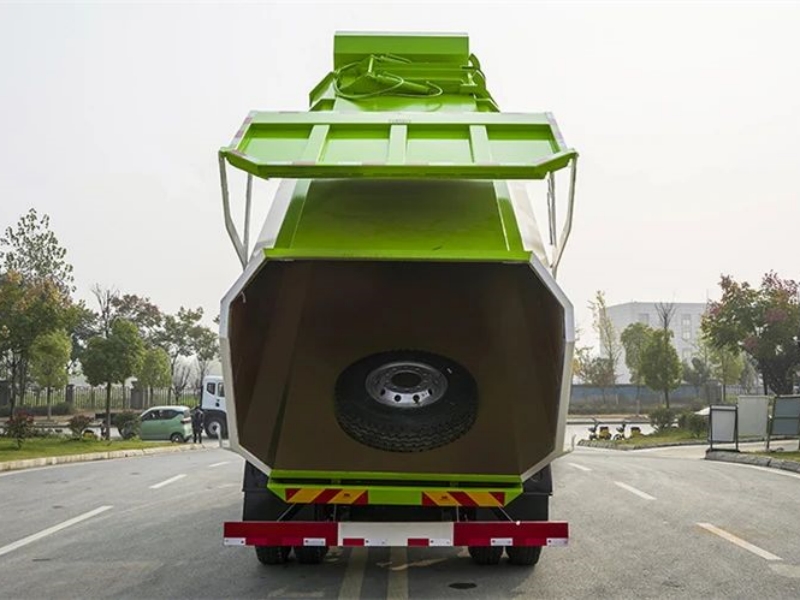

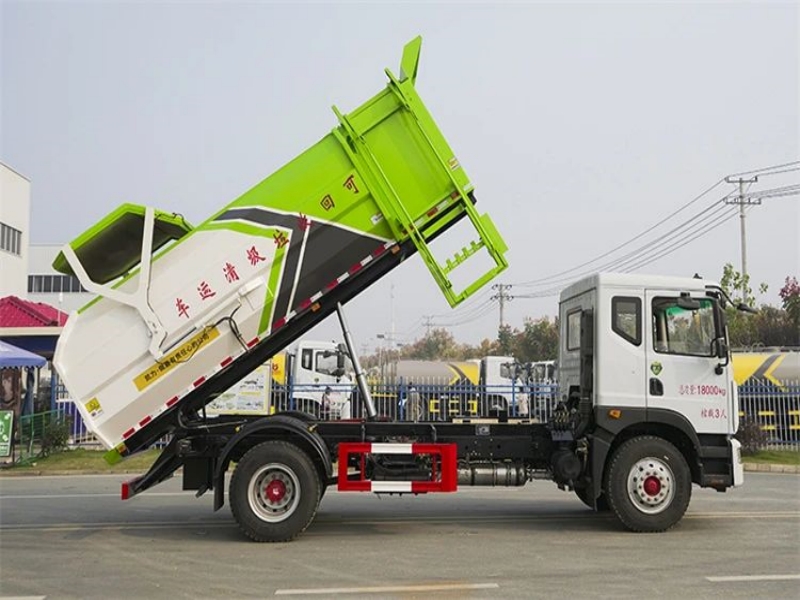

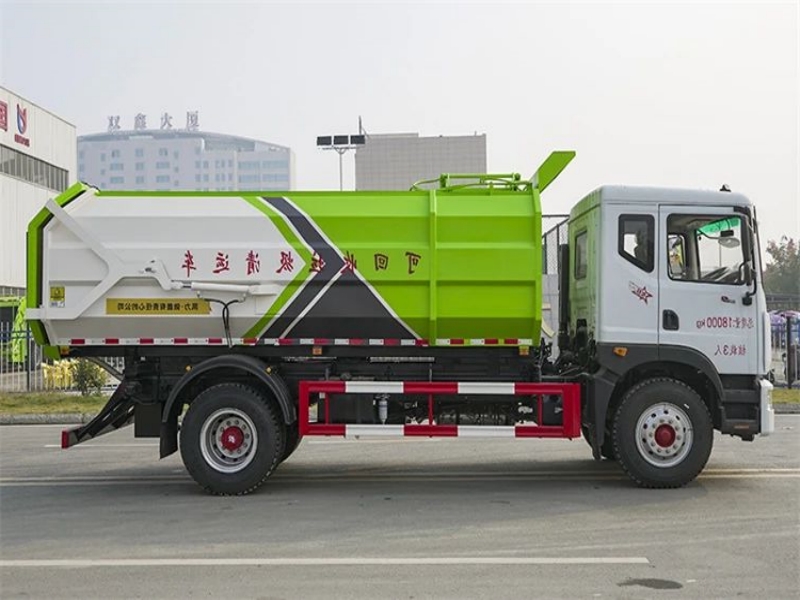

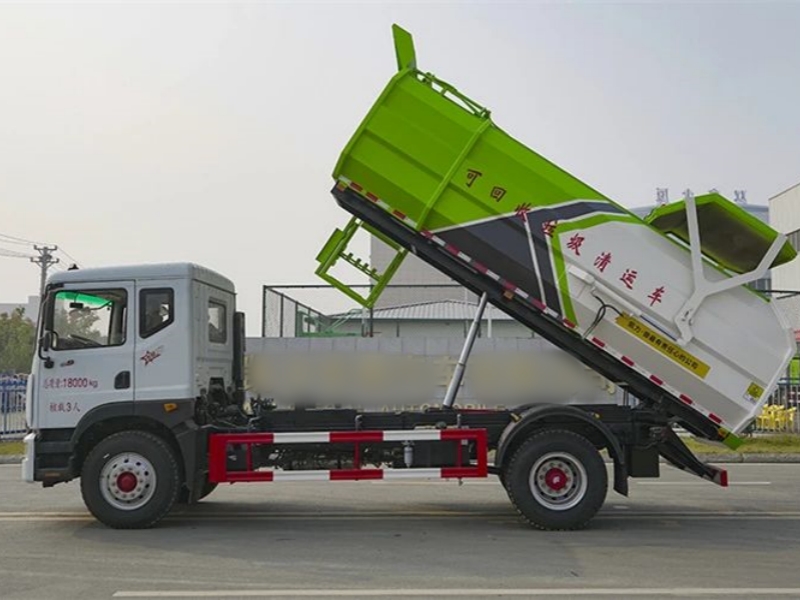

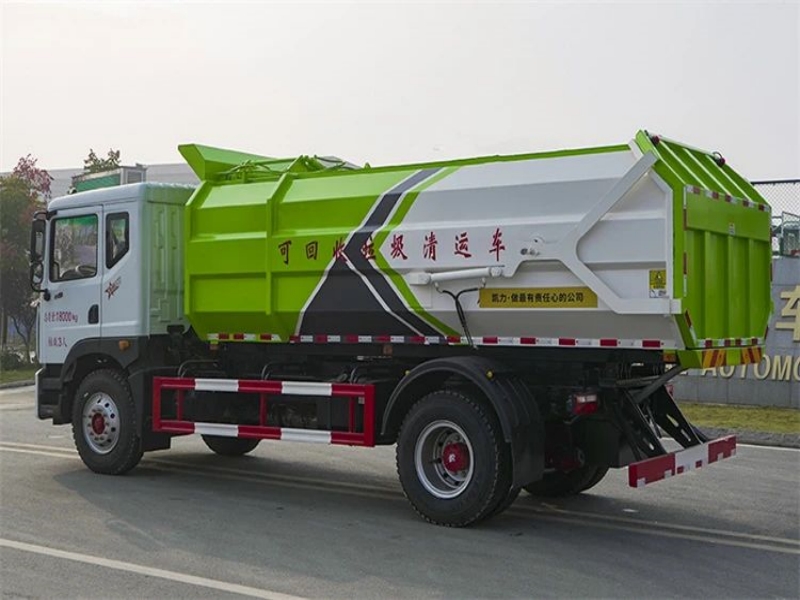

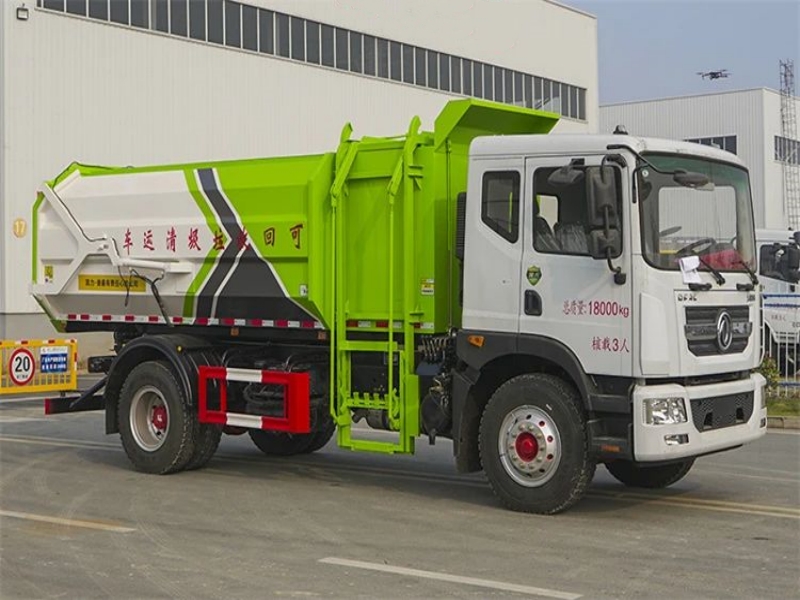

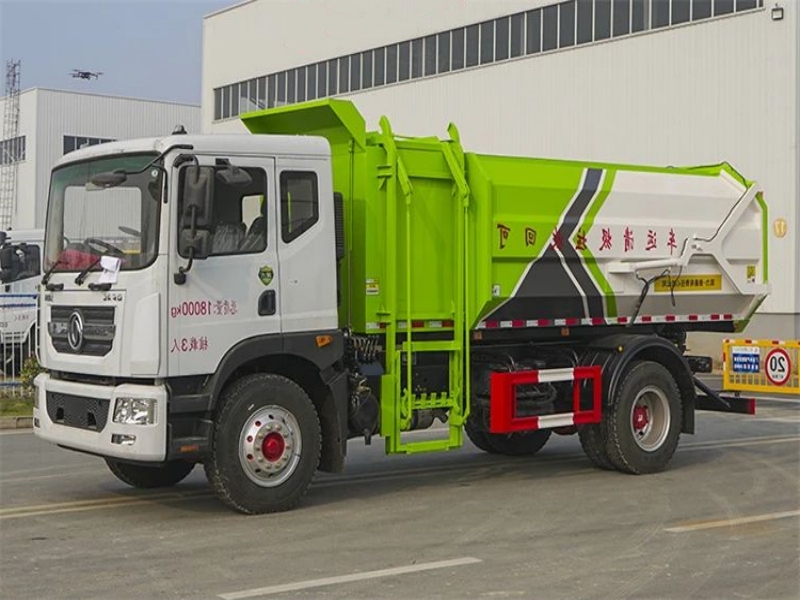

Dongfeng D9 Side mounted Bucket Garbage Truck
Side mounted bucket garbage truck is a vehicle specifically designed for collecting and transporting garbage, also known as a self loading and unloading garbage truck. Its main feature is to load the garbage bin from the side and compress the garbage into the vehicle through a self loading and unloading system. This type of vehicle is usually suitable for garbage collection in narrow areas such as urban alleys and rural roads.
