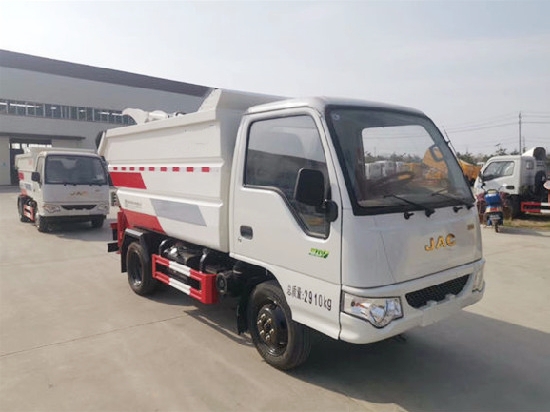

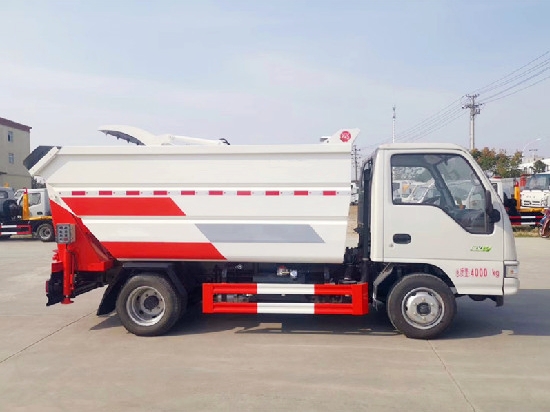

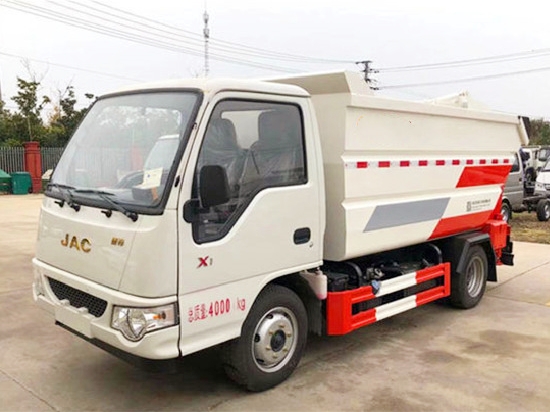

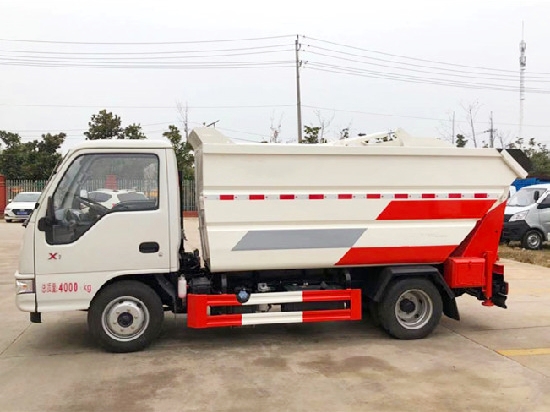

JAC Kangling 4m³ rear hanging bucket garbage truck
2024-10-07 09:54:11 Source：CLW
Chassis configuration:
1. Engine: Q23-95E60, Quanchai 95hp
2.Transmission type: 5-speed gearbox
3.Wheelbase: 2850(mm)
4.Tyre: 185R15 vacuum tires, rear twin tires, 6+1 spare
5.Other:Kangling X1 cab, dynamic transmission, air conditioning,
Other information:

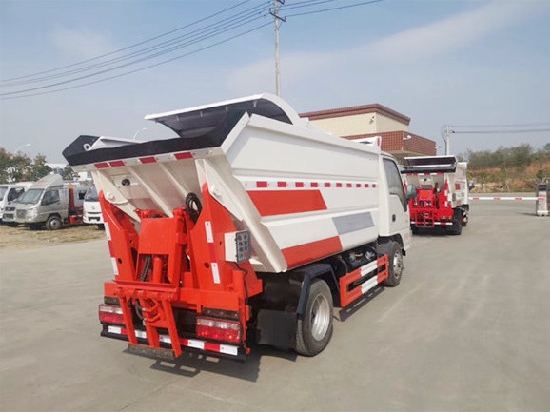

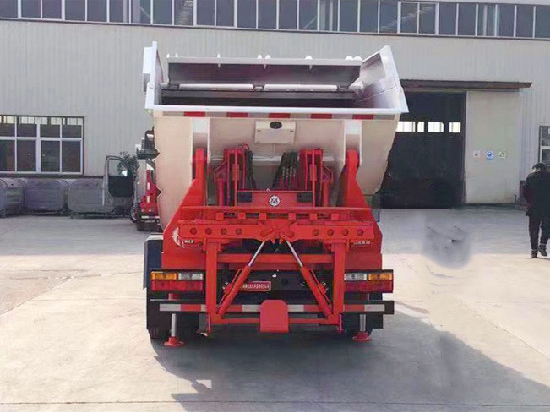

The rear loading mechanism can be connected to 120L/240L/660L standard plastic drums for operation. The 120L and 240L standard plastic drums can be loaded into two drums at once, and the added clamping robot can increase the stability of feeding the 660L large drum. The bucket flipping mechanism adopts a lightweight design, with strong lifting and feeding power. It is equipped with manual and automatic operation modes, which can achieve a one click feeding process.
| Product Name |
JAC Kangling 4m³ rear hanging bucket garbage truck |
| Driving Type |
4×2 |
| Gross vehicle weight(Kg) |
4000(Kg) |
| Curb weight(Kg) |
2820(Kg) |
| Rated weight(kg) |
1050(Kg) |
| Wheelbase(mm) |
2850(mm) |
| Overall Dimension(mm) |
4776,4792×1710×2140(mm) |
| Engine |
Q23-95E60, Quanchai 95hp |
| Axle Quantity |
2 |
| Transmission Type |
5-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
185R15 vacuum tires, rear twin tires, 6+1 spare |
| Cab |
kangling X1 cab |
| Volume(m³) |
4m³ |
| Tank body |
Reinforced square tank body, Q710 high-strength steel |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
JAC Kangling 4m³ rear hanging bucket garbage truck

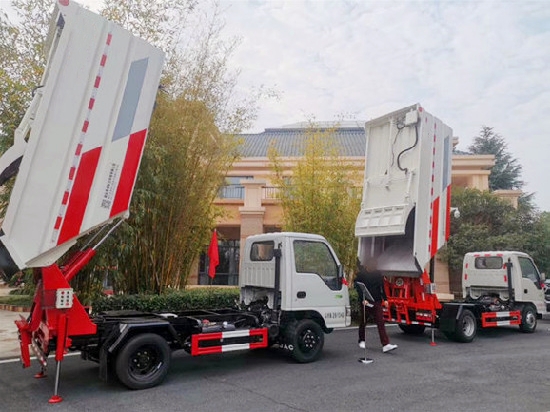

Hanging bucket garbage truck, also known as self loading and unloading garbage truck, is mainly used for transporting various types of garbage in various environmental sanitation, municipal and large-scale industrial and mining departments. It can also transport bulk building materials such as ash, sand, stone, soil, etc. It can also transport ore or coal in mines or coal mines. It consists of a sealed garbage bin, hydraulic system, and operating system. The lifting oil cylinder (2 pieces) garbage bin can be hung up and down by itself, and the working cycle time of up and down is ≤ 50S.
Product parameters
