Chassis configuration:
B6.2NS6B230 engine, Fast 8-speed transmission, 2315 cab, 4.5T front axle, 10T rear axle, 10.00 steel tires, 25mm beam, air brake, air conditioning, electric doors and windows, central locking system.
Installation configuration:
The Q345 manganese steel high-strength plate arc-shaped box is used, with a side of 5mm and a bottom of 6mm. It is composed of a hydraulic mechanism consisting of a box body, a loading mechanism, a compression mechanism, a unloading mechanism, an oil pump, an oil cylinder, a control valve, etc. The loading mechanism consists of a bracket, a connecting rod mechanism, a cam, a hook, etc., and it undergoes bi-directional peristaltic compression. Domestic well-known brand hydraulic systems (Anhui Wanye Pump, Hunan Changsha Domestic Famous Multi way Valve, Compression Special Customized Oil Cylinder, Zhejiang Jiashan Power Takeoff); The same CAN bus control system is used for centralized electronic control inside the driver's cab and outside the vehicle; High position clearance lights/edge lights/work lighting on the vehicle, equipped with a double pressure valve and dual pump as standard.
| Product Name | Dongfeng Tianjin 4X2 Compressed Garbage Truck |
| Driving Type | 4x2 |
| Garbage container volume(cbm) | 18m³ |
| Gross vehicle weight(Kg) | 18000(Kg) |
| Curb weight(Kg) | 11250,12150(Kg) |
| Rated weight(kg) | 6620,6555,5720,5655(Kg) |
| Wheelbase(mm) | 5000(mm) |
| Overall Dimension(mm) | 8890,9090,9390,9010,9210,9510×2500×3300(mm) |
| Engine | B6.2NS6B230, Cummins 230hp |
| Axle Quantity | 2 |
| Transmission Type | Fast 8-speed gearbox |
| Steering Type | LHD or RHD with power steering |
| Brake system | Air brake |
| Tire Spec. & size | 10.00R20 steel wire tire, 6+1 spare |
| Cab | Dongfeng Tianjin cab |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |

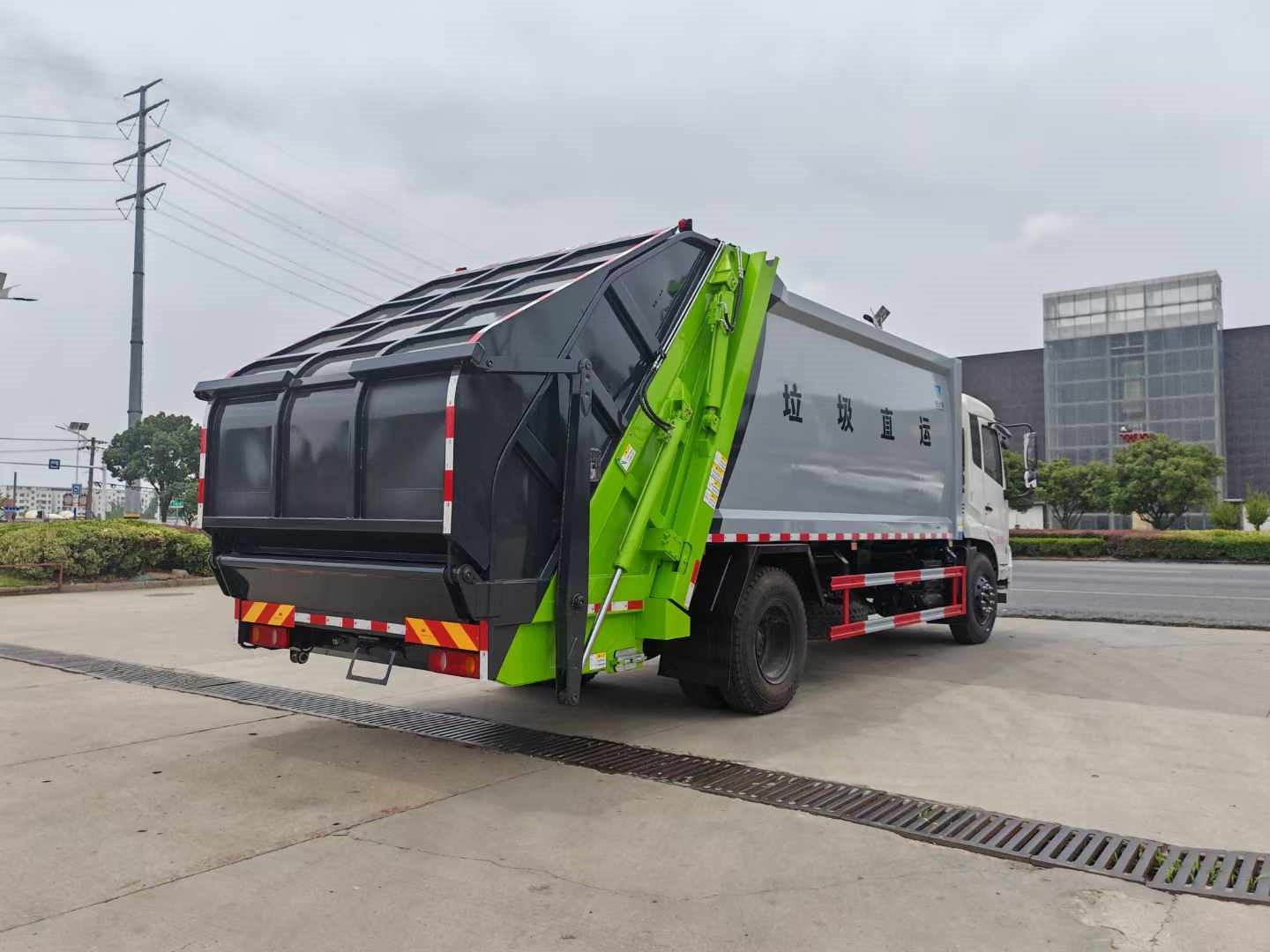

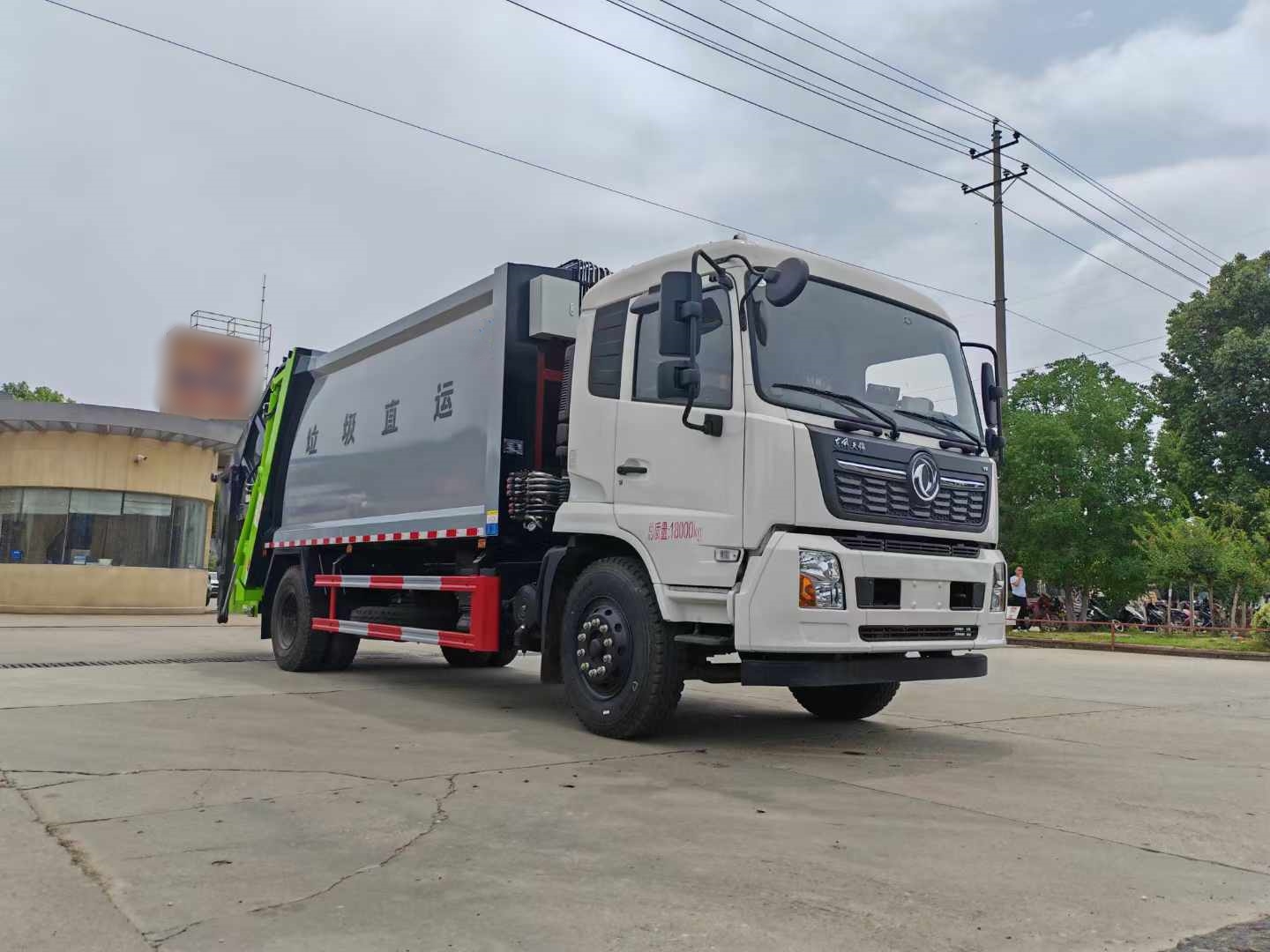

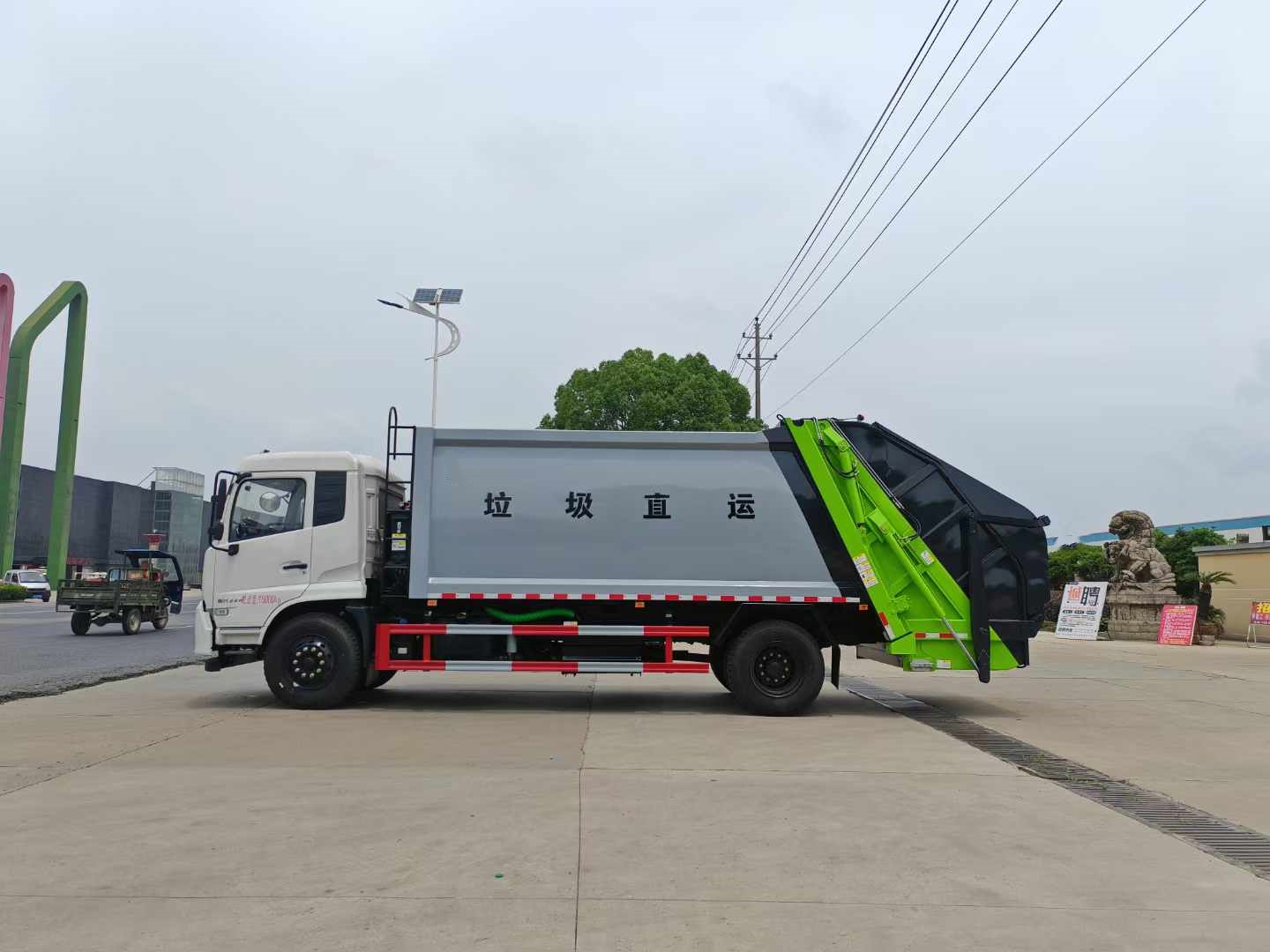

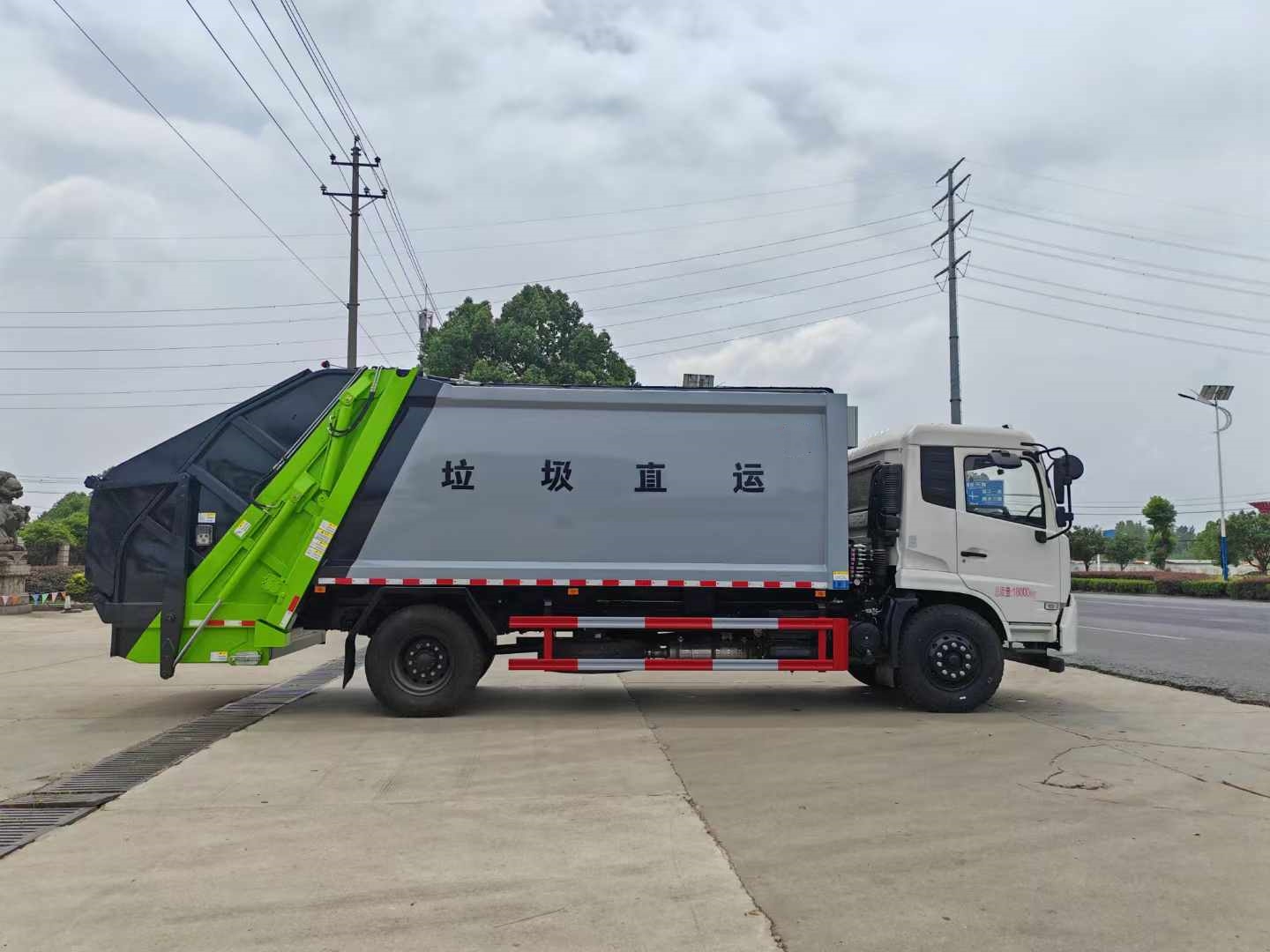

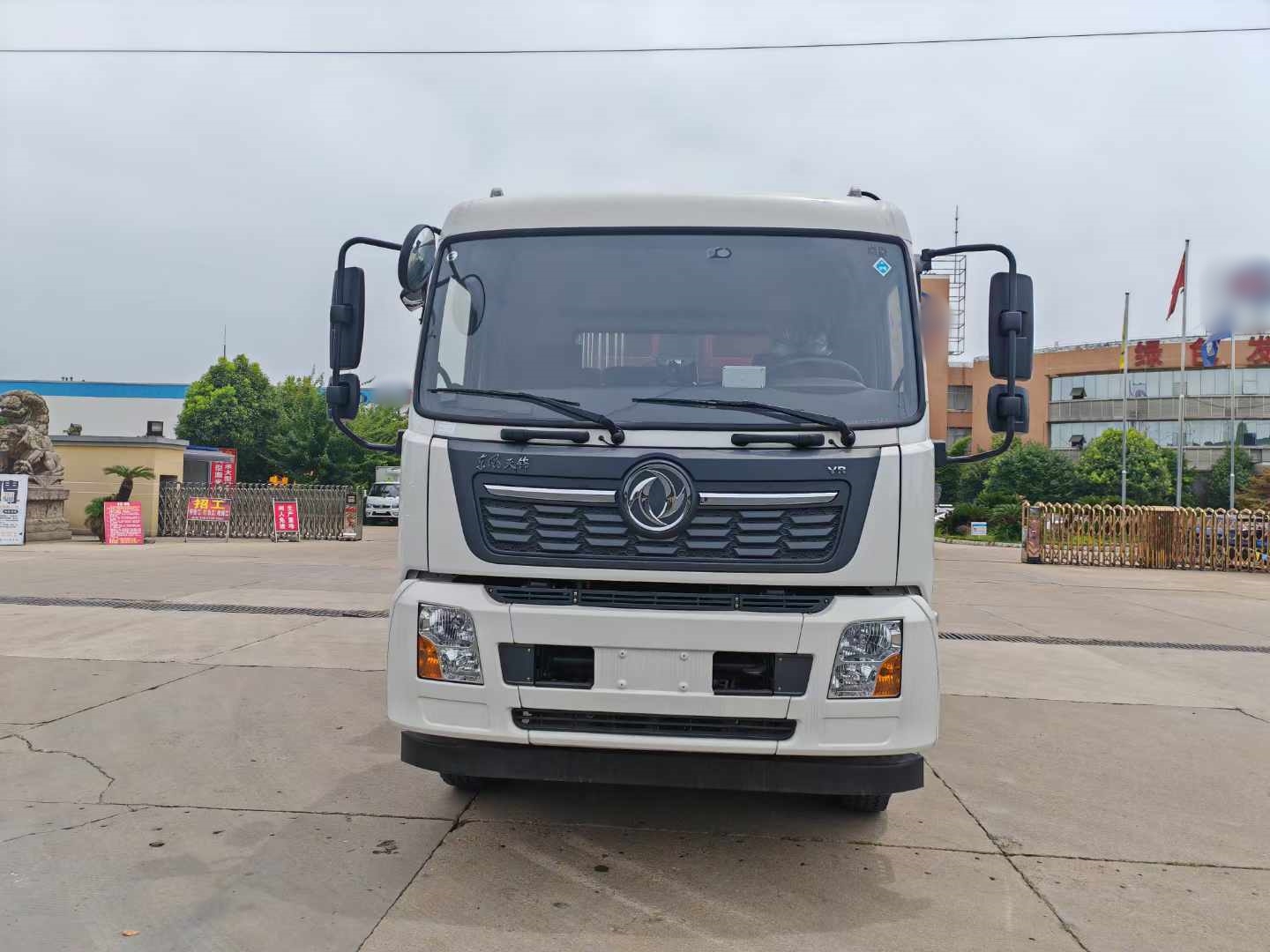

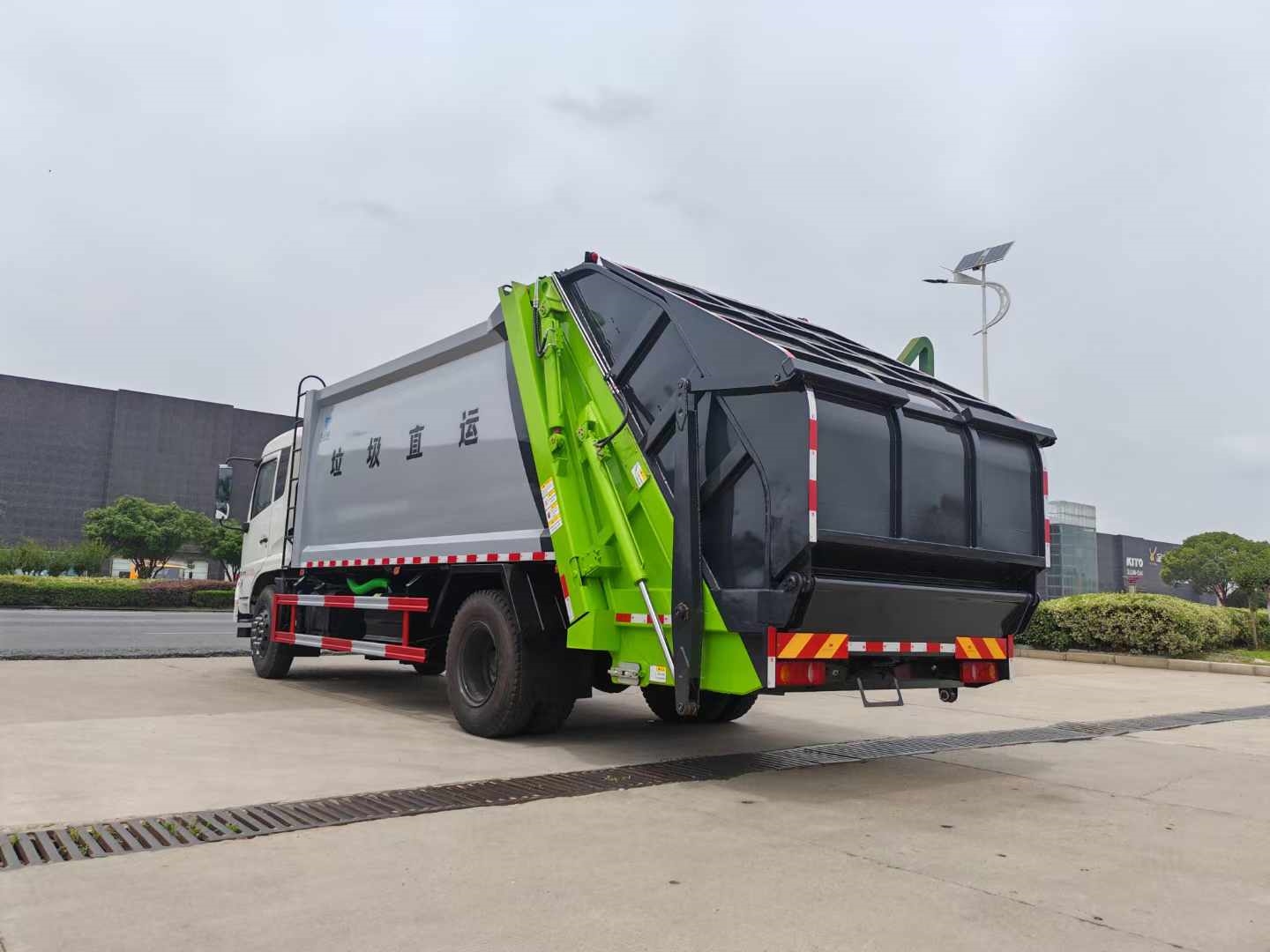

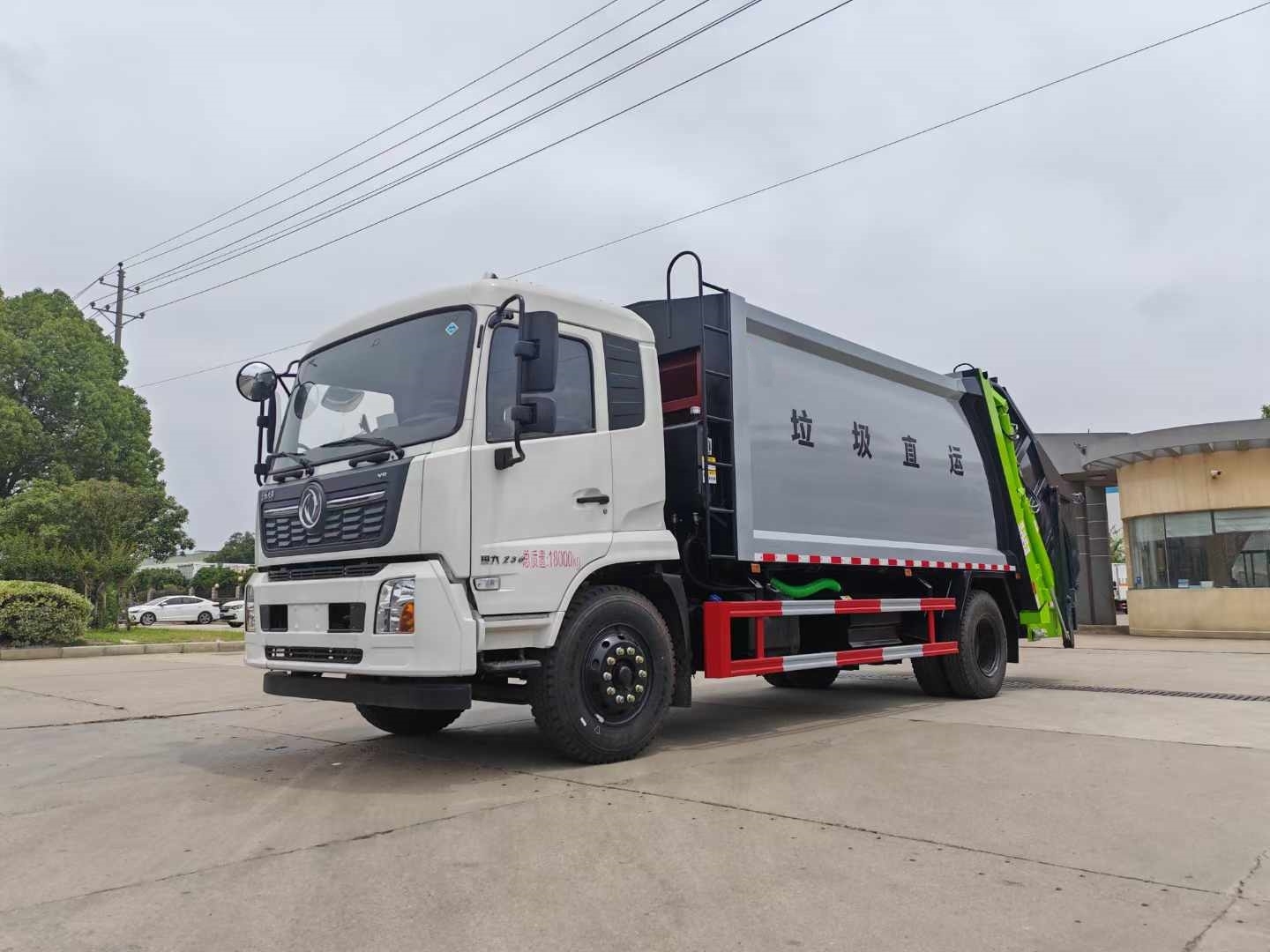

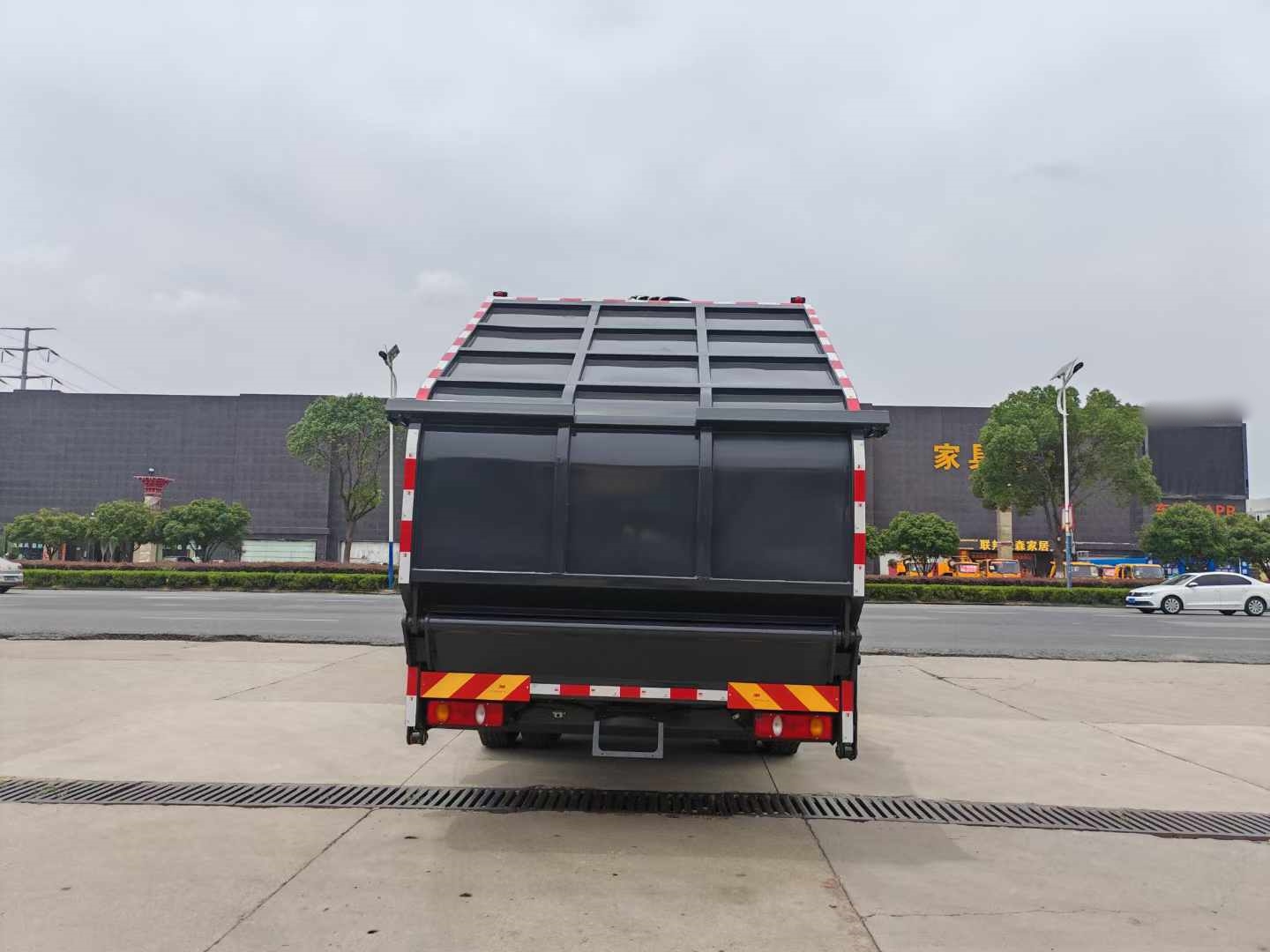

Dongfeng Tianjin 4X2 Compressed Garbage Truck
A compressed garbage truck is a vehicle specifically designed for compressing and transporting garbage, consisting mainly of a sealed garbage bin, hydraulic system, and operating system. Its design features include a fully sealed body, self compression and dumping functions, and effective treatment of sewage in the garbage during the compression process, avoiding secondary pollution during transportation.
