Chassis configuration:
1800/single row, engine Q23-132E60, Quanchai 132 horsepower, Wanliyang 5-speed gearbox, 6.50R16 steel wire tires, front and rear axles 1.5/3.5170 straight through beam, dynamic rotation, clutch assist, air brake, air conditioning, electric window central locking, ABS。
Top configuration:
Adopting T700 high-strength board arc-shaped box, with 2mm edges and 3mm bottom, lightweight design, large capacity.
Note: Optional box height (excluding ladder height), height 2300mm, volume 5.8m³, height 2180mm, volume 5m³, height 2100mm, volume 4.8m³
| Product Name | Dongfeng Tuxiaowei air brake compressed garbage truck |
| Driving Type | 4x2 |
| Garbage container volume(cbm) | 6.5m³ |
| Gross vehicle weight(Kg) | 4495(Kg) |
| Curb weight(Kg) | 3865(Kg) |
| Rated weight(kg) | 500(Kg) |
| Wheelbase(mm) | 3000(mm) |
| Overall Dimension(mm) | 5995×2060,2160×2090,2250,2450(mm) |
| Engine | Q23-132E60, Quanchai 132hp |
| Axle Quantity | 2 |
| Transmission Type | Wanliyang 5-speed gearbox |
| Steering Type | LHD or RHD with power steering |
| Tire Spec. & size | 6.50R16 steel wire tire, 6+1 spare |
| Cab | 1800/single row cab |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |

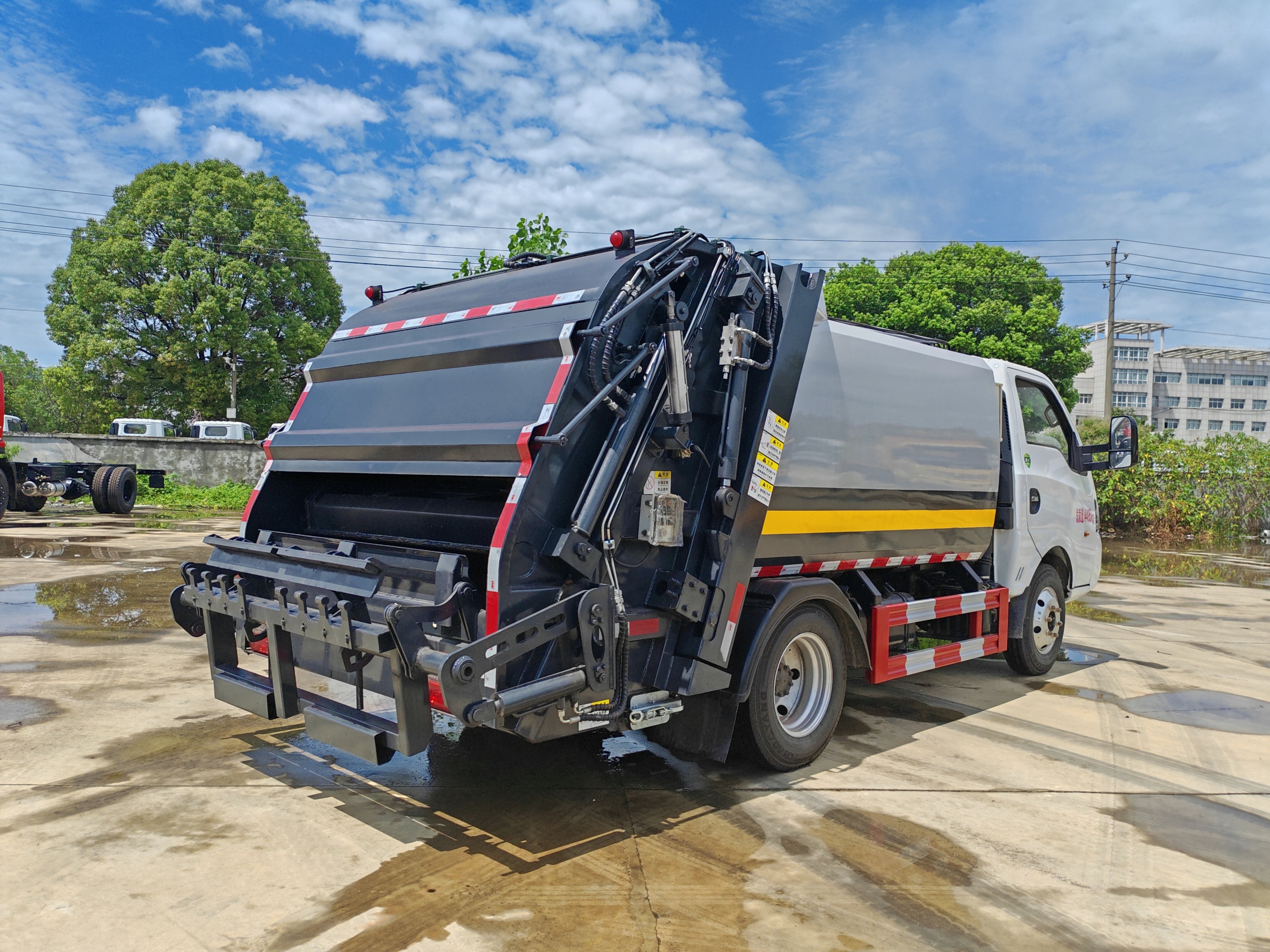

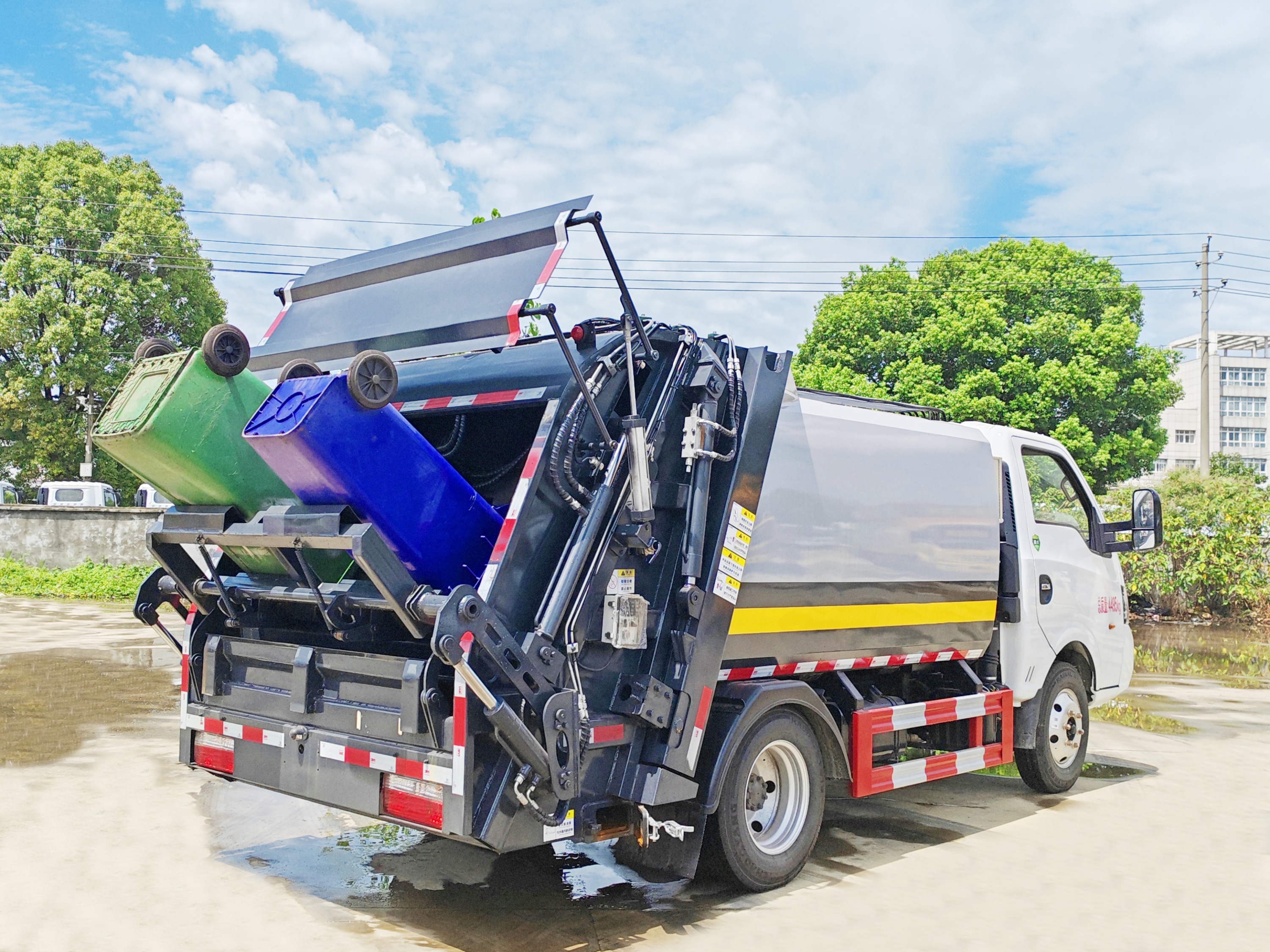

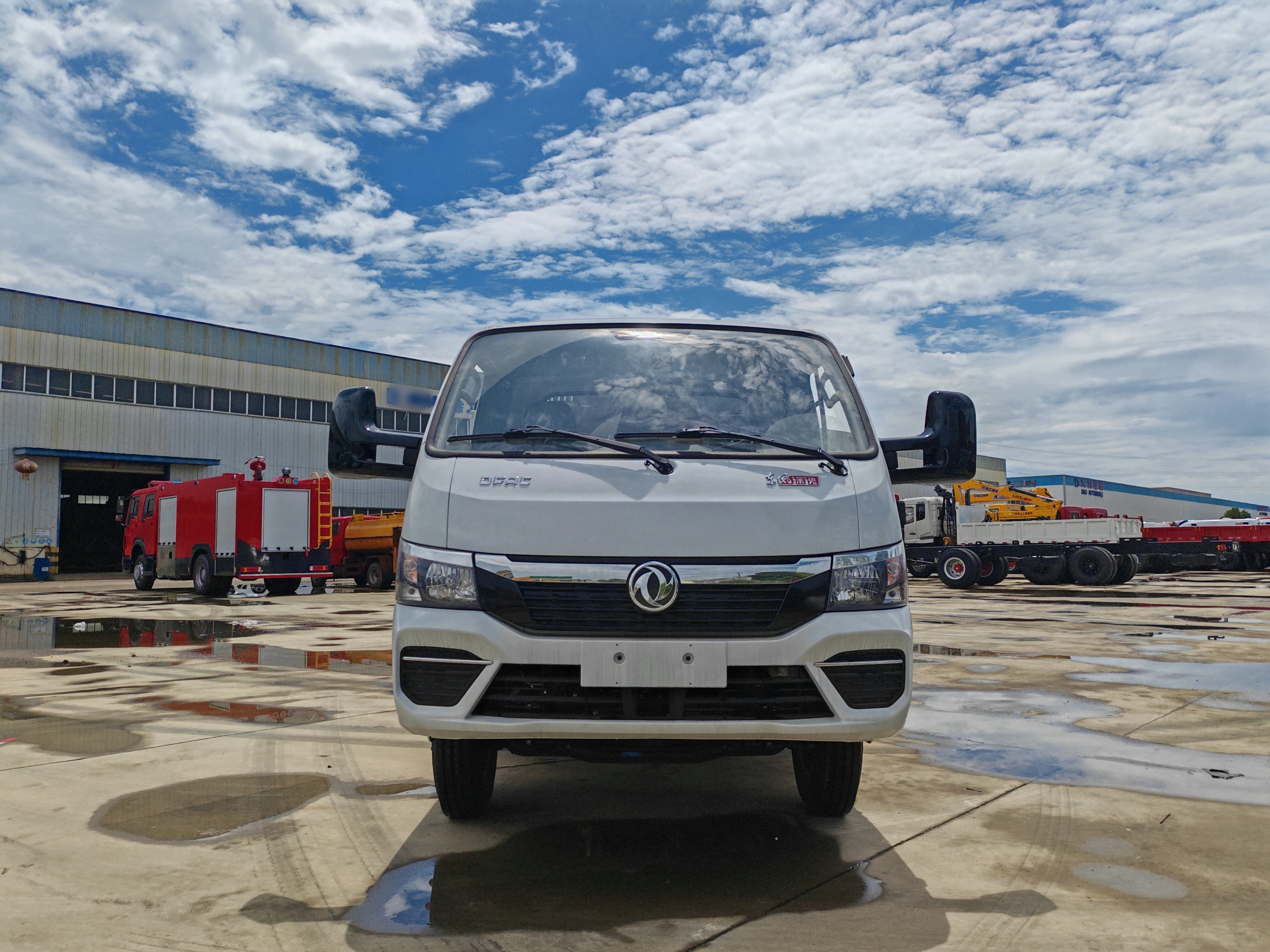

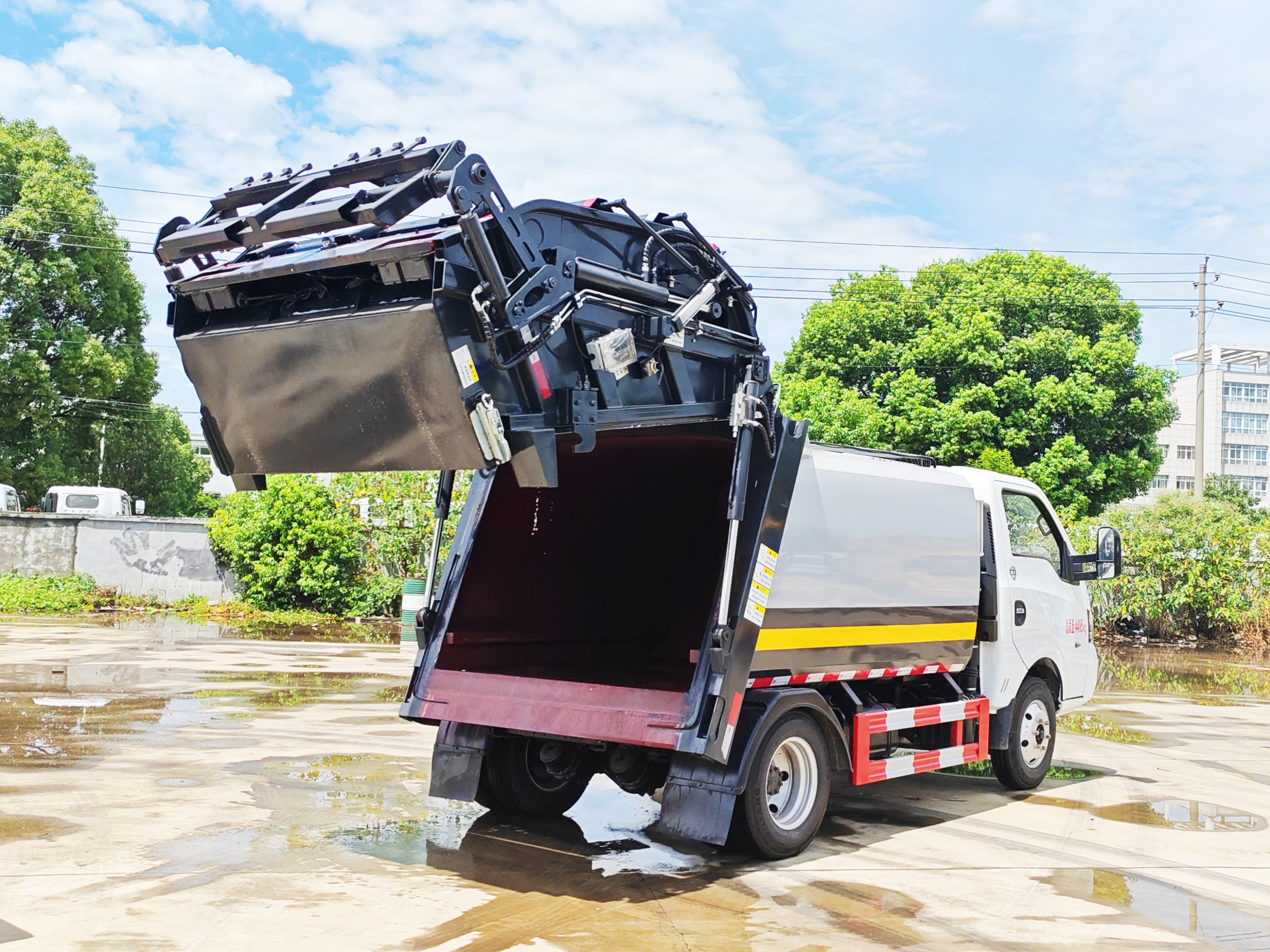

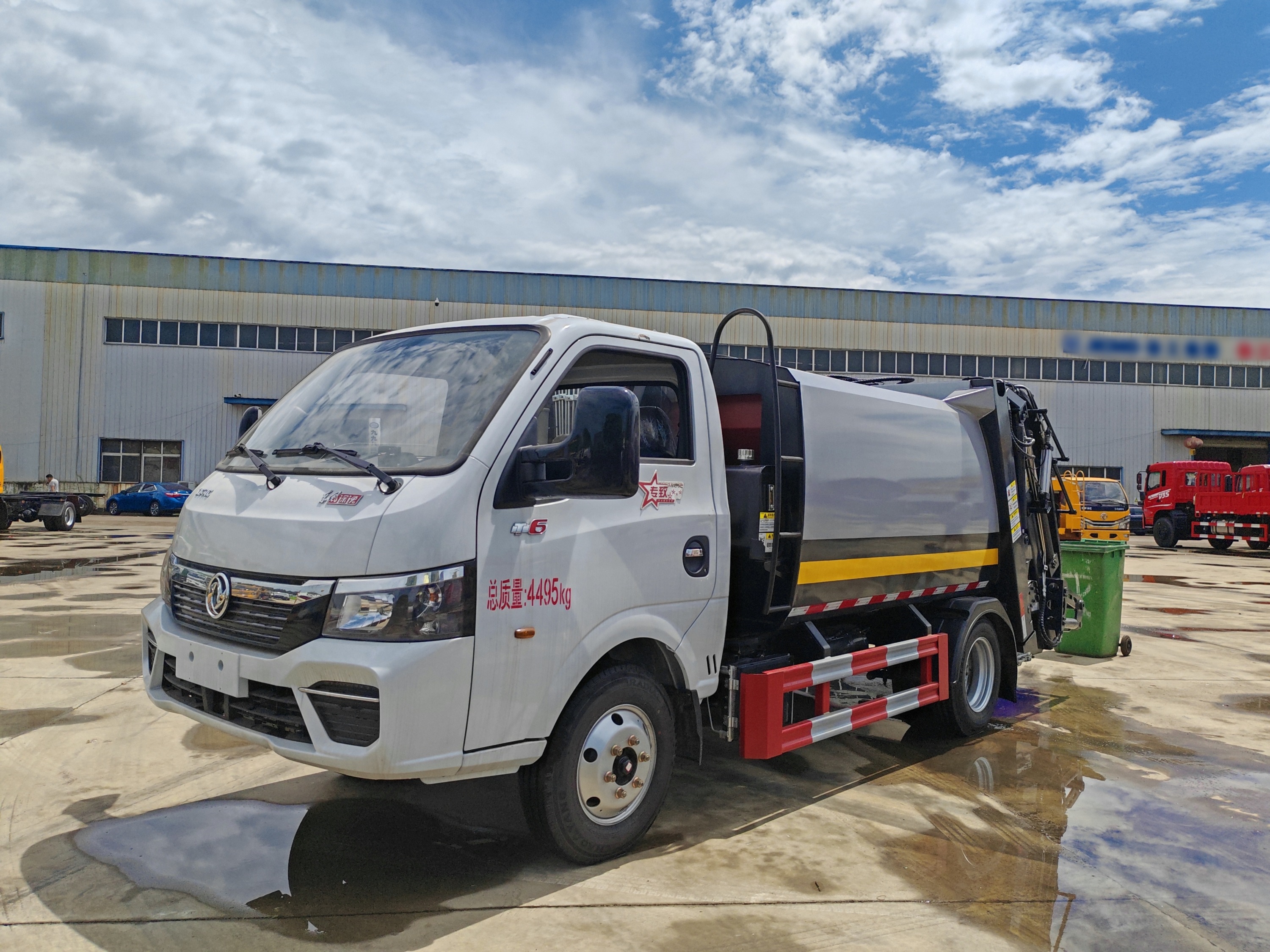

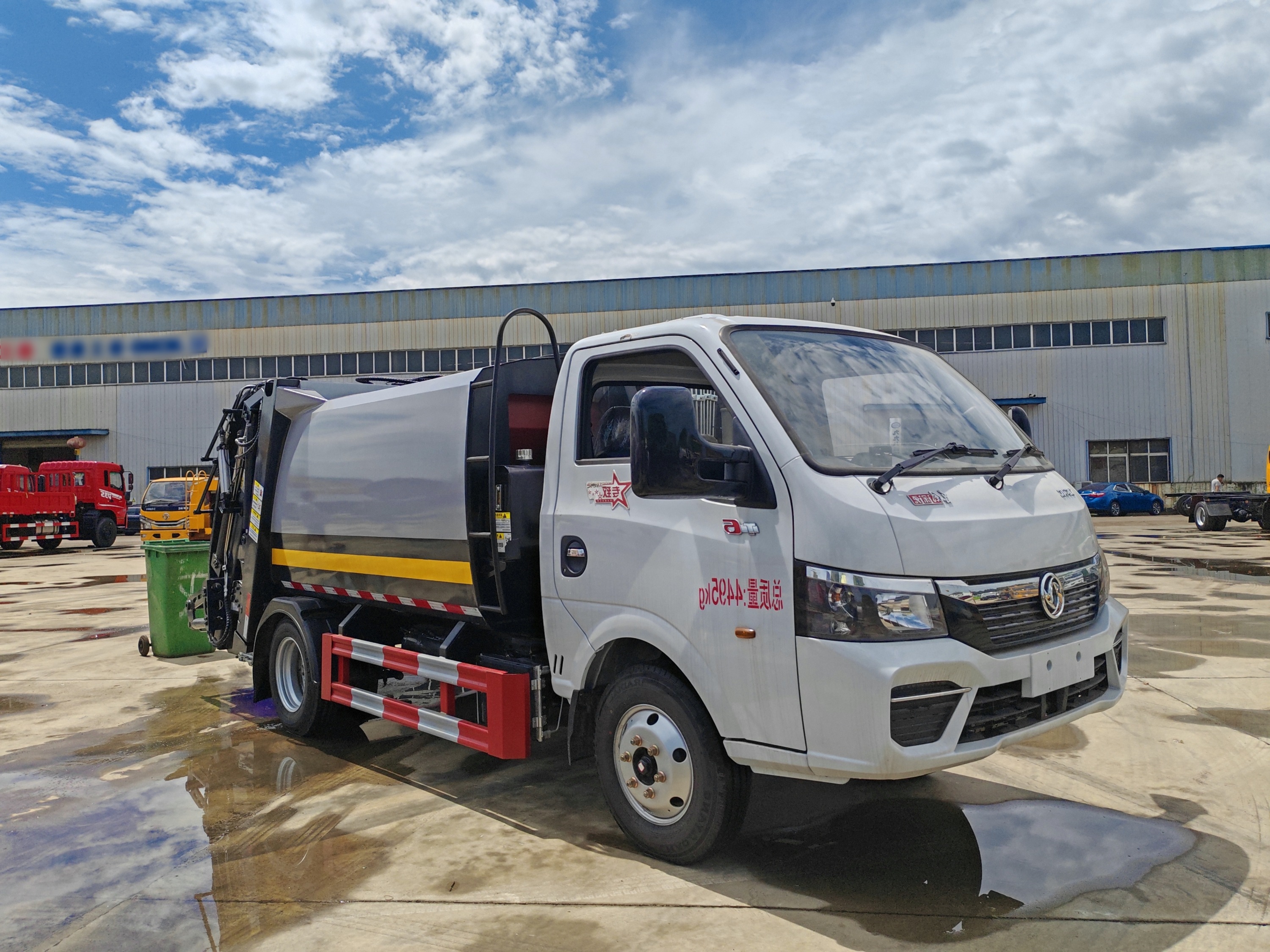

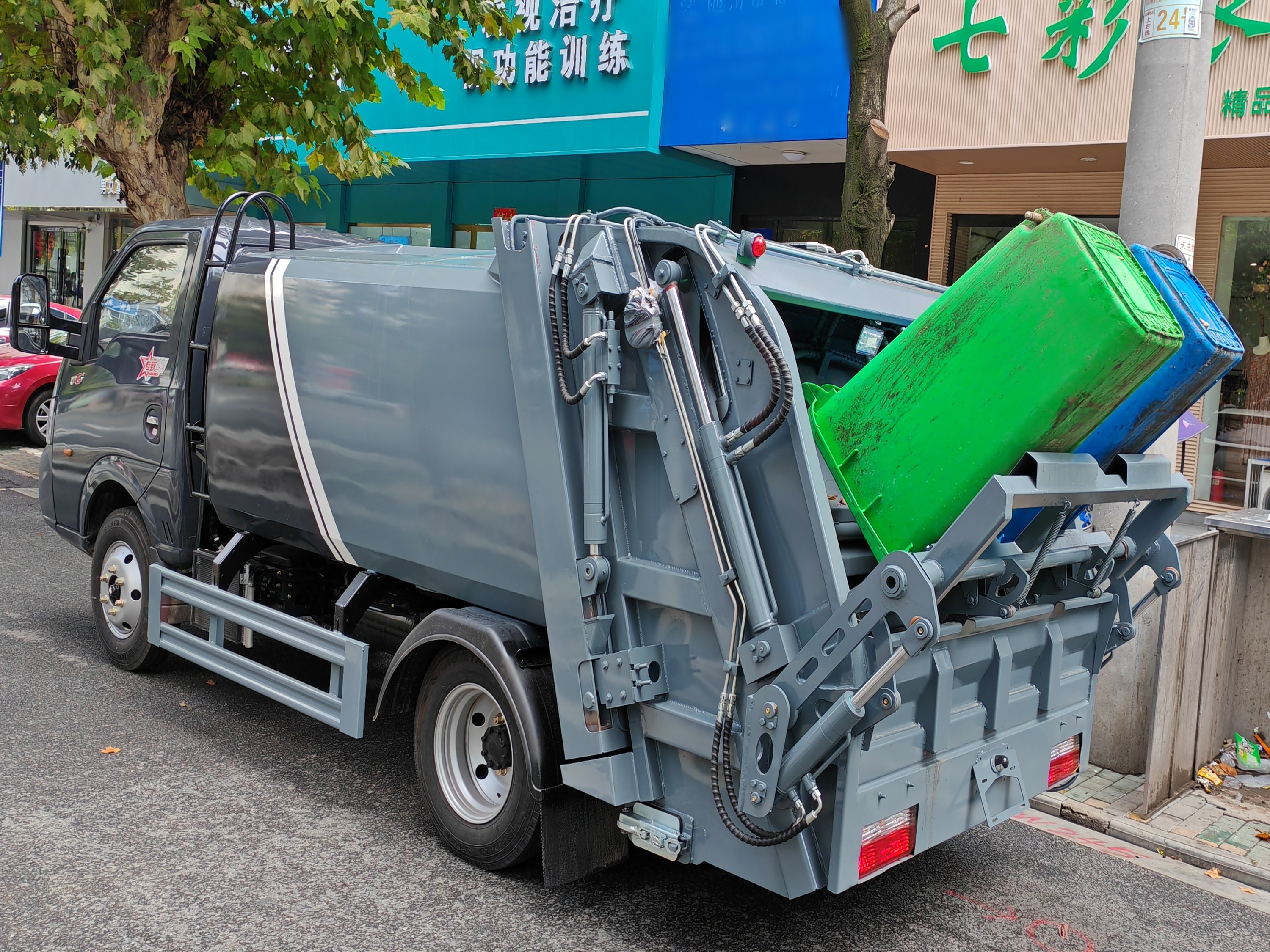

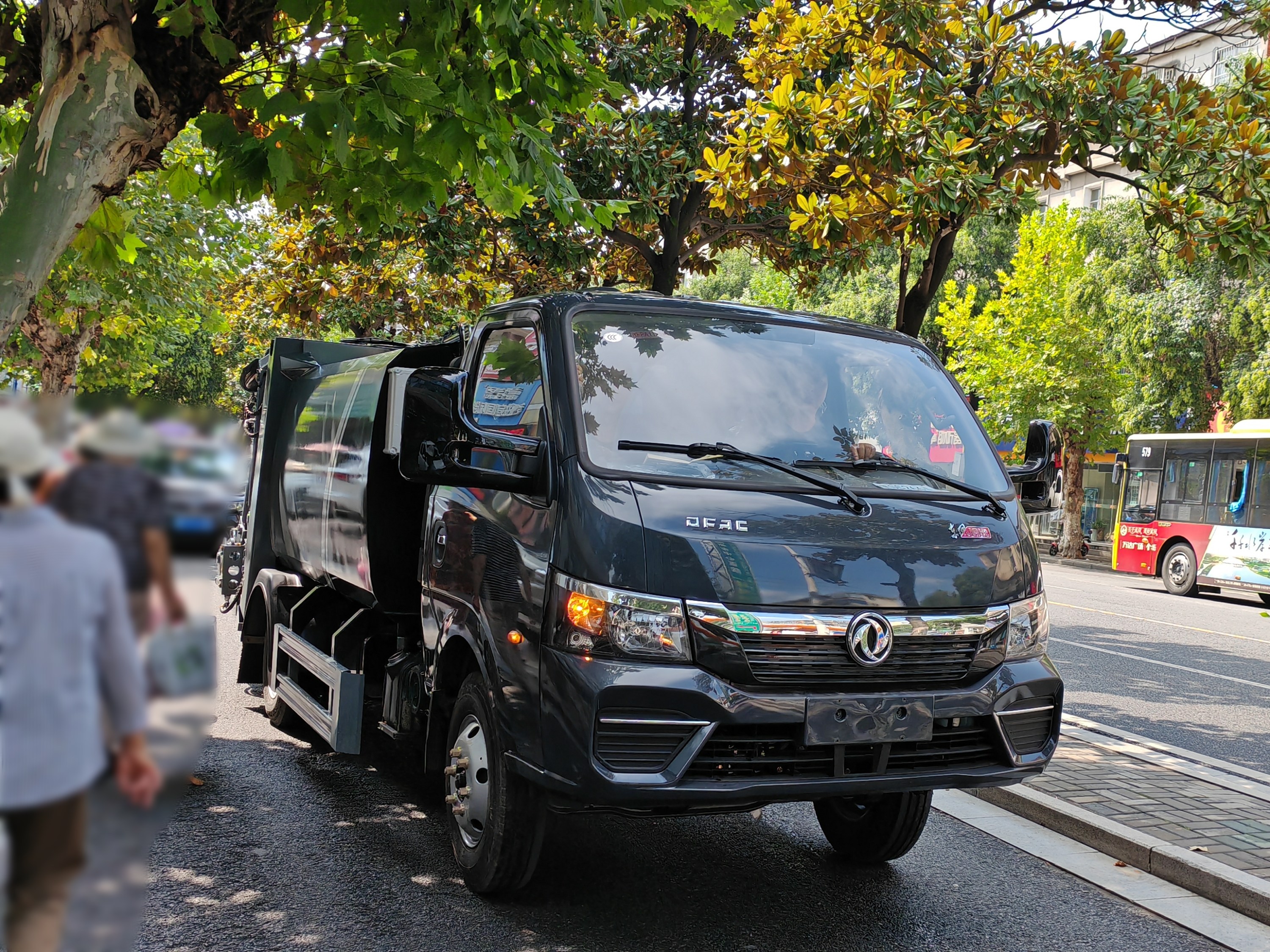

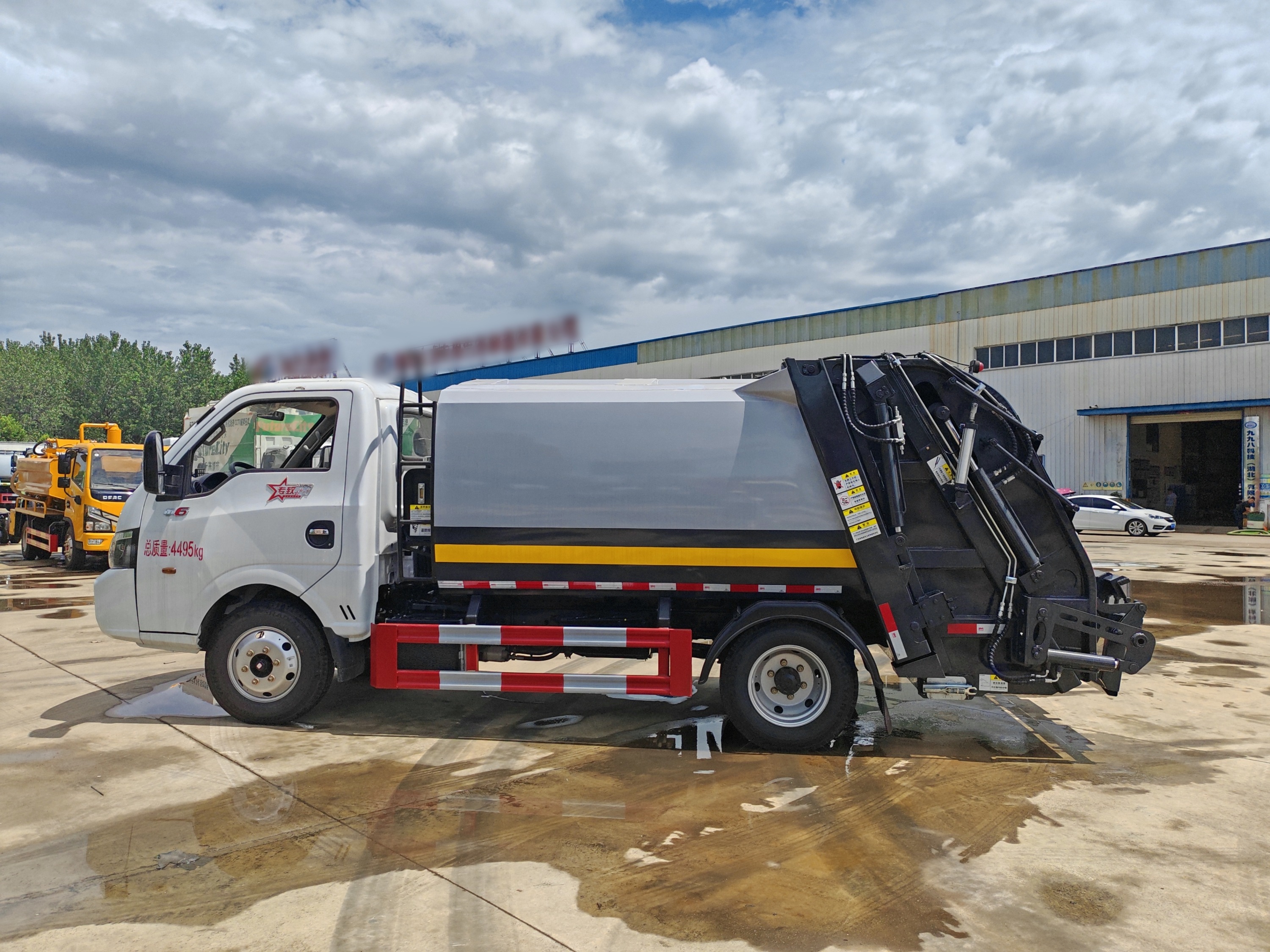

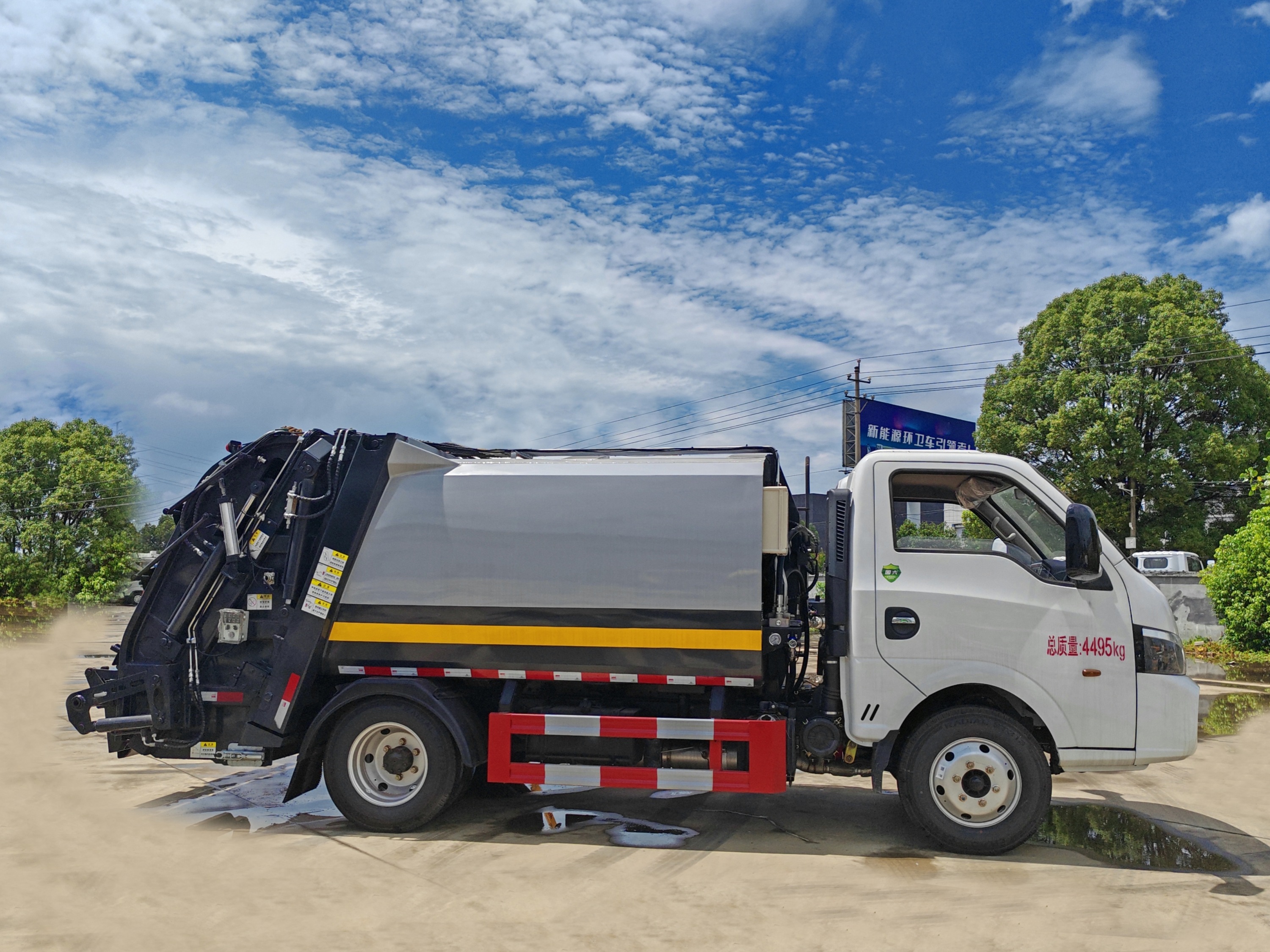

Dongfeng Tuxiaowei air brake compressed garbage truck
A compression garbage truck is a vehicle specifically designed for compressing and transporting garbage, consisting mainly of a sealed garbage bin, hydraulic system, and operating system.
Product parameters
