Chassis configuration:
1.Engine: MC11.44-60, Sinotruk 440hp
2.Transmission type: 10-speed gearbox
3.Wheelbase: 4600+1400(mm)
4.Tyre: 385/65R22.5 , 10+1 spare
5.Other: Sinotruk Howo cab
| Product Name | Sinotruk Howo 12t water foam dry powder combined fire truck |
| Driving Type | 6X4 |
| Total weight（Kg) | 29730(Kg) |
| Curb weight(kg) | 16930(Kg) |
| Rated weight(kg) | 12350(Kg) |
| person capacity | 2+4 person |
| Wheel base(mm) | 4600+1400(mm) |
| Overall dimension(mm) | 10200×2550×3620(mm) |
| Engine brand & model | MC11.44-60, Sinotruk 440hp |
| Axle Quantity | 3 |
| Transmission Type | 10-speed gearbox |
| Steering Type | LHD or RHD with power steering |
| Tire Spec. & size | 385/65R22.5 , 10+1 spare |
| Cab | Howo cab, Flat head, four door double row cab, with four air breathing apparatus brackets installed on the rear seats |
| Liquid carrying capacity | Water 6000L, foam 2000KG, dry powder 3000L |
| Tank material | The water tank is made of high-quality Q235 carbon steel plate, the foam tank is welded with 304 stainless steel, and the dry powder tank body is made of Q345R. |
| Fire pump | CB20.10/30.60 fire pump |
| Fire cannon | West PL8/48 fire monitor |
| Fire cannon range | ≥60m |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |

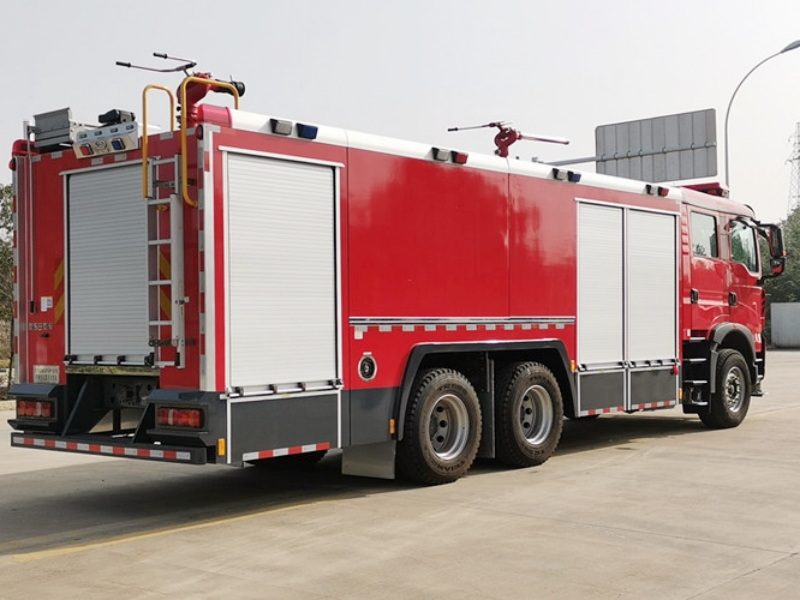

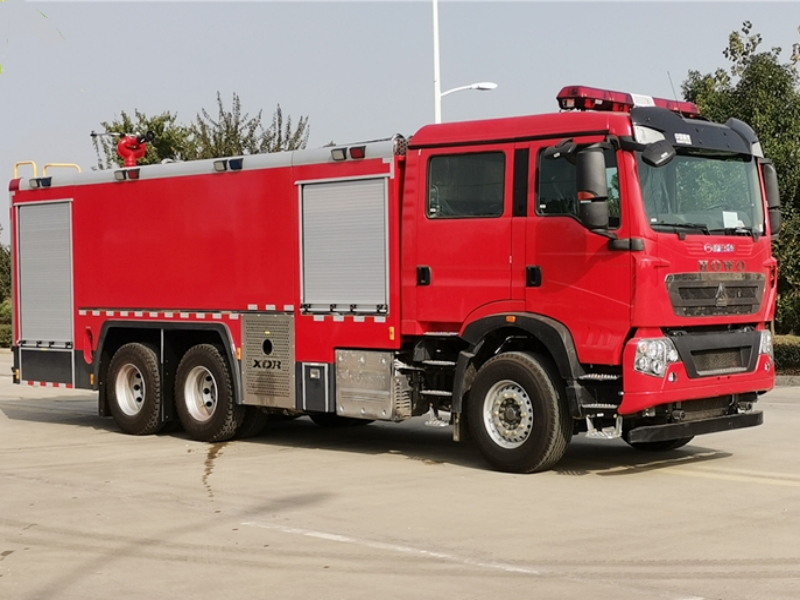

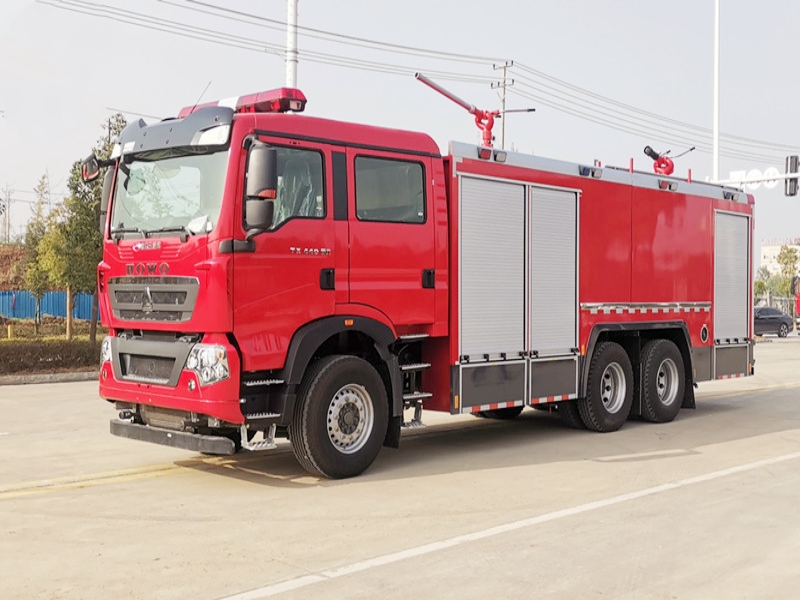

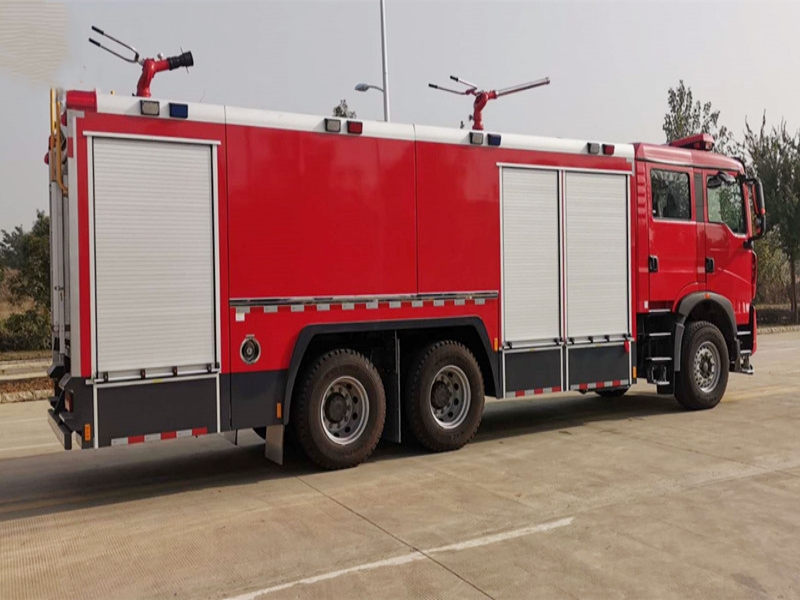

Sinotruk Howo 12t water foam dry powder combined fire truck
The dry powder and foam fire truck is a fire extinguishing equipment that integrates the functions of foam fire truck and dry powder fire truck. It is mainly equipped with vehicle fire pump, water tank, foam liquid tank and dry powder extinguishing agent tank, which can spray dry powder and foam at the same time or in sequence.
Product parameters
