Chassis configuration:
1.Engine: D10.31-50, 310hp
2.Transmission type: 9-speed gearbox
3.Wheelbase: 4600(mm)
4.Tyre: 1200R20 , 6+1 spare
5.Other: Sinotruk Howo cab
| Product Name | Sinotruk Howo 8T foam dry powder combined fire truck |
| Driving Type | 4X2 |
| Total weight（Kg) | 19450(Kg) |
| Curb weight(kg) | 6750(Kg) |
| Rated weight(kg) | 12250(Kg) |
| person capacity | 2+4 person |
| Wheel base(mm) | 4600(mm) |
| Overall dimension(mm) | 8880×2490×3630(mm) |
| Engine brand & model | D10.31-50, 310hp |
| Axle Quantity | 2 |
| Transmission Type | 9-speed gearbox |
| Steering Type | LHD or RHD with power steering |
| Tire Spec. & size | 1200R20 , 6+1 spare |
| Cab | The cab is a fully steel frame welded structure, with the front of the passenger compartment connected to the cab and double row four door doors |
| Tank material | The material is made of high-quality carbon steel (Q235), with a plate thickness of 4mm, and an optional stainless steel tank body, which is durable and long-lasting |
| Liquid carrying capacity | Water 4000L, foam 2000KG, dry powder 2000L |
| Fire pump | 1. Normal pressure fire pump model: CB10/60 vehicle fire pump, flow rate: 60L/s, pressure: 1.0MPa 2. Water diversion time ≤ 35s (7m suction depth), water ring water diversion, sandwich type full power take-off. |
| Fire cannon | Model: PL48 fire monitor, flow 48L/S/1MPa, foam range: ≥ 50m, water range ≥ 55m |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |

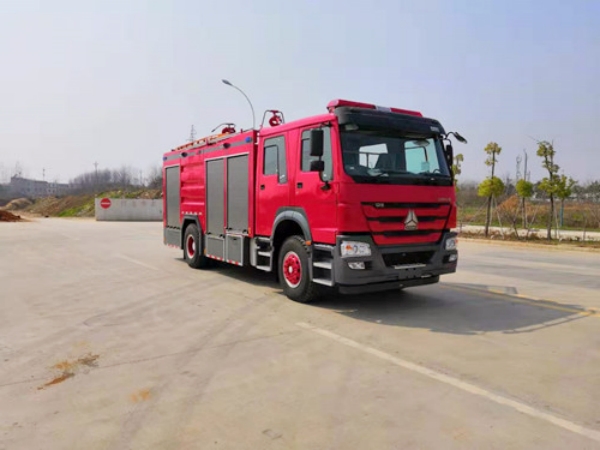

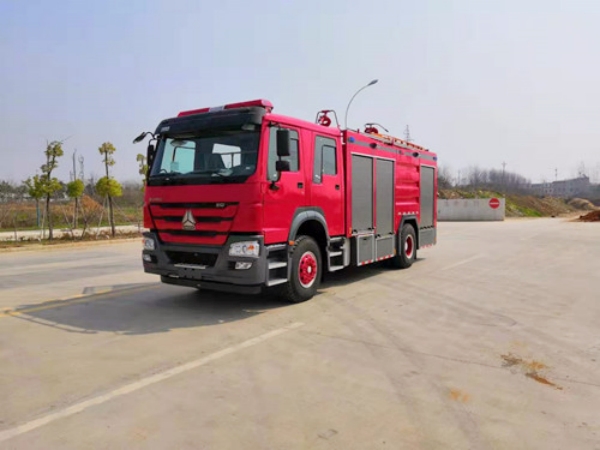

Sinotruk Howo 8T foam dry powder combined fire truck
The dry powder and foam fire truck is a fire extinguishing equipment that integrates the functions of foam fire truck and dry powder fire truck. It is mainly equipped with vehicle fire pump, water tank, foam liquid tank and dry powder extinguishing agent tank, which can spray dry powder and foam at the same time or in sequence.
