Chassis configuration:
Adopting the HOWO 8X4 chassis, modified with a double four door double seat cab, equipped with a Sinotruk 380 horsepower National V emission engine, HOWO HW19710 gearbox, HR7 ton disc front axle, ST16 ton wheel reduction rear axle, 12.00R20 steel wire tires, and original sandwich power take-off.
Installation configuration:
The liquid carrying capacity of the whole vehicle is 5000L of water, 2000KG of foam, 3000L of dry powder. The water tank is made of Q235 high-quality carbon steel plate (subject to high-tech anti-corrosion treatment). The foam tank is welded with high-quality 304 stainless steel. The dry powder tank is customized made of Q345R high-strength steel. The standard configuration is CB10/60 atmospheric fire pump, PL48 foam fire monitor, PF30 dry powder monitor, 30m dry powder reel (with dry powder gun), 9 national standard nitrogen steel cylinders (70L). The range of the water monitor is more than 60m, the range of the foam monitor is more than 55m, and the range of the dry powder monitor is more than 30m.
| Product Name | Sinotruk Howo 6X4 dry powder and foam fire truck |
| Driving Type | 6X4 |
| Total weight（Kg) | 28800(Kg) |
| Curb weight(kg) | 17250(Kg) |
| Rated weight(kg) | 11100(Kg) |
| person capacity | 2+4 person |
| Wheel base(mm) | 4600+1400(mm) |
| Overall dimension(mm) | 10380×2550×3900(mm) |
| Engine brand & model | Sinotruk 380hp |
| Axle Quantity | 3 |
| Transmission Type | 10-speed gearbox |
| Steering Type | LHD or RHD with power steering |
| Tire Spec. & size | 12.00R20 steel wire tire , 10+1 spare |
| Cab | Howo cab, Flat head, four door double row cab, with four air breathing apparatus brackets installed on the rear seats |
| Liquid carrying capacity | Water 5000L, foam 2000KG, dry powder 3000L |
| Tank material | The water tank is made of high-quality Q235 carbon steel plate, the foam tank is welded with 304 stainless steel, and the dry powder tank body is made of Q345R. |
| Fire pump | CB10/60 atmospheric pressure fire pump |
| Fire cannon | PL48 foam fire monitor |
| Dry powder cannon | PF30 dry powder cannon |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |

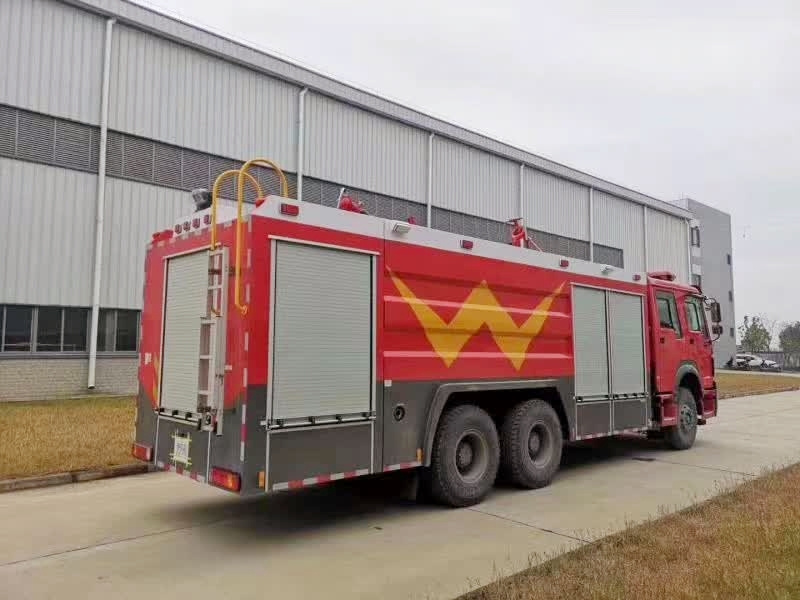

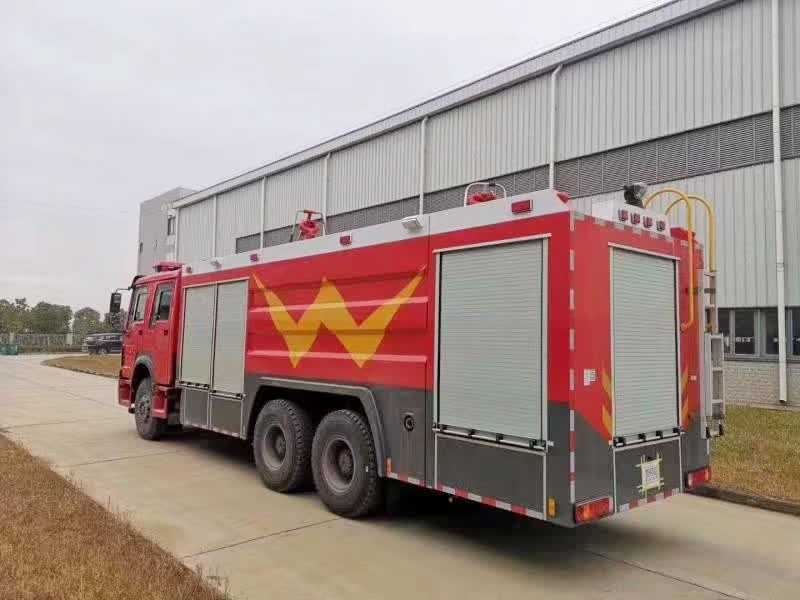

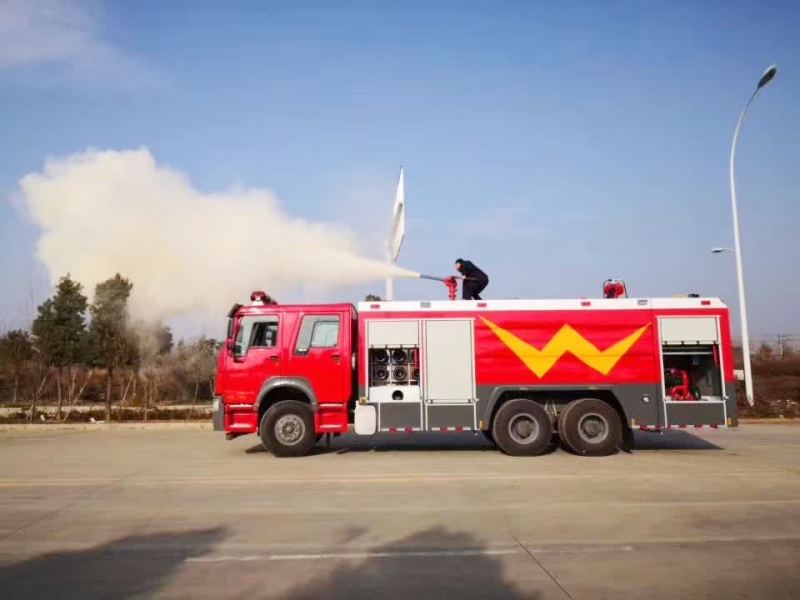

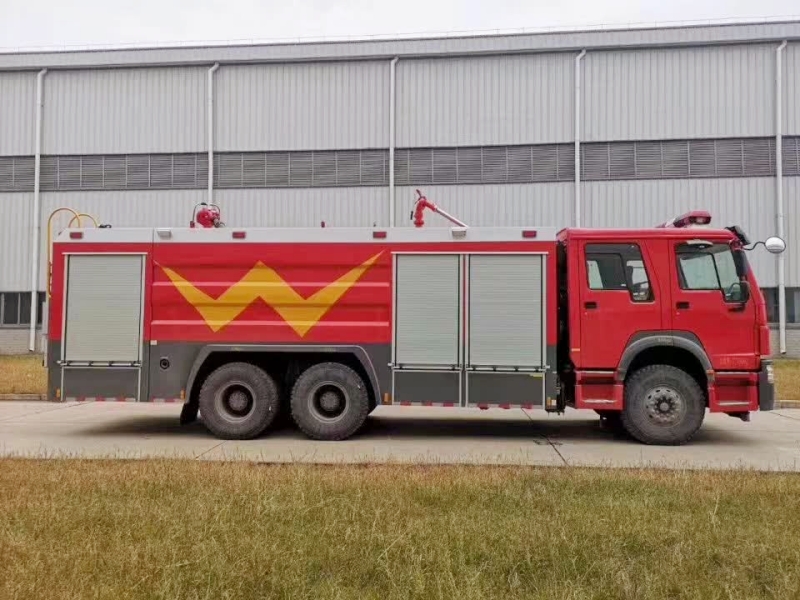

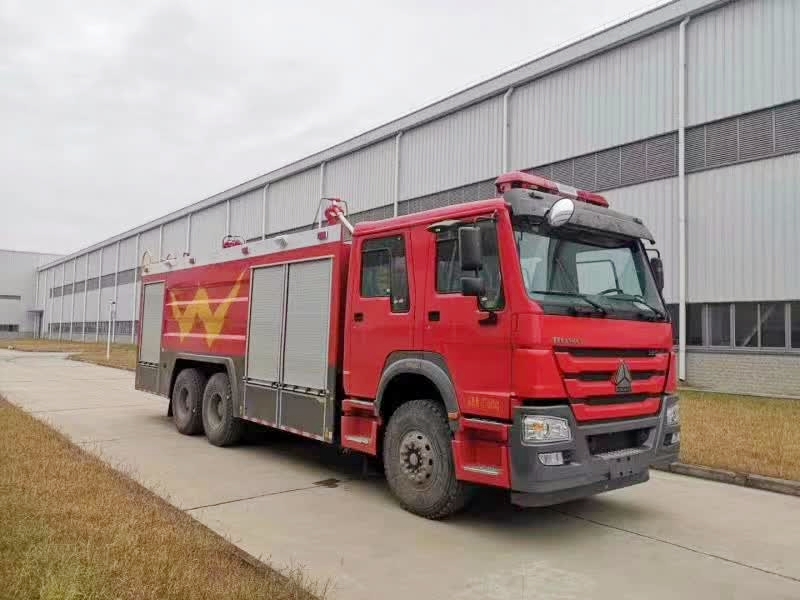

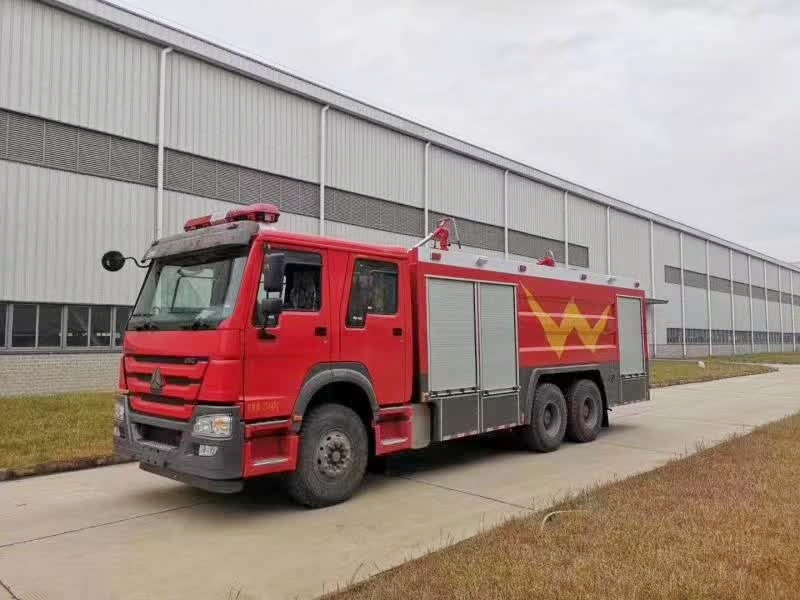

Sinotruk Howo 6X4 dry powder and foam fire truck
The dry powder and foam fire truck is a fire extinguishing equipment that integrates the functions of foam fire truck and dry powder fire truck. It is mainly equipped with vehicle fire pump, water tank, foam liquid tank and dry powder extinguishing agent tank, which can spray dry powder and foam at the same time or in sequence.
Product parameters
