Chassis configuration:
1. Engine: MC11.44-60, 324kW（440hp)
2.Transmission type: 9-speed gearbox
3.Tyre: 315/80R22.5,12.00R20, 10+1 spare
4.Wheelbase:4600+1400(mm)
5.Other:Howo cab, Flat head, four door double row cab, with four air breathing apparatus brackets installed on the rear seats
| Product Name | Howo TX 6X4 dry powder and foam fire truck |
| Driving Type | 6X4 |
| Total weight（Kg) | 28800(Kg) |
| Curb weight(kg) | 17250(Kg) |
| Rated weight(kg) | 11100(Kg) |
| person capacity | 2+4 person |
| Wheel base(mm) | 4600+1400(mm) |
| Overall dimension(mm) | 10380×2550×3900(mm) |
| Engine brand & model | MC11.44-60, 324kW（440hp) |
| Axle Quantity | 3 |
| Transmission Type | 9-speed gearbox |
| Steering Type | LHD or RHD with power steering |
| Tire Spec. & size | 315/80R22.5,12.00R20, 10+1 spare |
| Cab | Howo cab, Flat head, four door double row cab, with four air breathing apparatus brackets installed on the rear seats |
| Liquid carrying capacity | 6000L water, 2000L foam, 3000L dry powder |
| Tank material | The water tank is made of high-quality Q235 carbon steel plate, the foam tank is welded with 304 stainless steel, and the dry powder tank body is made of Q345R. |
| Fire pump | CB20.10/30.60 medium and low pressure fire pump |
| Fire cannon | PL8/48 dual-purpose fire monitor |
| Dry powder cannon | PF5-15/30 dry powder monitor |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |

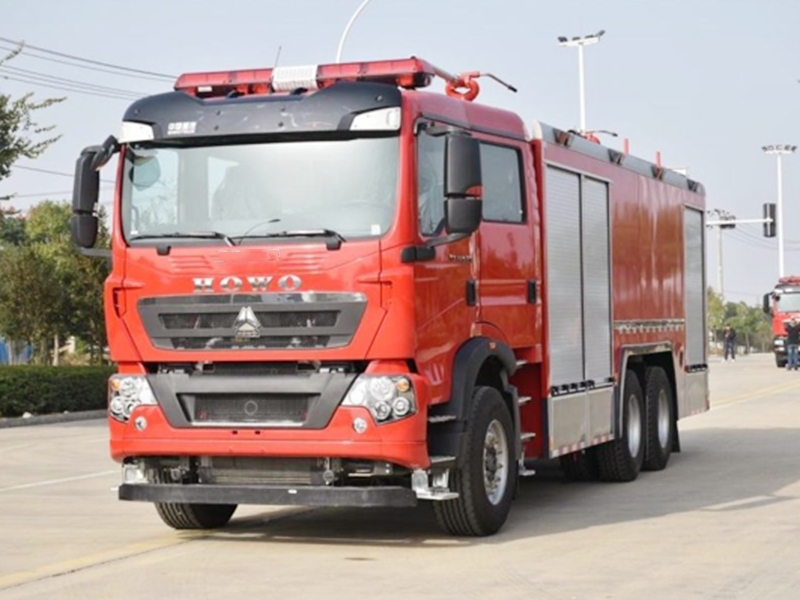

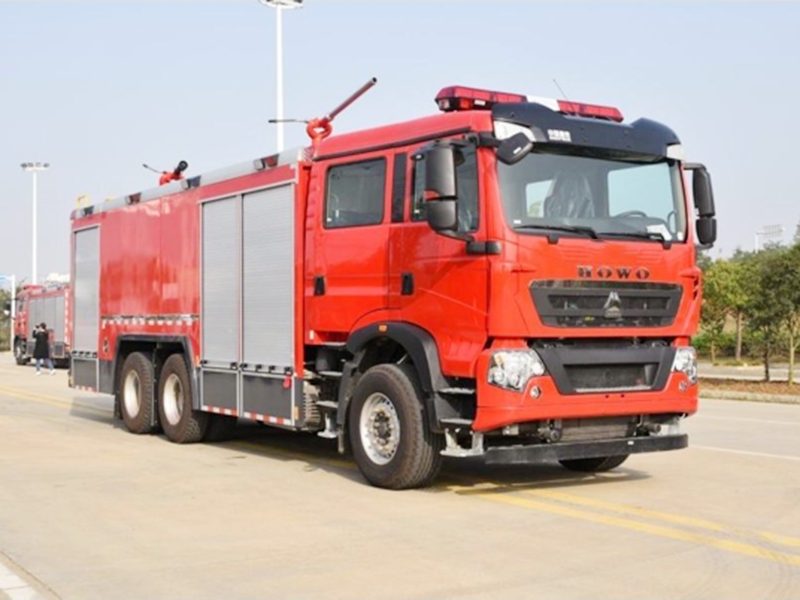

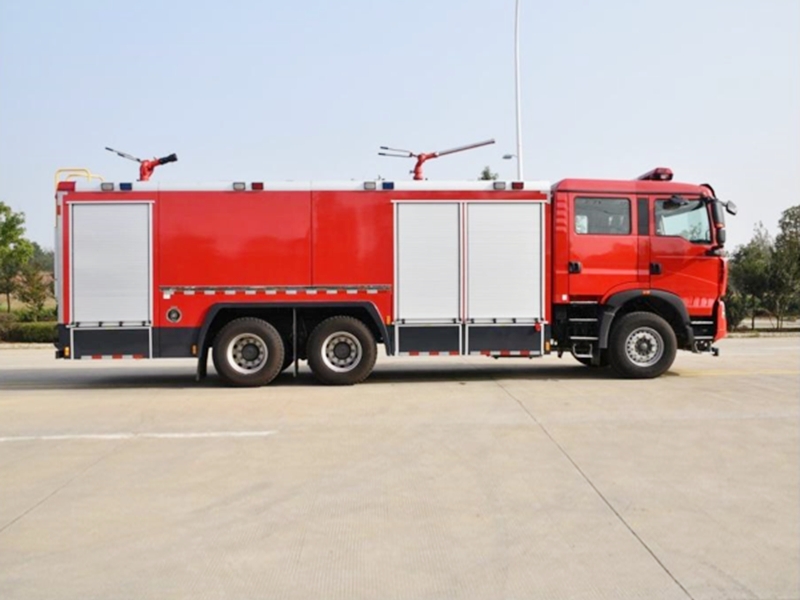

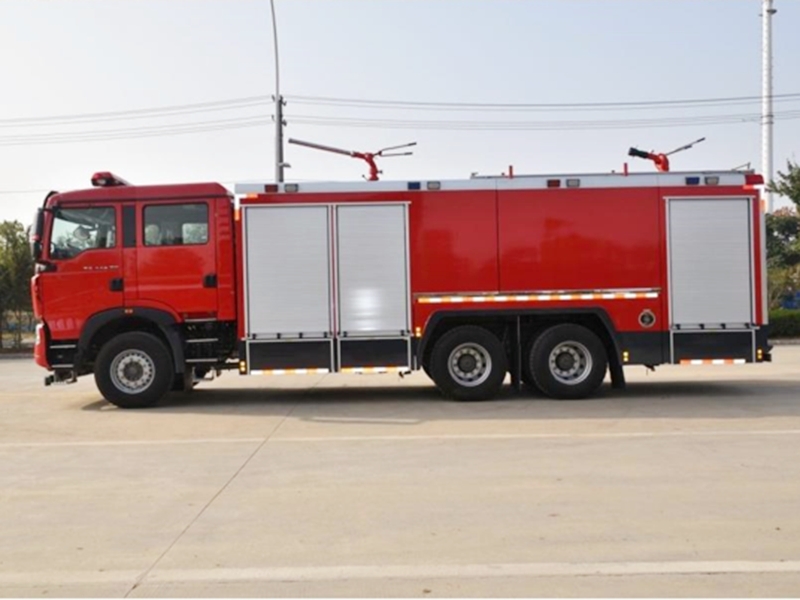

Howo TX 6X4 dry powder and foam fire truck
The dry powder and foam fire truck is a fire extinguishing equipment that integrates the functions of foam fire truck and dry powder fire truck. It is mainly equipped with vehicle fire pump, water tank, foam liquid tank and dry powder extinguishing agent tank, which can spray dry powder and foam at the same time or in sequence.
Product parameters
