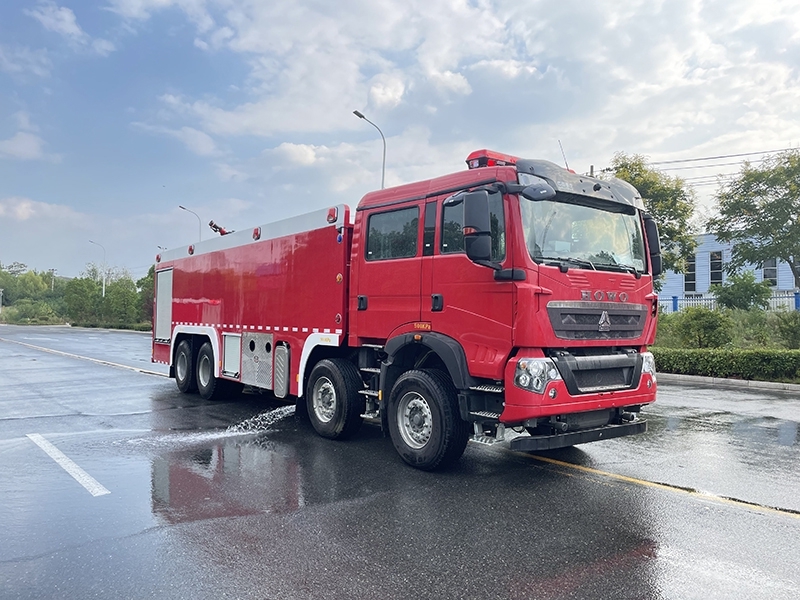

6X4 Sinotruk Sitrak foam fire truck
2024-10-07 09:54:11 Source：CLW

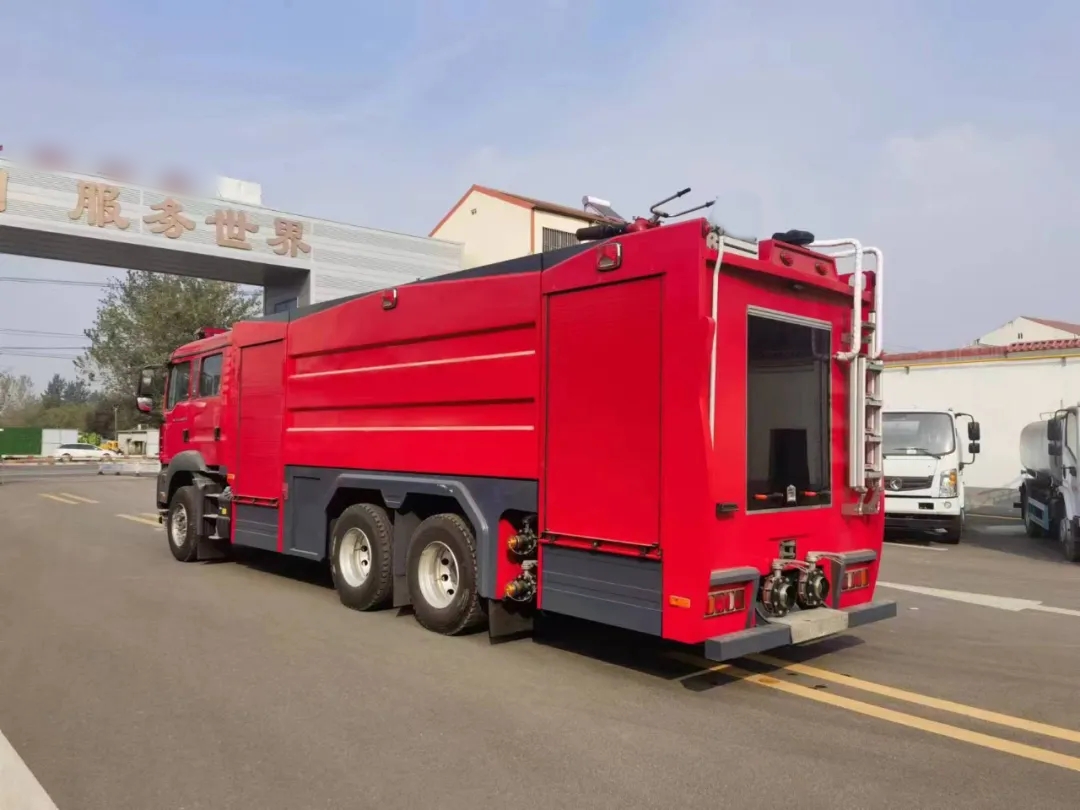

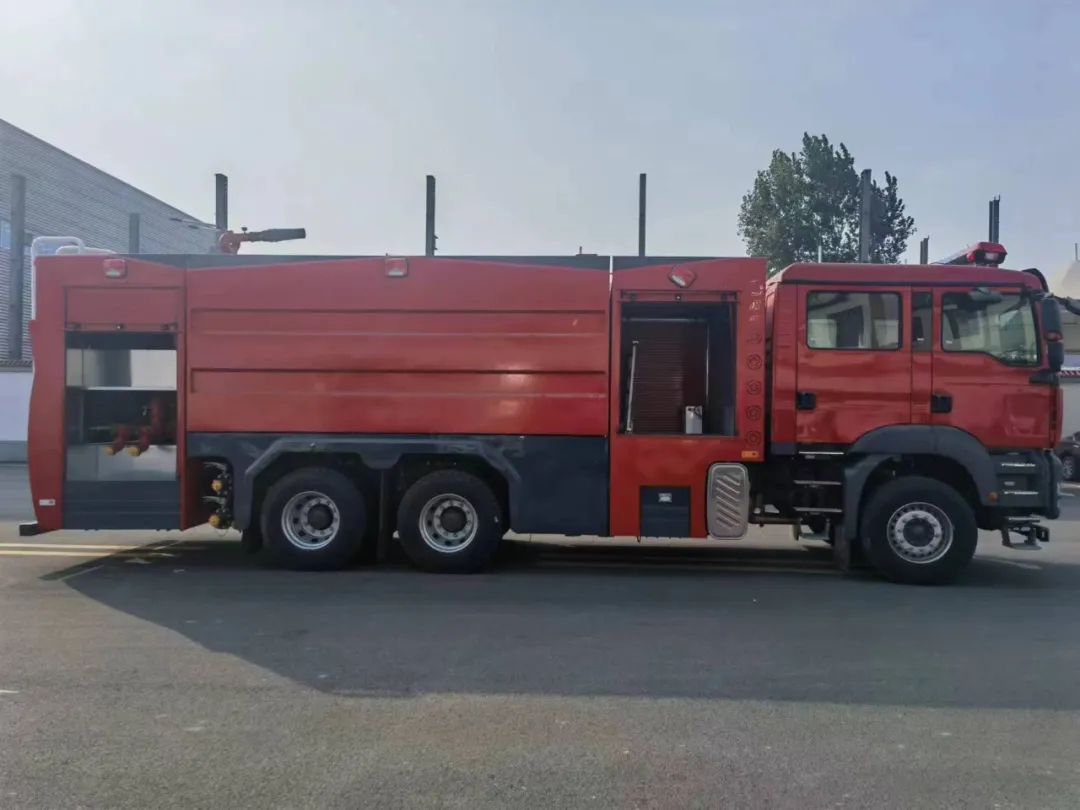

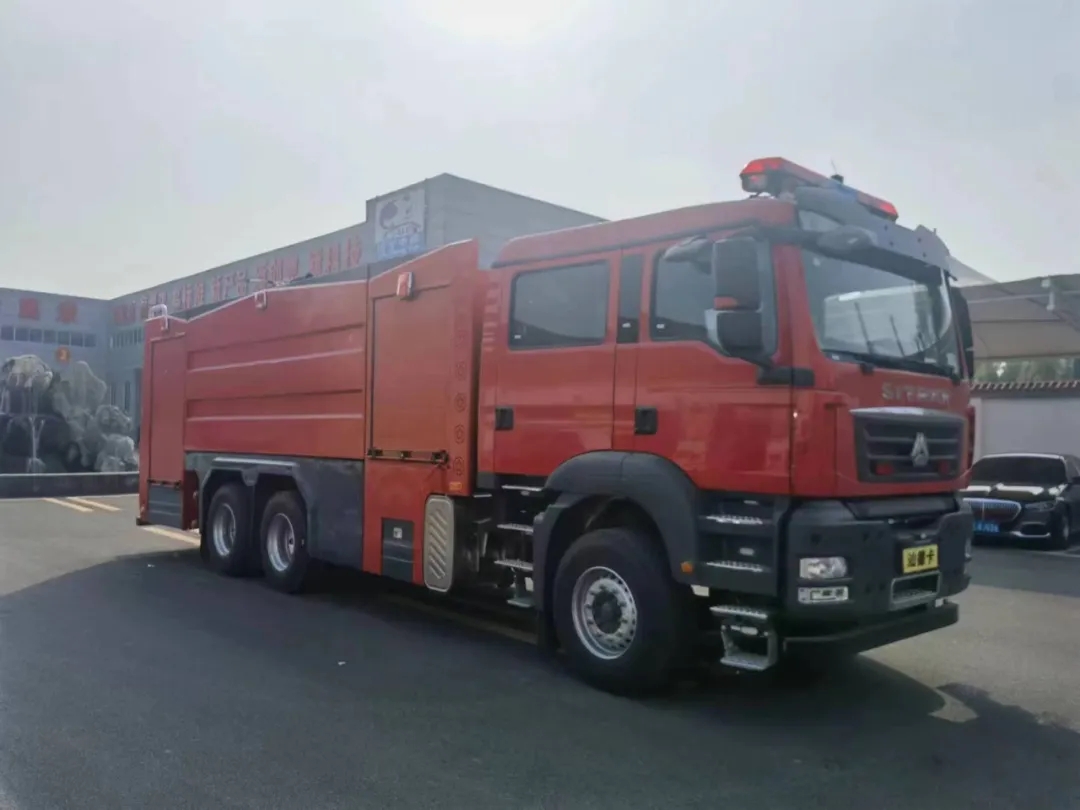

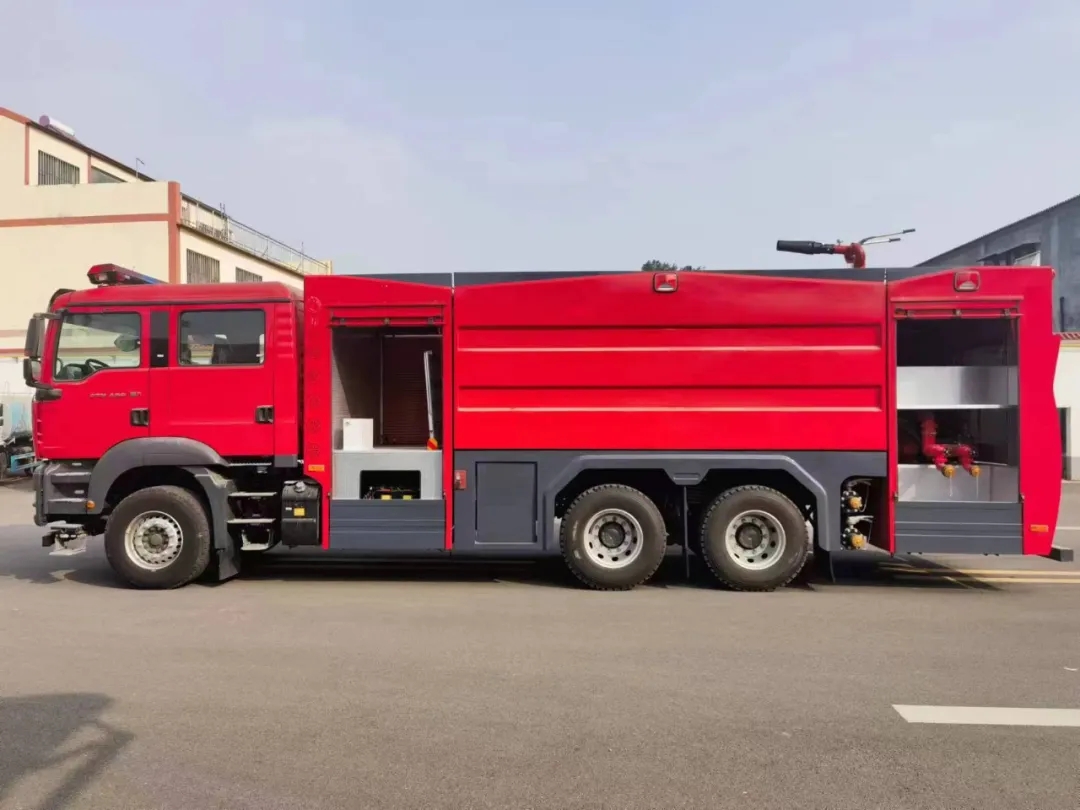

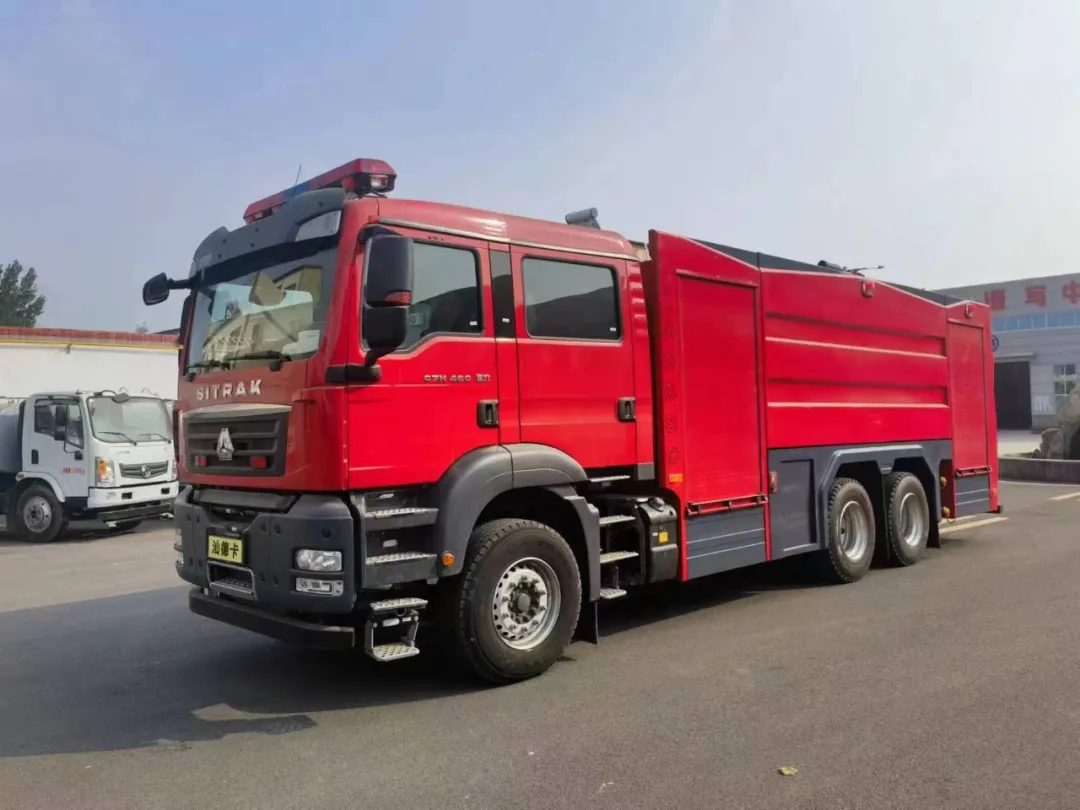

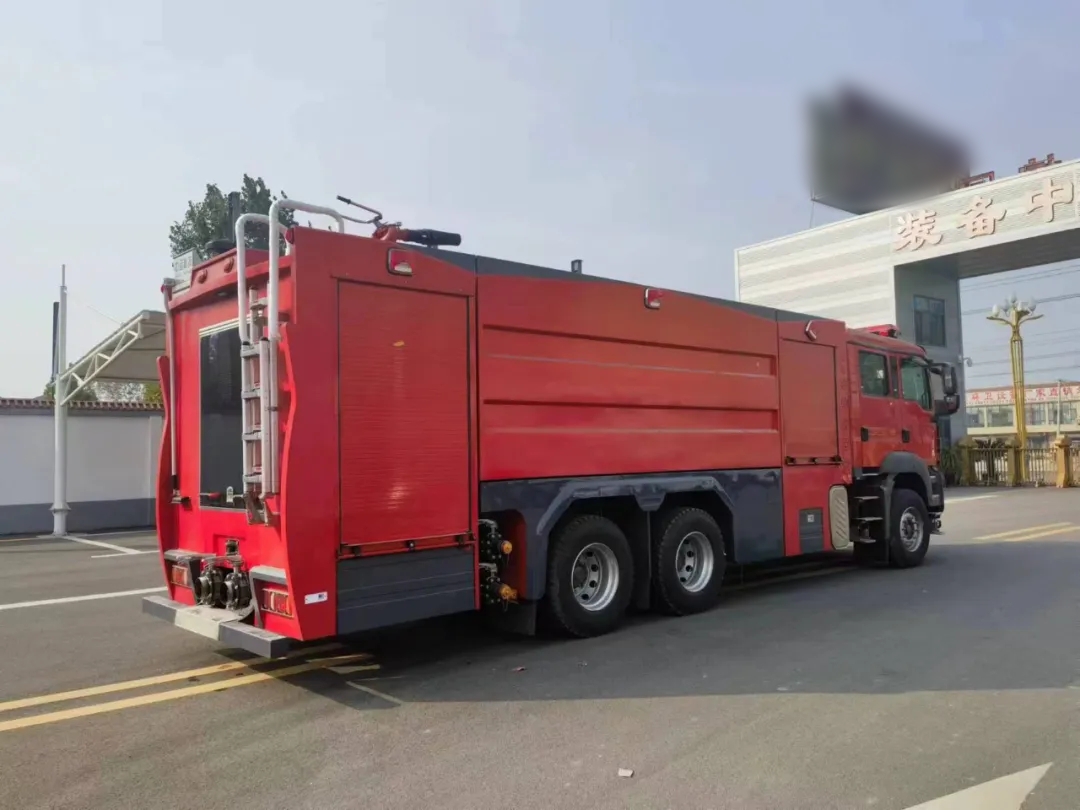

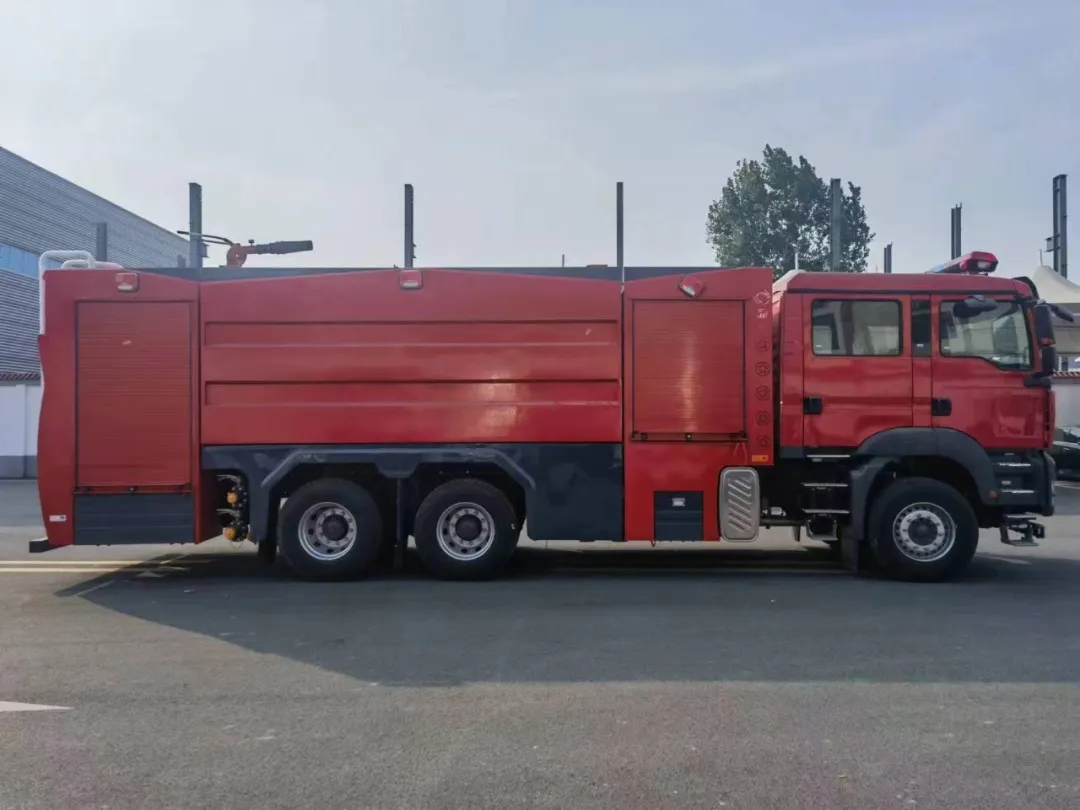

6X4 Sinotruk Sitrak foam fire truck
Chassis configuration:
1. Engine: MC13.54-61, 540hp
2.Transmission type: 10-speed gearbox
3.Tyre: 315/80R22.5 18PR, 10 +1 spare
4.Wheelbase:4300+1400,4325+1350,4600+1400,4625+1350,5200+1400,5225+1350,5800+1400,5825+1350(mm)
5.Other: The cab is a fully steel frame welded structure, with a single row cab
Installation configuration:

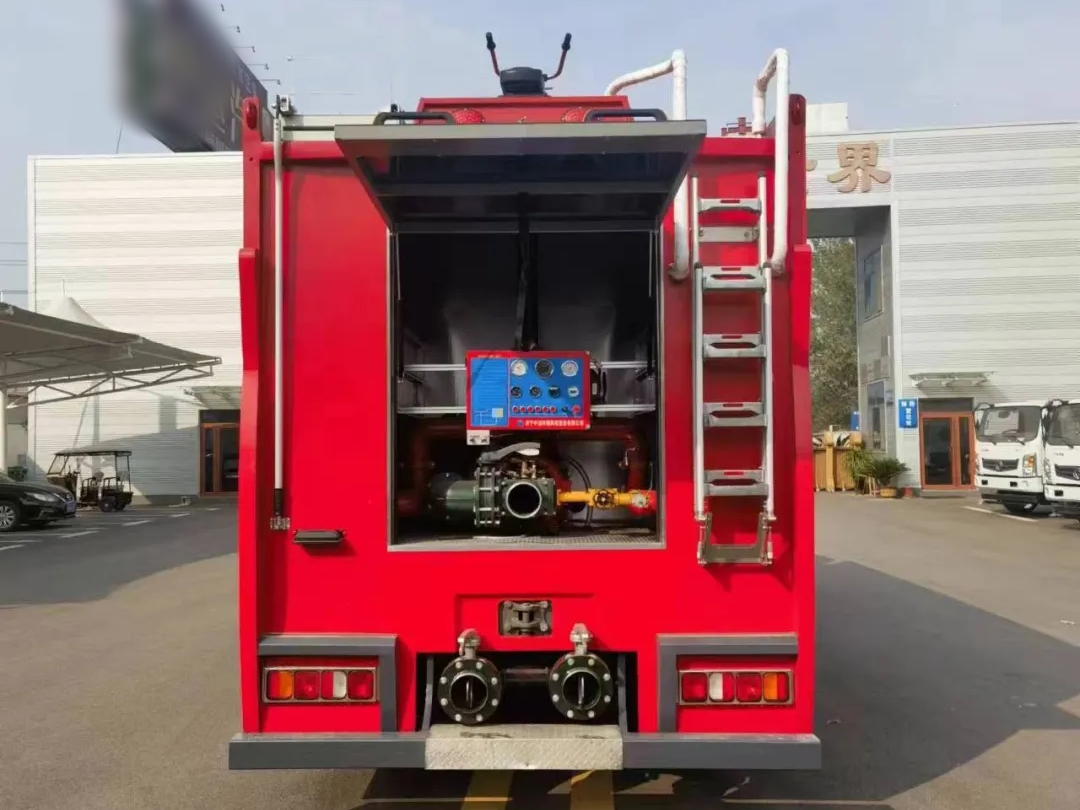

Fire monitor model: PS40 fire monitor, flow rate 40L/S/1MPa, water range: ≥ 45 Normal pressure fire pump model: CB10/40 vehicle fire pump, flow rate: 40L/s, pressure: 1.0MPa Water intake time ≤ 35s (7m suction depth) water ring water intake sandwich full power take-off
| Product Name |
6X4 Sinotruk Sitrak foam fire truck |
| Driving Type |
6X4 |
| Total weight（Kg) |
33800(Kg) |
| Curb weight(kg) |
16350(Kg) |
| Rated weight(kg) |
17000(Kg) |
| Wheel base(mm) |
4300+1400,4325+1350,4600+1400,4625+1350,5200+1400,5225+1350,5800+1400,5825+1350(mm) |
| Overall dimension(mm) |
10470×2540×3820(mm) |
| Engine brand & model |
MC13.54-61, 540hp |
| Displacement(L)/Power(kw) |
12.4L/400KW |
| Axle Quantity |
3 |
| Transmission Type |
10-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
air brake |
| Tire Spec. & size |
315/80R22.5 18PR, 10 +1 spare |
| Cab |
The cab is a fully steel frame welded structure, with a single row cab |
| Extinguishing Media |
water/foam/dry-powder |
| Tank material |
Carbon steel or stainless steel and aluminum alloy plate |
| Tank volume（L） |
14cbm water tank+3cbm foam tank |
| Configuration and performance |
Fire monitor model: PS40 fire monitor, flow rate 40L/S/1MPa, water range: ≥ 45 Normal pressure fire pump model: CB10/40 vehicle fire pump, flow rate: 40L/s, pressure: 1.0MPa Water intake time ≤ 35s (7m suction depth) water ring water intake sandwich full power take-off |
| Onboard equipment |
Onboard equipment Fire hose, water injection hose, DC water gun, multifunctional water gun, dry powder fire extinguisher, water collector, water separator, suction pipe wrench, rubber hammer, protective belt bridge, above ground fire hydrant wrench, underground fire hydrant wrench, water hose strap, water hose hook, fire axe, fire suction pipe, suction pipe filter, reducer interface |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
6X4 Sinotruk Sitrak foam fire truck
A fire engine, also known as a fire truck,
refers to a vehicle designed and manufactured according to needs, suitable for
firefighters to use, equipped with various fire-fighting equipment or agents,
for firefighting, auxiliary firefighting, or firefighting rescue. It is the
main tool for firefighting and is also the most basic mobile firefighting
equipment.
Foam fire truck: foam fire truck and water tank fire truck are basically the same, but the difference is that the material used by foam fire truck to extinguish fire is foam, while the water tank fire truck uses water. Foam fire truck is mainly equipped with fire pump, water tank, foam liquid tank, foam mixing system, foam gun, monitor and other fire-fighting equipment, which can fight fire accidents independently. It is especially suitable for fighting oil fire accidents such as oil and its products, and can also supply water and foam mixture to the fire site. It is a necessary fire fighting vehicle for petrochemical enterprises, oil terminals, airports and urban professional fire brigades.
Product parameters
