Dongfeng D9 4×2 Food Waste Truck
2024-10-07 09:54:11 Source：CLW
Dongfeng D9 4×2 Food Waste Truck
Chassis configuration 1:Dongfeng Dorica D9 original chassis, D4.0NS6B195 engine, wheelbase 3950/4500mm, Fast 8-speed transmission, 2315 cab, 3.9T front axle, 8T rear axle, 275/80R22.5 vacuum tires, 250mm beam, air brake, air conditioning, electric doors and windows, central locking.
Chassis configuration 2:Dongfeng Dorica D9 original chassis, B6.2NS6B230 engine, wheelbase 3950/4500mm, Fast 8-speed transmission, 2315 cab, 4.5T front axle, 10T rear axle, 10.00 steel tires, 250mm beam, air brake, air conditioning, electric doors and windows, central locking.
| Product Name |
Dongfeng D9 4×2 Food Waste Truck |
| Driving Type |
4×2 |
| Gross vehicle weight(Kg) |
18000(Kg) |
| Curb weight(Kg) |
8380,9100(Kg) |
| Rated weight(kg) |
9490,9425,8770,8705(Kg) |
| Wheelbase(mm) |
3950/4500(mm) |
| Overall Dimension(mm) |
7450,7000×2500,2550×3200,3100(mm) |
| Engine brand & model |
D4.0NS6B195, Cummins 195 horsepower |
| Axle Quantity |
2 |
| Transmission Type |
FAST 8-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
275/80R22.5 vacuum tires, 6+1 spare |
| Cab |
Dongfeng D9 cab, air conditioning, electric doors and windows, central locking system |
| Volume(m³) |
10m³/12m³ |
| Tank body |
Made of Q710 high-strength steel, with side plate thickness of 4mm and bottom plate thickness of 5mm, reinforced square tank body |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |

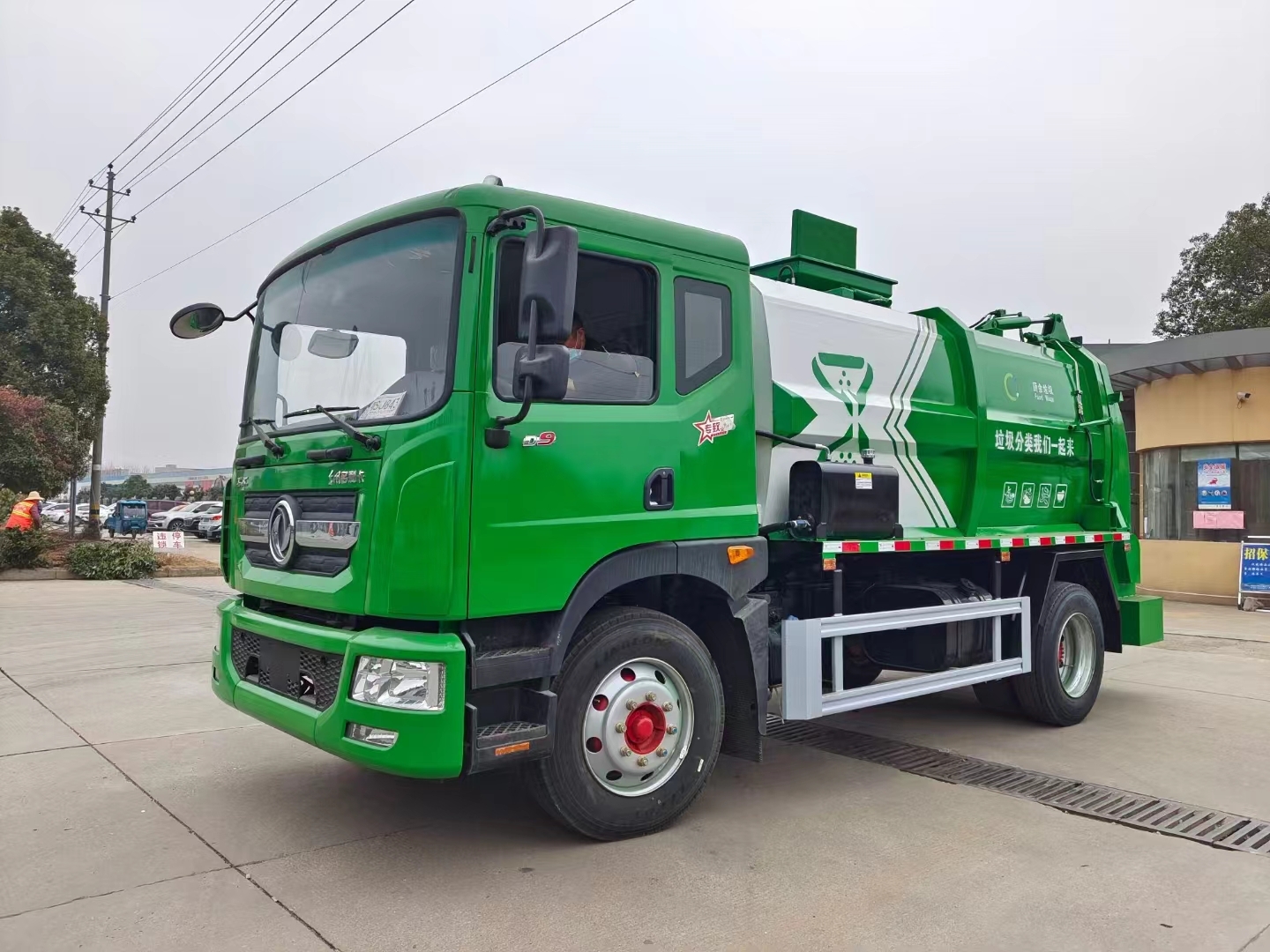

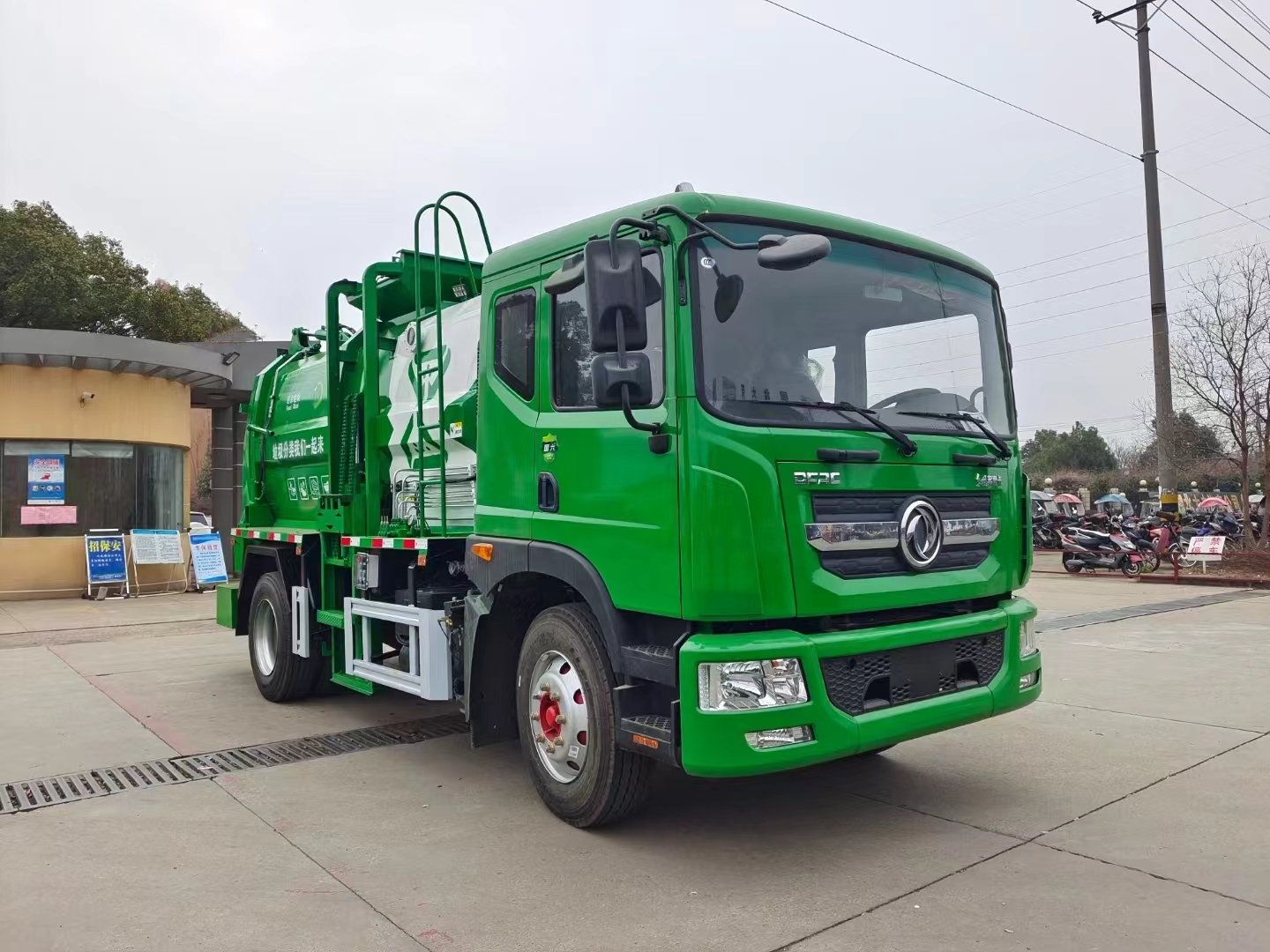

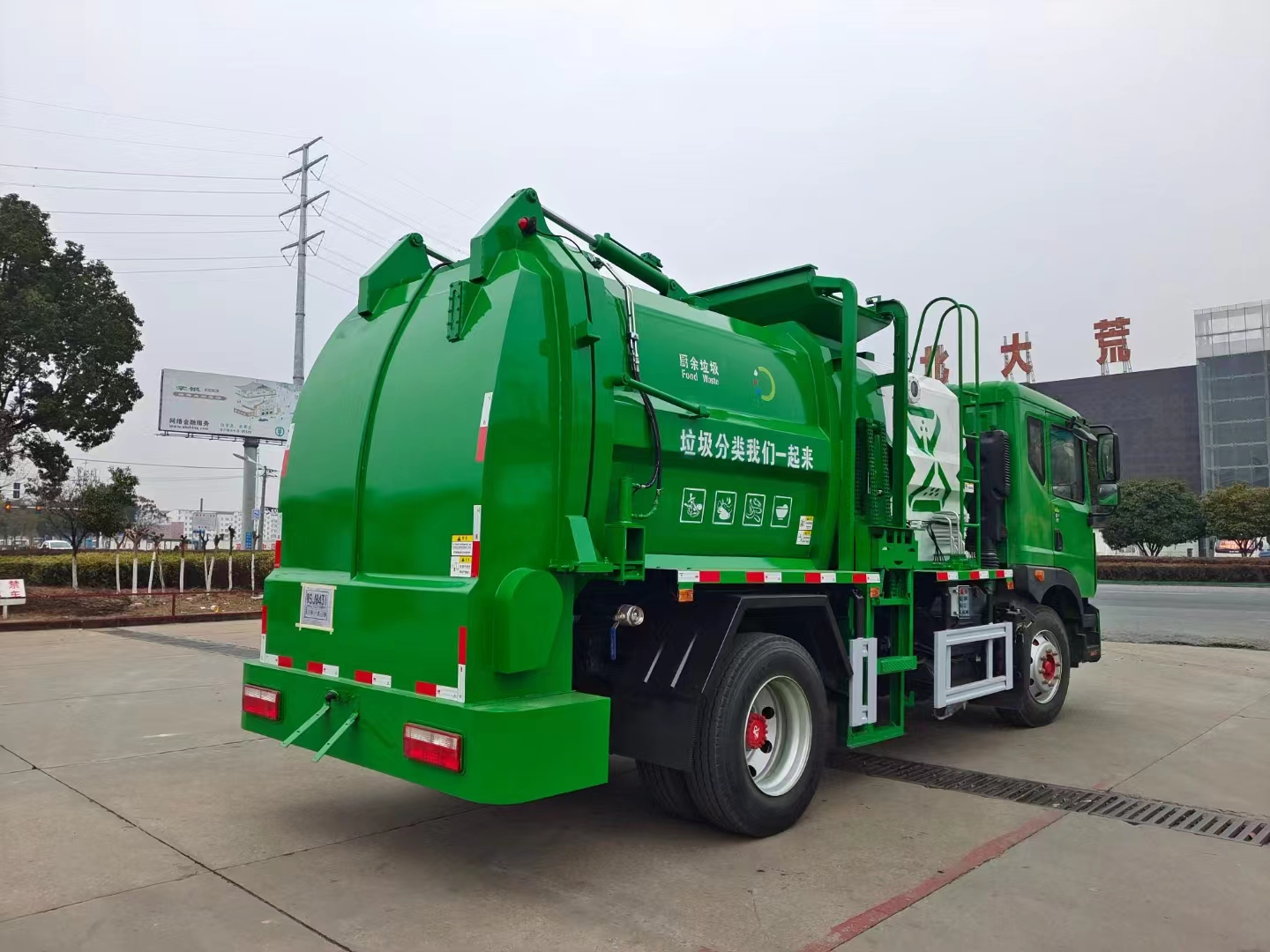

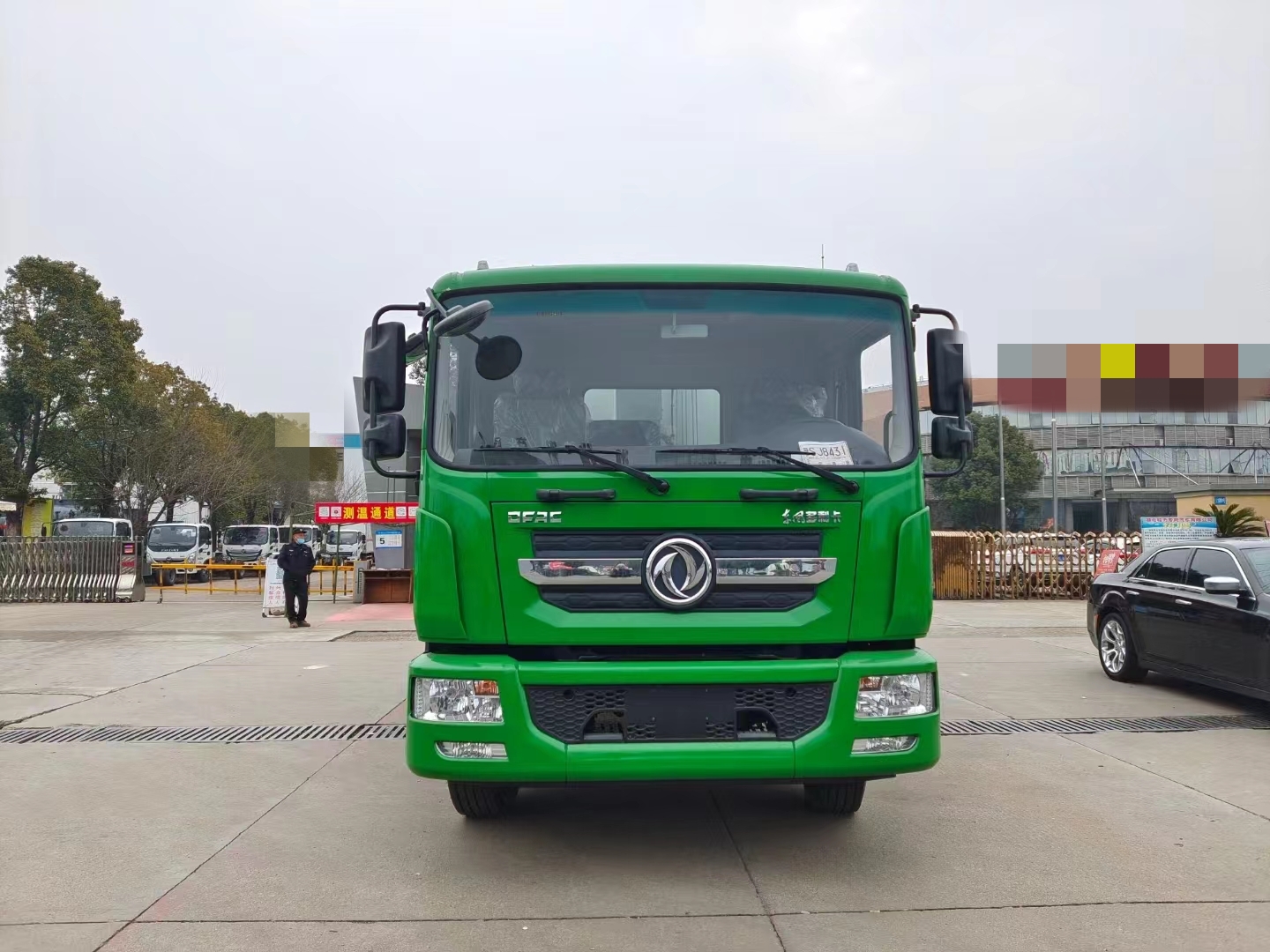

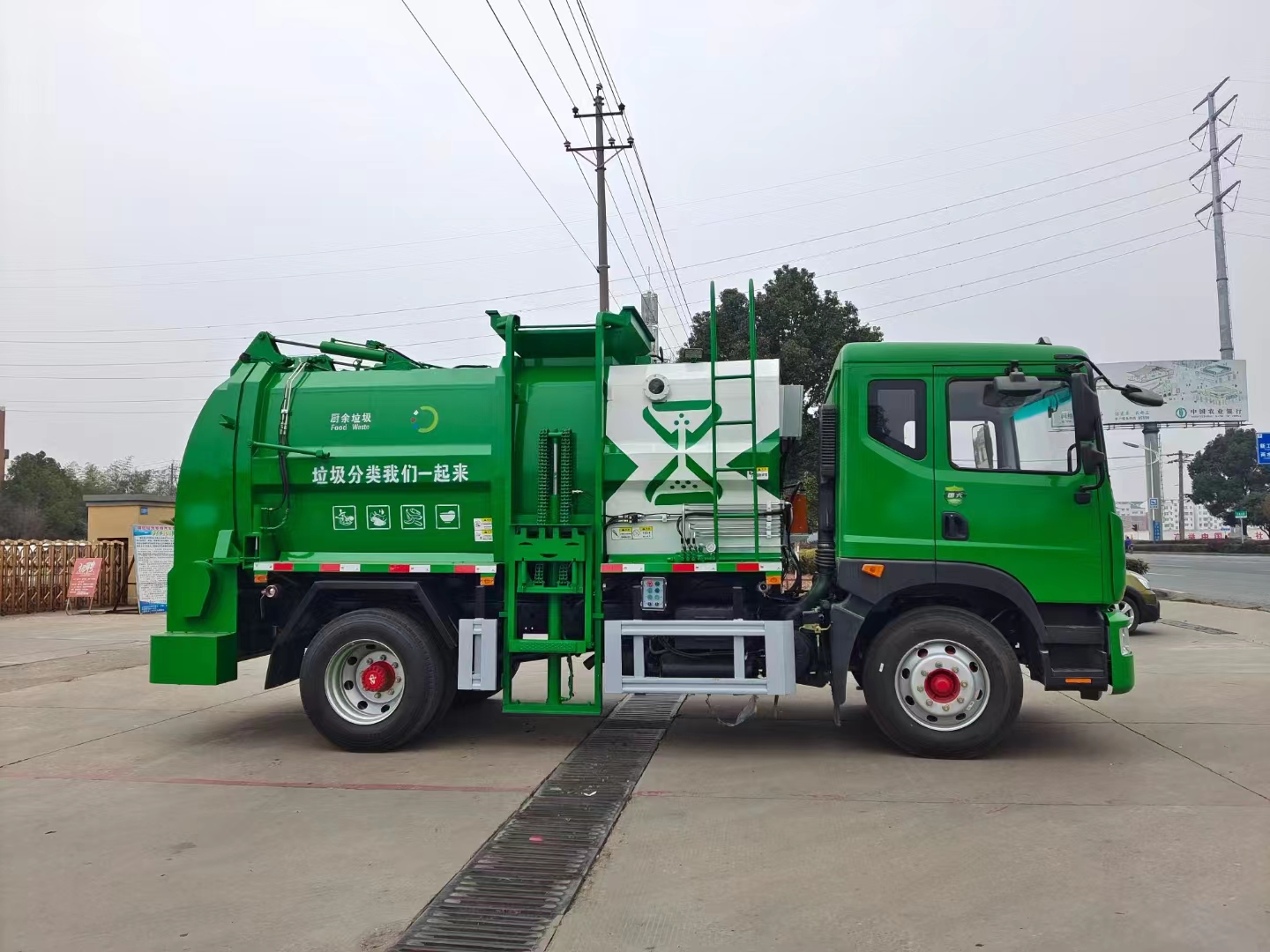

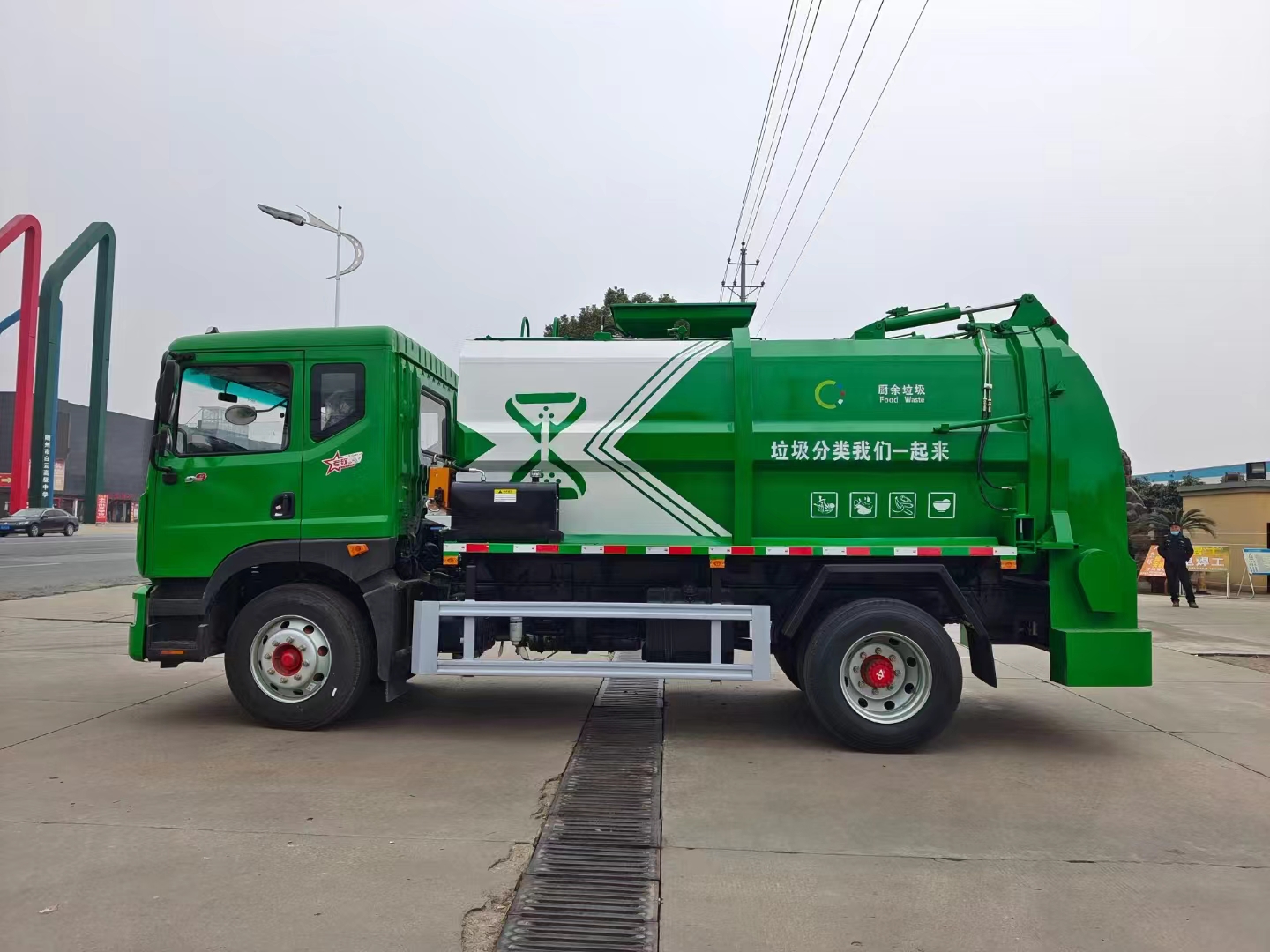

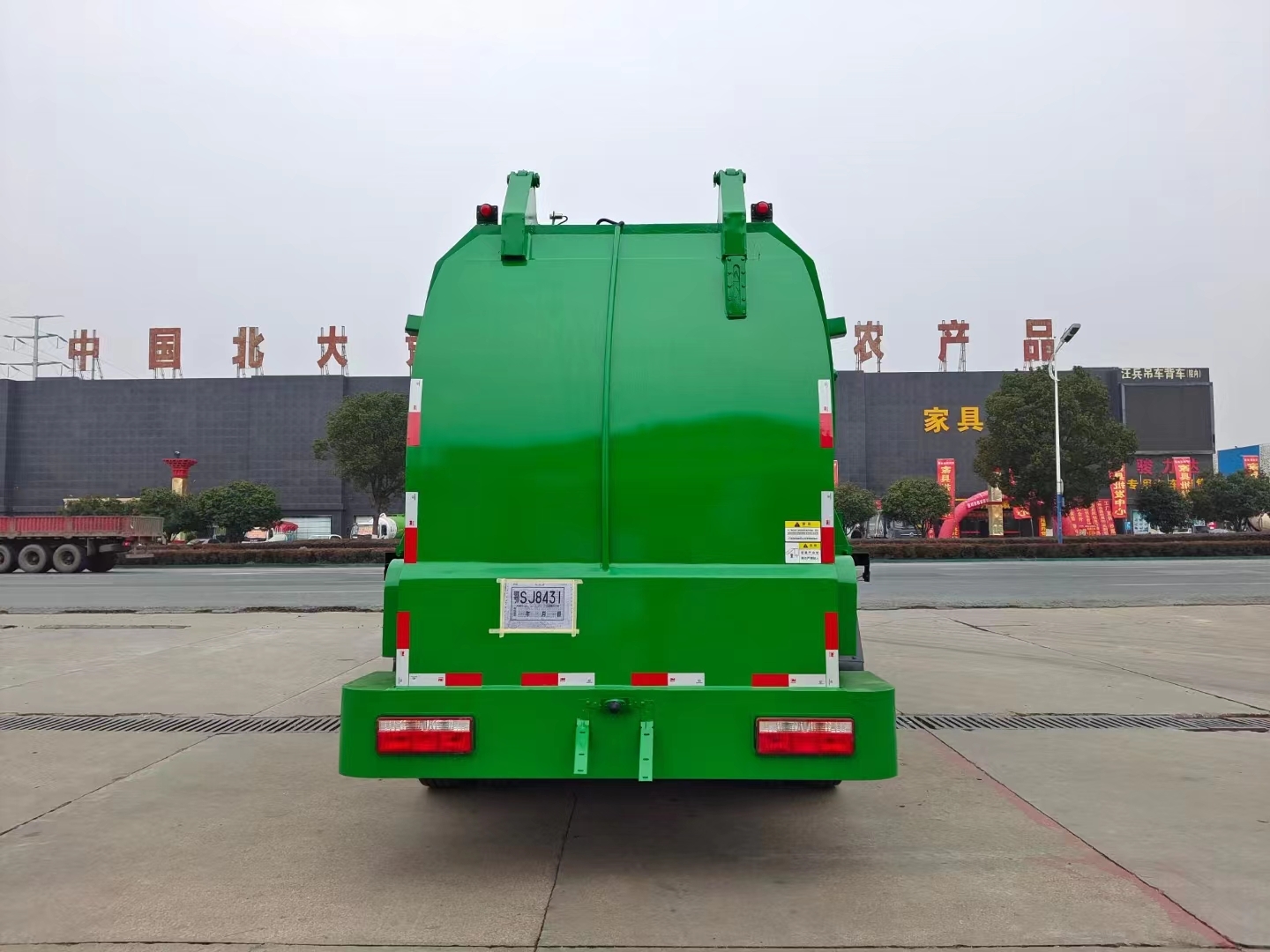

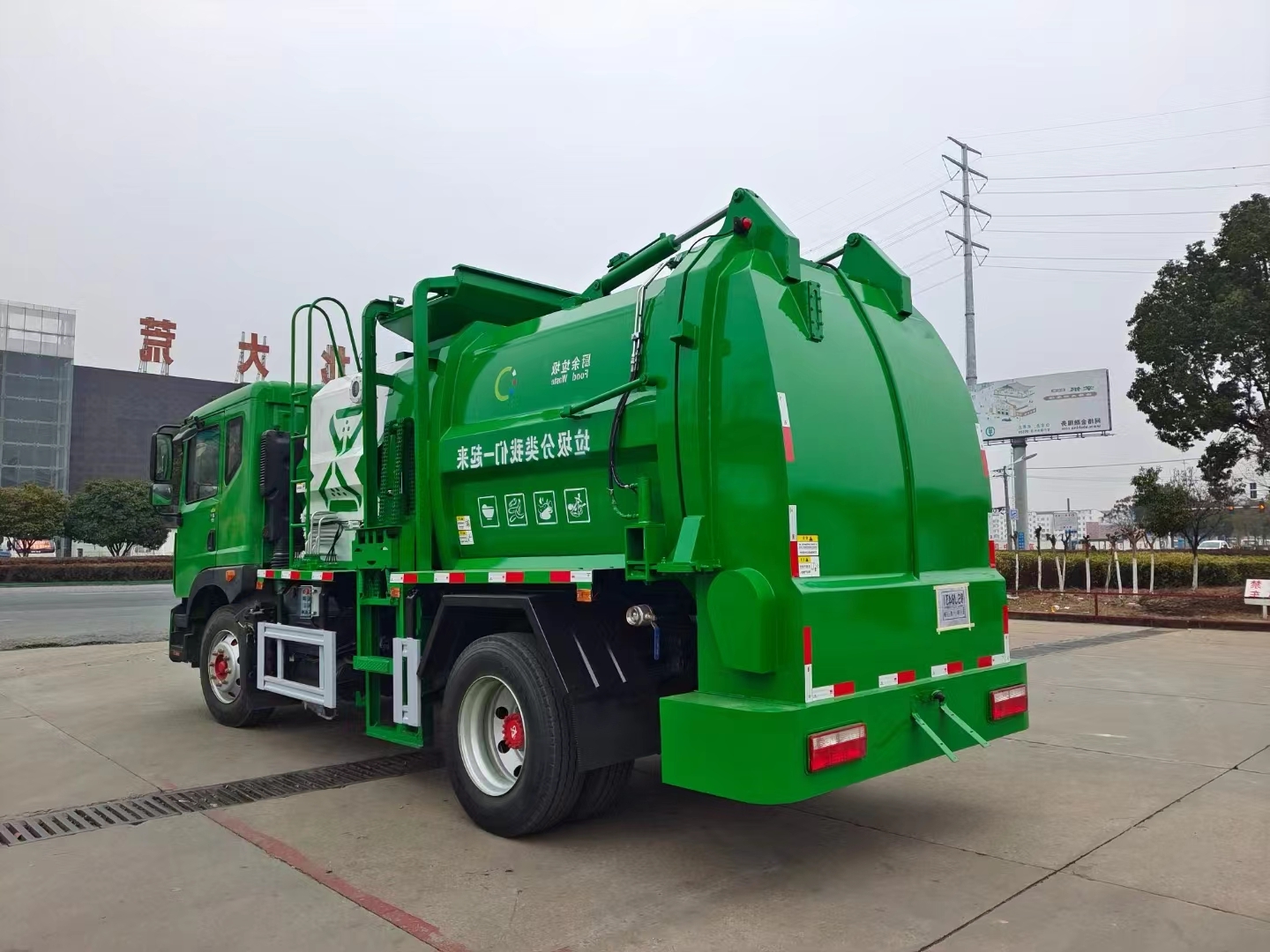

Dongfeng D9 4×2 Food Waste Truck
Food waste truck,also known as meal waste truck, kitchen waste truck or swill truck,
is a type of garbage truck used for collecting and transporting household
waste, food waste (swill) and urban sludge.
Installation configuration of Dongfeng D9 4×2 Food Waste Truck
Made of Q710 high-strength steel, with 4 sides and 5 bottoms, a reinforced square tank body, and equipped with a well-known domestic hydraulic system (including a well-known domestic oil pump, a well-known multi way valve in Changsha, Hunan, a customized oil cylinder for kitchen use, and a power take-off in Jiashan, Zhejiang),
1. Equipped with a push plate filter to achieve the function of dry wet separation, and a push plate for unloading;
2. Equipped with a high-pressure pump and a high-pressure reel, it achieves the function of high-pressure cleaning;
3. Equipped with PLC electronic control system and wireless remote control, making operation more convenient;
4. The back cover is hydraulically opened and locked, with a sealing strip and an adjustable hydraulic locking pin to ensure no water leakage.
5. Optional pull rod or chain hoist, capable of hanging 120L/240L standard plastic trash cans.
Note:Kitchen waste trucks can be equipped with functions such as dry wet separation, high-pressure cleaning, electronic control, heating, etc. according to usage needs
