JAC Weiling 4×2 8m³ Kitchen Garbage Truck
2024-10-07 09:54:11 Source：CLW

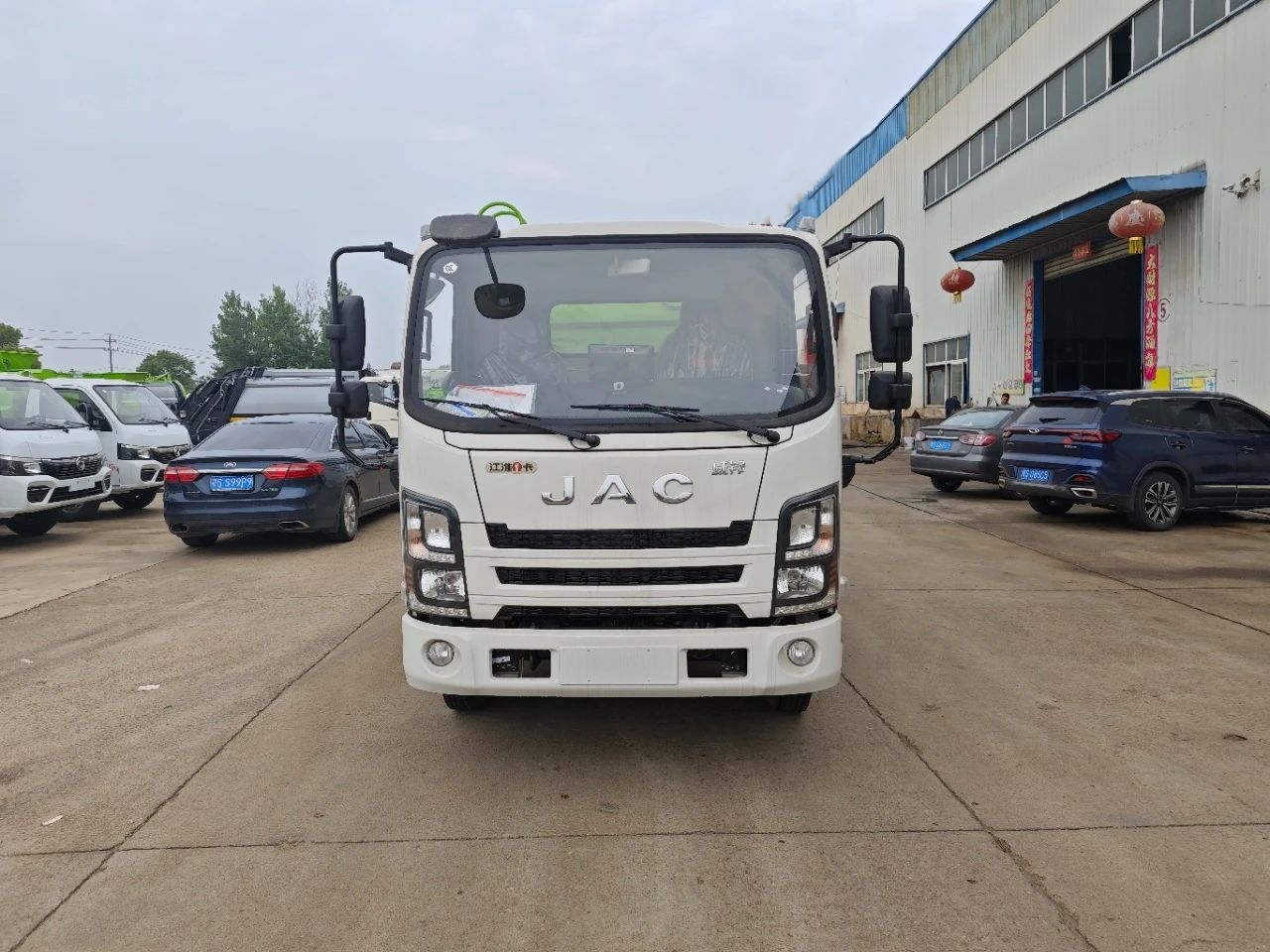

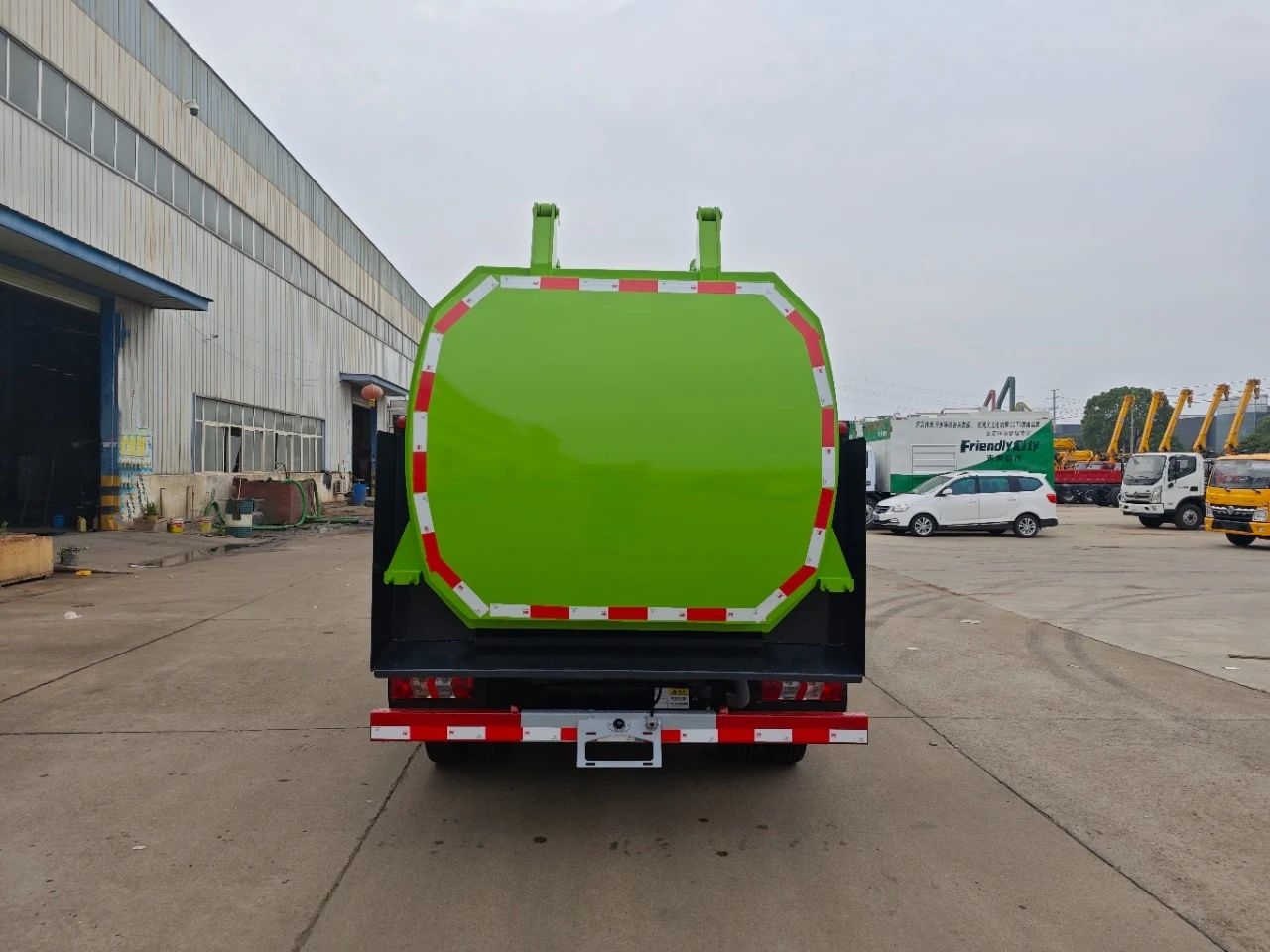

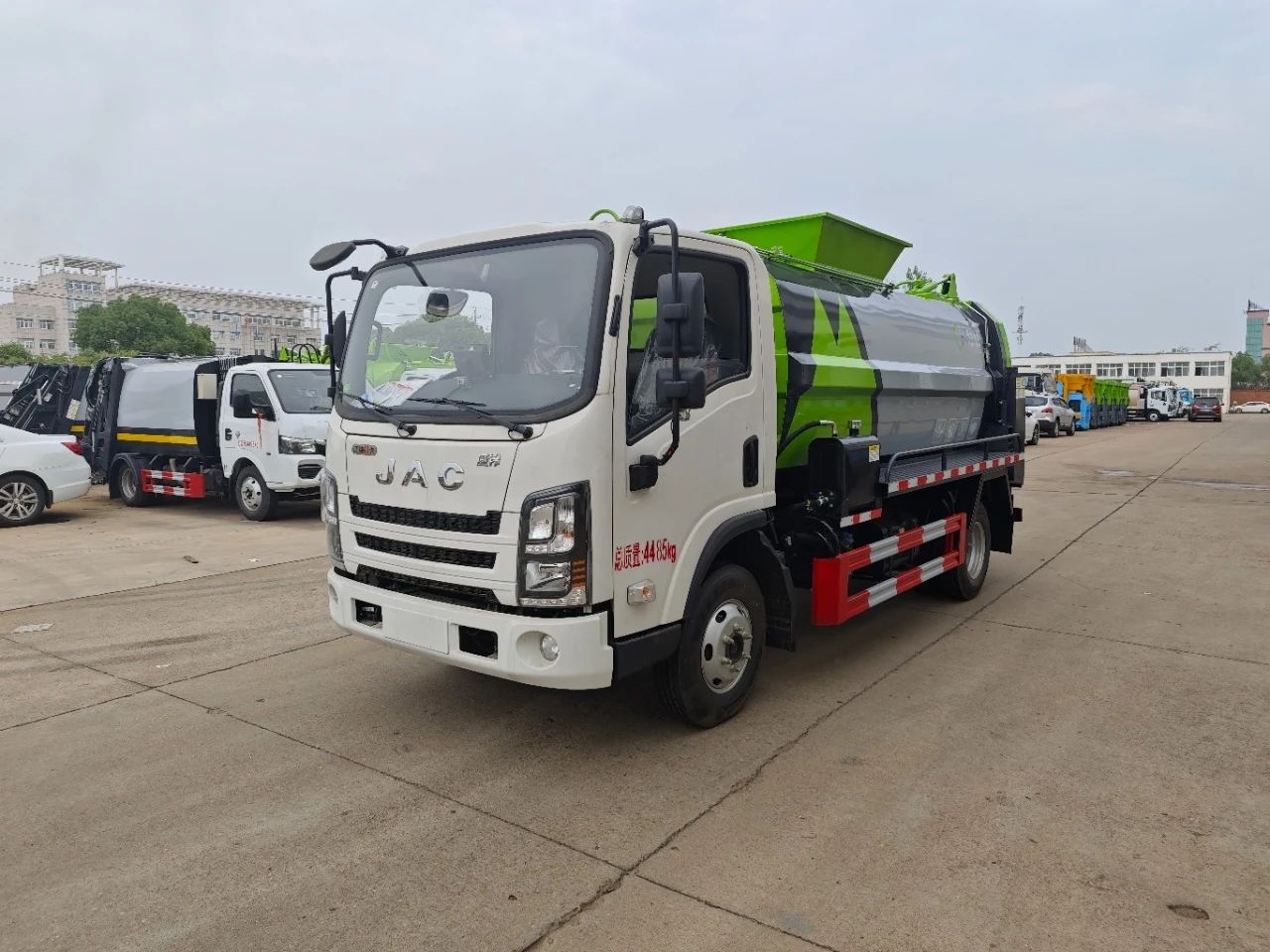

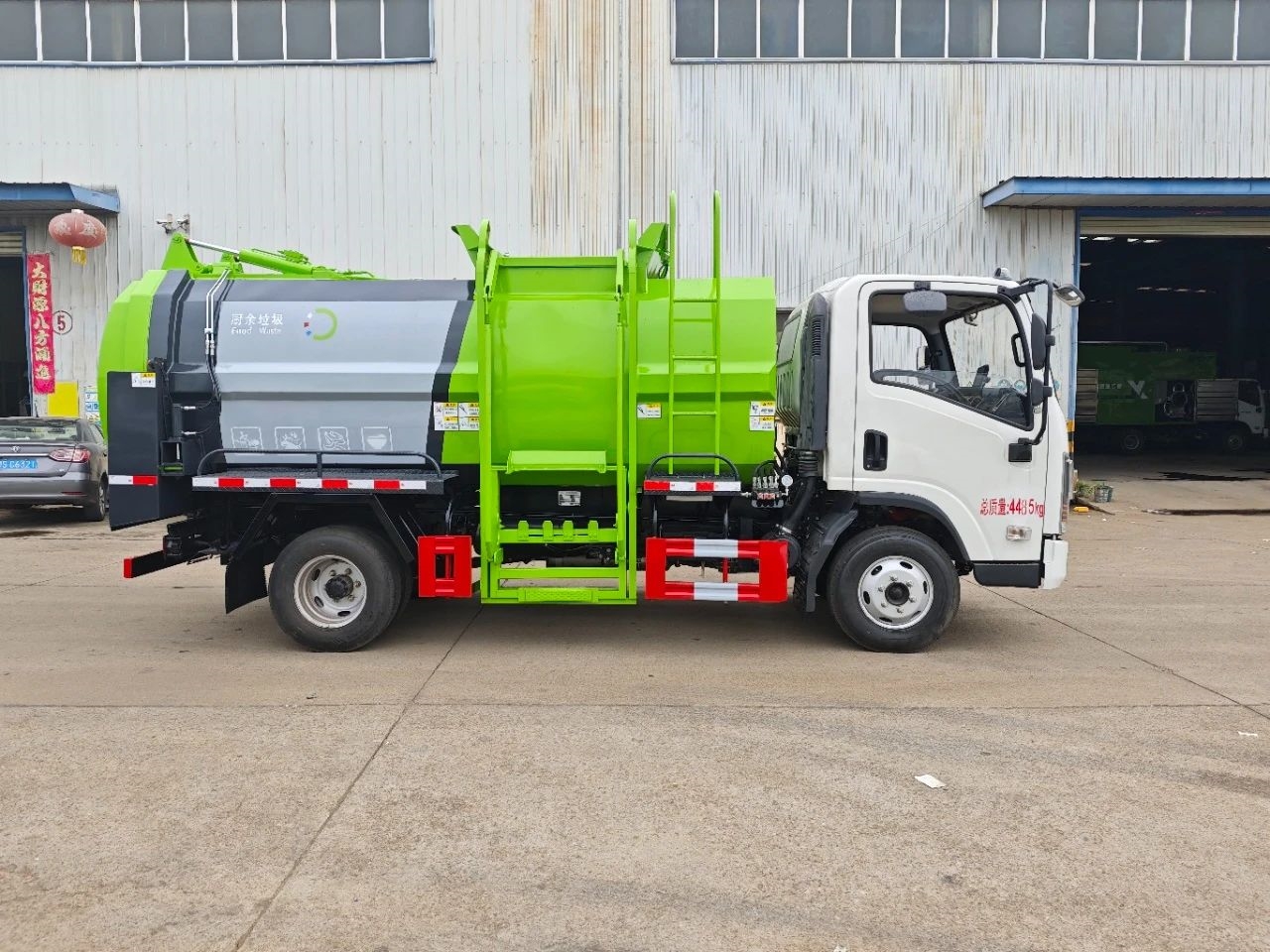

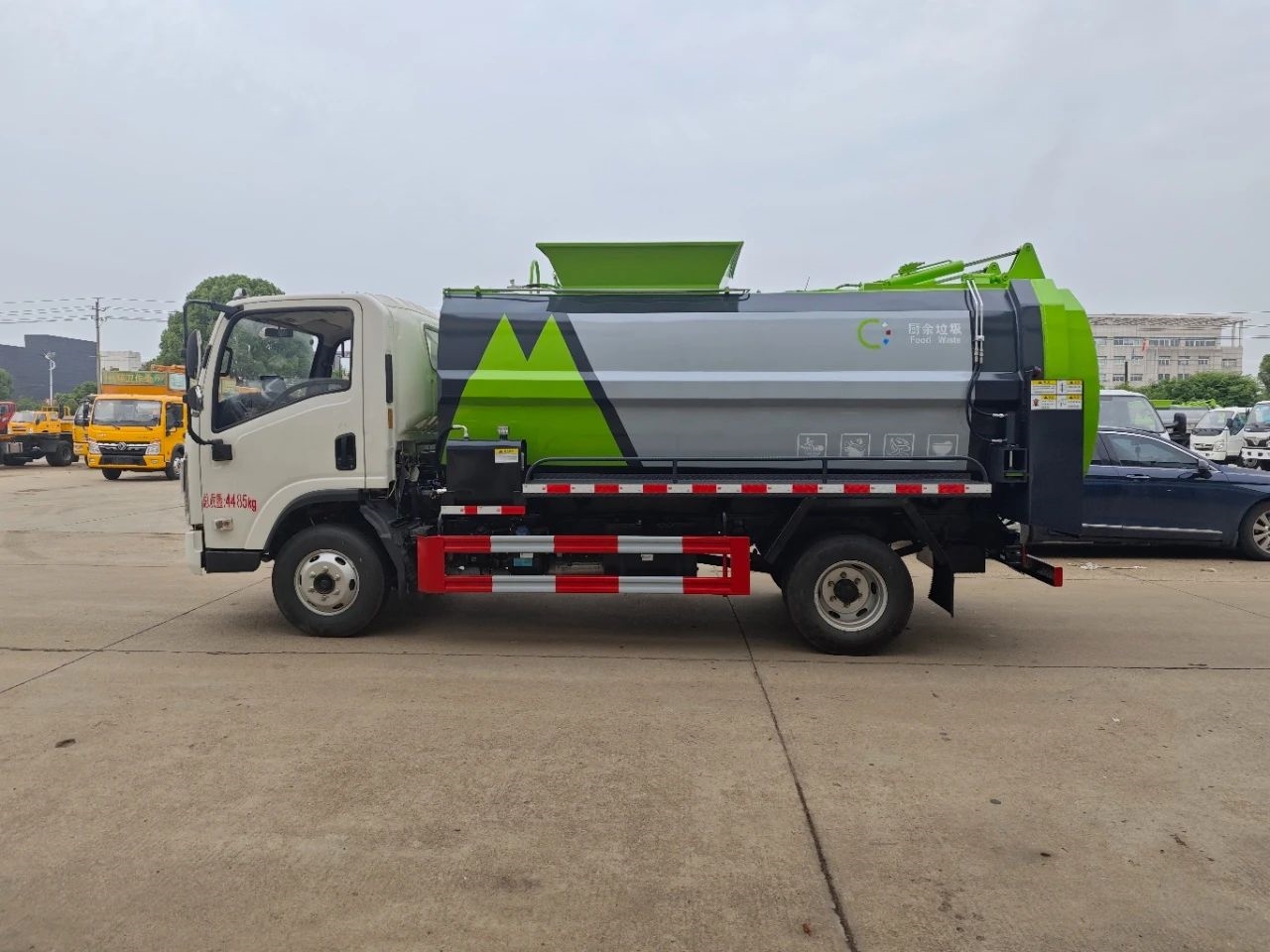

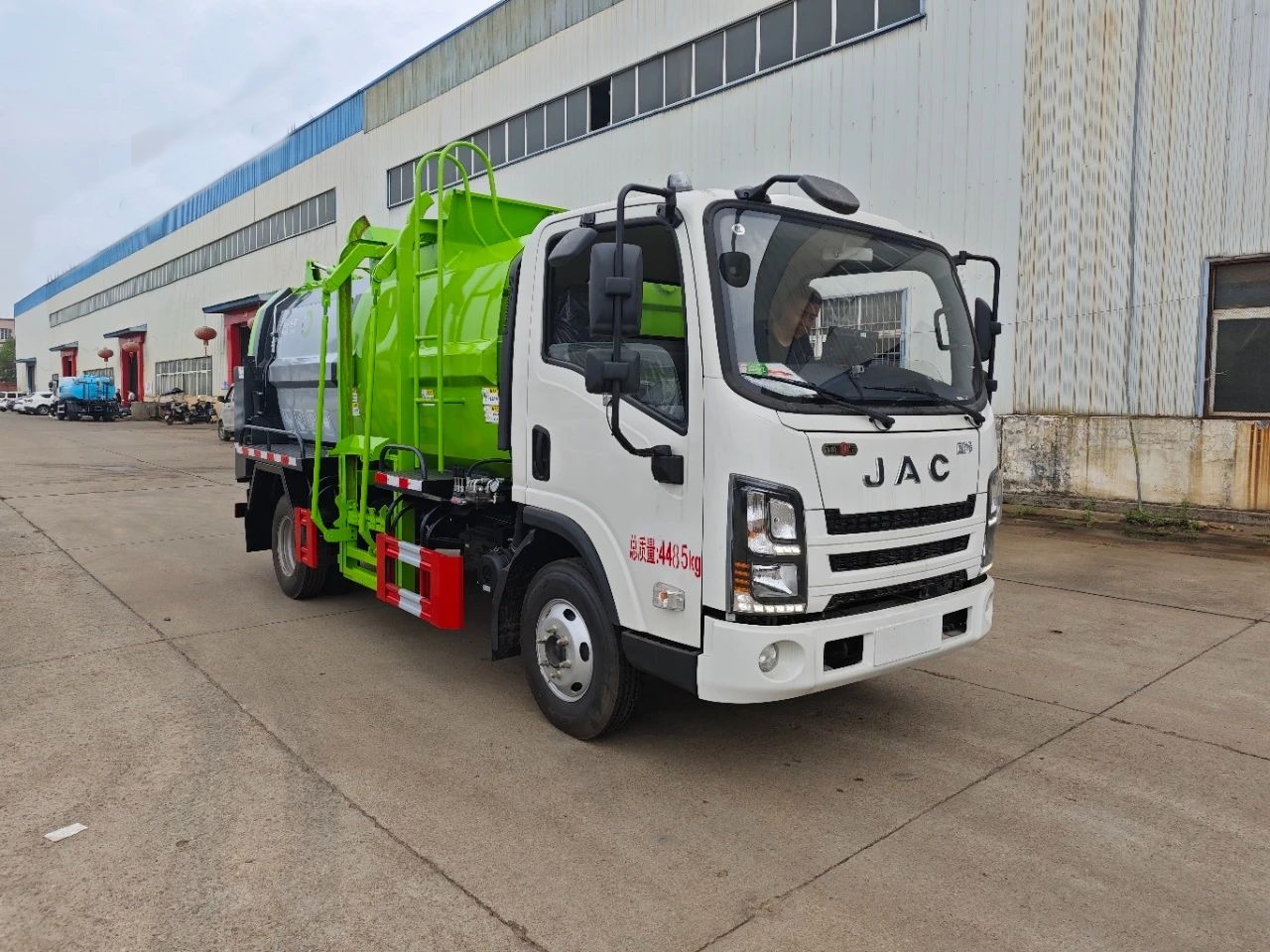

JAC Weiling 4×2 8m³ Kitchen Garbage Truck
Chassis configuration: K5 cab, three seater, Yunnei D20 engine with 140 horsepower, Wanliyang 5-speed transmission, 7.00R16 tires (8PR), 3365 wheelbase, air brake, dynamic rotation, air conditioning, electric doors and windows, MP3 player, central locking system, steering wheel (entertainment and cruise button module), daytime running lights.
| Product Name |
JAC Weiling 4×2 8m³ Kitchen Garbage Truck |
| Driving Type |
4×2 |
| Gross vehicle weight(Kg) |
4485(Kg) |
| Curb weight(Kg) |
3840(Kg) |
| Rated weight(kg) |
515(Kg) |
| Wheelbase(mm) |
3365(mm) |
| Overall Dimension(mm) |
5995×2200×2780,2450(mm) |
| Engine brand & model |
D20TCIF16, Yunnei 140hp |
| Displacement(L)/Power(kw) |
1.99L/103KW |
| Axle Quantity |
2 |
| Transmission Type |
Wanliyang 5-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
8.25R16LT 14PR, 6+1 spare |
| Cab |
Weiling cab, air conditioning, electric doors and windows, MP3 player, central locking system, steering wheel (entertainment and cruise button module), daytime running lights. |
| Volume(m³) |
8m³ |
| Tank body |
Reinforced square tank body, Q710 high-strength steel |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
JAC Weiling 4×2 8m³ Kitchen Garbage Truck
Kitchen waste truck,also known as meal waste truck, kitchen waste truck or swill truck,
is a type of garbage truck used for collecting and transporting household
waste, food waste (swill) and urban sludge.
Upper configuration of JAC Weiling 4×2 8m³ Kitchen Garbage Truck
Made of Q710 high-strength steel, with a 2mm edge and a 4mm bottom, lightweight design, large capacity, blue label, not overweight. The reinforced square tank body adopts a well-known domestic brand hydraulic system (domestic well-known oil pump, Hunan Changsha domestic well-known multi way valve, customized oil cylinder for kitchen and kitchen use, Zhejiang Jiashan power take-off), with a hydraulic opening and locking of the back cover, a sealing strip on the back cover, and an adjustable hydraulic locking pin to ensure no water leakage. The mechanical linkage pull rod elevator can hang 120L/240L standard plastic trash cans with smooth loading.
