Sinotruk Howo 4×2 Food Waste Truck
Chassis configuration:Equipped with a heavy-duty HOWO 1900mm wide cab, 3280mm wheelbase, Weichai 140/145 horsepower, color screen instrument panel, leather seats, 6-speed or 8-speed gearbox, 7.00R16 steel tires, air horn, remote key, central locking, air conditioning, electric doors and windows, power steering, ABS, 24V battery, and air brake.
| Product Name |
Sinotruk Howo 4×2 Food Waste Truck |
| Driving Type |
4×2 |
| Gross vehicle weight(Kg) |
4495(Kg) |
| Curb weight(Kg) |
3850(Kg) |
| Rated weight(kg) |
515,450(Kg) |
| Wheelbase(mm) |
3280(mm) |
| Overall Dimension(mm) |
5995×2200×2780,2450(mm) |
| Engine brand & model |
Weichai 140/145 horsepower |
| Axle Quantity |
2 |
| Transmission Type |
6-speed gearbox/8-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
7.00R16 steel wire tire, 6+1 spare |
| Cab |
HOWO 1900mm spacious cab, remote key, central locking, air conditioning, electric doors and windows |
| Volume(m³) |
8m³ |
| Tank body |
Using Q710 high-strength steel, with 2mm edge plates and 4mm bottom plates |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |

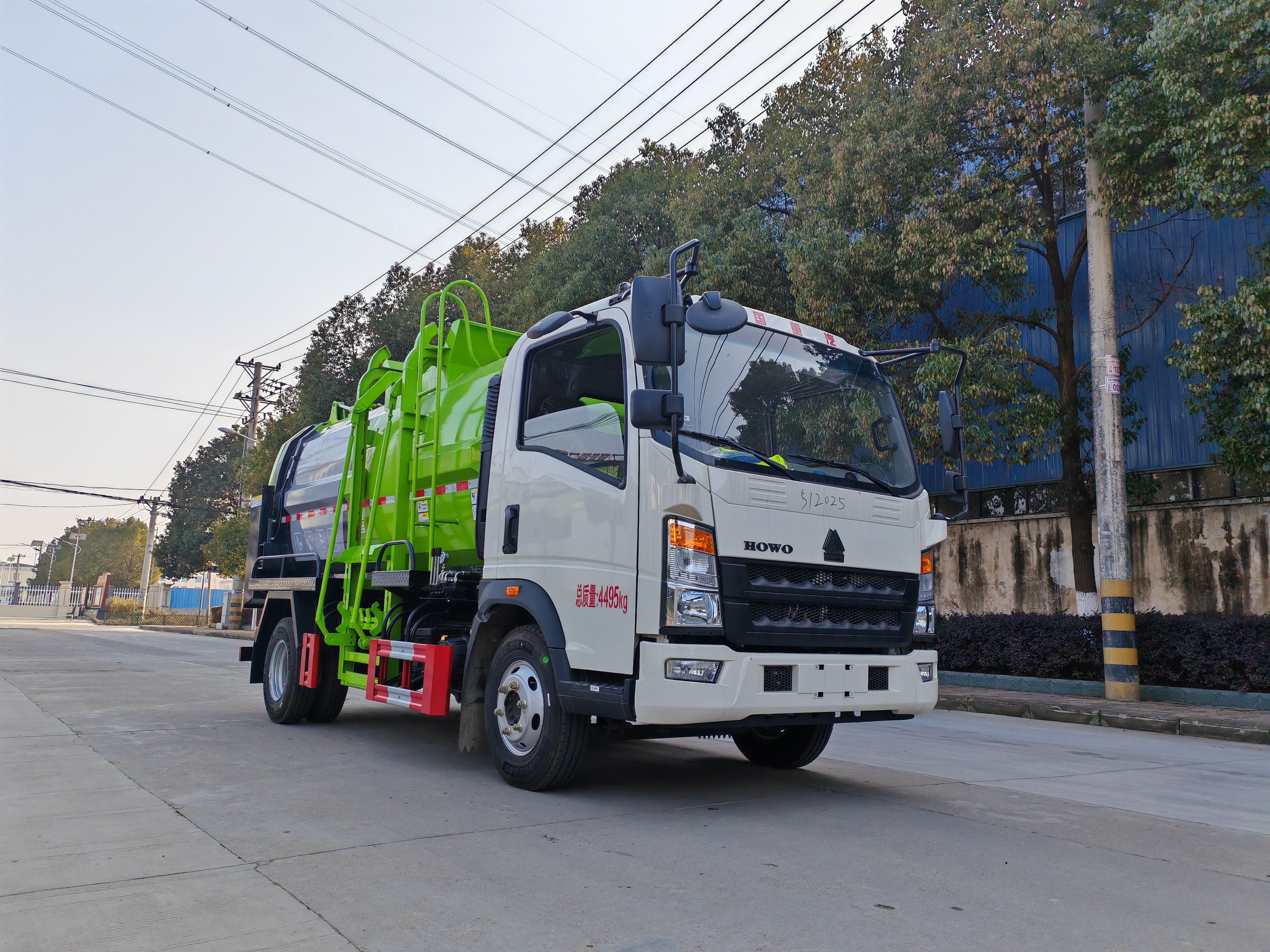

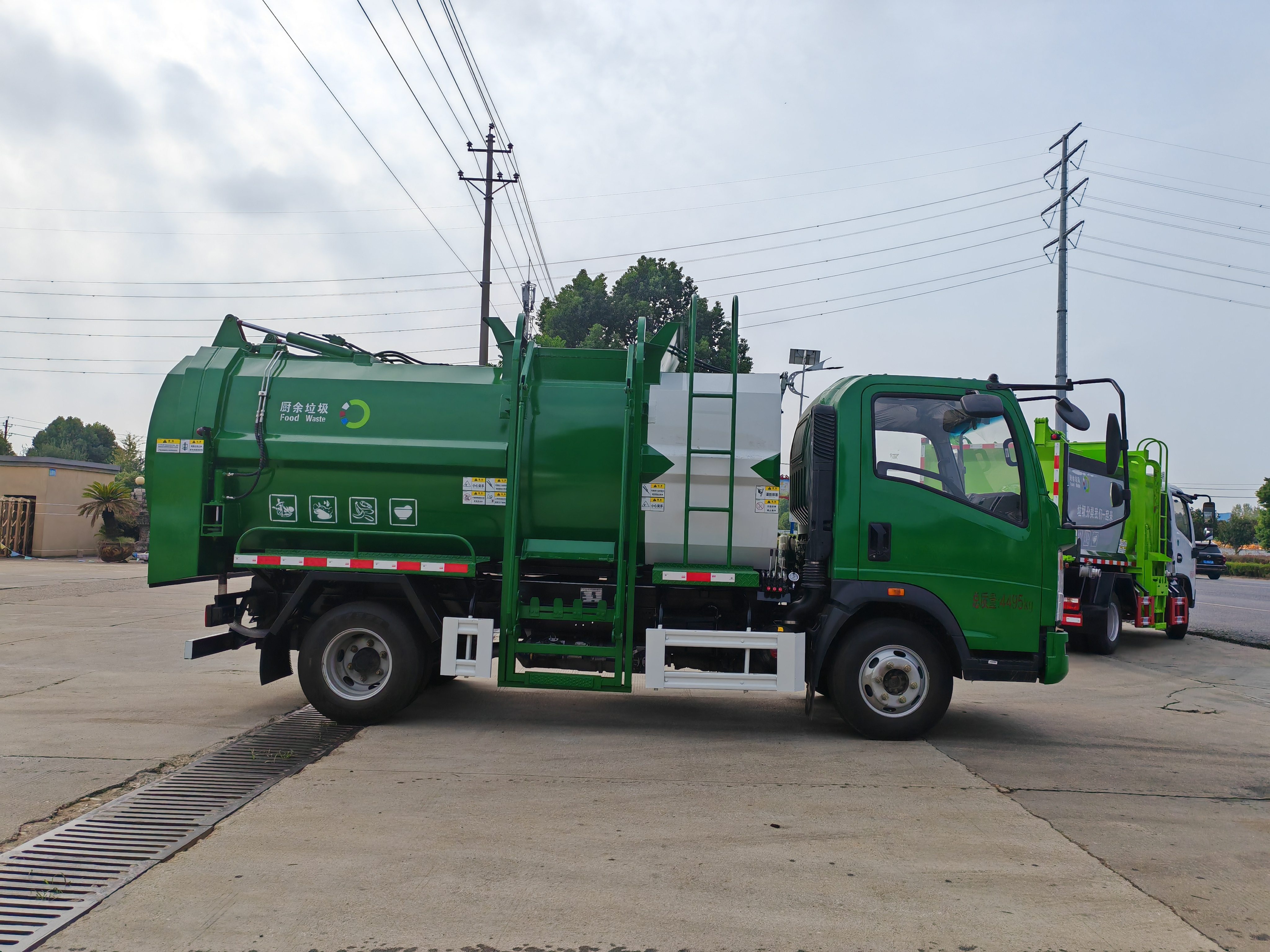

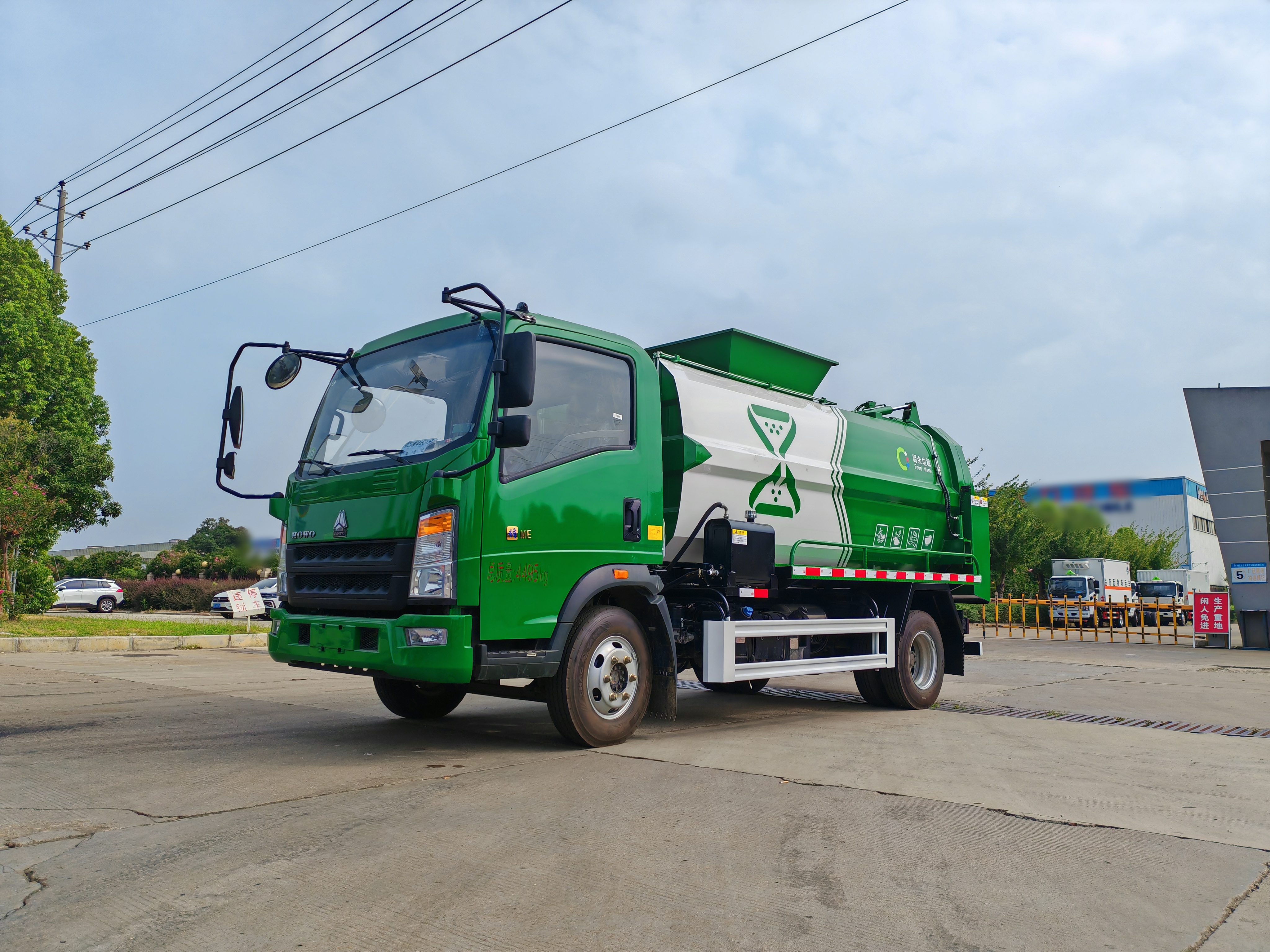

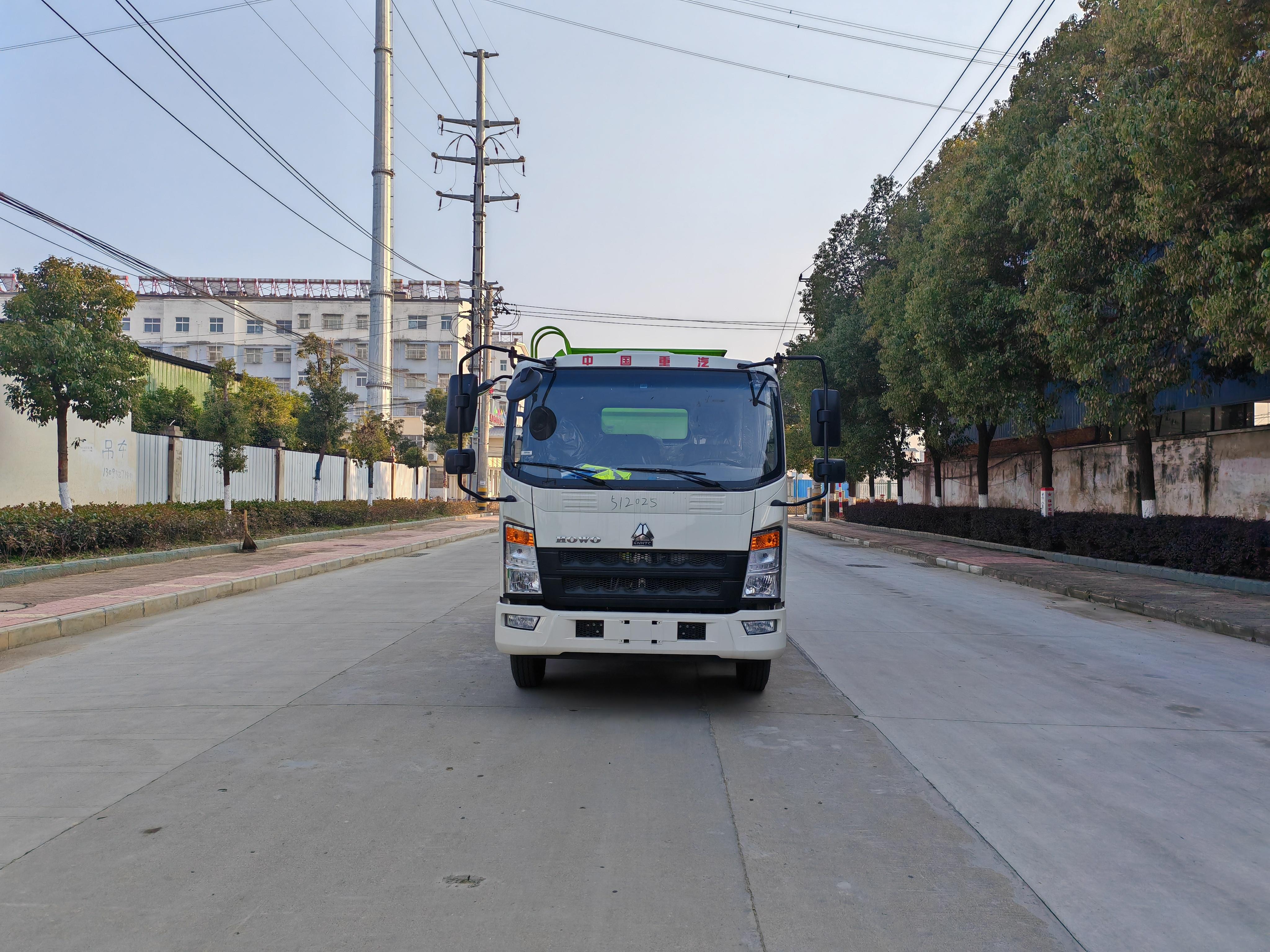

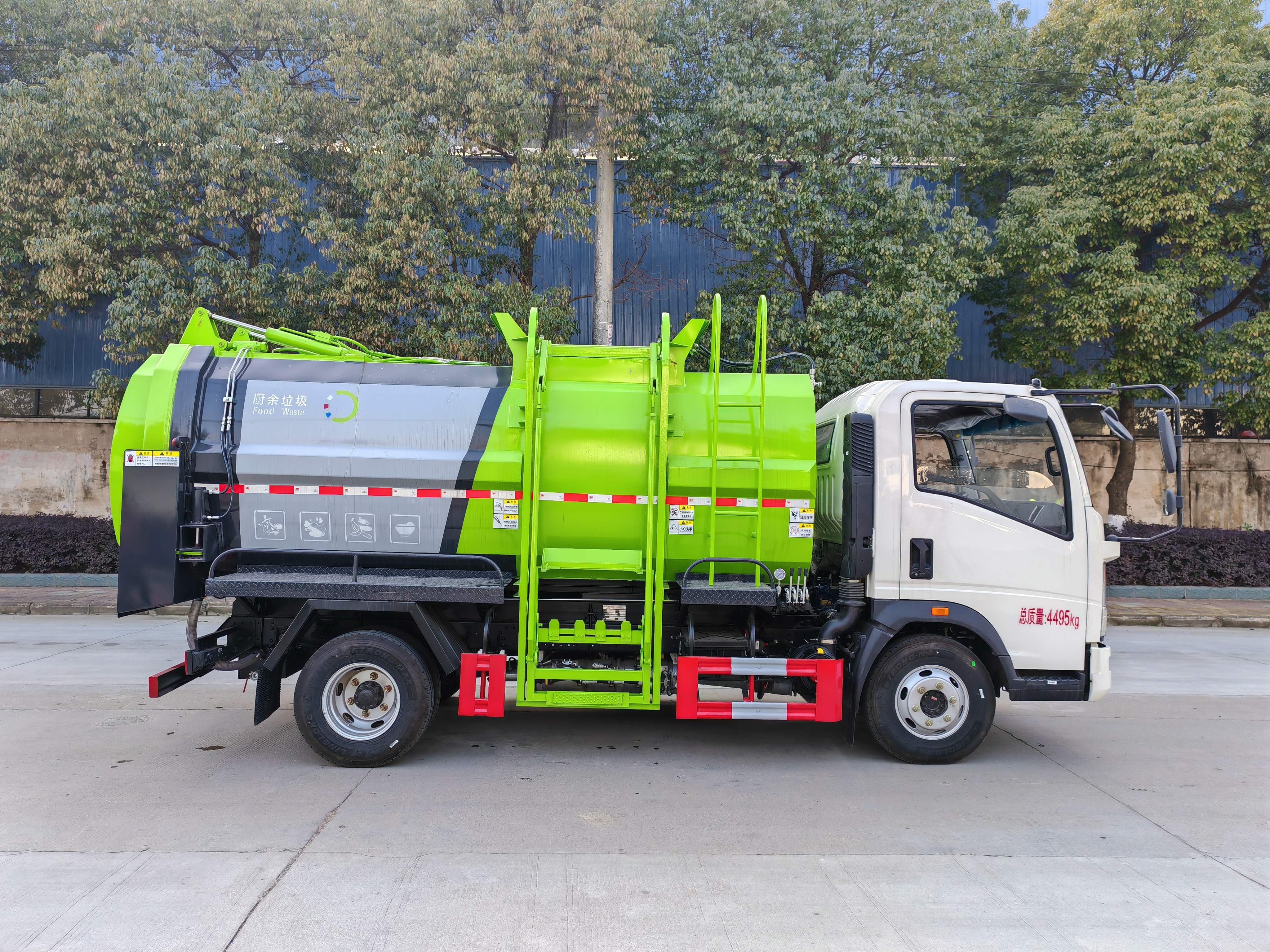

Sinotruk Howo 4×2 Food Waste Truck
Food waste truck,also known as meal waste truck, kitchen waste truck or swill truck,
is a type of garbage truck used for collecting and transporting household
waste, food waste (swill) and urban sludge.
Installation configuration of Sinotruk Howo 4×2 Food Waste Truck
Made of Q710 high-strength steel, with a 2mm edge and 4mm bottom, lightweight design, large capacity, blue label, not overweight, and optional height for entering the basement. Reinforced square tank body, using well-known domestic hydraulic systems (domestic well-known oil pump, Hunan Changsha domestic well-known multi way valve, customized oil cylinder for kitchen use, Zhejiang Jiashan power take-off)

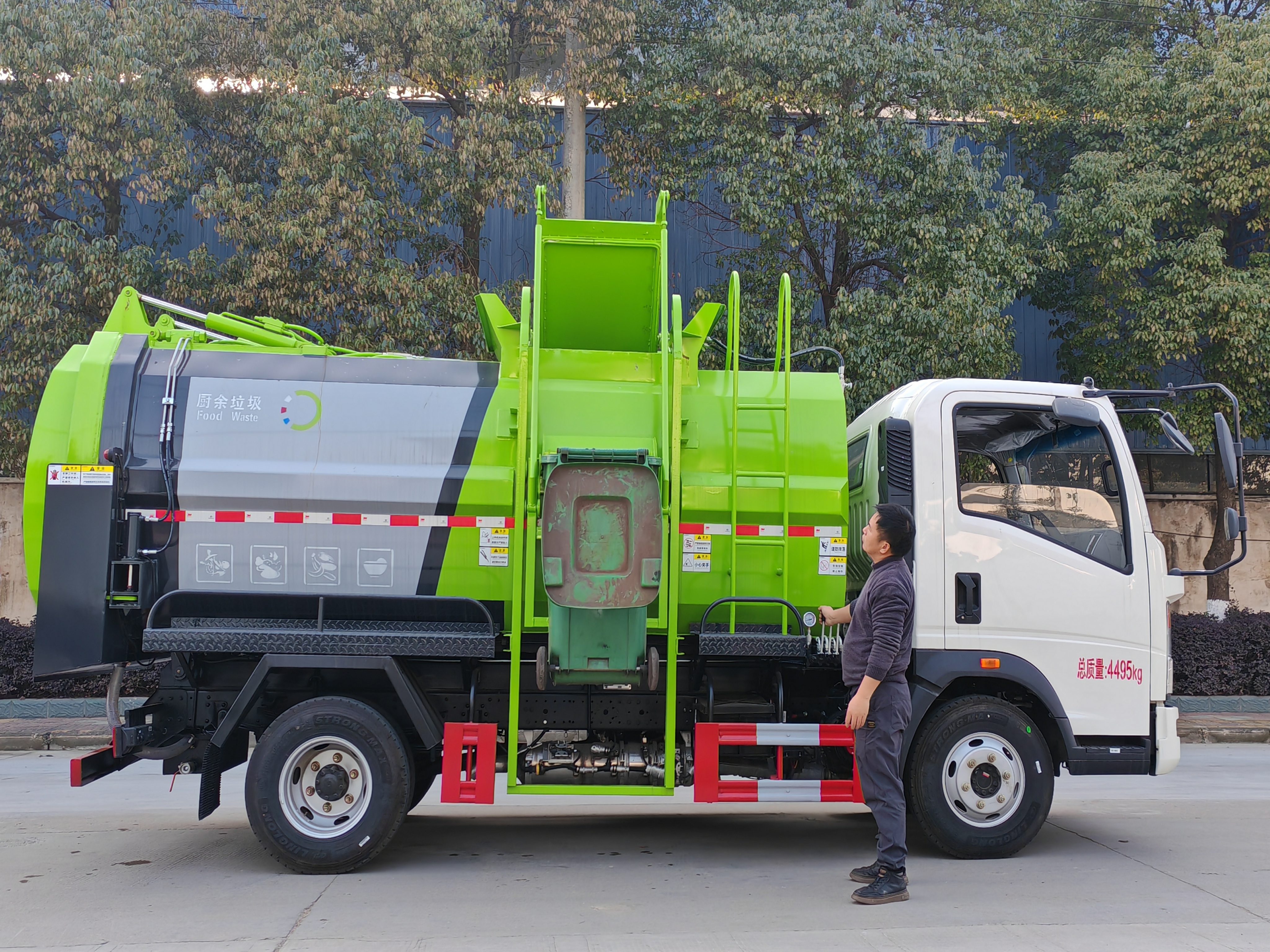

① Pull rod elevator, capable of hanging 120L/240L standard plastic trash cans.

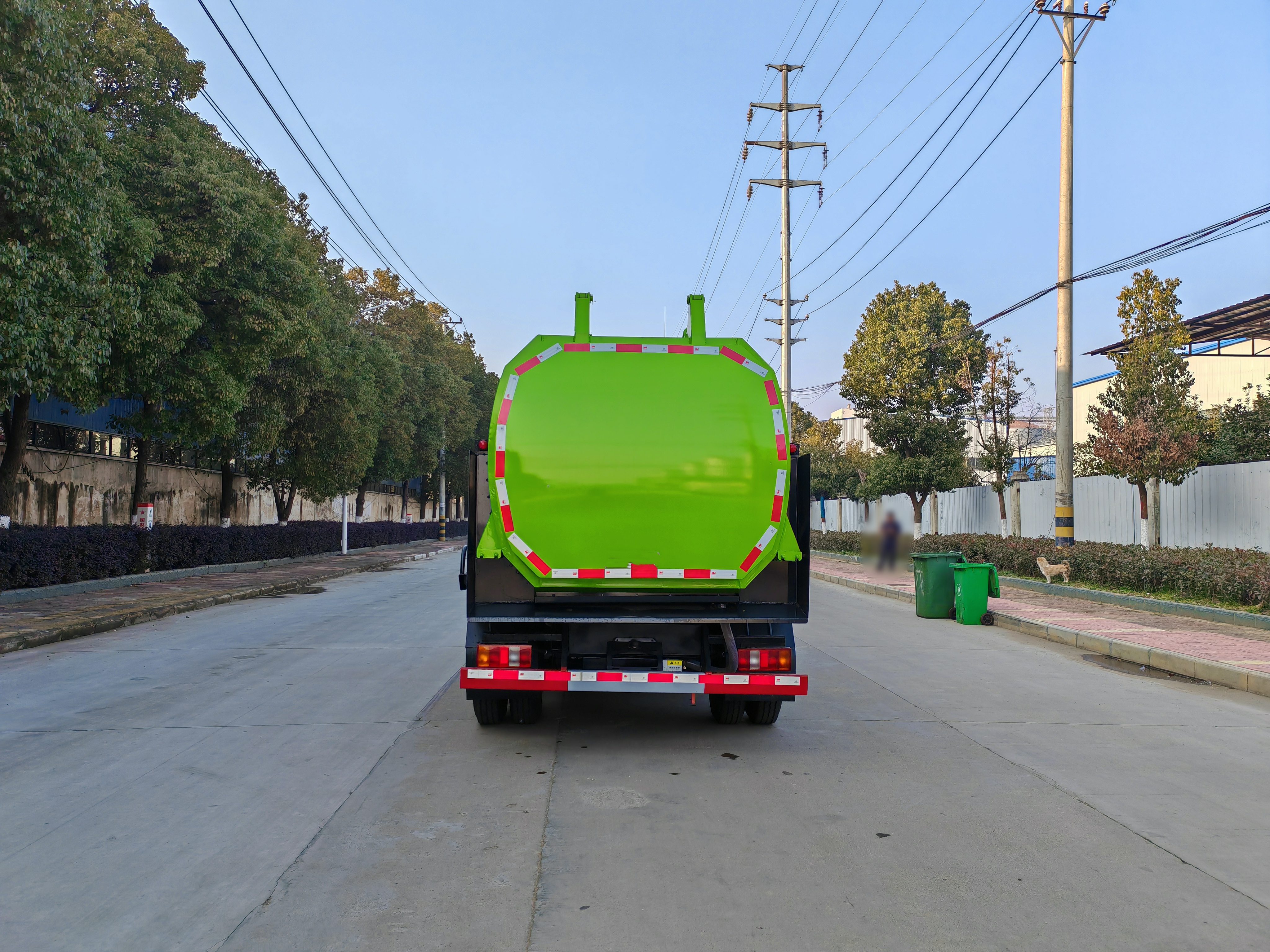

② The back cover is hydraulically opened and locked, with a sealing strip and an adjustable hydraulic locking pin to ensure no water leakage.

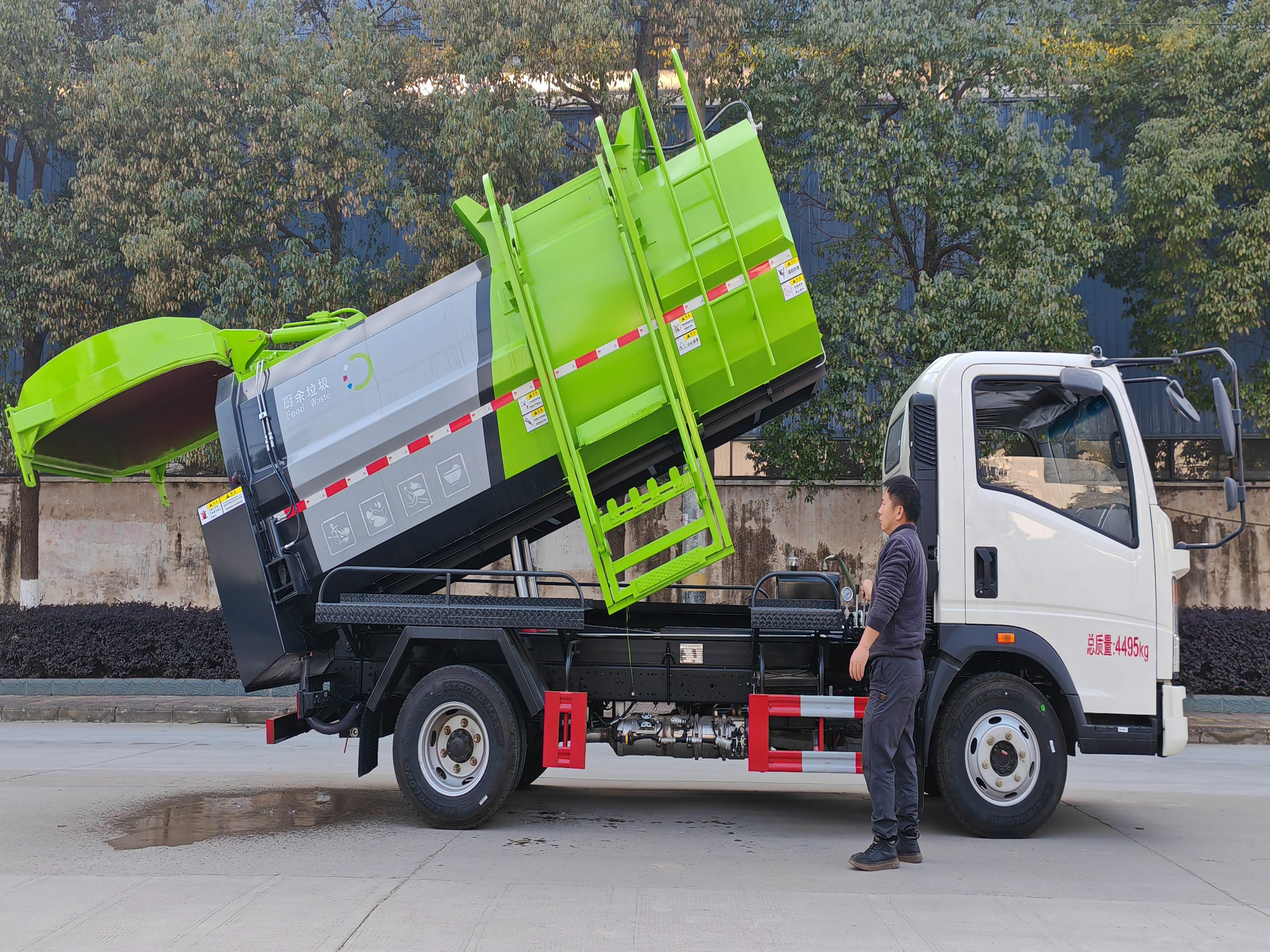

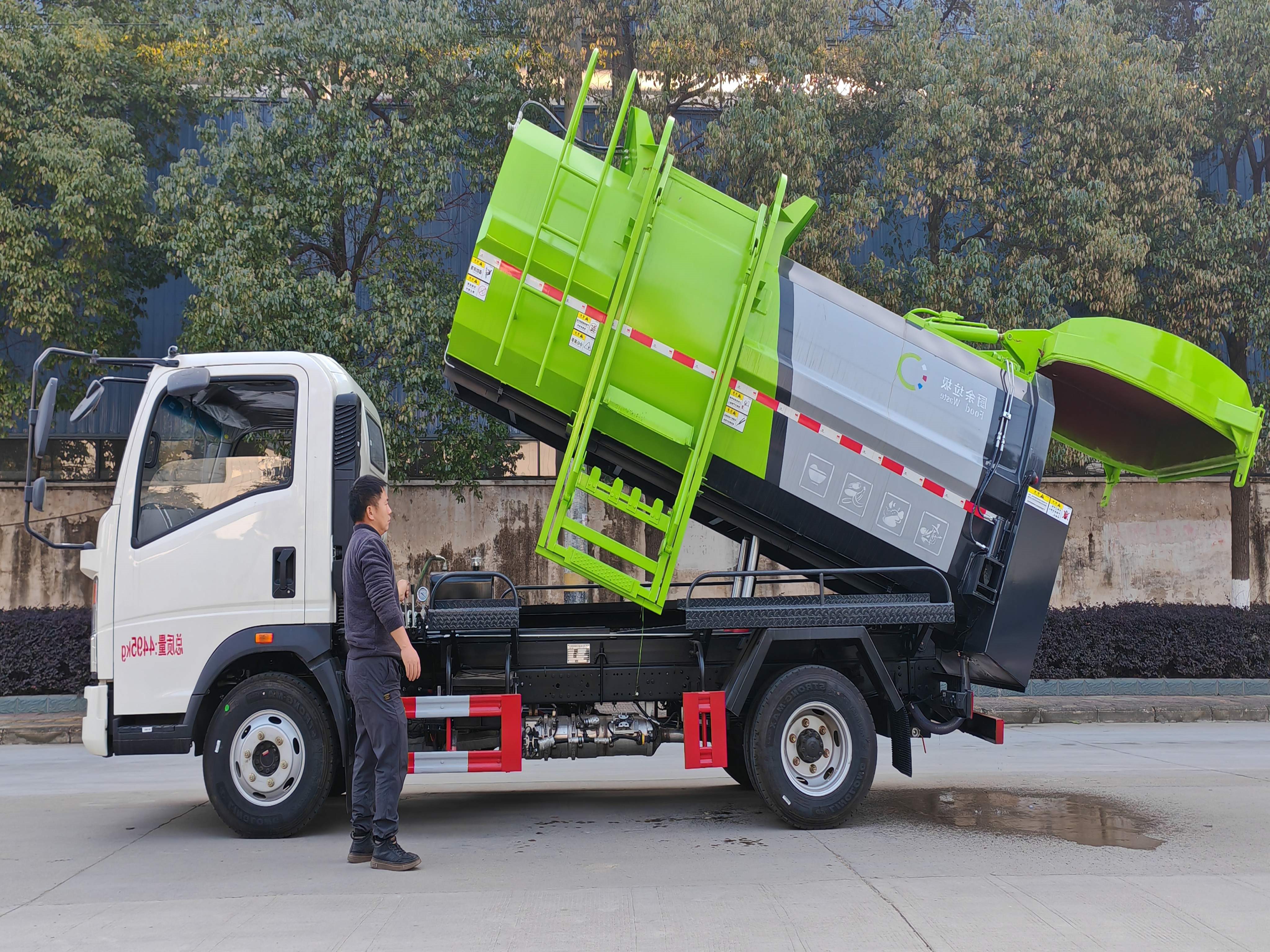

③ Mid mounted double top lifting unloading, the unloading angle can be adjusted according to demand.
④ Having a wireless remote control is more convenient for operation.
