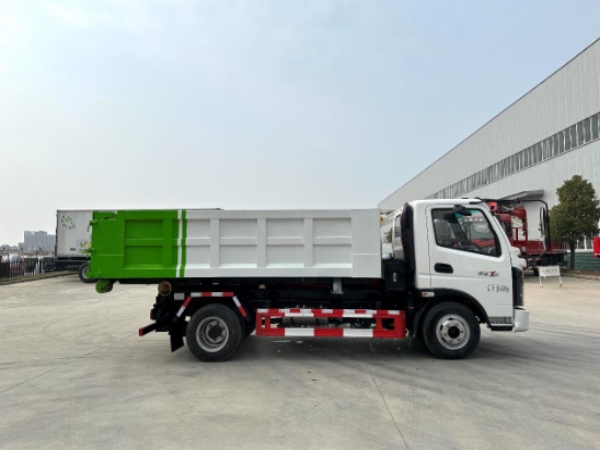

Ochi X2 hook arm garbage truck
2024-10-07 09:54:11 Source：CLW

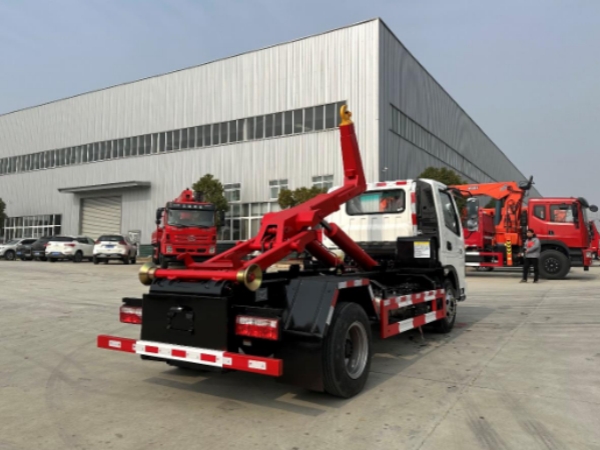

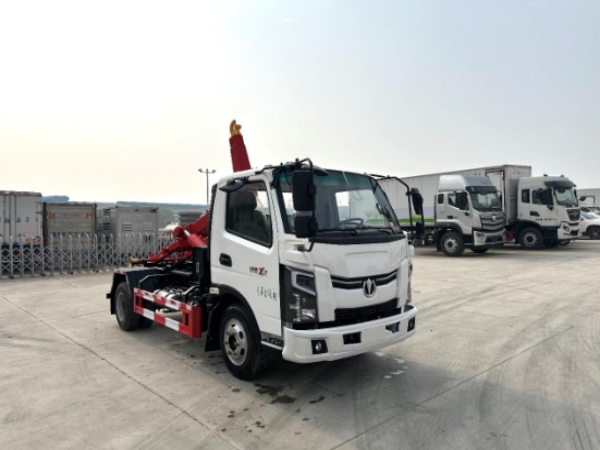

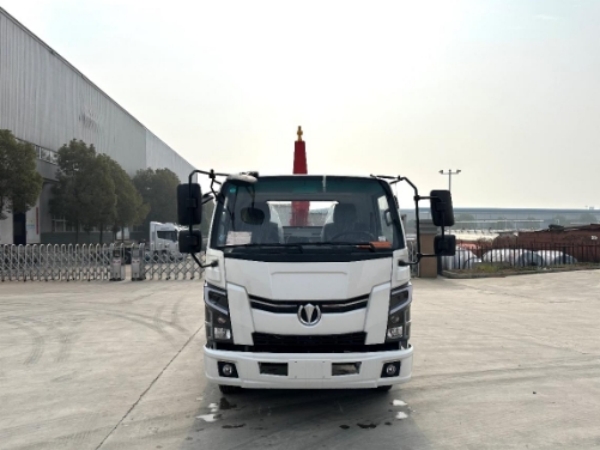

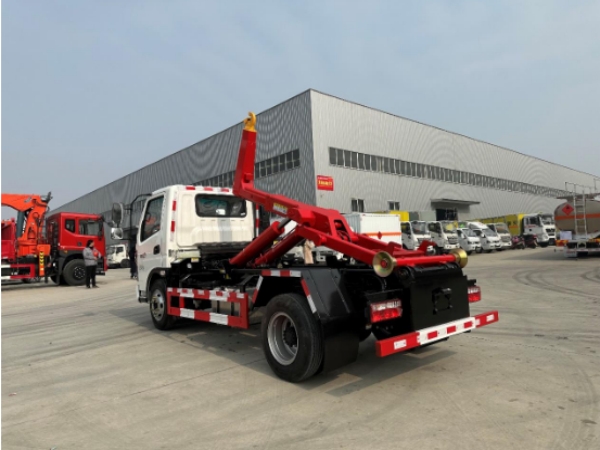

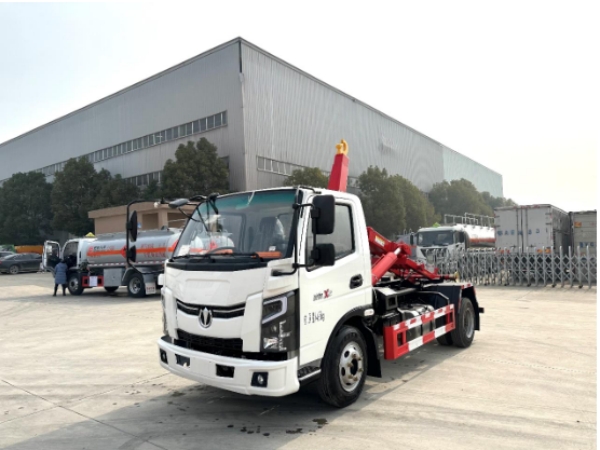

Ochi X2 hook arm garbage truck
Chassis configuration:
Product highlight: The vehicle has a height of 2.18 meters and can be lowered into the basement! (7.00/7.50/8.25 interchangeable steel wire tires)
Wheelbase: 3300mm
Engine: Yunnei D25TCIF 1/150 horsepower/2.49 displacement
Transmission: Changtai small eight speed (high and low speed)
Chassis standard configuration: Audi X2 luxury single row cab, 7.00R16 tires, air brake,
1080 rear axle (8-ton rear axle), main beam 200 * 6, electric doors and windows, central locking, ABS,
Remote key, LCD instrument panel.

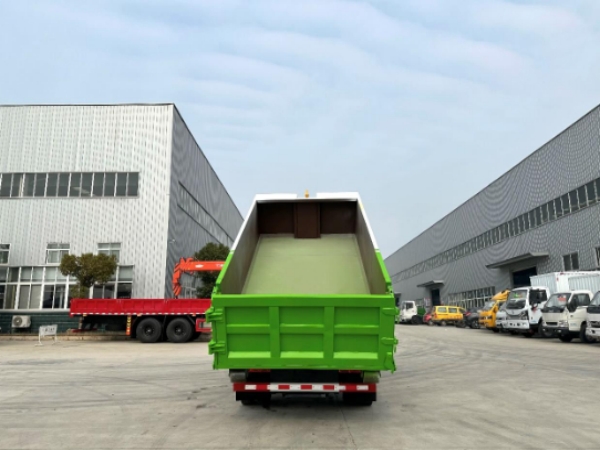

Garbage bin: maximum length of 3.8 meters, maximum width of 2 meters (6 square meters in the basement and 7 square meters in the regular area)
Installation configuration:

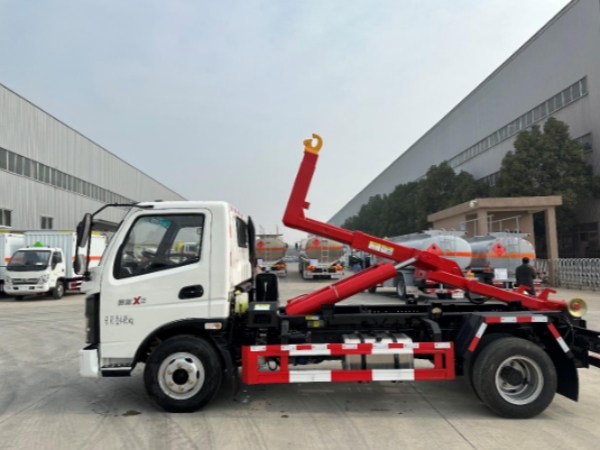

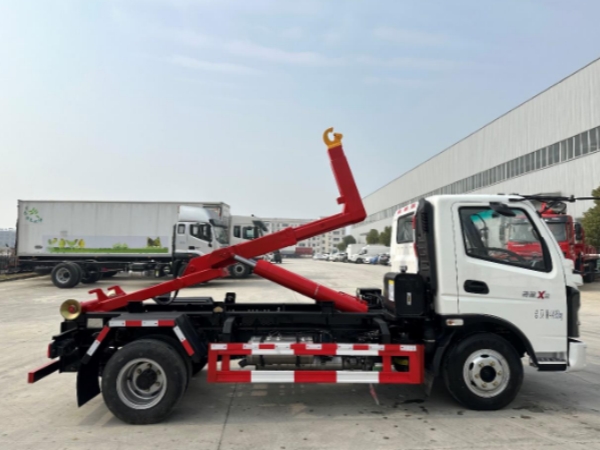

① Telescopic hook arm assembly, 165 oil cylinder (optional 175)
② Equipped with hydraulic roller support legs at the bottom of the tail (to prevent the upper box from tilting)
③ Brush the tail of the beam with a locking hook (to prevent the box from jumping during transportation)
④ Integrated operation of flashlight (manual and wireless avoidance control)

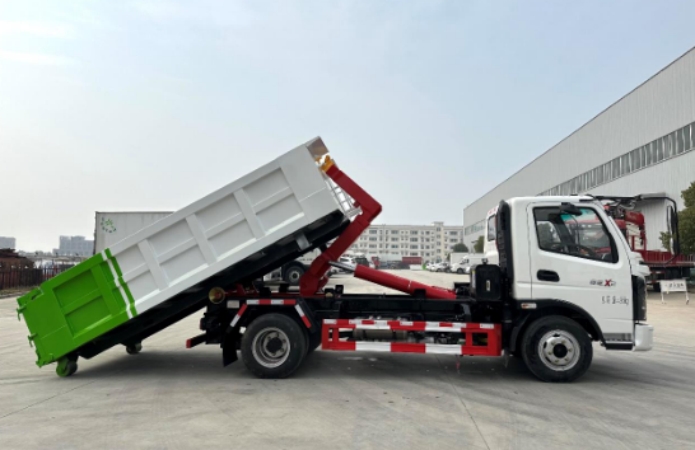

⑤ The whole vehicle is equipped with anti misoperation protection, which can complete tasks such as loading, unloading, locking, and self dumping
One car with multiple boxes for circular turnover.
Functional purpose
❶ Can transfer construction waste (household waste) in the basement
❷ Transportation of sand and gravel materials by engineering fleet! (Construction waste)
| Product Name |
Ochi X2 hook arm garbage truck |
| Driving Type |
4x2 |
| Garbage container volume(cbm) |
7-8 |
| Rated payload weight(kg) |
500(Kg) |
| Wheelbase(mm) |
3300mm |
| Overall Dimension(mm) |
5530,5590×2050×2180(mm) |
| Engine brand & model |
D25TCIF1,Yunnei 150hp, |
| Axle Quantity |
2 |
| Transmission Type |
Changtai 8-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
7.00/7.50/8.25 interchangeable steel wire tires, 6 with a spare |
| Cab |
Auchi X2 luxury single row cab, electric doors and windows, central locking system, ABS, remote key, LCD instrument panel. |
| Garbage container material |
Manganese steel and high-strength steel |
| Standard configuration |
/ |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Ochi X2 hook arm garbage truck
Hook arm garbage truck, also known as a detachable garbage truck, is a type of garbage truck. Mainly suitable for collecting and transporting various types of garbage in municipal sanitation, property management, large factories, industrial and mining areas, and other places.
The hook arm garbage truck adopts a fully hydraulic control operating system, and the garbage compartment and chassis can be completely separated. It has the advantages of reasonable structure, easy operation, stability, high efficiency, good sealing performance, and convenient dumping. It can achieve joint operation of one vehicle and multiple garbage compartments, circular transportation, and fully improve the transportation capacity of the vehicle. Can carry multiple boxes in one car, efficient, energy-saving, and cost-effective.
Product parameters
