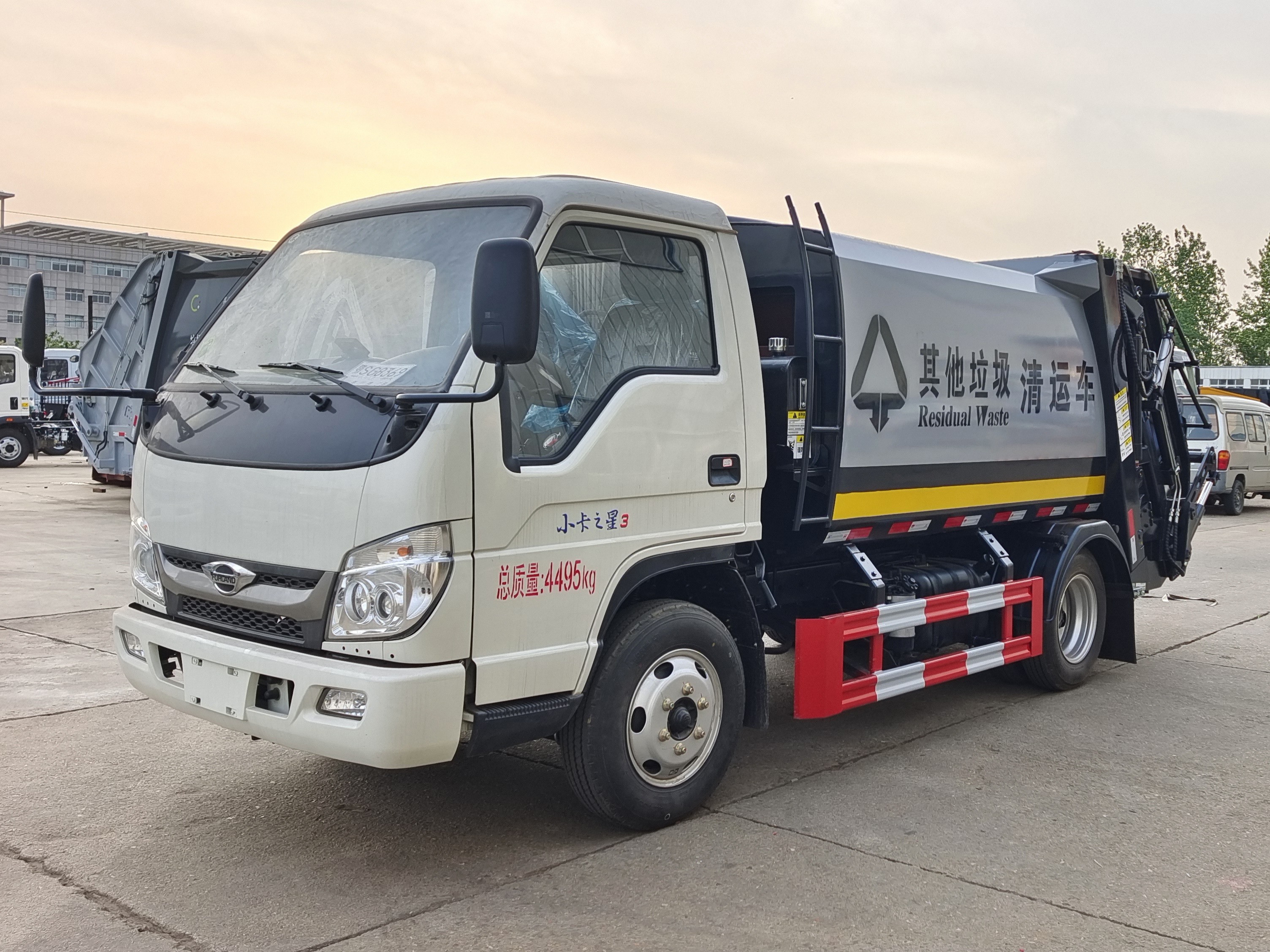

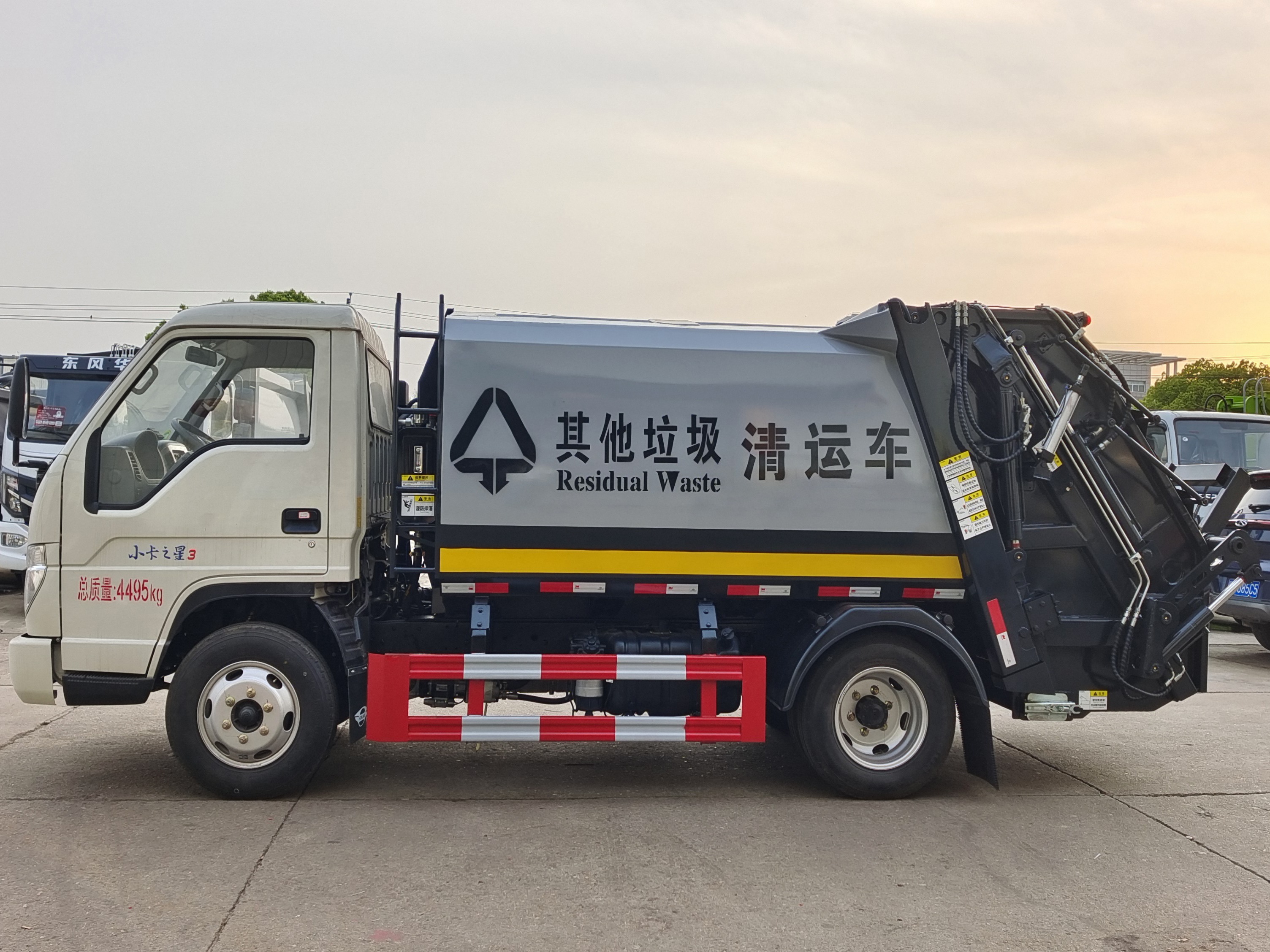

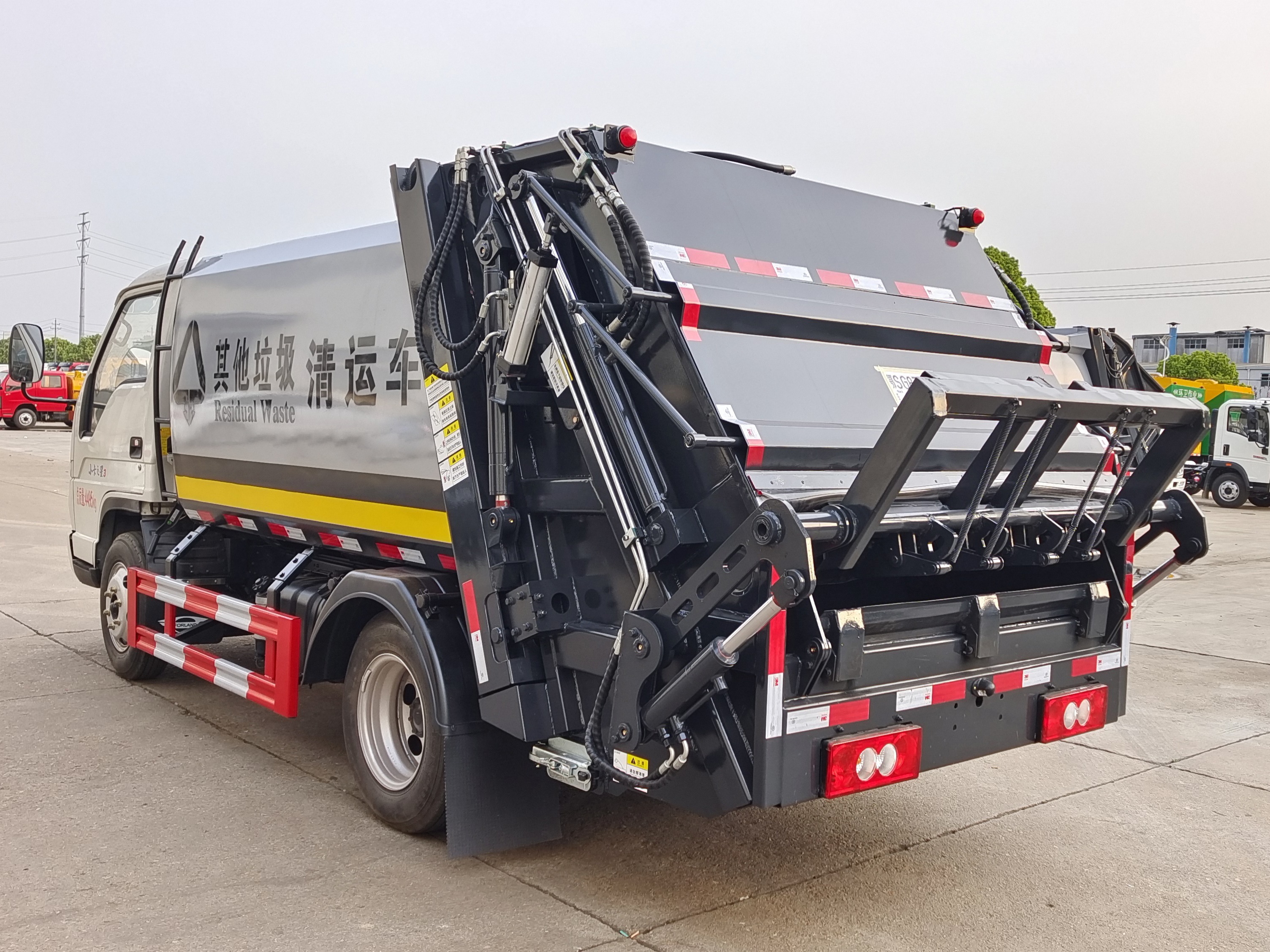

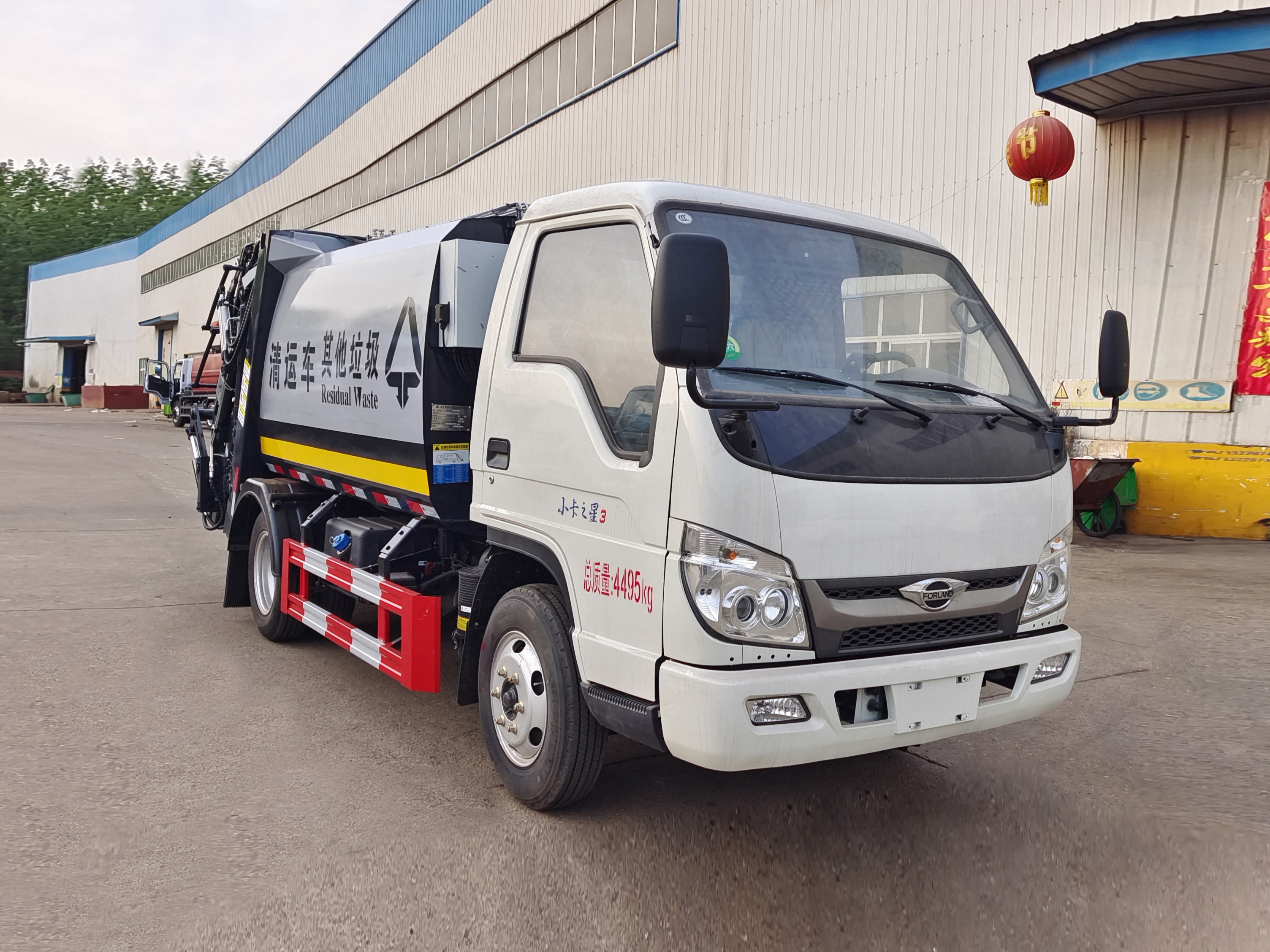

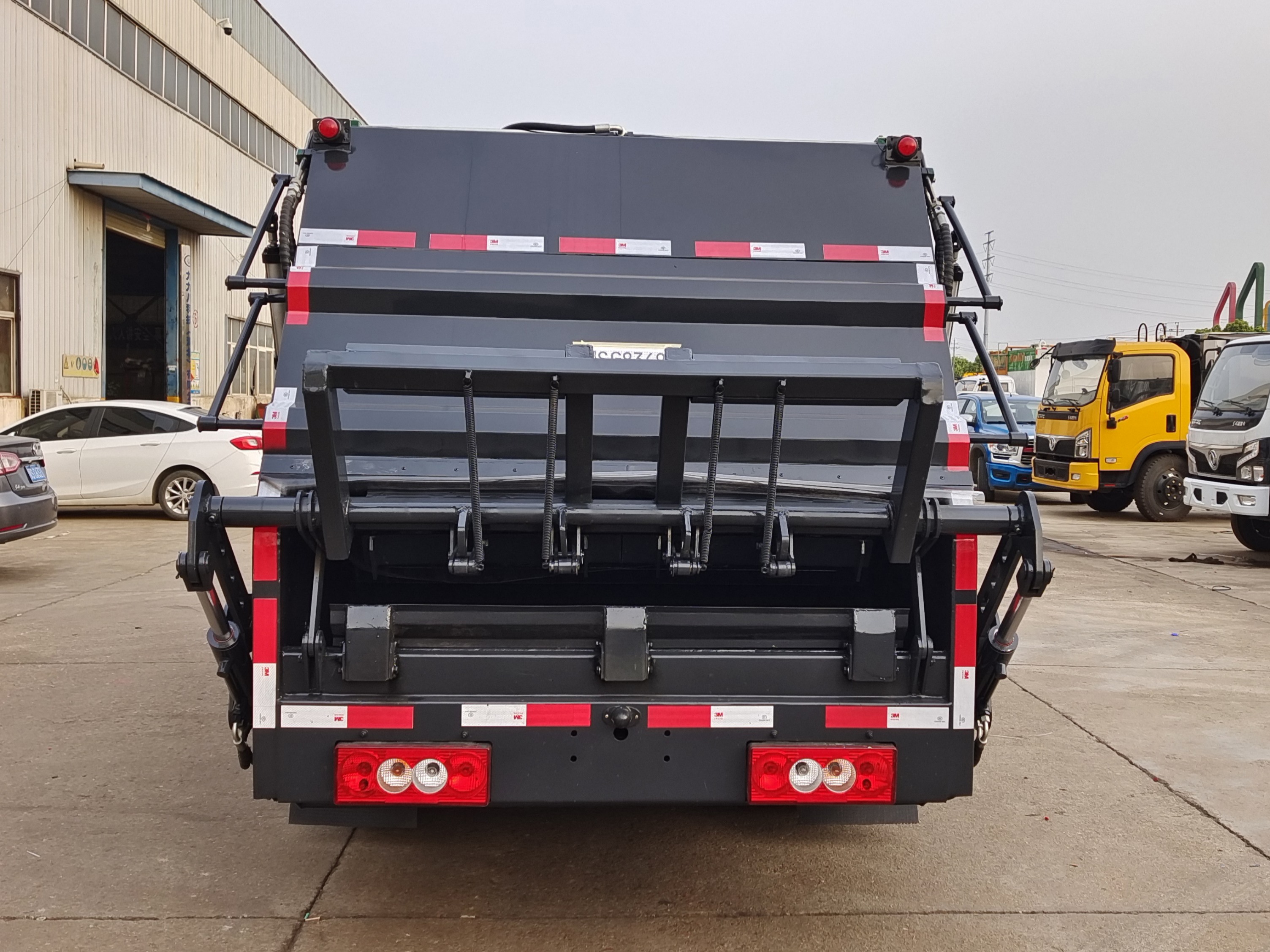

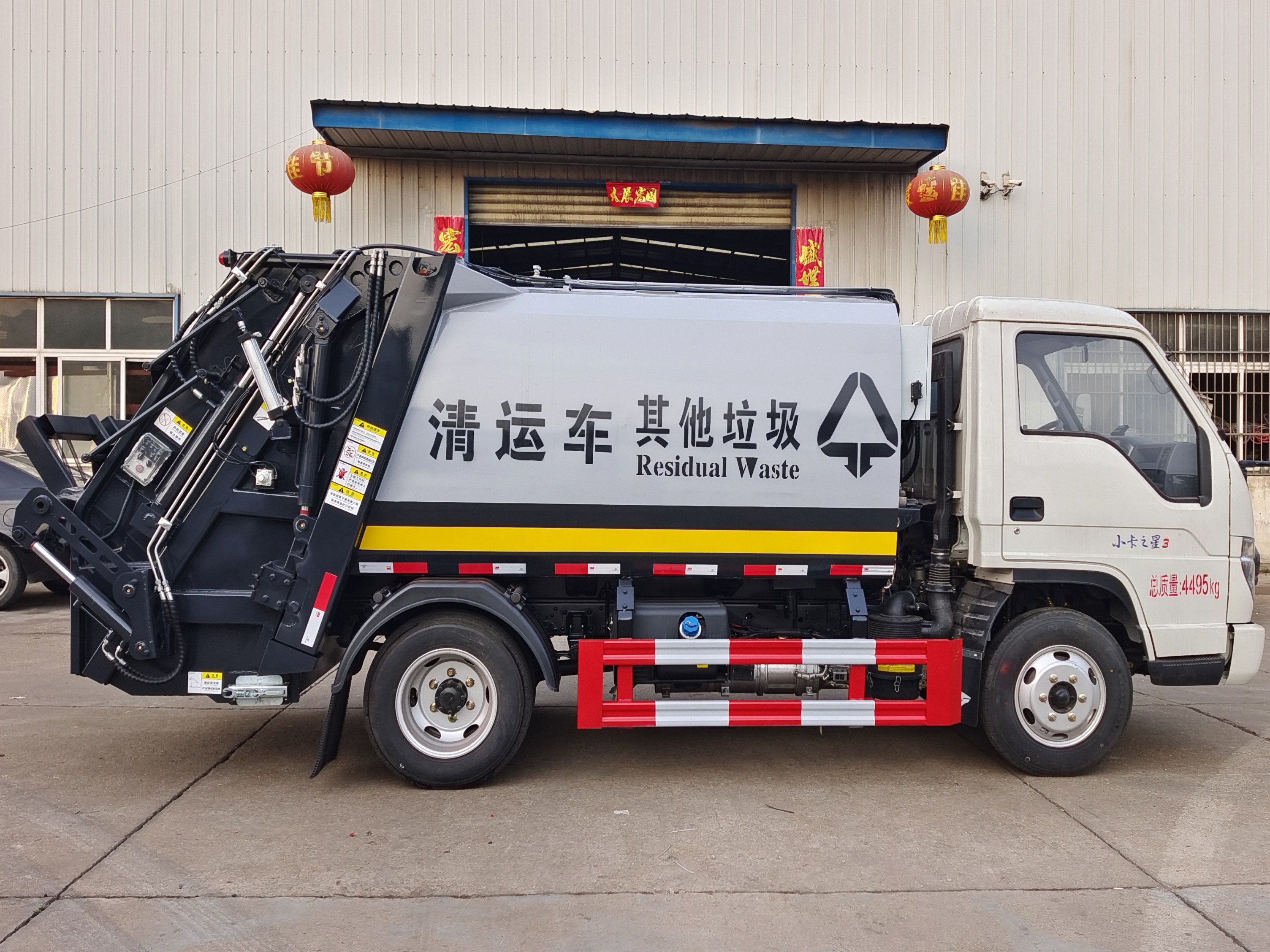

FOTON Xiaoka Star 3 5m³-6m³ compressed garbage truck
Compressed garbage truck: composed of a sealed garbage bin, hydraulic system, and operating system, it compresses and pours itself. During the compression process, all the sewage enters the sewage tank, which completely solves the problem of secondary pollution in garbage transportation.
Upper configuration:
Adopting T700 high-strength board arc-shaped box, with a 2mm edge and 3mm bottom, lightweight design, large capacity, blue label, not overweight, and optional height for entering the basement. The hydraulic mechanism consists of a box body, loading mechanism, compression mechanism, unloading mechanism, oil pump, oil cylinder, control valve, etc. The loading mechanism consists of a bracket, a connecting rod mechanism, a cam, a hook, etc., and it undergoes bi-directional peristaltic compression. Domestic well-known brand hydraulic systems (Anhui Wanye Pump, Hunan Changsha Domestic Famous Multi way Valve, Compression Special Customized Oil Cylinder, Zhejiang Jiashan Power Takeoff); The same CAN bus control system is used for centralized electronic control inside the driver's cab and outside the vehicle; Vehicle high position clearance lights/edge lights/work lighting, equipped with wireless remote control and pressure doubling valve for convenient operation.
Product parameters
