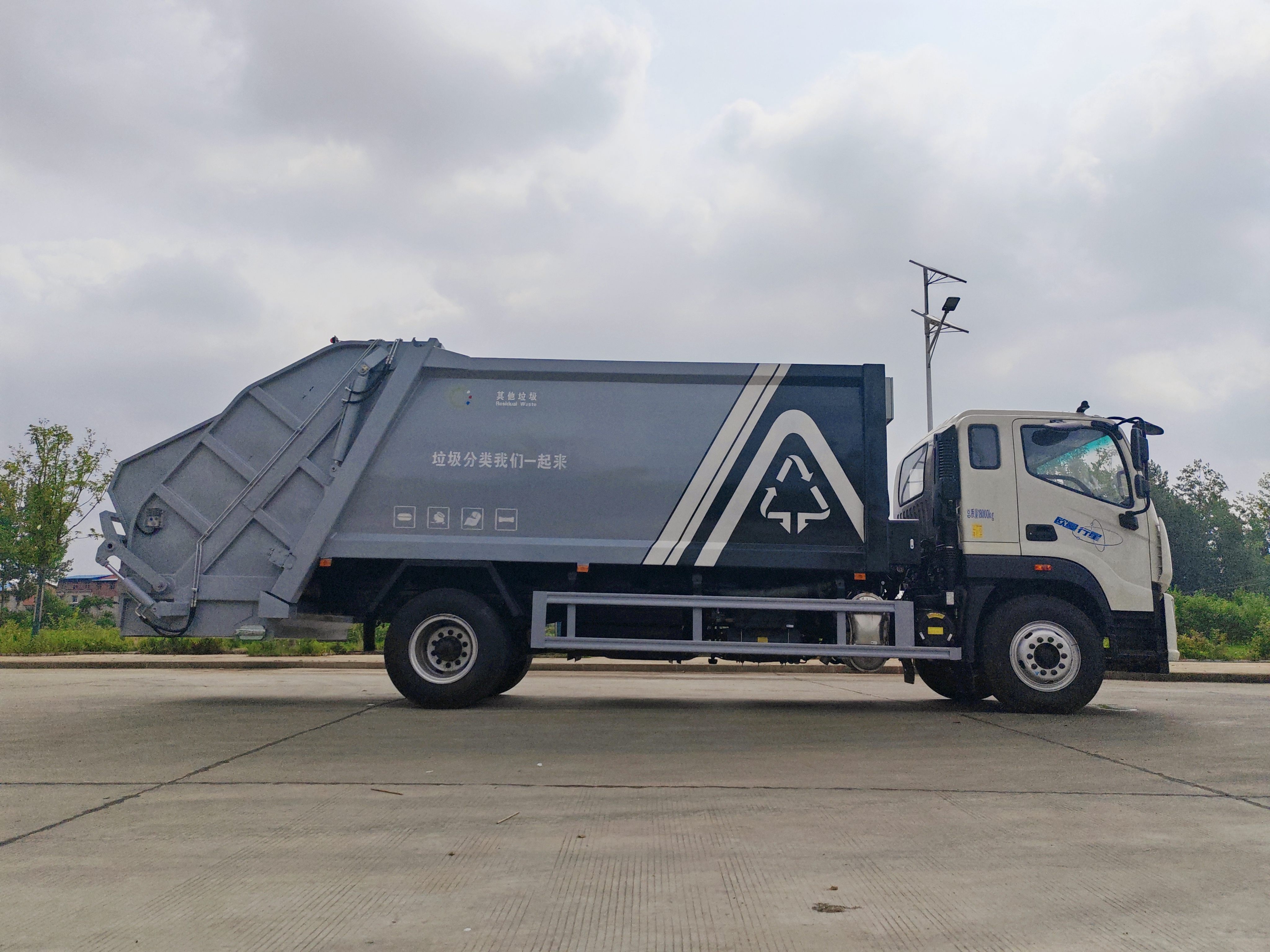

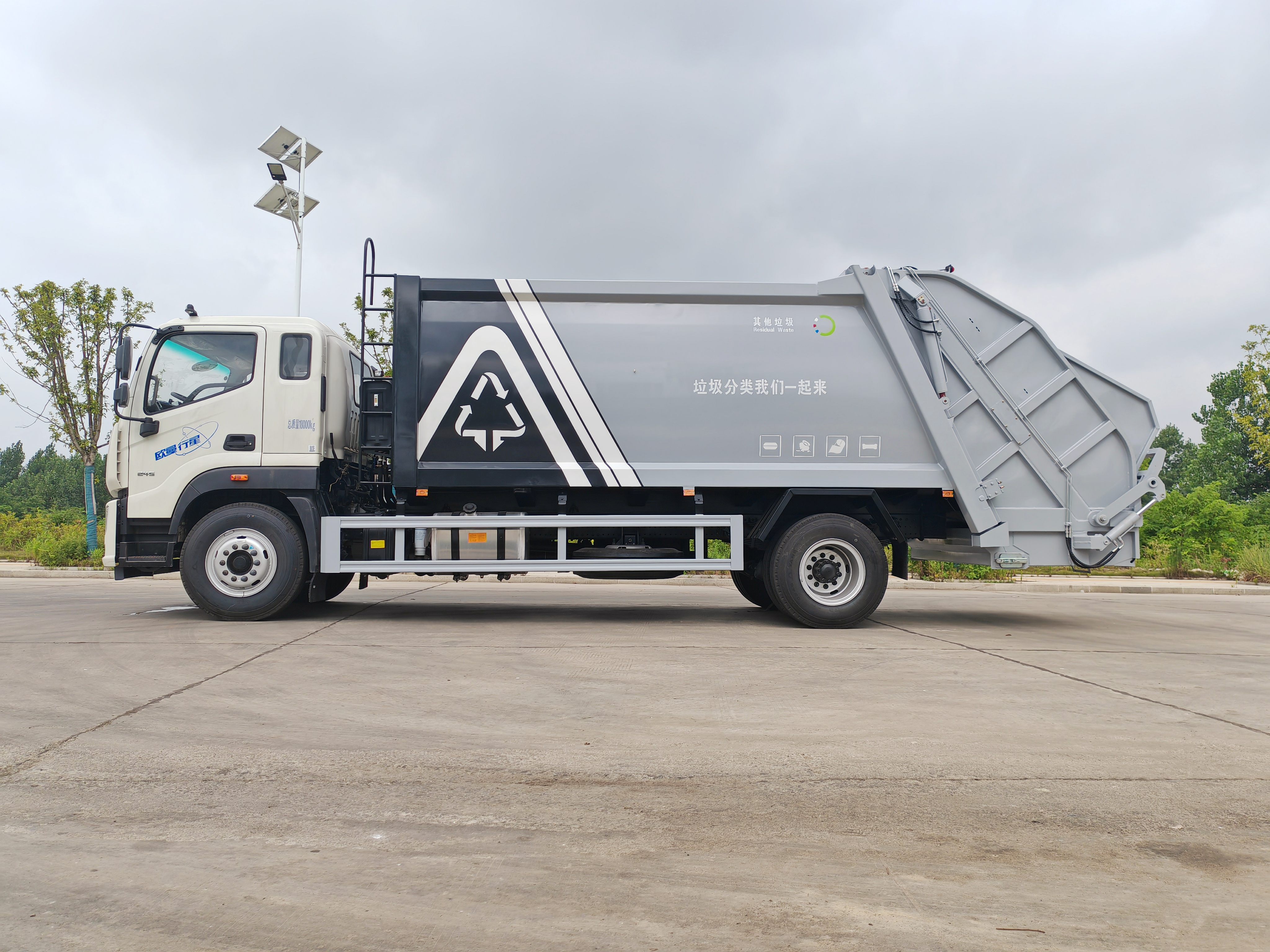

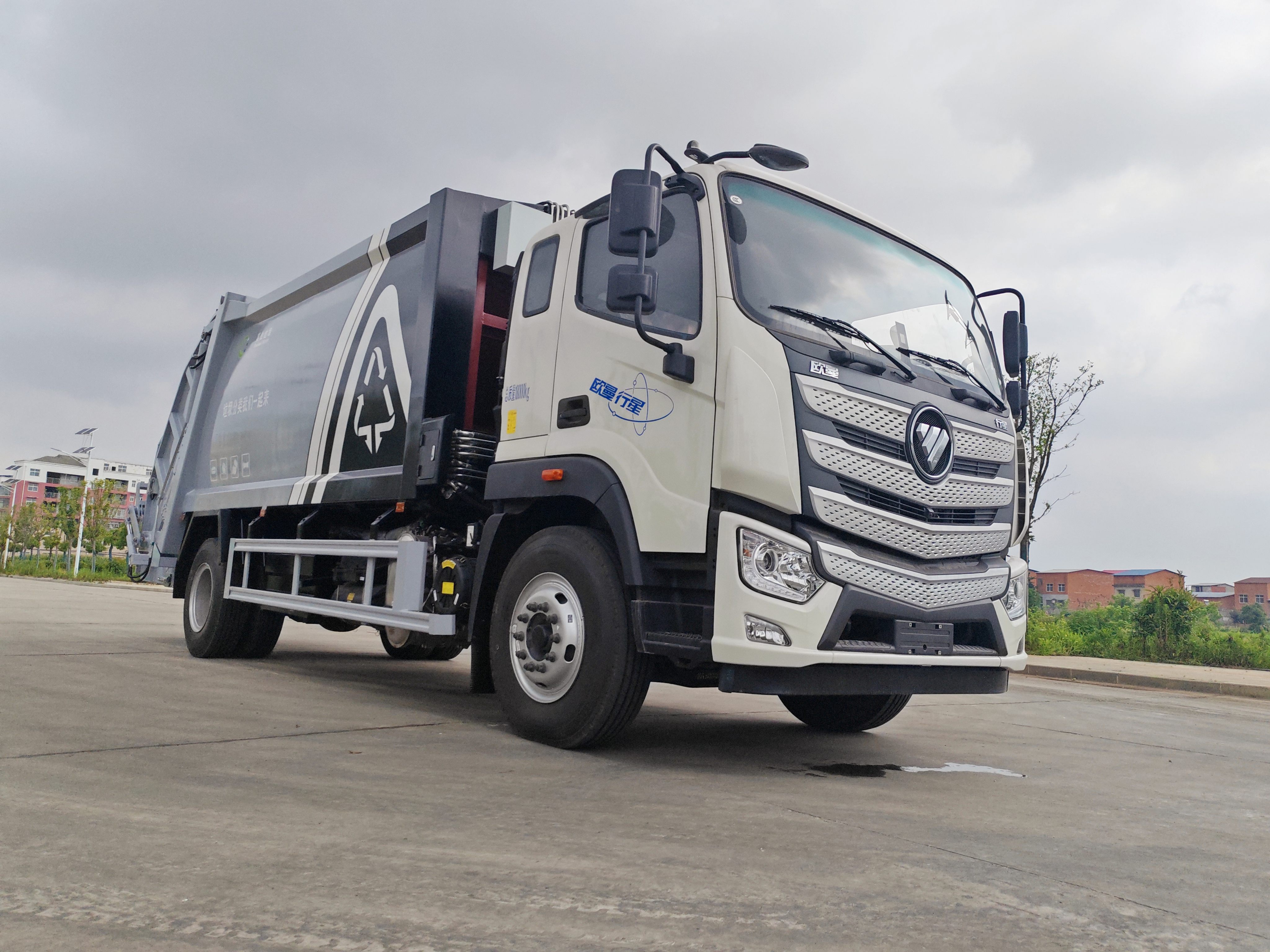

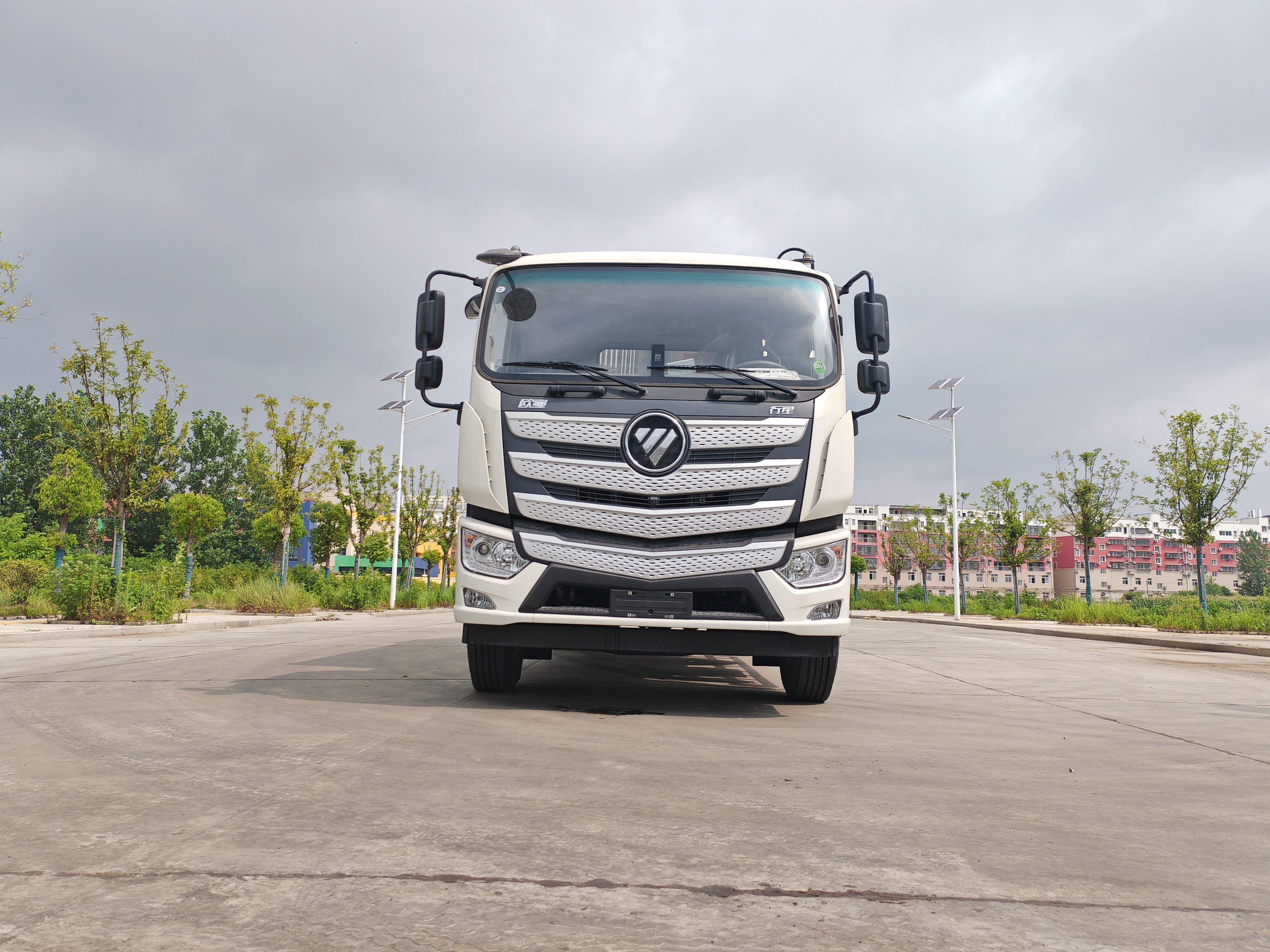

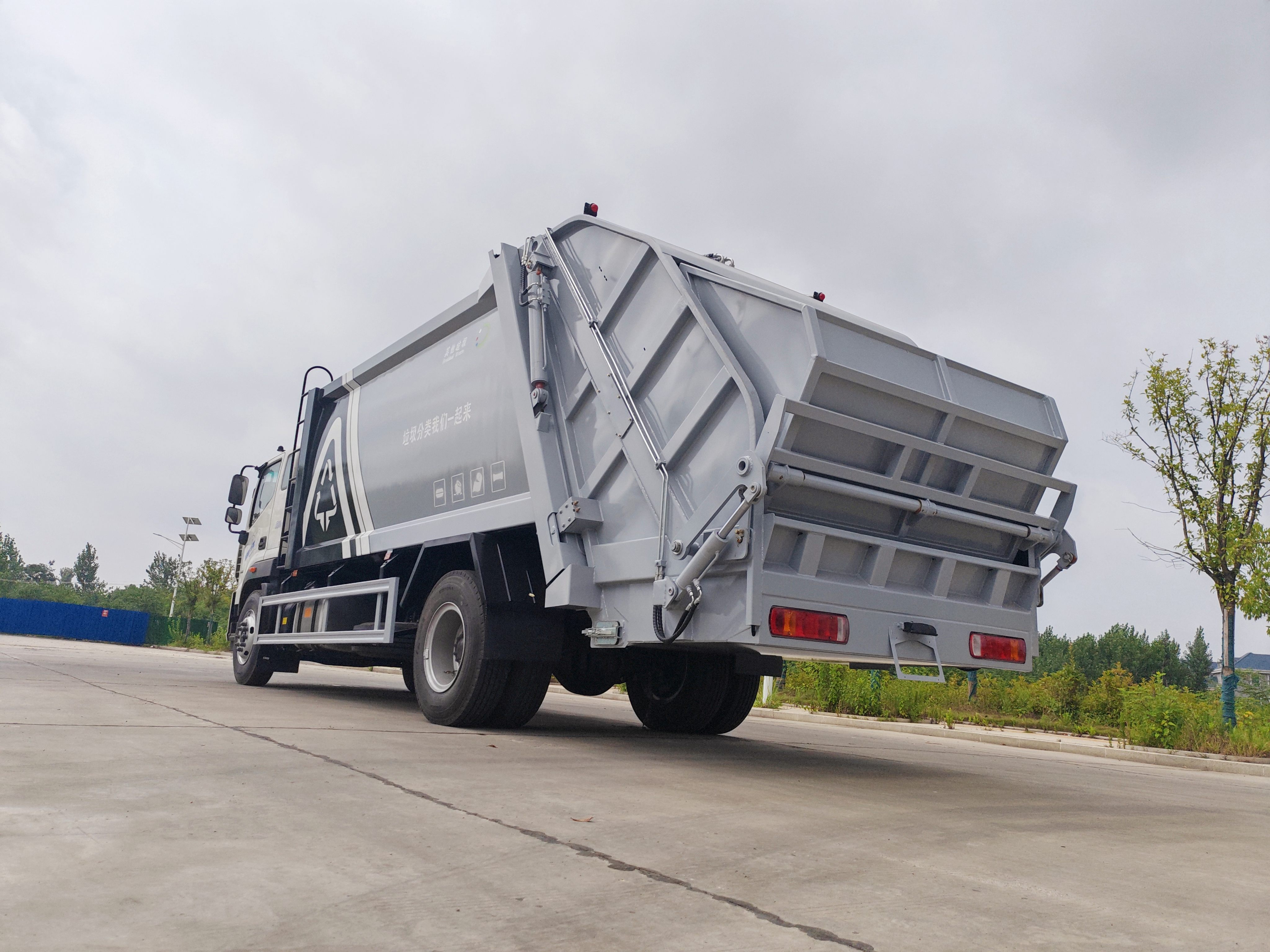

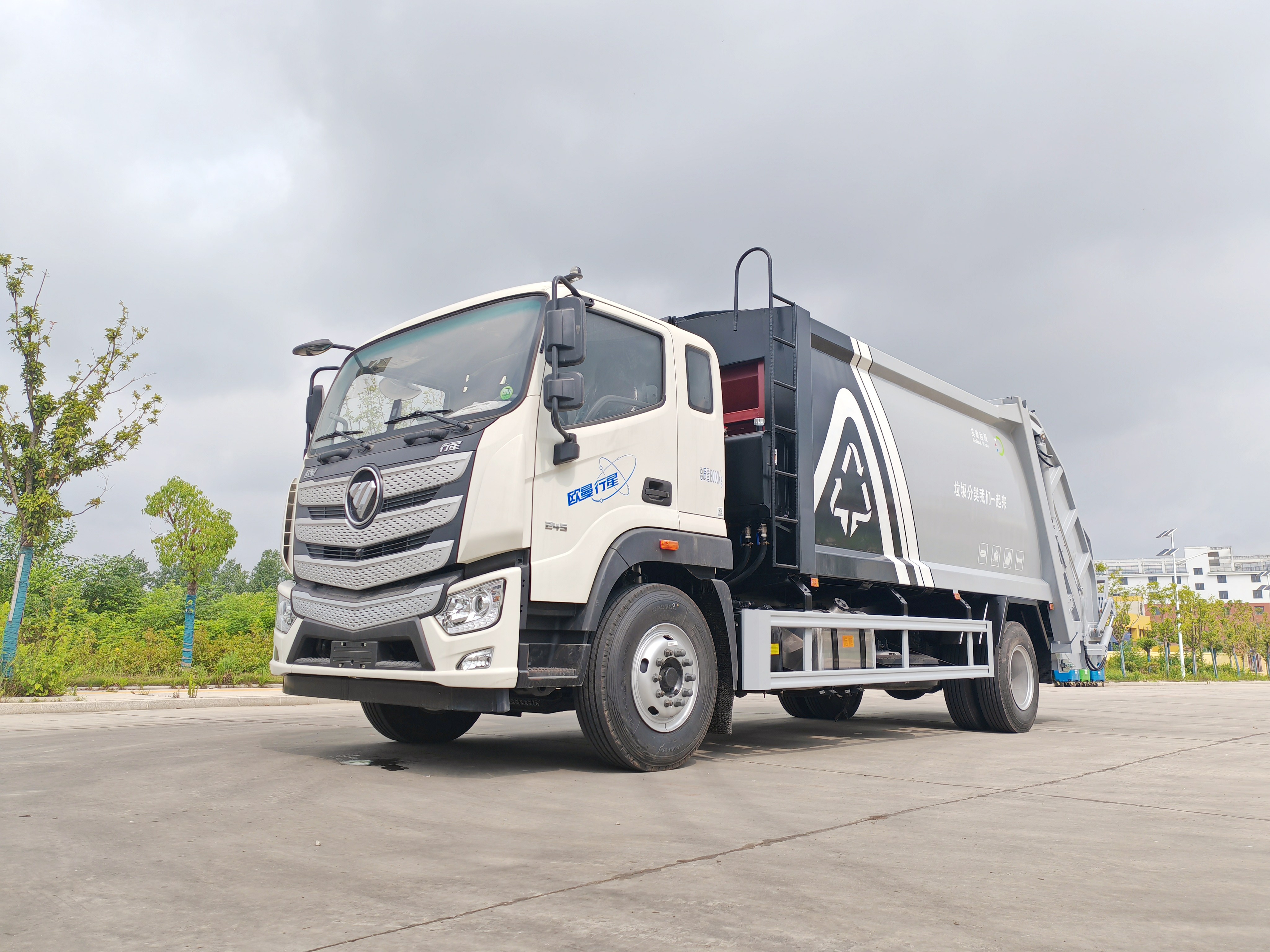

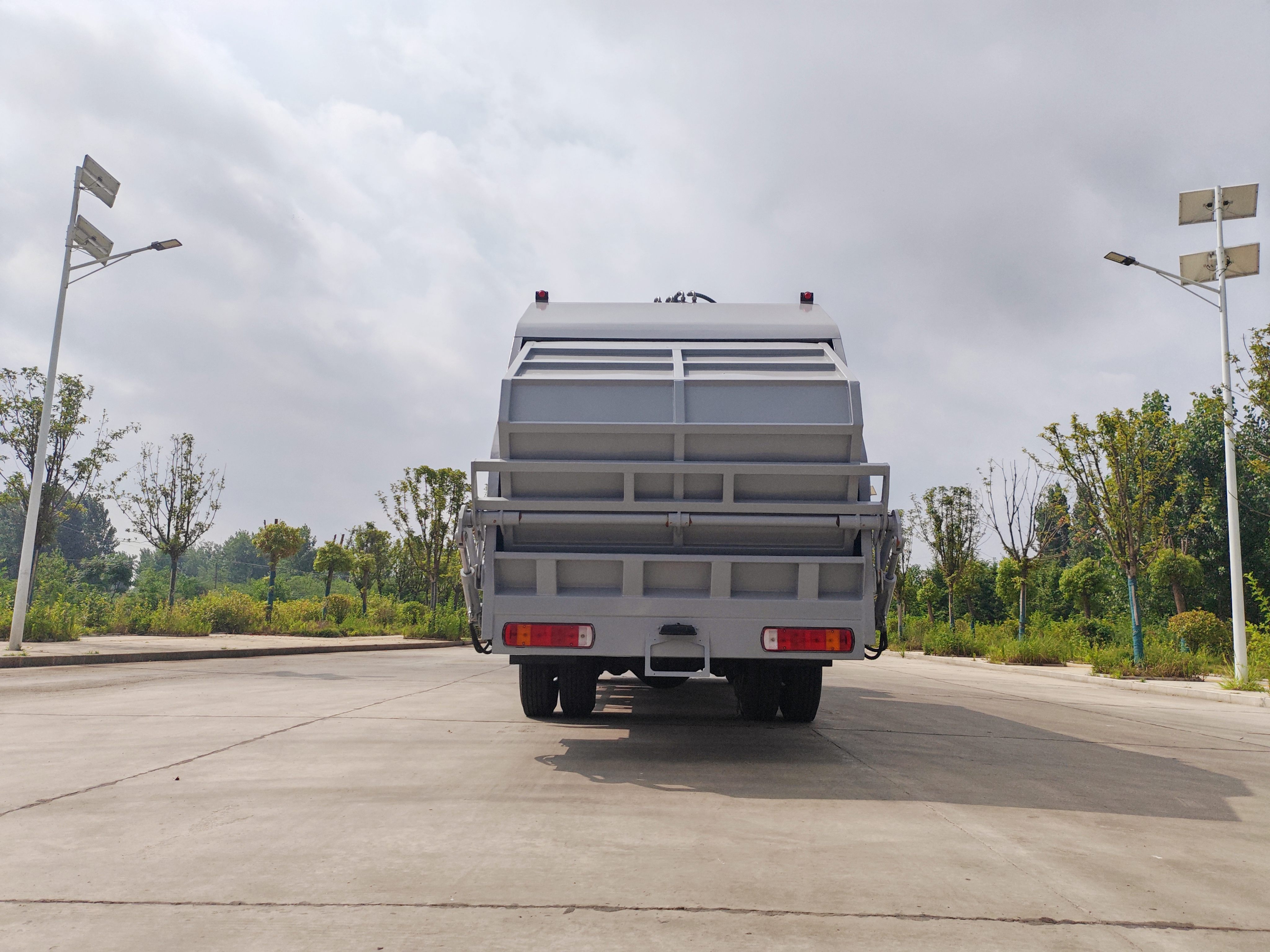

Foton Auman 14m³/16m³/18m³ compressed garbage truck
2024-10-07 09:54:11 Source：CLW
Wheelbase: 3950/4500/5150mm
Engine: Yuchai 200/245 horsepower
Total weight: 18000kg
Curb weight: 12500,12000,11400kgRated load capacity: 5370,5305,5870,5805,6470,6405kg
Dimensions (length x width x height): 9580,9440,8930,8790,8010,7870×2550×3400mm
Effective volume: 14/16/18 cubic meters
Packing volume: 2.4 cubic meters
Chassis configuration: Foton Auman planetary body, 3950/4500/5150mm wheelbase, Yuchai 200/245 horsepower, 10.00 steel tires, Fast 8-speed, 10 ton rear axle, 250 double-layer beam, electric doors and windows, central locking, air conditioning, multifunctional steering wheel, cruise control, power take-off, ABS.
| Product Name |
Foton Auman 14m³/16m³/18m³ compressed garbage truck |
| Driving Type |
4x2 |
| Garbage container volume(cbm) |
14m³/16m³/18m³ |
| Gross vehicle weight(Kg) |
18000(Kg) |
| Curb weight(Kg) |
12500,12000,11400(Kg) |
| Rated weight(kg) |
5370,5305,5870,5805,6470,6405(Kg) |
| Wheelbase(mm) |
4500,5150,3950,4700(mm) |
| Overall Dimension(mm) |
9580,9440,8930,8790,8010,7870×2550×3400(mm) |
| Engine HP |
Yuchai 200/245 horsepower |
| Axle Quantity |
2 |
| Transmission Type |
8-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
11R22.5 18PR,10.00R20 18PR,275/80R22.5 18PR, 6+1 spare |
| Cab |
Foton Auman Planet cab |
| Garbage container material |
Q345 manganese steel high-strength plate arc-shaped box, with 5 mm edges and 6mm bottoms, |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Foton Auman 14m³/16m³/18m³ compressed garbage truck
Compressed garbage truck: composed of a sealed
garbage bin, hydraulic system, and operating system, it compresses and pours
itself. During the compression process, all the sewage enters the sewage tank,
which completely solves the problem of secondary pollution in garbage
transportation.
Upper configuration:
1. Adopting Q345 manganese steel high-strength plate arc-shaped box, with 5mm edges and 6mm bottom
2. It is composed of a hydraulic mechanism consisting of a box body, a loading mechanism, a compression mechanism, a unloading mechanism, an oil pump, an oil cylinder, a control valve, etc.

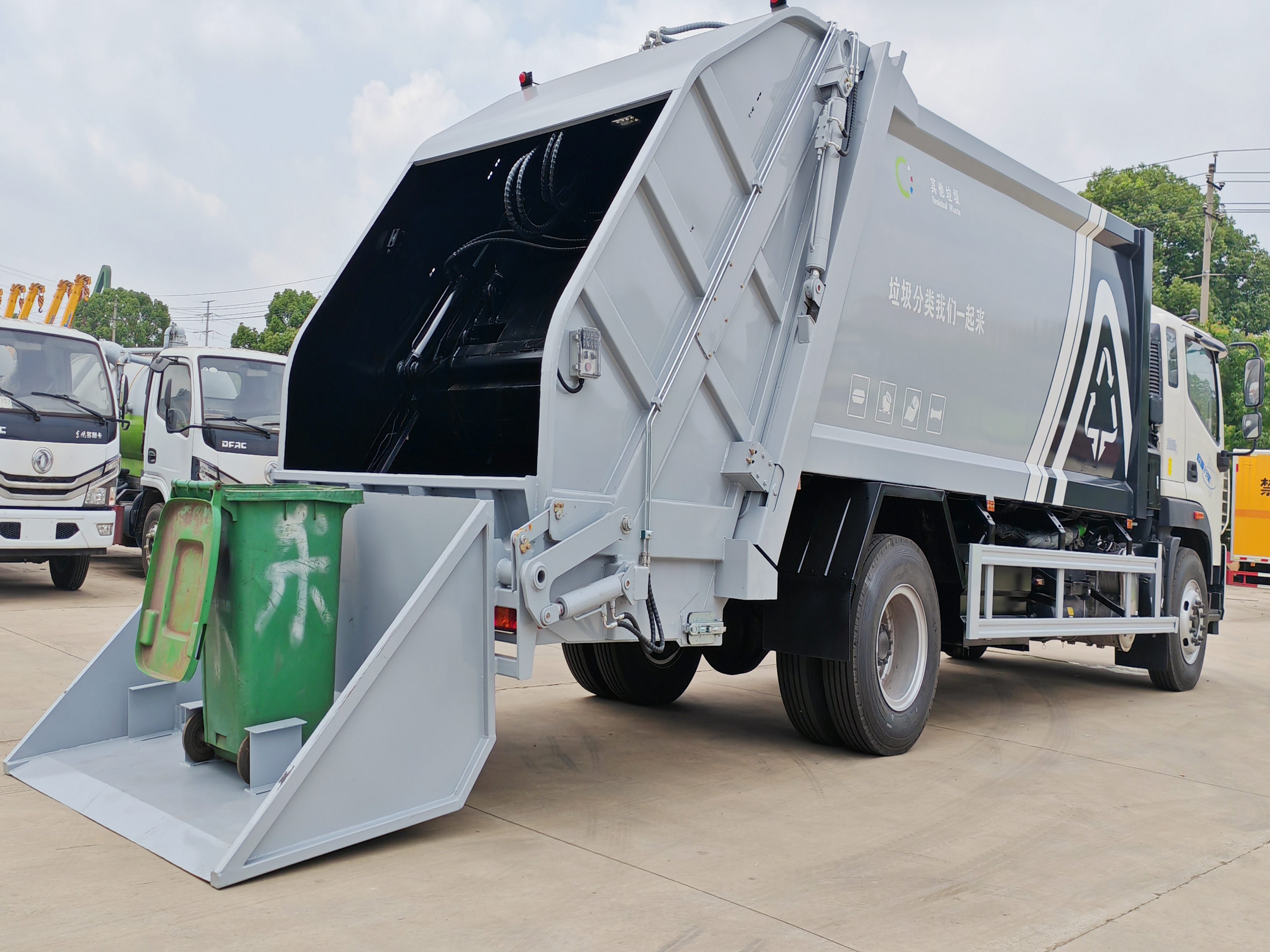

3.The loading mechanism consists of a bracket, a connecting rod mechanism, a cam, a hook, etc., and it undergoes bi-directional peristaltic compression.
4.Domestic well-known brand hydraulic systems (Anhui Wanye Pump, Hunan Changsha Domestic Famous Multi way Valve, Compression Special Customized Oil Cylinder);
5.Centralized electronic control system for both the driver's cab and the exterior of the vehicle, using the same CAN bus control system;
6.Vehicle high position clearance lights/edge lights/work lighting, standard pressure doubling valve, 18 cubic meters standard dual pump.
