MAXUS G20 transit ambulance
2024-11-20 14:06:07 Source：CLW
MAXUS G20 transit ambulance
Chassis configuration:
Wheelbase (mm): 3198mm, tire specifications: 215/70R16, fuel type: gasoline, engine model: 20A4E, displacement/power/horsepower 2.0/192/260, 8-speed automatic transmission, driver and passenger airbags, ESP+ABS+EBD, one touch start, cruise control, reverse image, reverse radar, center console, remote key, black interior, premium leather seats, 12.3-inch high-definition intelligent touch screen, front and rear independent air conditioning, premium leather seats
| Product Name |
MAXUS G20 transit ambulance |
| Drive type |
/ |
| Gross vehicle weight(Kg) |
2900(Kg) |
| Curb weight(Kg) |
2170,2100 (Kg) |
| Rated passenger capacity |
4-7 |
| Wheelbase(mm) |
3198(mm) |
| Overall Dimension(mm) |
5198x1980x2028/2070/2130 (mm) |
| Engine brand & model |
20A4E, 260hp |
| Axle Quantity |
2 |
| Transmission Type |
8-speed automatic transmission |
| Brake system |
/ |
| Tire Spec. & size |
215/70R16 , 4+1 spare |
| Cab |
MAXUS G20 cab |
| Standard configuration |
As follows |
| Air conditioning and warm air |
High power air conditioning and warm air for medical cabin |
| Circuit and electrical alarm and warning system |
(1)1 set of long row warning lights (2)1 set of 100W alarm and handheld control (3) 2 blue flashing lights at the tail (4)Six blue, white, and blue flashes on both sides |
| Power system in the car |
1) One 500W positive rotating wave inverter 2) One set of integrated circuit control and protection system 3) One set of communication circuit protection system 4) One set of integrated switch control panel for medical cabin 5) Two national standard 220V power ports 6) One national standard 12V power socket 7) Four top LED lighting fixtures 8) One long strip disinfection lamp 9) One electric bidirectional ventilation fan |
| Oxygen pathway and oxygen |
1 Hidden oxygen pipeline system 2.Install 2 oxygen ports in the medical cabin 3 onboard oxygen outlets 4 humidification bottles 1 5 adapters, 1 piece |
| Inside the medical cabin |
1. Original factory interior standard configuration 2. Polymer material special-shaped partition wall 3. Transparent sliding observation window for the partition wall 4. Two 10L oxygen cabinets on the left front panel 5. Long medical equipment storage cabinet on the left middle panel 6. Medical cabin full set of high-end anti-collision soft packaging wall 7. Environmentally friendly wear-resistant, anti slip blue medical floor and cushion layer |
| Seat |
1: Right side forward facing independent seat for 1 person. Seat 2: Right side 2-person long horizontal soft pack seat cabinet and seat belt |
| Emergency medical assistance system |
1 set of automatic boarding stretcher, 2 sets of stretcher guide plate and pad, 3 sets of sliding infusion rack, 4 sets of fire extinguisher, 5 sets of top and rear mounted boarding handrails, 6 sets of garbage bin |
| Vehicle appearance |
1. Black sun film on the left side of the medical cabin; 2. Semi transparent frosted film on the right and rear sides; 3. Customized standard medical appearance |
| Optional configuration |
1. Sleeper, 40 liter bracket, 2. Three layer equipment rack, 3. Medium net flashing, 4. 2000W inverter, 5. Auxiliary battery, 6. Monitoring, 6. Top large soft package interior, 7. Stretcher compartment, three speed adjustable stretcher, 8. Shovel and soft carrier, 9. Cab seat leather, 10. Negative pressure system, 4. Appearance and interior pictures reference |
| Kindly reminder |
The above information is for reference only, and vehicles can be customized according to customer requirements. |

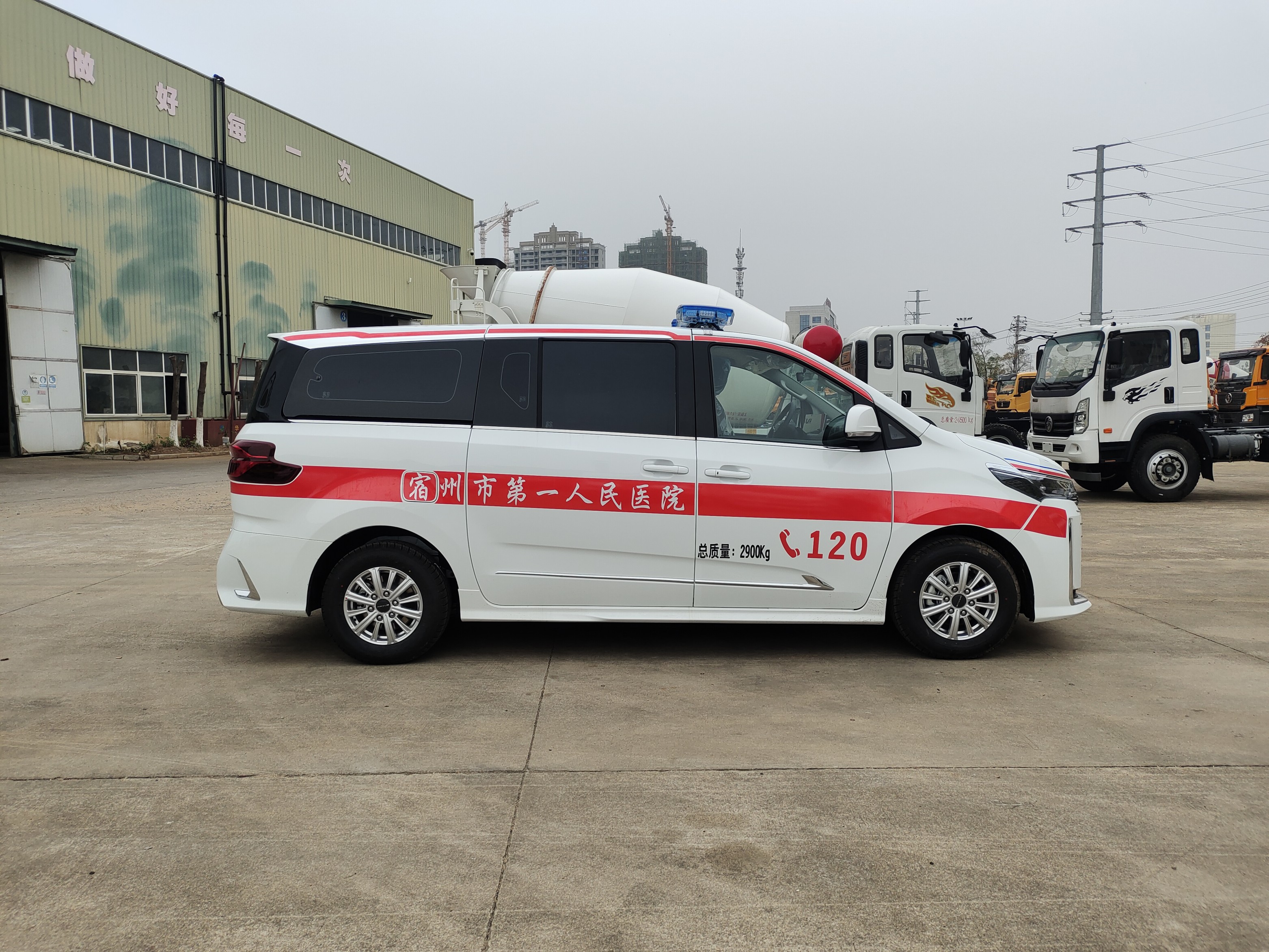

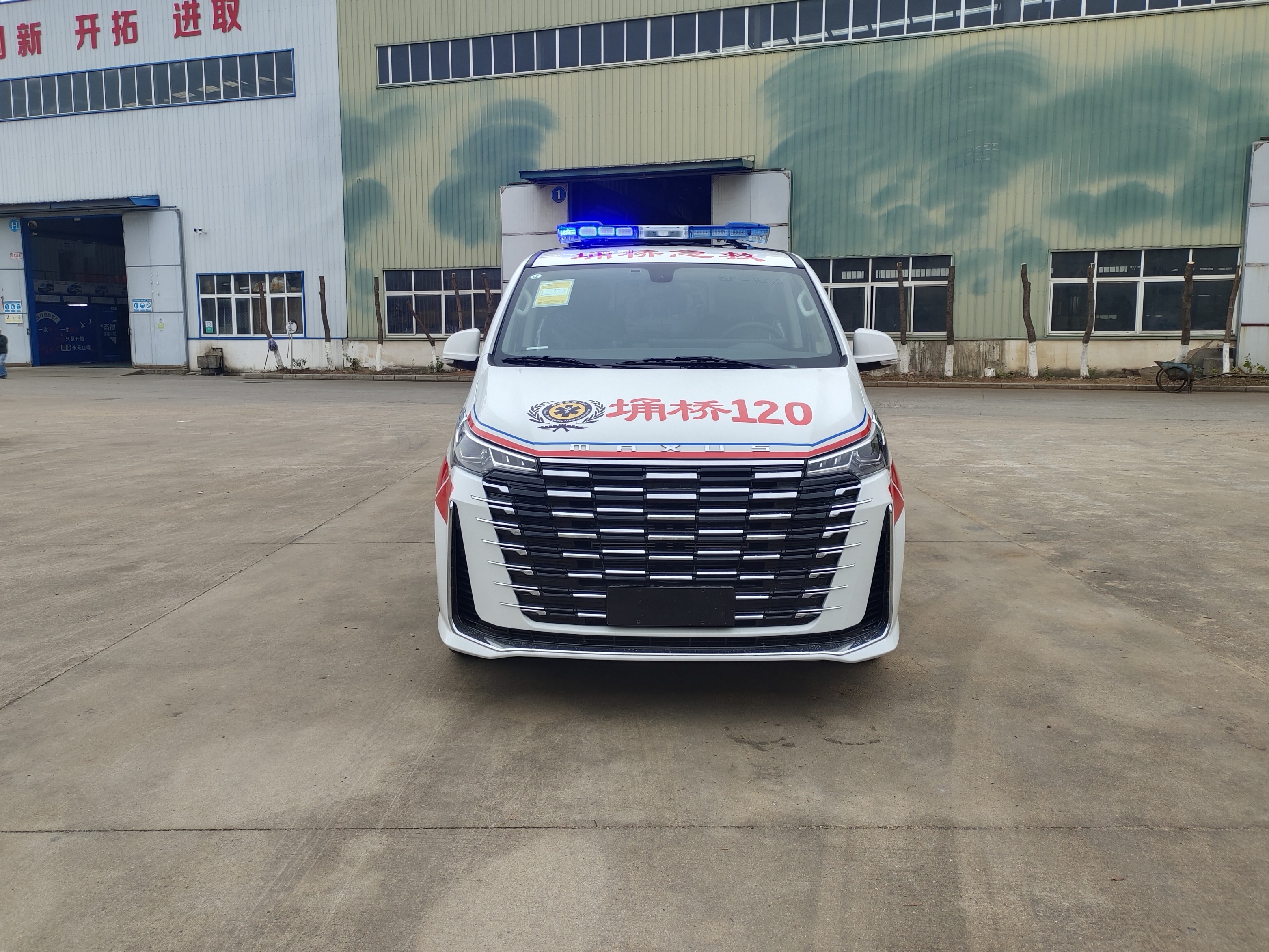

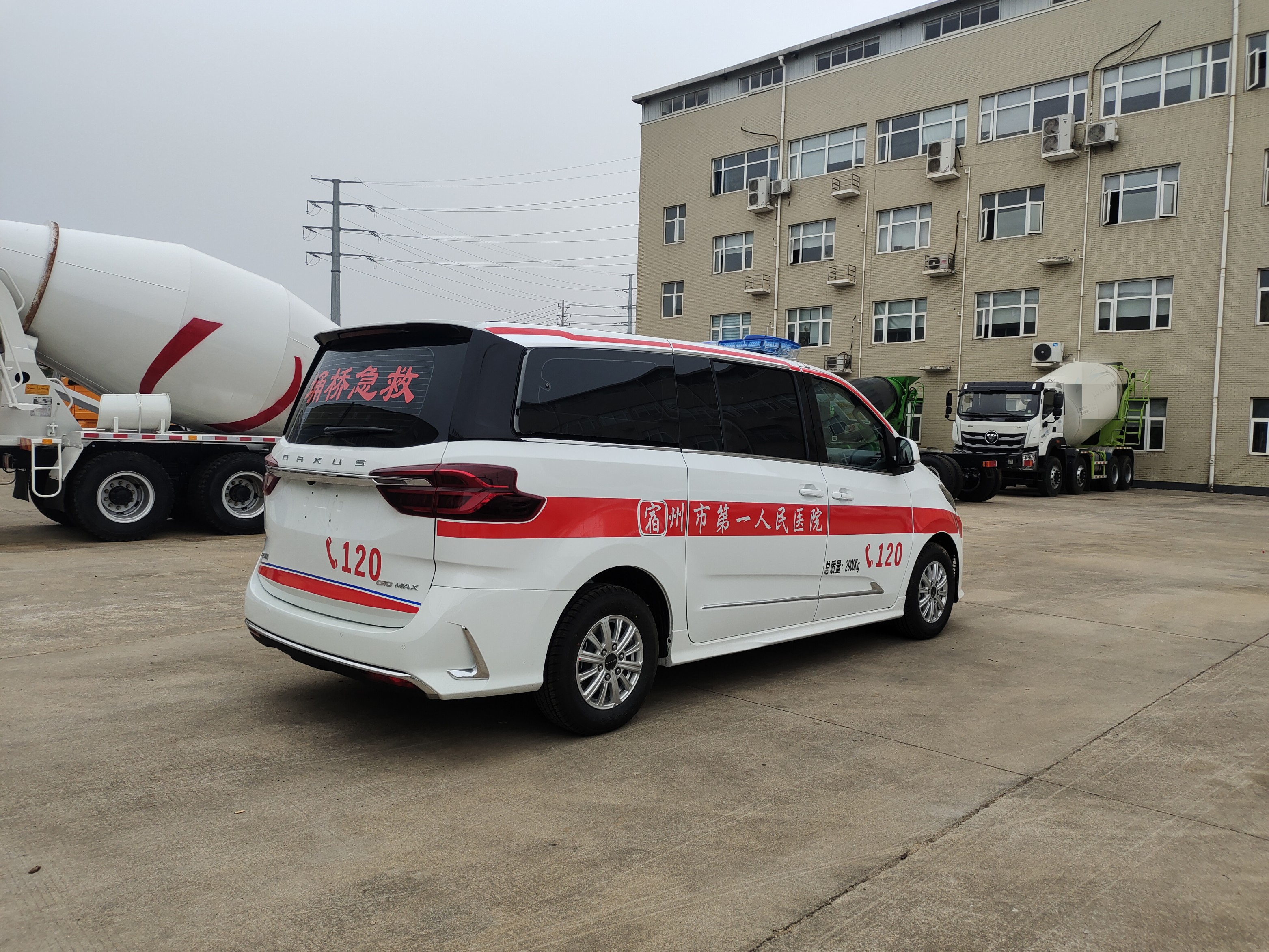

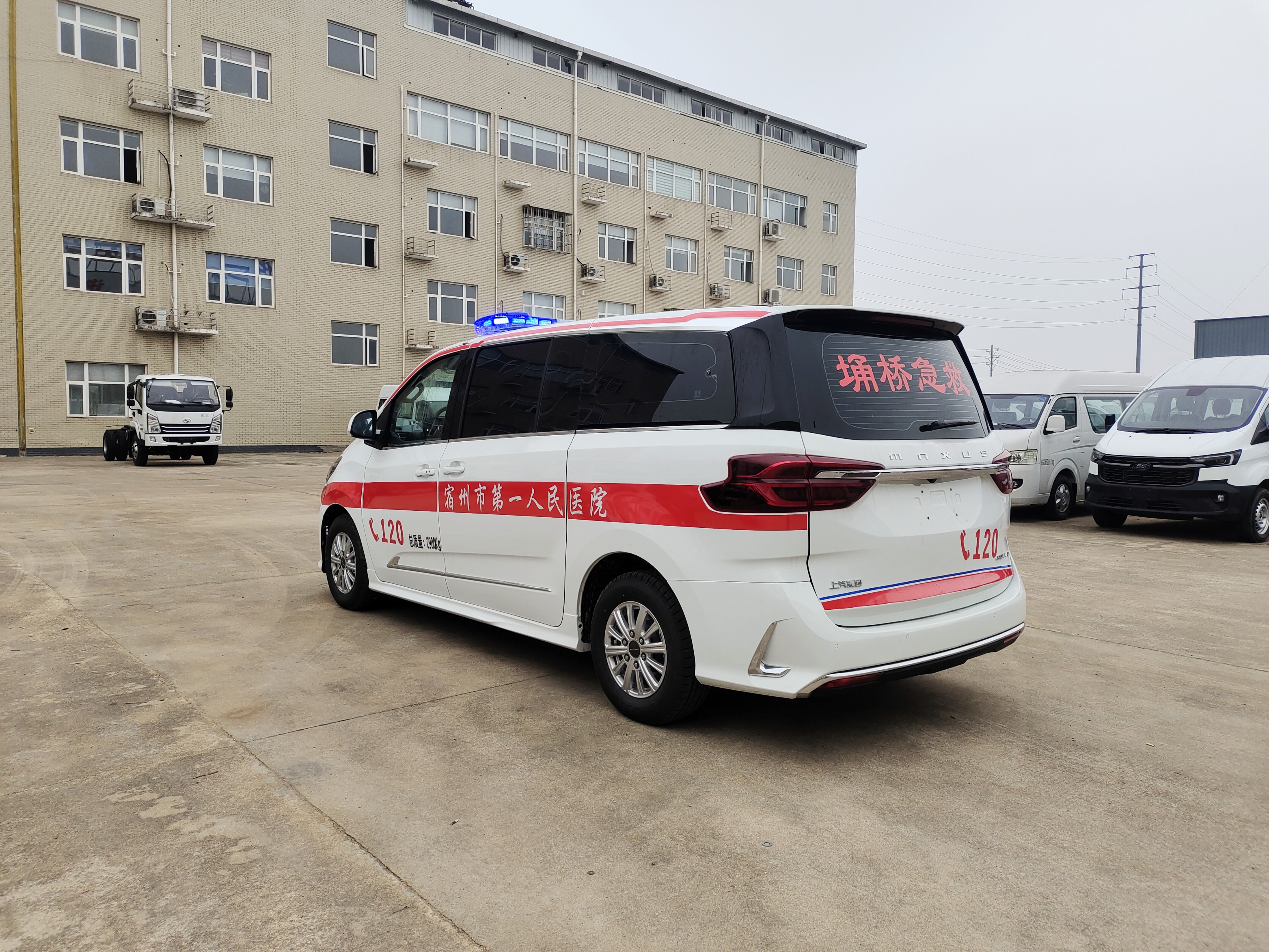

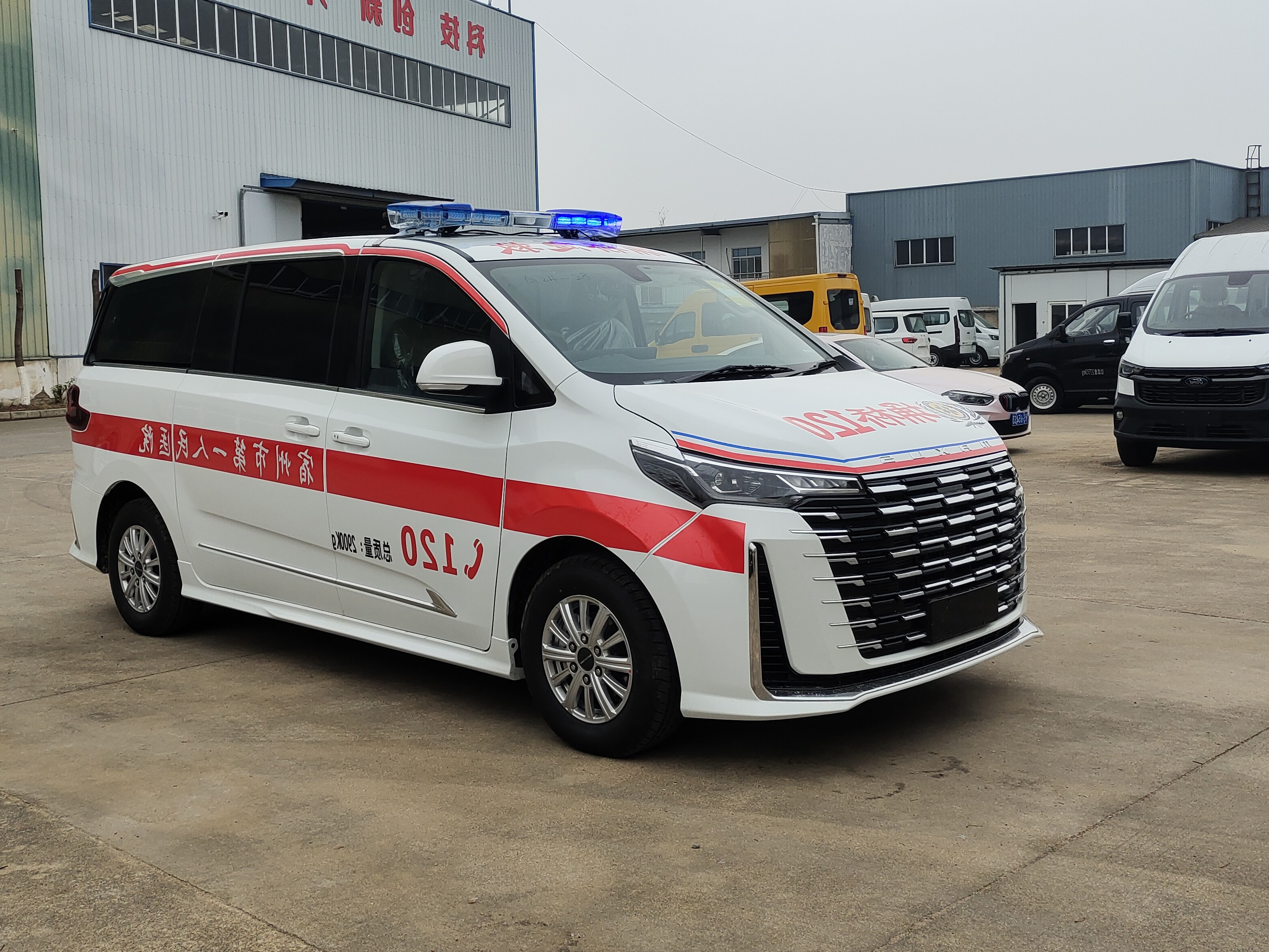

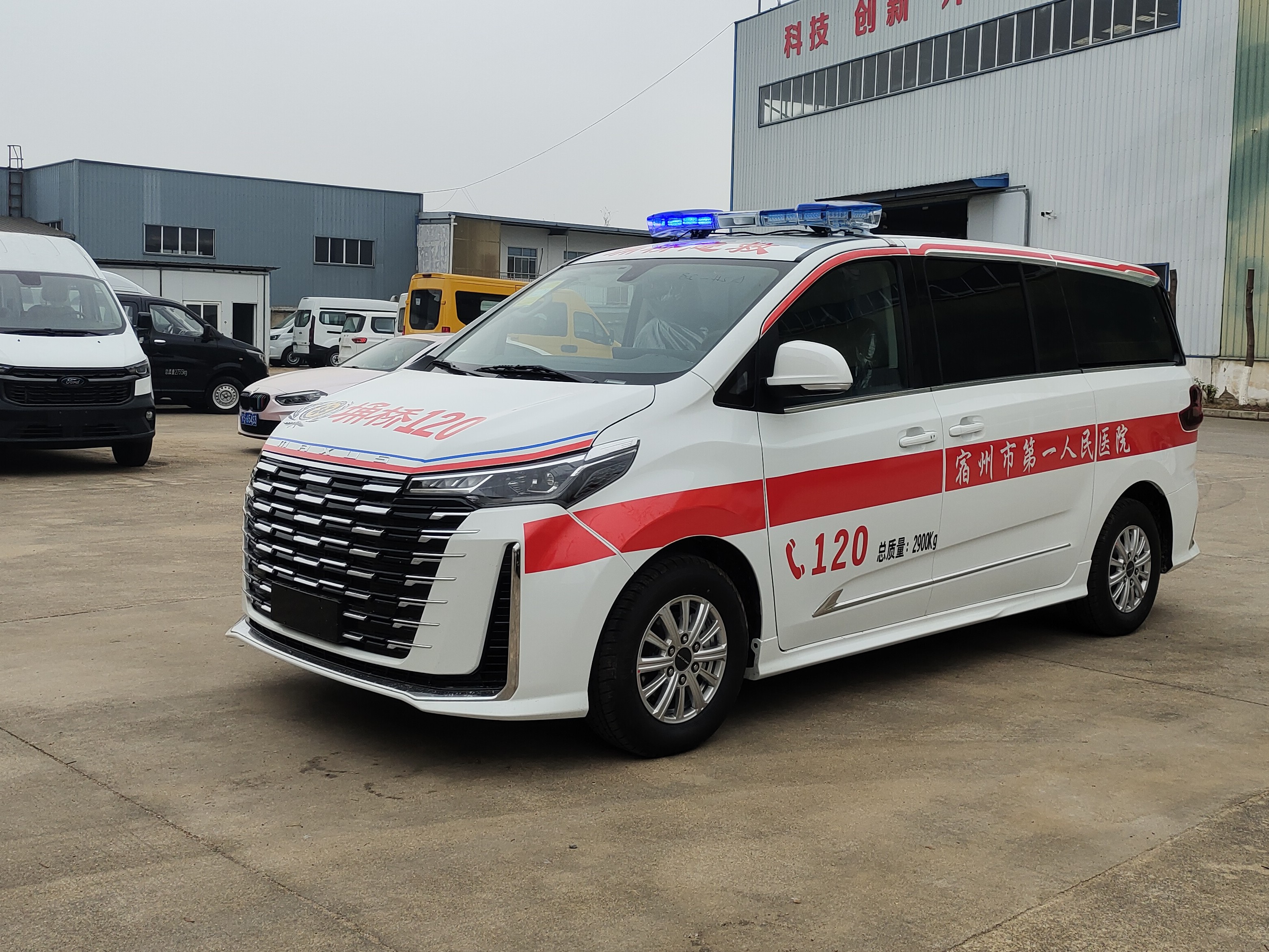

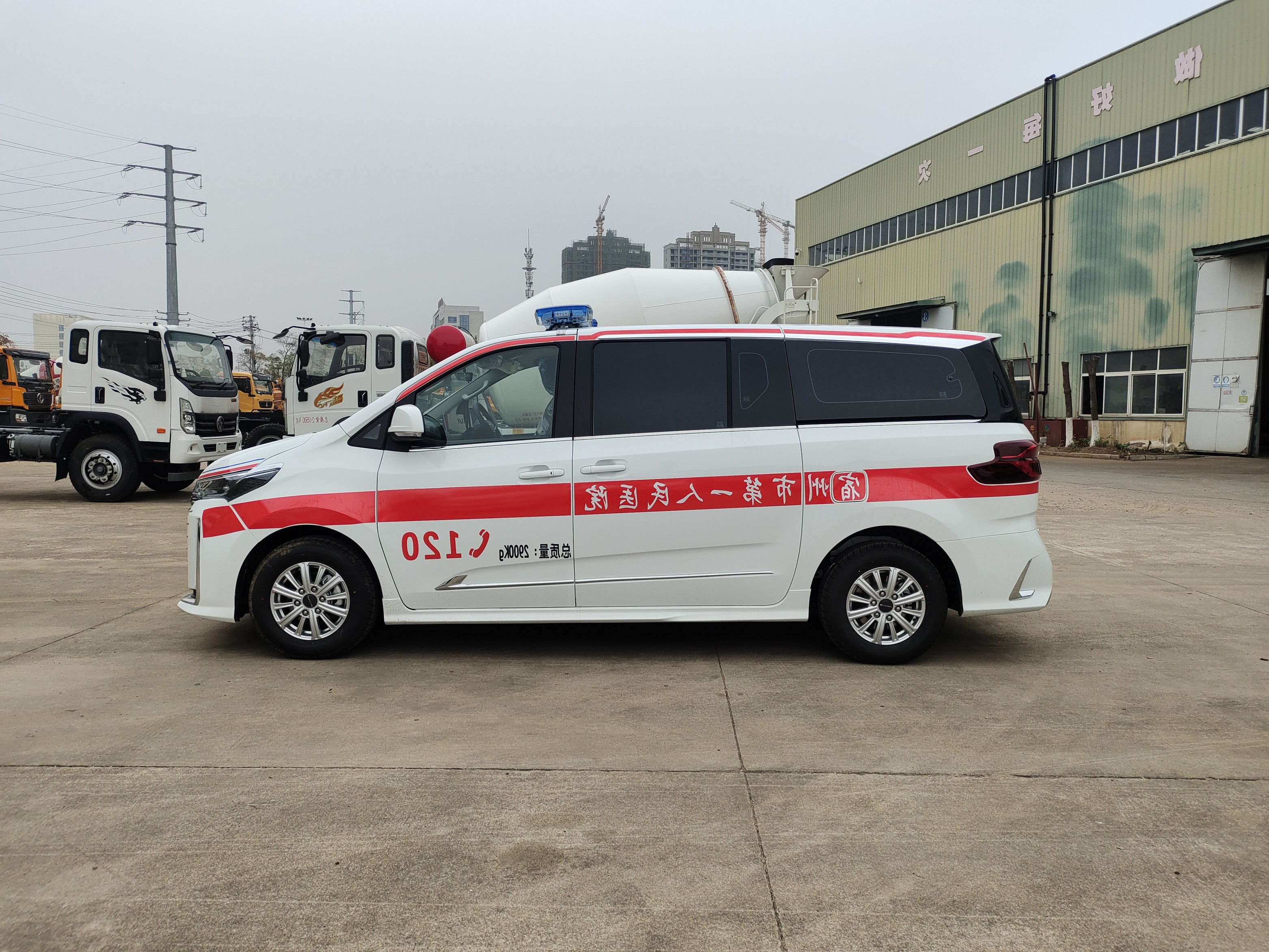

MAXUS G20 transit ambulance
Ambulances are vehicles used to rescue patients,
also known as mobile hospitals, emergency ambulances, etc.
A transit ambulance, also known as a transport ambulance, is a specialized vehicle designed to transport patients from the scene to hospitals in emergency situations. This type of vehicle is usually equipped with complete emergency equipment and medical personnel, which can provide initial emergency treatment to patients during the driving process.

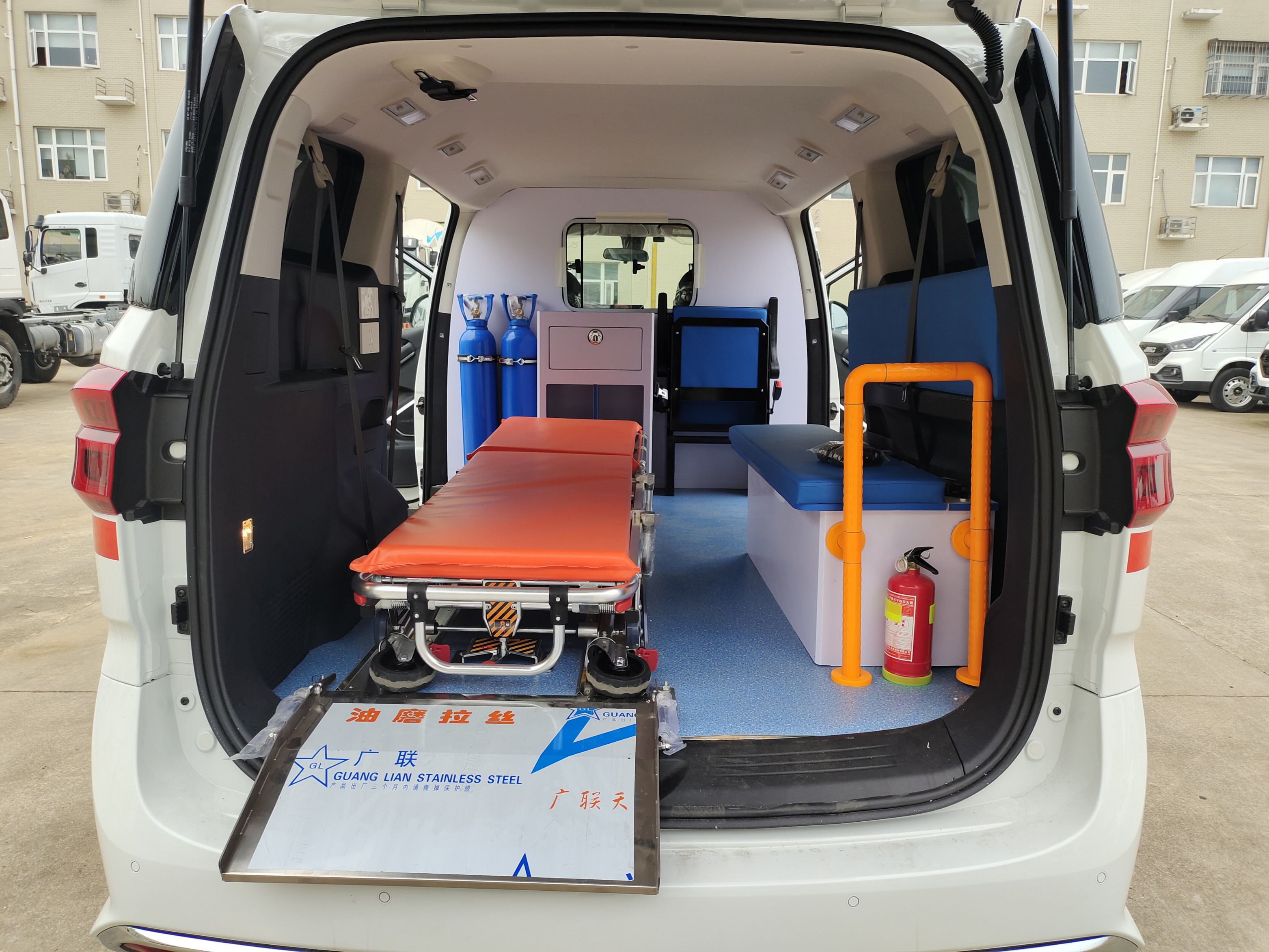

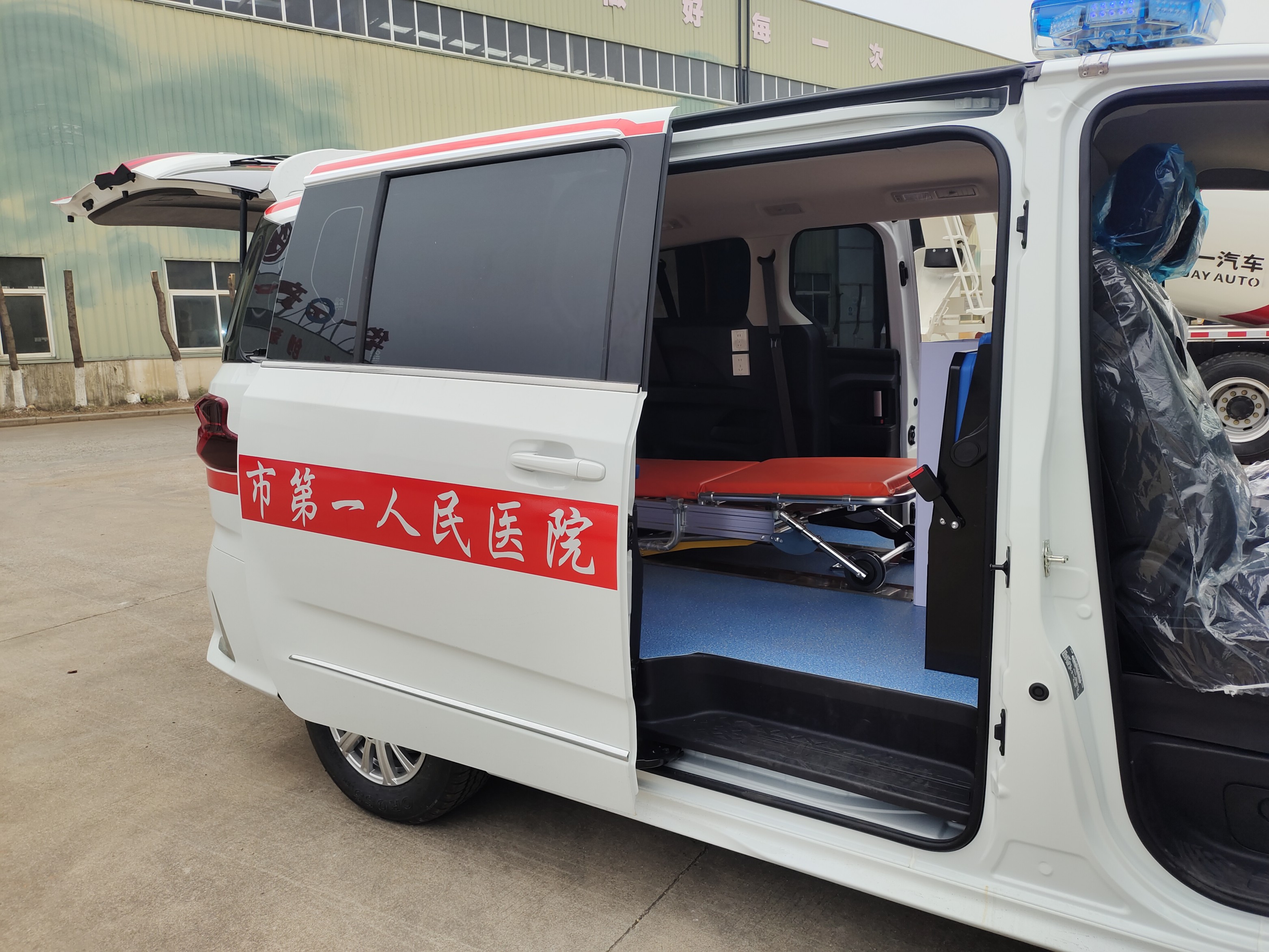

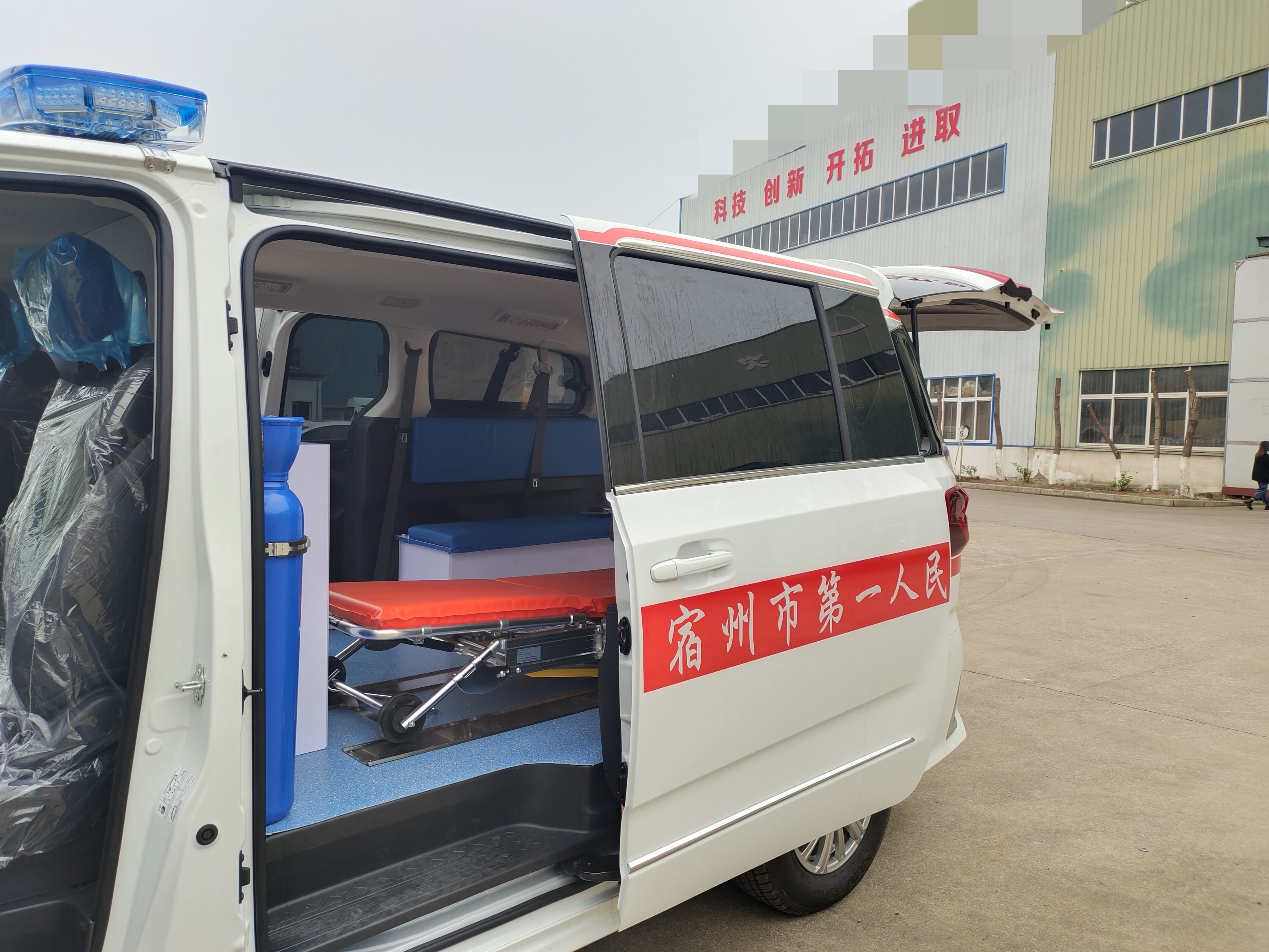

Rear cabin configuration of MAXUS G20 transit ambulance
(1) White body+red strong reflective tape
(2) Stick glass film on the right rear window of the medical cabin
(3) 100W siren roof front long row warning light
(4) 500W pure sine wave inverter
(5) AC/DC (220V, 12V) power socket set
(6) UV sterilization lamp, disinfection lamp with timed delayed opening function. (Long strip)
(7) Fixed infusion rack at the top of the medical cabin
(8) Installation of partition wall between cockpit and medical cabin: with sliding windows
(9) Combination medical cabinet after medical cabin partition (combination cabinet, middle medical platform cabinet with 10L oxygen cylinder on the left side)
(10) One independent seat with seat belt on the right side of the medical cabin
(11) 10 liter oxygen cylinder, float type oxygen terminal oxygen quick interface
(12) The floor of the medical cabin is made of a new type of lightweight ground decoration material, which is anti slip, waterproof, mold proof, antibacterial, and easy to clean.
(13) The 1KG fire extinguisher garbage bin is equipped with automatic boarding stretcher guide plates and pads
