Ford T8 (V363) Ambulance
Ambulances are vehicles used to rescue patients,
also known as mobile hospitals, emergency ambulances, etc.
Product parameter
Home > Trucks > Emergency rescue vehicle > Ambulance >
Ford T8 (V363) Ambulance
Chassis configuration:
1. Engine: DURATORQ4D236H , 175hp
2.Transmission type: 5 forwards,1 reverse gear
3.Wheelbase: 3750(mm)
4.Tyre:235/65R16C , 4+1 spare
5 Other: Ford T8 cab
| Product Name | Ford T8 (V363) Ambulance |
| Drive type | / |
| Gross vehicle weight(Kg) | 4100(Kg) |
| Curb weight(Kg) | 3080(Kg) |
| Rated passenger capacity | 5-9 |
| Wheelbase(mm) | 3750(mm) |
| Overall Dimension(mm) | 5998x2068x 2985 ,2930,2775,2685,2620,2550,2485(mm) |
| Engine brand & model | DURATORQ4D236H , 175hp |
| Axle Quantity | 2 |
| Transmission Type | 5 forwards,1 reverse gear |
| Brake system | / |
| Tire Spec. & size | 235/65R16C , 4+1 spare |
| Cab | Ford T8 cab |
| Standard configuration | As follows |
| Air conditioning and warm air | High power air conditioning and warm air for medical cabin |
| Circuit and electrical alarm and warning system | (1)1 set of long row warning lights (2)1 set of 100W alarm and handheld control (3) 2 blue flashing lights at the tail (4)Six blue, white, and blue flashes on both sides |
| Power system in the car | 1) One 500W positive rotating wave inverter 2) One set of integrated circuit control and protection system 3) One set of communication circuit protection system 4) One set of integrated switch control panel for medical cabin 5) Two national standard 220V power ports 6) One national standard 12V power socket 7) Four top LED lighting fixtures 8) One long strip disinfection lamp 9) One electric bidirectional ventilation fan |
| Oxygen pathway and oxygen | 1 Hidden oxygen pipeline system 2.Install 2 oxygen ports in the medical cabin 3 onboard oxygen outlets 4 humidification bottles 1 5 adapters, 1 piece |

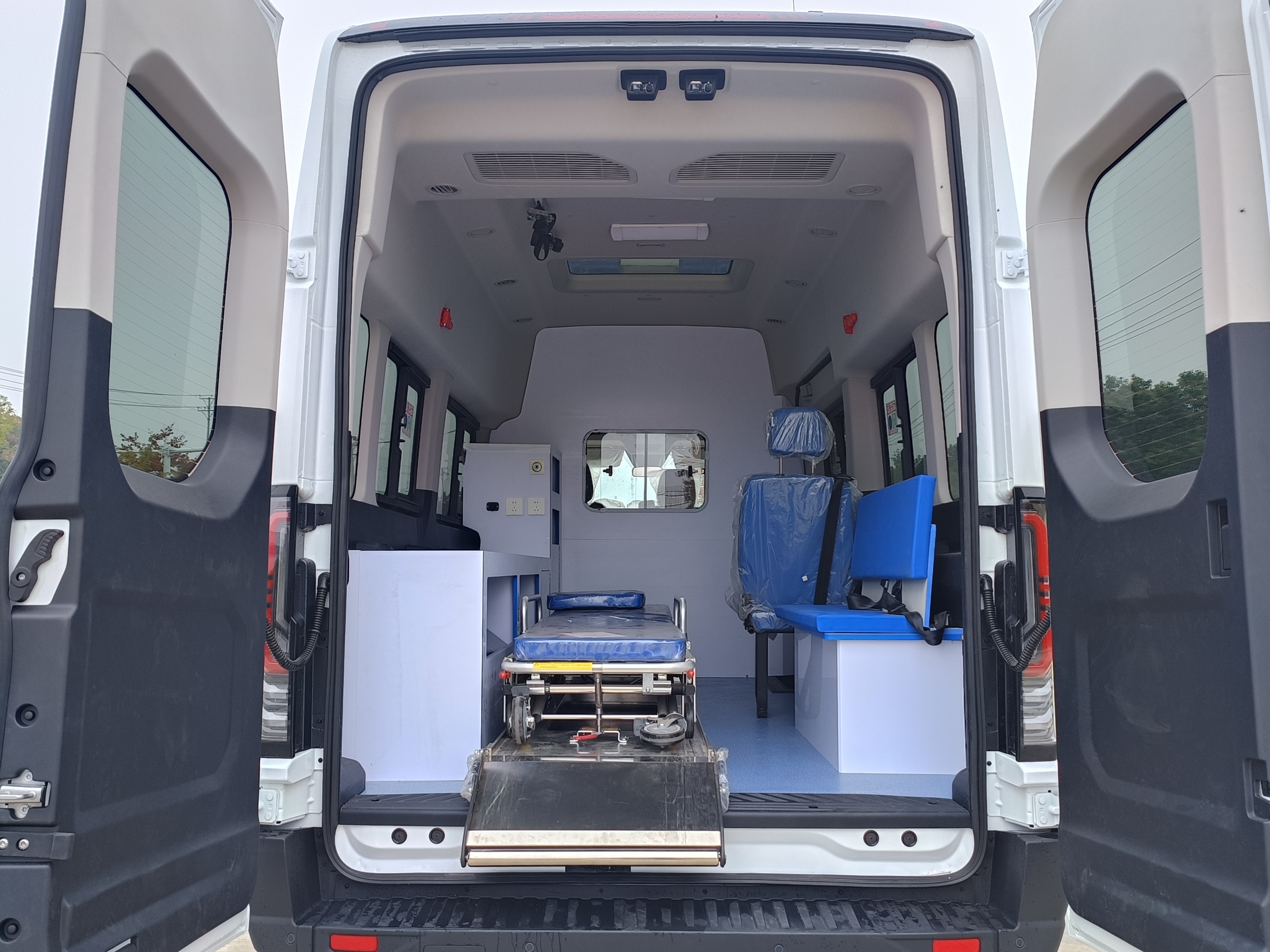

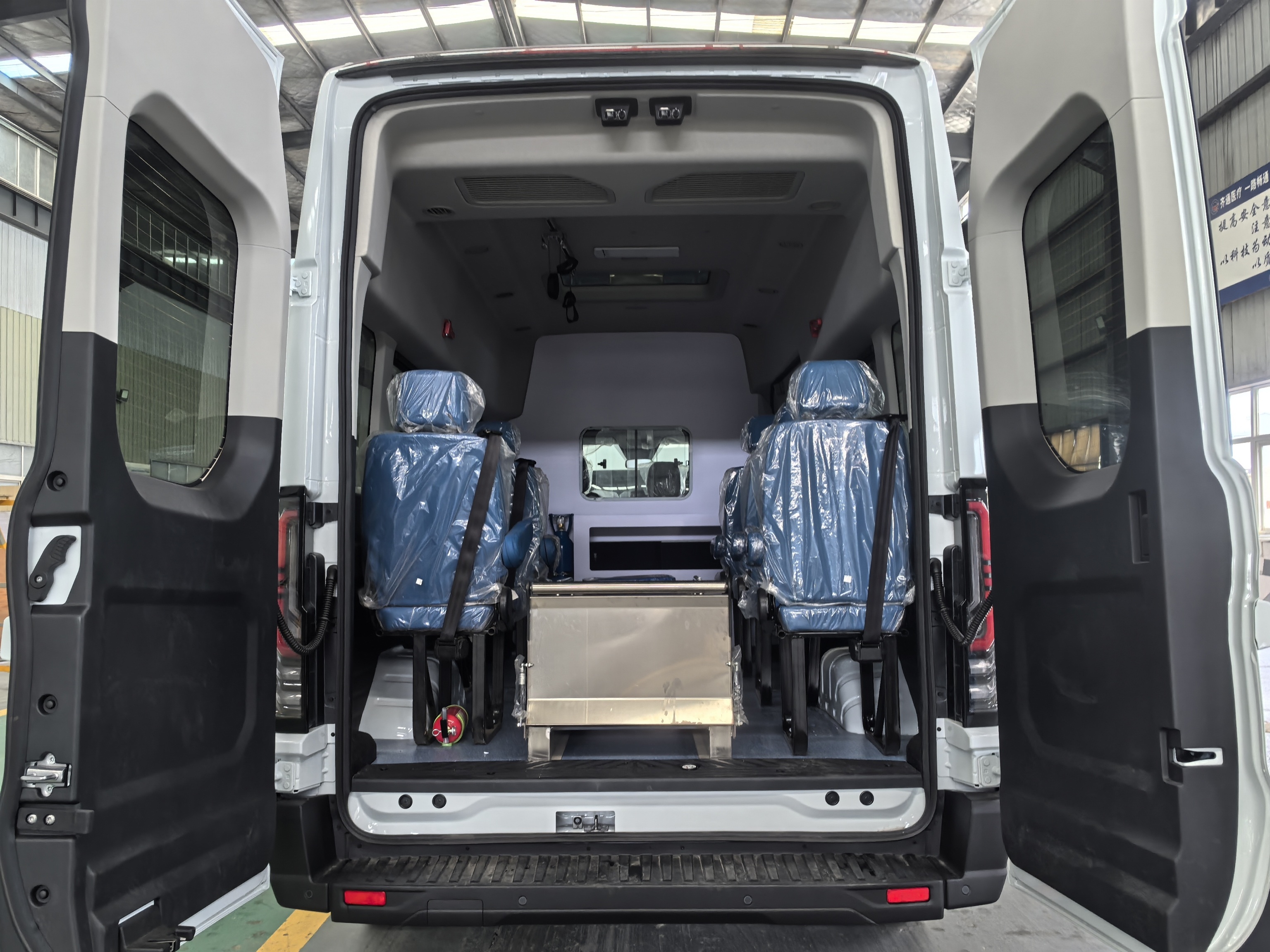

| Inside the medical cabin | 1. Original factory interior standard configuration 2. Polymer material special-shaped partition wall 3. Transparent sliding observation window for the partition wall 4. Two 10L oxygen cabinets on the left front panel 5. Long medical equipment storage cabinet on the left middle panel 6. Medical cabin full set of high-end anti-collision soft packaging wall 7. Environmentally friendly wear-resistant, anti slip blue medical floor and cushion layer |
| Seat | 1: Right side forward facing independent seat for 1 person. Seat 2: Right side 2-person long horizontal soft pack seat cabinet and seat belt |
| Emergency medical assistance system | 1 set of automatic boarding stretcher, 2 sets of stretcher guide plate and pad, 3 sets of sliding infusion rack, 4 sets of fire extinguisher, 5 sets of top and rear mounted boarding handrails, 6 sets of garbage bin |
| Vehicle appearance | 1. Black sun film on the left side of the medical cabin; 2. Semi transparent frosted film on the right and rear sides; 3. Customized standard medical appearance |
| Optional configuration | 1. Sleeper, 40 liter bracket, 2. Three layer equipment rack, 3. Medium net flashing, 4. 2000W inverter, 5. Auxiliary battery, 6. Monitoring, 6. Top large soft package interior, 7. Stretcher compartment, three speed adjustable stretcher, 8. Shovel and soft carrier, 9. Cab seat leather, 10. Negative pressure system, 4. Appearance and interior pictures reference |
| Kindly reminder | The above information is for reference only, and vehicles can be customized according to customer requirements. |
Ford T8 (V363) Ambulance
Ambulances are vehicles used to rescue patients,
also known as mobile hospitals, emergency ambulances, etc.
Product parameter
