MAXUS V1 High Top Long Axis New Energy Ambulance
Chassis configuration:
Number of axles 2, number of tires 4
Wheelbase (mm) 3450
Tire specification 195/70R15LT
Number of steel plate springs -2
Front wheelbase (mm) 1650
Fuel type: pure electric
Rear wheelbase (mm) 1650
Power (Kw) 120 horsepower
Battery capacity: 62 (KWh)
Range: 385 KM
Battery/electric drive system
Battery Material: Lithium Iron Phosphate Battery
Battery brand: SAIC Spider
Battery capacity (kWh: 62)
Battery thermal management technology: liquid cooling+liquid heating
Rated/peak power of motor (kW): 60/120
Rated/maximum torque of motor (Nm): 115/240
ABS+EBD 1 set
1 set of reversing radar
Central locking, remote key, 1 set of front electric doors and windows
7-inch LCD instrument panel in the driver's cabin (with built-in reverse image) intelligent radio, one set of gear shift and multifunctional steering wheel
1 set of driver's seat airbag
1 set of original cooling and heating system for the cab, including 1 set of LED daytime running lights and 1 set of LED rear fog lights
1 set of tailgate swing door
1 set of fixed windows for the middle door
Electric adjustment with heated external rear lighting: standard configuration
Collision automatic power-off system: standard configuration
| Product Name | MAXUS V1 High Top Long Axis New Energy Ambulance |
| Drive type | / |
| Gross vehicle weight(Kg) | 3495 (Kg) |
| Curb weight(Kg) | 2170,2100 (Kg) |
| Rated passenger capacity | 5-9 |
| Wheelbase(mm) | 3450 (mm) |
| Overall Dimension(mm) | 5440，5250x1870x2250，2320，2420 |
| Engine brand & model | TZ180XSSQC |
| Axle Quantity | 2 |
| Transmission Type | 8-speed transmission |
| Brake system | / |
| Tire Spec. & size | 195/70R15LT , 4+1 spare |
| Cab | MAXUS v1 cab |
| Standard configuration | As follows |
| Air conditioning and warm air | High power air conditioning and warm air for medical cabin |
| Circuit and electrical alarm and warning system | (1)1 set of long row warning lights (2)1 set of 100W alarm and handheld control (3) 2 blue flashing lights at the tail (4)Six blue, white, and blue flashes on both sides |
| Power system in the car | 1) One 500W positive rotating wave inverter 2) One set of integrated circuit control and protection system 3) One set of communication circuit protection system 4) One set of integrated switch control panel for medical cabin 5) Two national standard 220V power ports 6) One national standard 12V power socket 7) Four top LED lighting fixtures 8) One long strip disinfection lamp 9) One electric bidirectional ventilation fan |
| Oxygen pathway and oxygen | 1 Hidden oxygen pipeline system 2.Install 2 oxygen ports in the medical cabin 3 onboard oxygen outlets 4 humidification bottles 1 5 adapters, 1 piece |

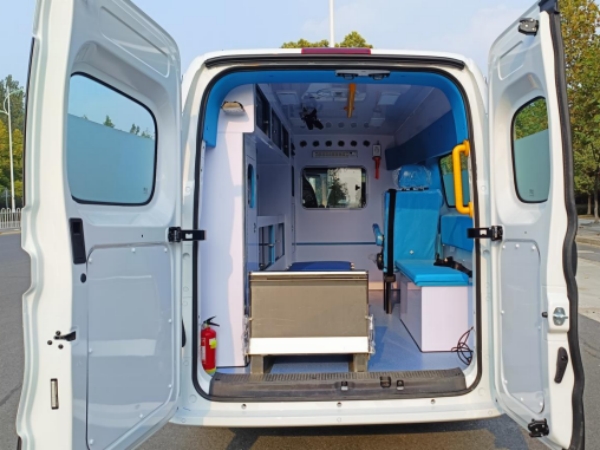

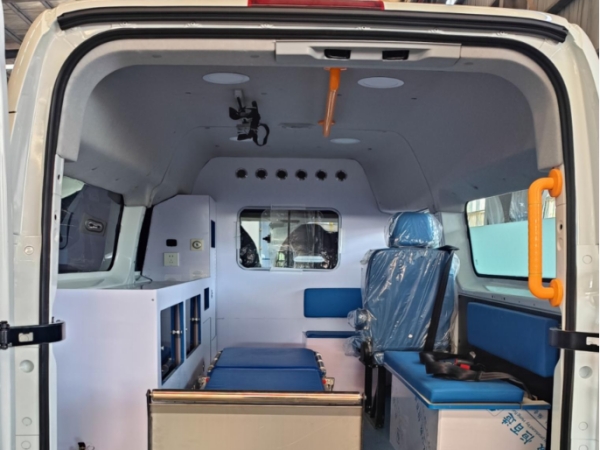

| Inside the medical cabin | 1. Original factory interior standard configuration 2. Polymer material special-shaped partition wall 3. Transparent sliding observation window for the partition wall 4. Two 10L oxygen cabinets on the left front panel 5. Long medical equipment storage cabinet on the left middle panel 6. Medical cabin full set of high-end anti-collision soft packaging wall 7. Environmentally friendly wear-resistant, anti slip blue medical floor and cushion layer |
| Seat | 1: Right side forward facing independent seat for 1 person. Seat 2: Right side 2-person long horizontal soft pack seat cabinet and seat belt |
| Emergency medical assistance system | 1 set of automatic boarding stretcher, 2 sets of stretcher guide plate and pad, 3 sets of sliding infusion rack, 4 sets of fire extinguisher, 5 sets of top and rear mounted boarding handrails, 6 sets of garbage bin |
| Vehicle appearance | 1. Black sun film on the left side of the medical cabin; 2. Semi transparent frosted film on the right and rear sides; 3. Customized standard medical appearance |
| Optional configuration | 1. Sleeper, 40 liter bracket, 2. Three layer equipment rack, 3. Medium net flashing, 4. 2000W inverter, 5. Auxiliary battery, 6. Monitoring, 6. Top large soft package interior, 7. Stretcher compartment, three speed adjustable stretcher, 8. Shovel and soft carrier, 9. Cab seat leather, 10. Negative pressure system, 4. Appearance and interior pictures reference |
| Kindly reminder | The above information is for reference only, and vehicles can be customized according to customer requirements. |
MAXUS V1 High Top Long Axis New Energy Ambulance
New energy ambulance refers to a medical ambulance that uses new energy technologies such as batteries, hydrogen fuel, etc. to provide power for vehicles. Compared with traditional fuel powered ambulances, new energy ambulances have significant advantages such as zero emissions, low noise, and high efficiency
Product parameter
