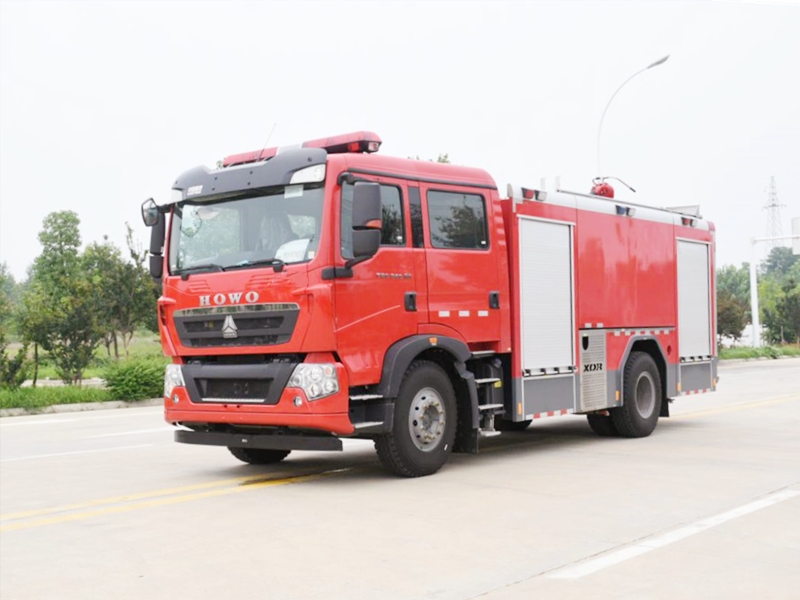

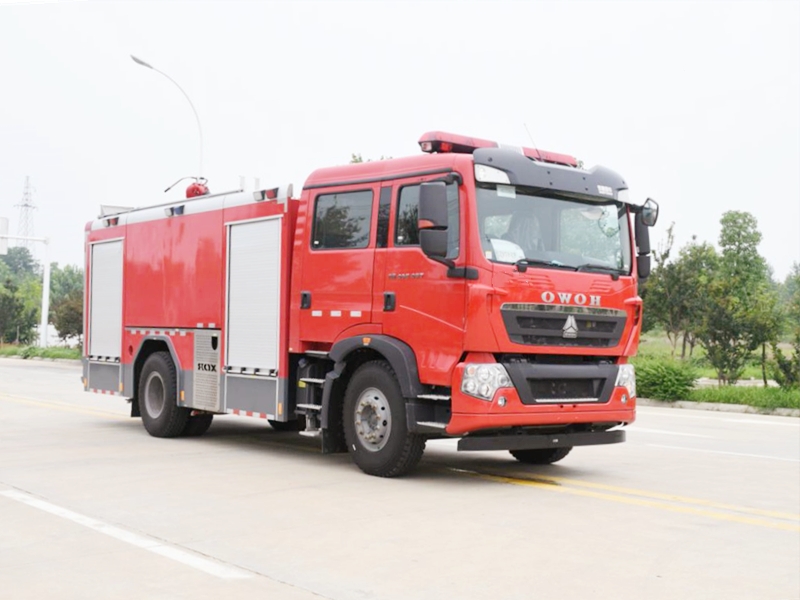

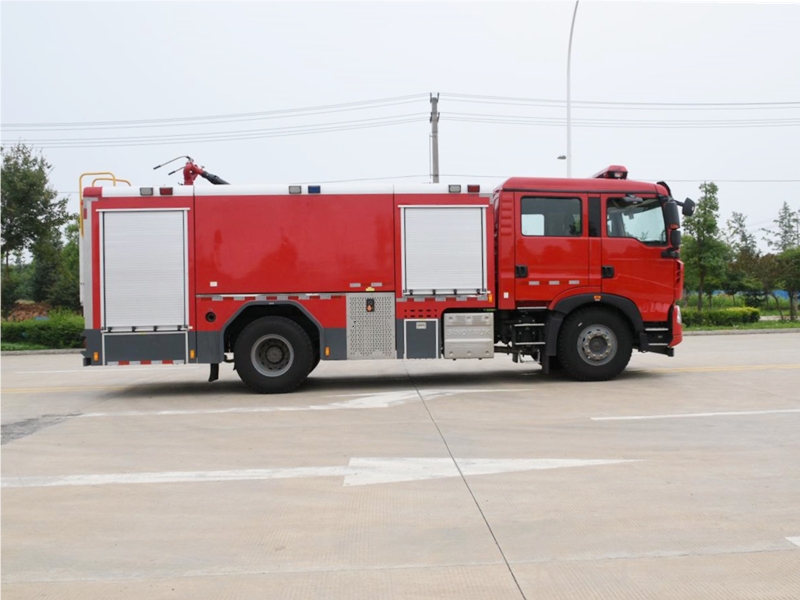

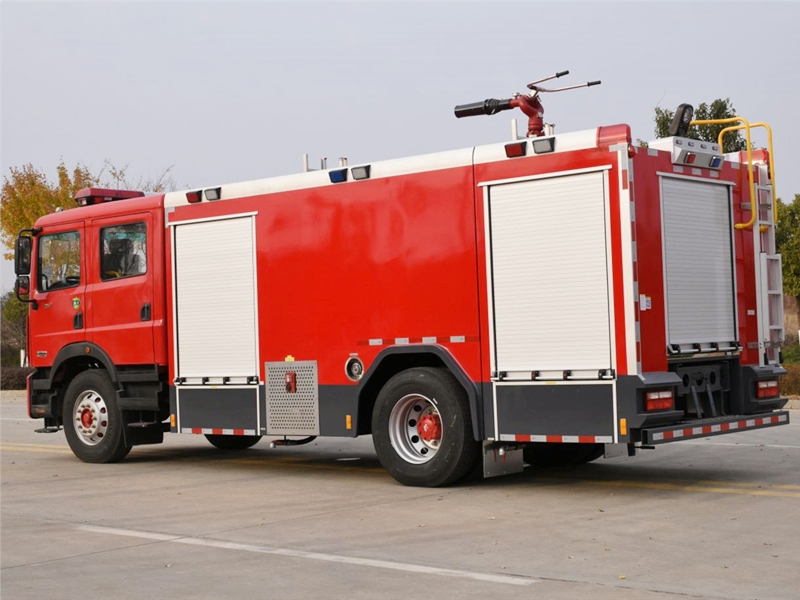

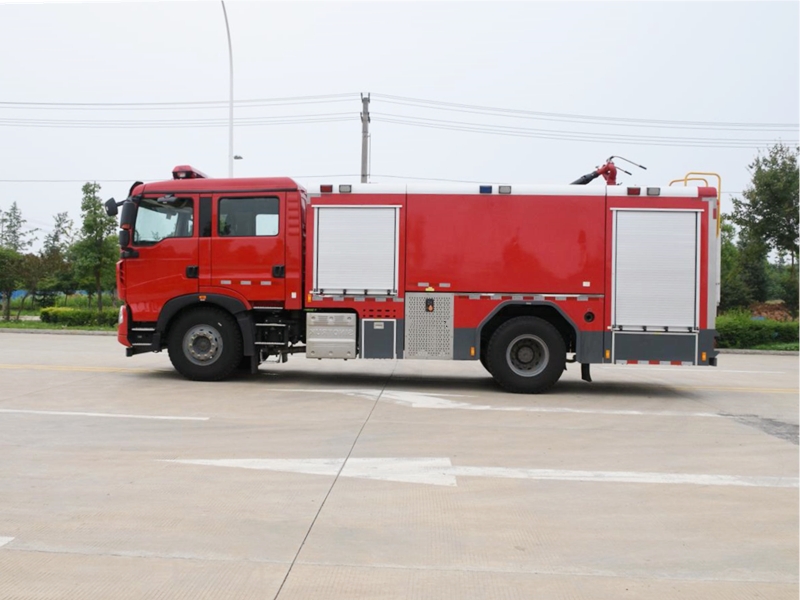

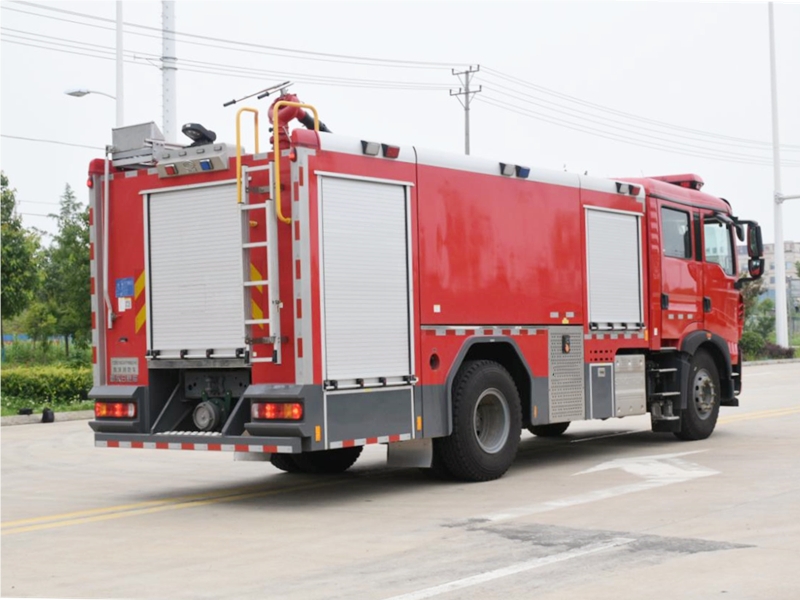

Sinotruk Howo 8-ton foam fire truck
2024-10-07 09:54:11 Source：CLW
Product description
Sinotruk How 8-ton foam fire truck is mainly equipped with fire pump, water tank, foam liquid tank, foam mixing system, foam gun, monitor and other fire-fighting equipment, which can put out fires independently. It is especially suitable for fighting oil fires such as petroleum and its products, and can also supply water and foam mixture to the fire site. It is a necessary fire fighting vehicle for petrochemical enterprises, oil terminals, airports and urban professional fire brigades.
| Product Name |
Sinotruk Howo 8-ton foam fire truck |
| Driving Type |
4X2 |
| Total weight（Kg) |
19450(Kg) |
| Curb weight(kg) |
18050(Kg) |
| Rated weight(kg) |
8200(Kg) |
| Wheel base(mm) |
4600(mm) |
| Overall dimension(mm) |
8820,8560×2510,2500×3570,3530(mm) |
| Engine brand & model |
MC07.34-60，Sinotruk 340hp |
| Axle Quantity |
2 |
| Transmission Type |
12-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Tire Spec. & size |
315/80R22.5,12.00R20 , 6+1 spare |
| Cab |
Four door flat head all metal enclosed cab, original double row cab, panoramic curved windshield, front bumper, front combination light fixture, electric glass window, front grille lower cover. |
| Extinguishing Media |
water/foam/dry-powder |
| Tank material |
Made of high-quality carbon steel material (Q235), welded structure, equipped with longitudinal and anti sway plates, and treated with epoxy anti-corrosion. 304 stainless steel and PP materials can be selected |
| Tank volume |
6 ton water+2 ton foam |
| Equipment box |
The fire pump is located in the middle or rear of the box, with four water outlets on both sides of the pump room and new high-strength aluminum alloy rolling shutter doors on both sides of the equipment box. The equipment bracket adopts aluminum alloy profiles produced by European technology, with a fully internal hexagonal connection structure manufactured by a concealed tower connection, which is beautiful and durable. |
| Electrical configuration |
The front end of the top of the fire truck cab is equipped with a long row of red warning lights, and a red circular warning light is installed on the top of the rear of the vehicle. There is one 24V and one 60W fire lighting lamp at the front and rear of the roof. The vehicle is equipped with red and blue matching flashing lights on both sides, safety sign lights and side reflectors installed below, front and rear clearance lights, and one turn signal light on each side. Lighting fixtures are installed in the passenger compartment, equipment box, and pump room. |
| Fire cannon |
Model: PL8/80 fire monitor, flow rate 80L/S/1MPa, water range:≥80m, foam:≥70m |
| Fire pump |
West PL48W, optional imported gun |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Sinotruk Howo 8-ton foam fire truck
Foam fire truck is a special vehicle equipped with various fire-fighting equipment or extinguishing agents, mainly used for fire fighting and emergency rescue. It consists of a liquid tank, a pump room, an equipment box, a power output and transmission system, a piping system, and an electrical system. The foam fire truck is suitable for urban public security fire brigade, petrochemical industry, factories and mining enterprises, forests, ports, docks and other departments, especially for petrochemical and other dangerous fire sites.
