Dongfeng D9 4x2 6-ton foam fire truck
2024-10-07 09:54:11 Source：CLW
Chassis configuration:
1. Engine: B6.2NS6B230, Cummins 230hp
2.Transmission type: FAST 8-speed gearbox
3.Tyre: 295/80R22.5,10.00R20,295/80R22.5 18PR,10.00R20 18PR, 6+1 spare
4.Wheelbase:4700(mm)
5.Other: Flat head, four door double row cab, with three air breathing apparatus brackets installed on the rear seats.
| Product Name |
Dongfeng D9 4x2 6-ton foam fire truck |
| Driving Type |
4X2 |
| Total weight（Kg) |
16000(Kg) |
| Curb weight(kg) |
9450(Kg) |
| Rated weight(kg) |
6100(Kg) |
| Wheel base(mm) |
4700(mm) |
| Overall dimension(mm) |
8190×2510×3340(mm) |
| Engine brand & model |
B6.2NS6B230, Cummins 230hp |
| Axle Quantity |
2 |
| Transmission Type |
FAST 8-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
air brake |
| Tire Spec. & size |
295/80R22.5,10.00R20,295/80R22.5 18PR,10.00R20 18PR, 6+1 spare |
| Cab |
Flat head, four door double row cab, with three air breathing apparatus brackets installed on the rear seats |
| Extinguishing Media |
water/foam/dry-powder |
| Tank material |
the water tank is made of high-quality carbon steel plate, and the foam tank is made of high-quality stainless steel plate |
| Tank volume |
4100L water tank+1900L foam tank |
| Equipment box |

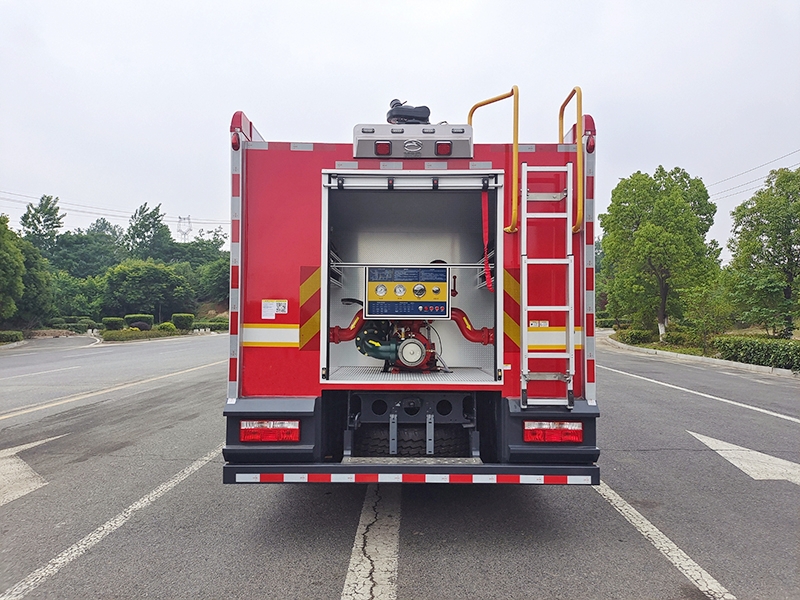

The fire pump is located in the middle or rear of the box, with four water outlets on both sides of the pump room and new high-strength aluminum alloy rolling shutter doors on both sides of the equipment box. The equipment bracket adopts aluminum alloy profiles produced by European technology, with a fully internal hexagonal connection structure manufactured by a concealed tower connection, which is beautiful and durable. |
| Electrical configuration |
The front end of the top of the fire truck cab is equipped with a long row of red warning lights, and a red circular warning light is installed on the top of the rear of the vehicle. There is one 24V and one 60W fire lighting lamp at the front and rear of the roof. The vehicle is equipped with red and blue matching flashing lights on both sides, safety sign lights and side reflectors installed below, front and rear clearance lights, and one turn signal light on each side. Lighting fixtures are installed in the passenger compartment, equipment box, and pump room. |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng D9 4x2 6-ton foam fire truck
Foam fire truck is a special vehicle equipped with various fire-fighting equipment or extinguishing agents, mainly used for fire fighting and emergency rescue. It consists of a liquid tank, a pump room, an equipment box, a power output and transmission system, a piping system, and an electrical system. The foam fire truck is suitable for urban public security fire brigade, petrochemical industry, factories and mining enterprises, forests, ports, docks and other departments, especially for petrochemical and other dangerous fire sites.
Product parameters
