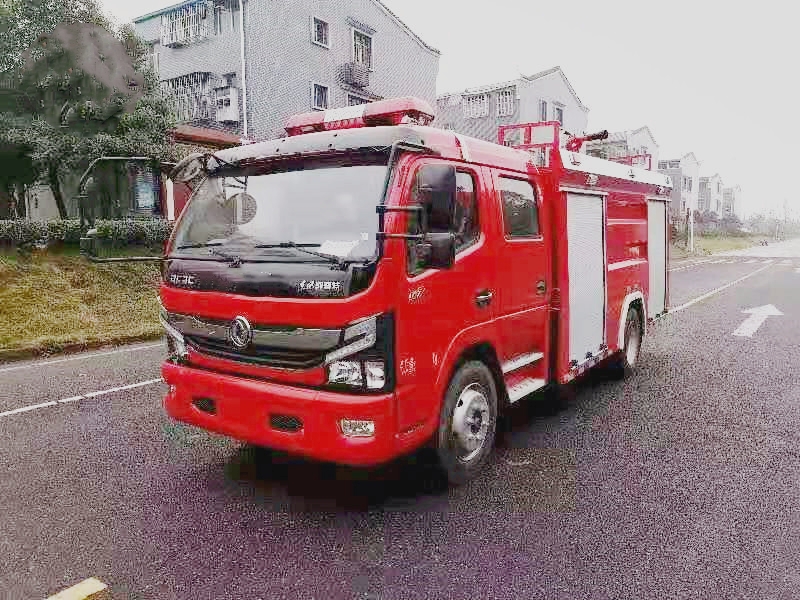

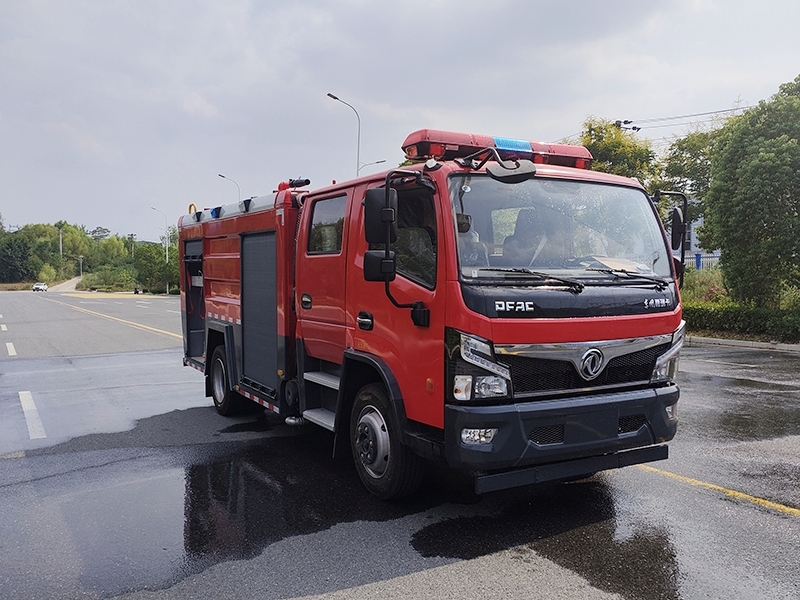

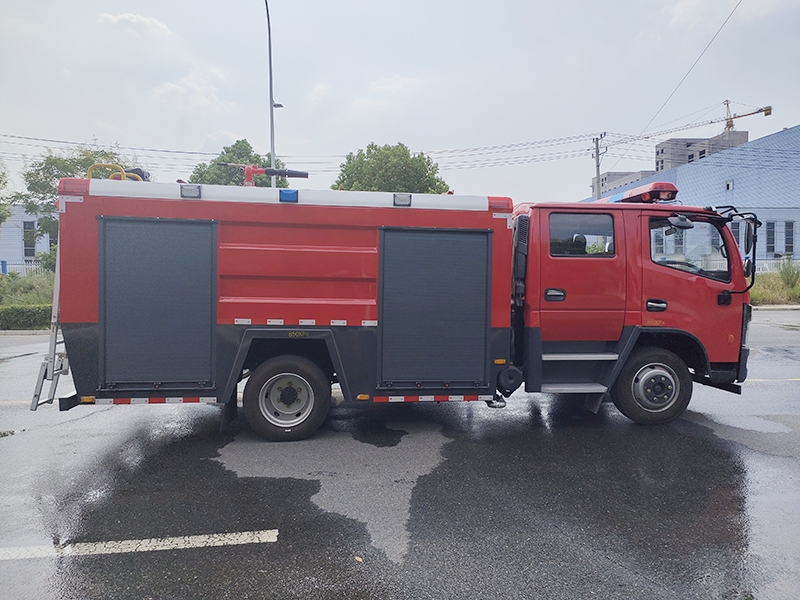

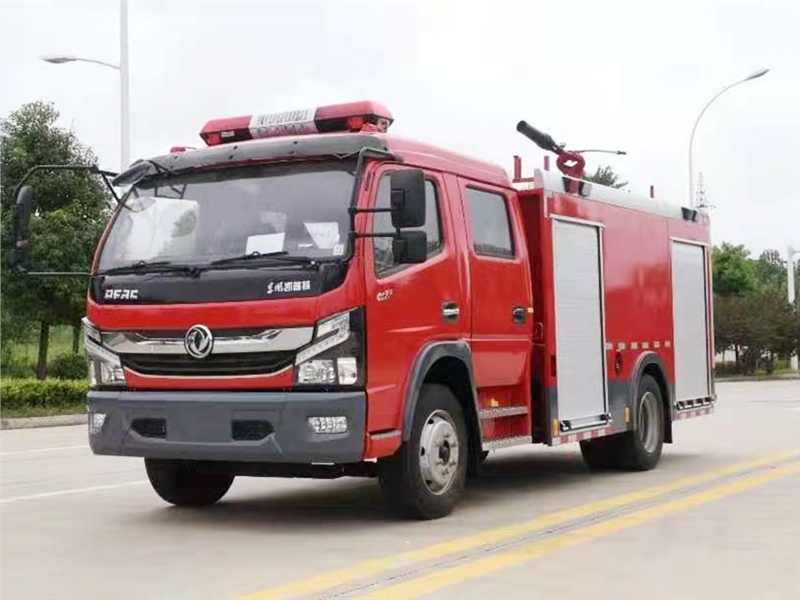

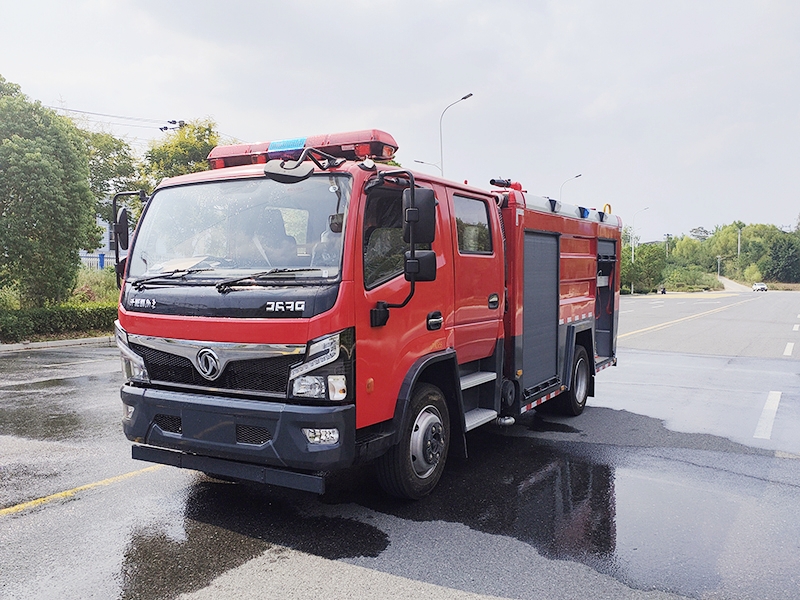

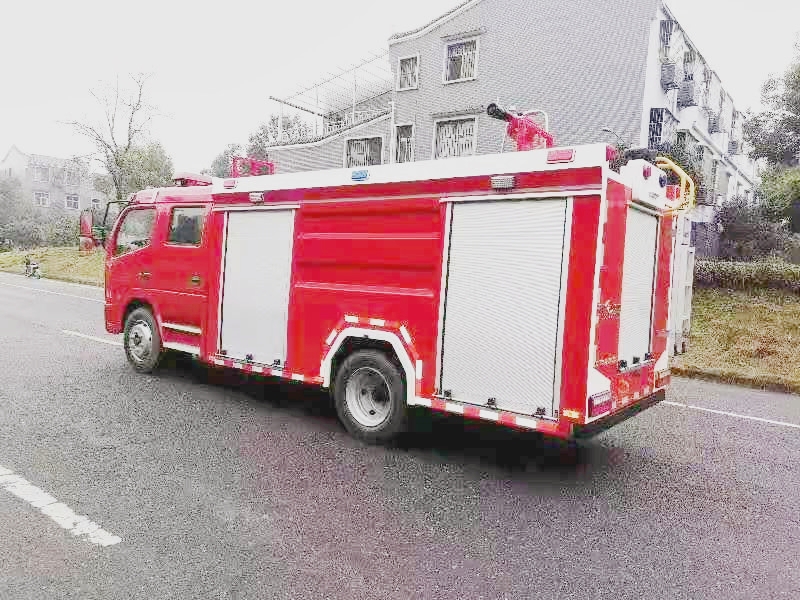

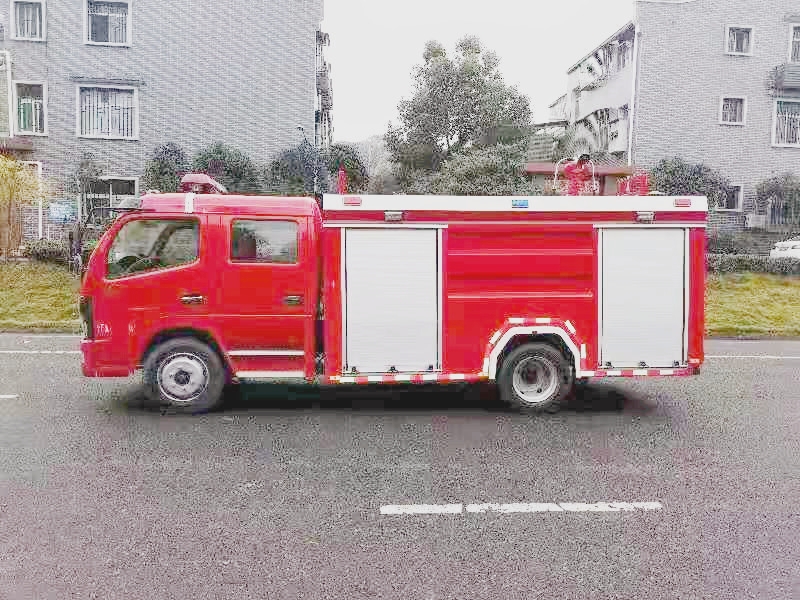

Dongfeng K7 5-ton foam fire truck
2024-10-07 09:54:11 Source：CLW
Chassis configuration:
1. Engine: CY4SK361, Chaochai 170hp
2.Transmission type: 6-speed gearbox
3.Tyre: 245/70R19.5,8.25R20,245/70R19.5 16PR,8.25R20 16PR,8.25R20 14PR,255/70R22.5 16PR, 6+1 spare
4.Wheelbase:3800,3950,4050,4100,4400,3600,4700(mm)
5.Other: Four door flat head all metal enclosed cab, original double row cab, panoramic curved windshield, front bumper, front combination light fixture, electric glass window, and lower front bumper.
| Product Name |
Dongfeng K7 5-ton foam fire truck |
| Driving Type |
4X2 |
| Total weight（Kg) |
11300(Kg) |
| Curb weight(kg) |
6050(Kg) |
| Rated weight(kg) |
4800(Kg) |
| Wheel base(mm) |
3800,3950,4050,4100,4400,3600,4700(mm) |
| Overall dimension(mm) |
6960×2200×2810(mm) |
| Engine brand & model |
CY4SK361, Chaochai 170hp |
| Axle Quantity |
2 |
| Transmission Type |
6-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
air brake |
| Tire Spec. & size |
245/70R19.5,8.25R20,245/70R19.5 16PR,8.25R20 16PR,8.25R20 14PR,255/70R22.5 16PR, 6+1 spare |
| Cab |
Four door flat head all metal enclosed cab, original double row cab, panoramic curved windshield, front bumper, front combination light fixture, electric glass window, and lower front bumper. |
| Extinguishing Media |
water/foam/dry-powder |
| Tank material |
Made of high-quality carbon steel material (Q235), welded structure, equipped with longitudinal and transverse anti sway plates, and treated with epoxy anti-corrosion. The foam tank is equipped with 304 stainless steel as standard, and the water tank can be made of 304 stainless steel |
| Tank volume |
3.2m³ water tank+1.6m³ foam tank |

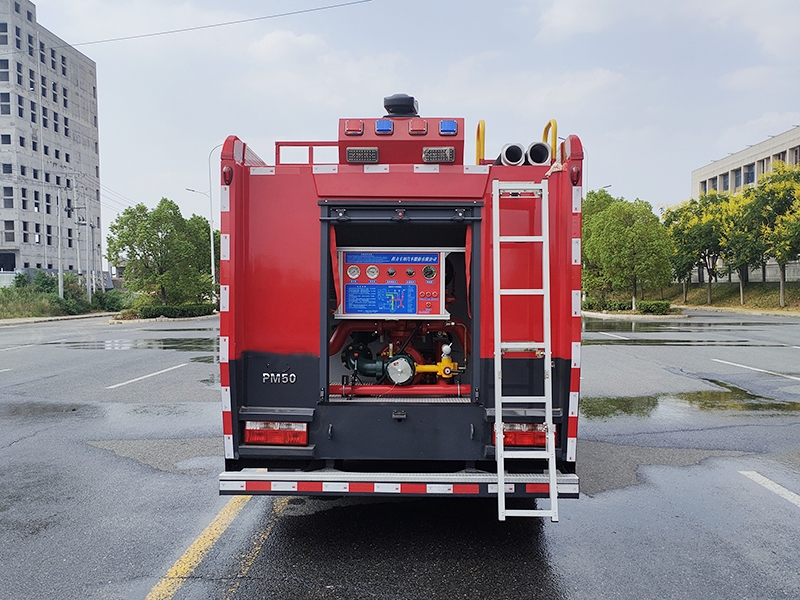

| Main special devices |
The main special devices are CB10/30 fire pump and PL24 fire monitor, with a water range of ≥ 55m and a foam range of ≥ 50m. |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng K7 5-ton foam fire truck
Foam fire truck is a special vehicle equipped with various fire-fighting equipment or extinguishing agents, mainly used for fire fighting and emergency rescue. It consists of a liquid tank, a pump room, an equipment box, a power output and transmission system, a piping system, and an electrical system. The foam fire truck is suitable for urban public security fire brigade, petrochemical industry, factories and mining enterprises, forests, ports, docks and other departments, especially for petrochemical and other dangerous fire sites.
characteristic
• Low water consumption: foam fire trucks use high expansion foam to extinguish the fire, and the water consumption is small.
• High fire extinguishing efficiency: foam can quickly cover the fire source, isolate the air and effectively extinguish the fire.
• Strong adaptability: suitable for high-rise buildings, oil and other types of fires.
Product parameters
