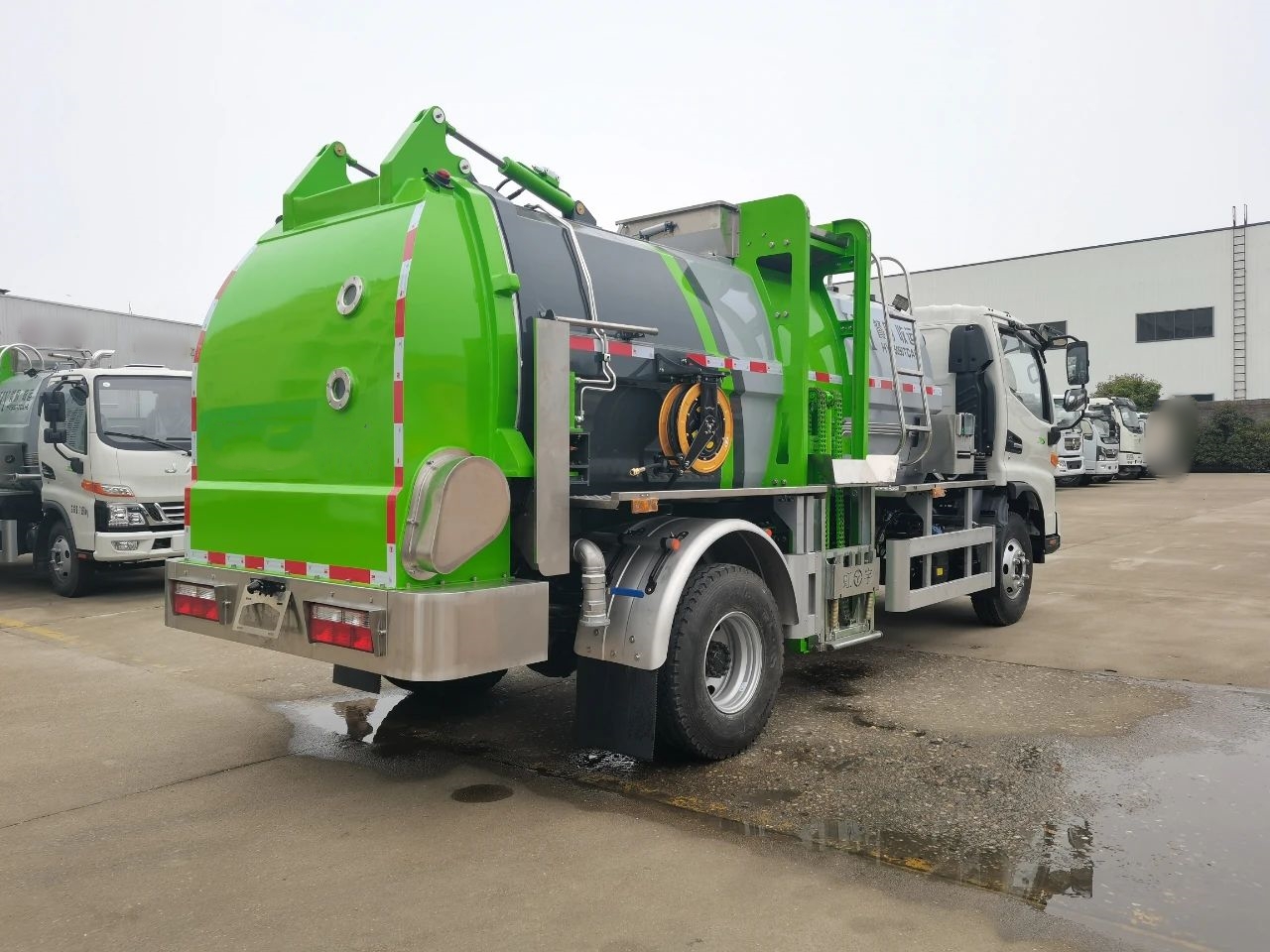

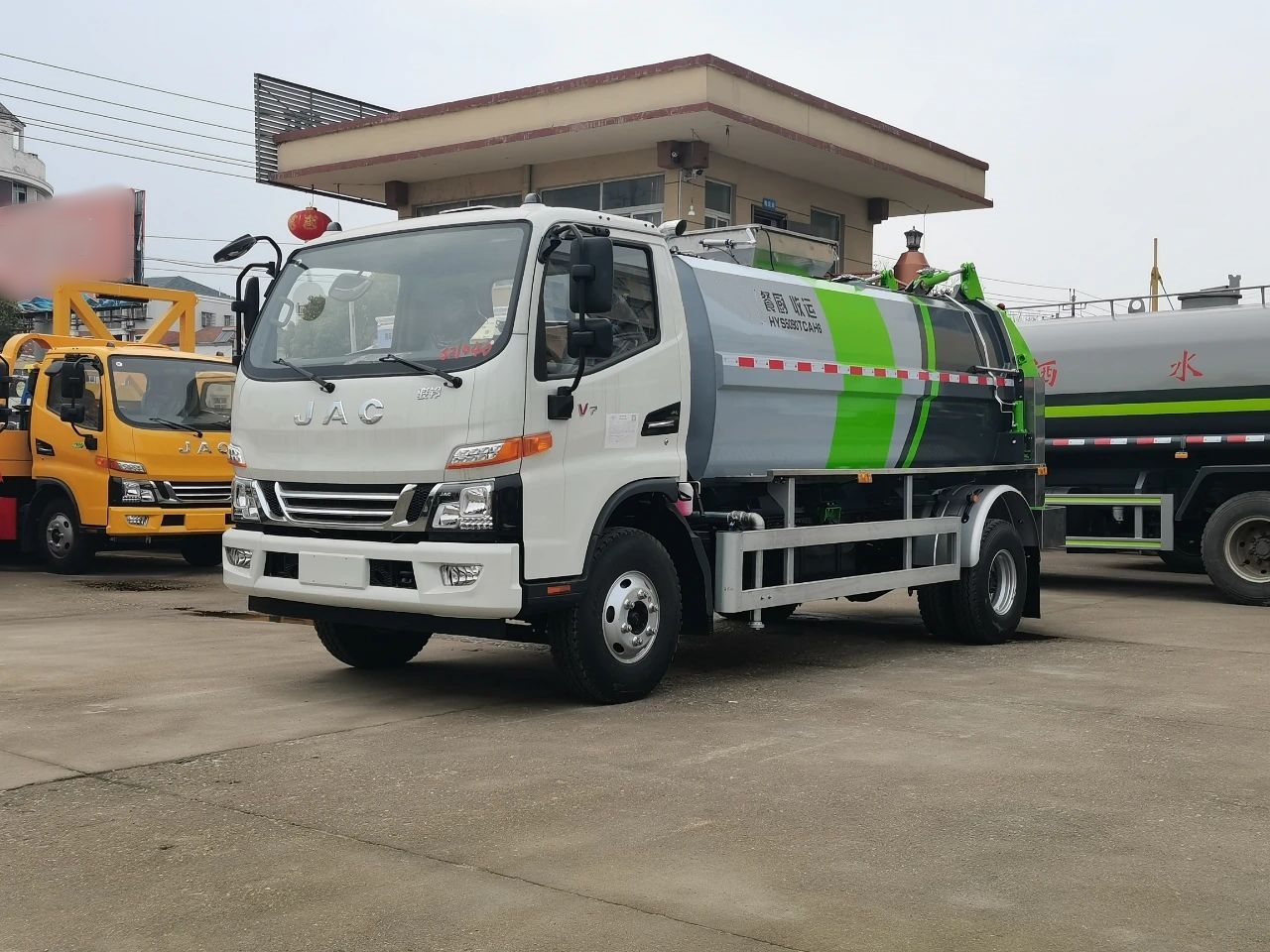

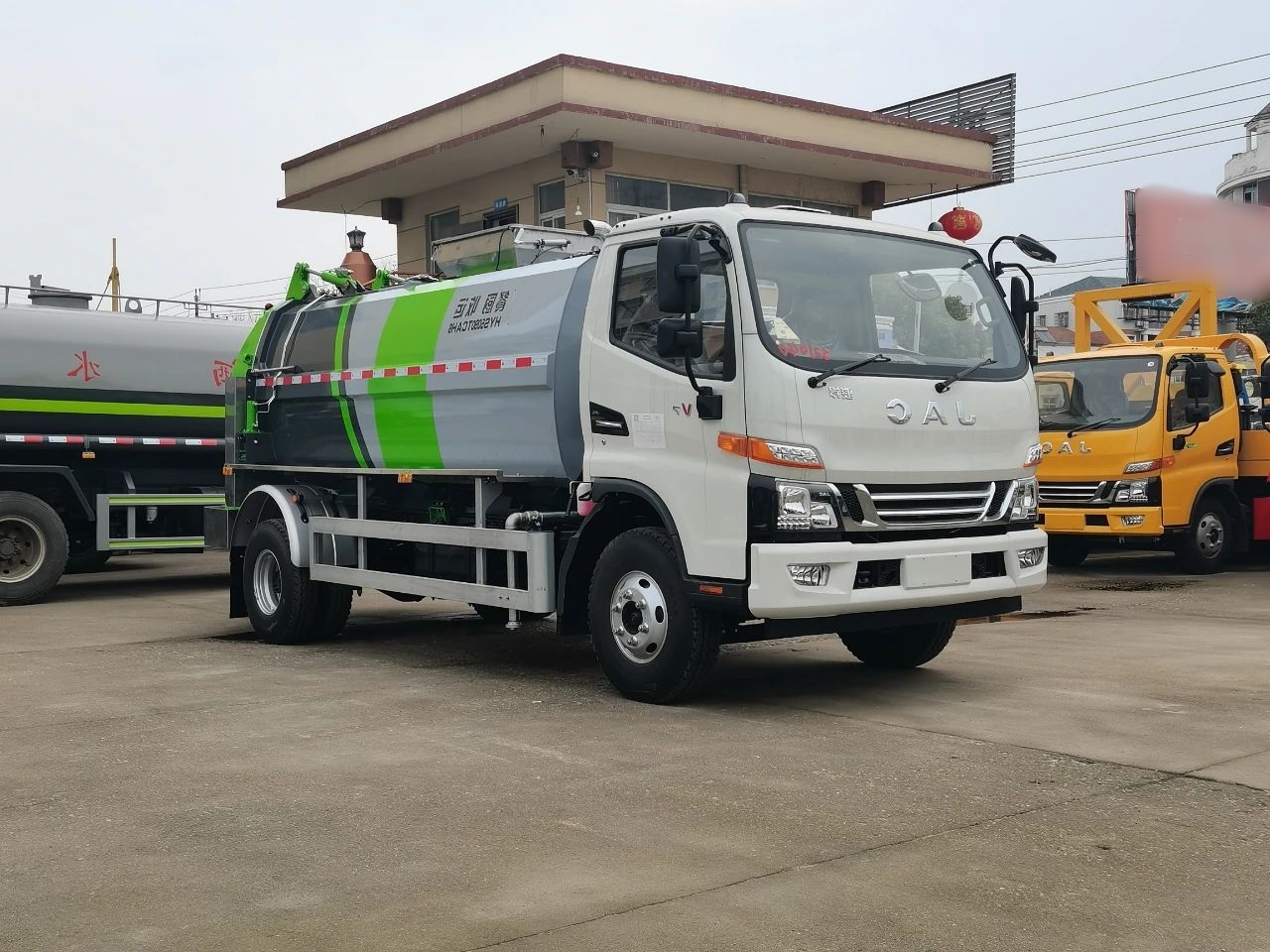

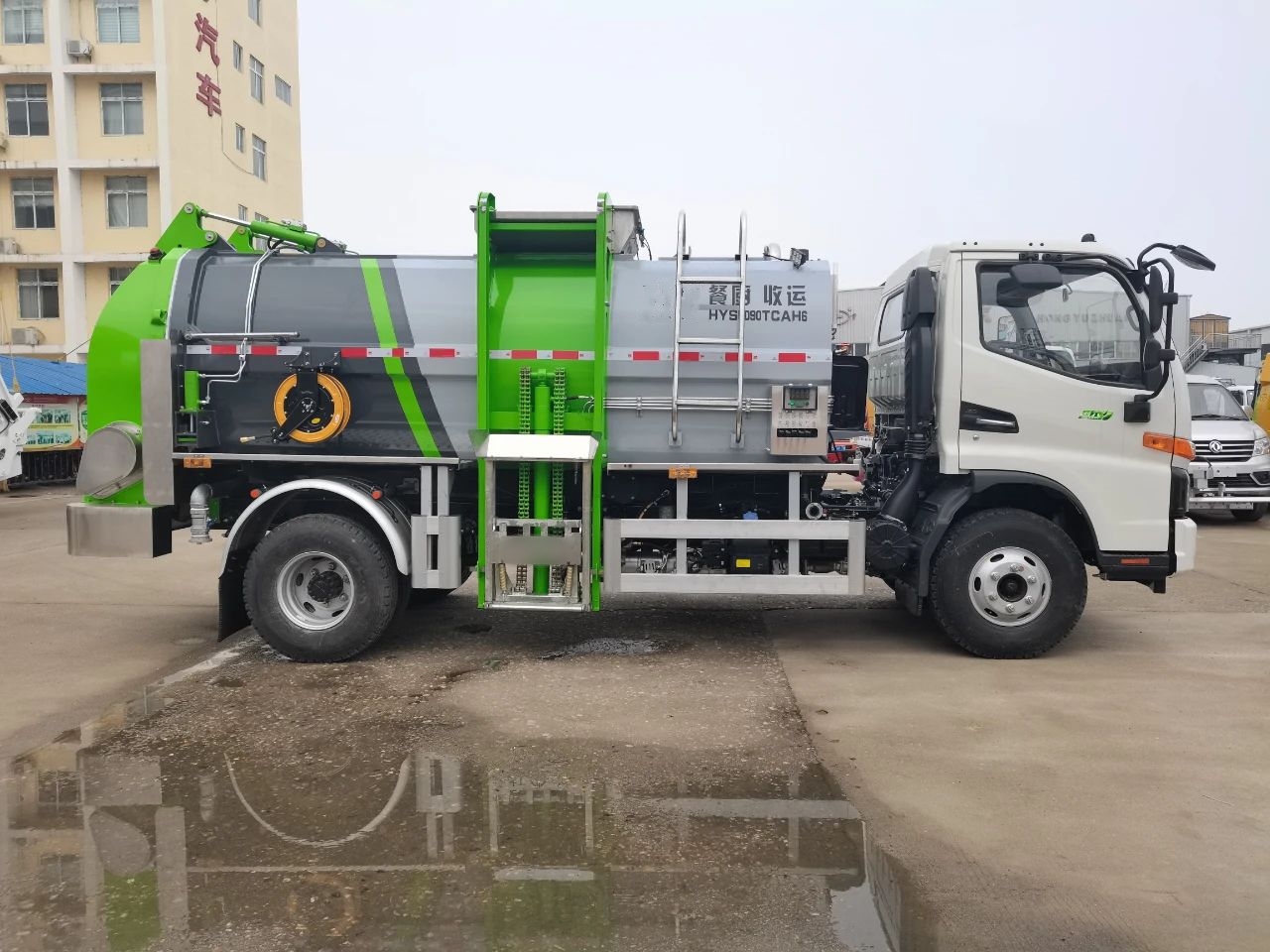

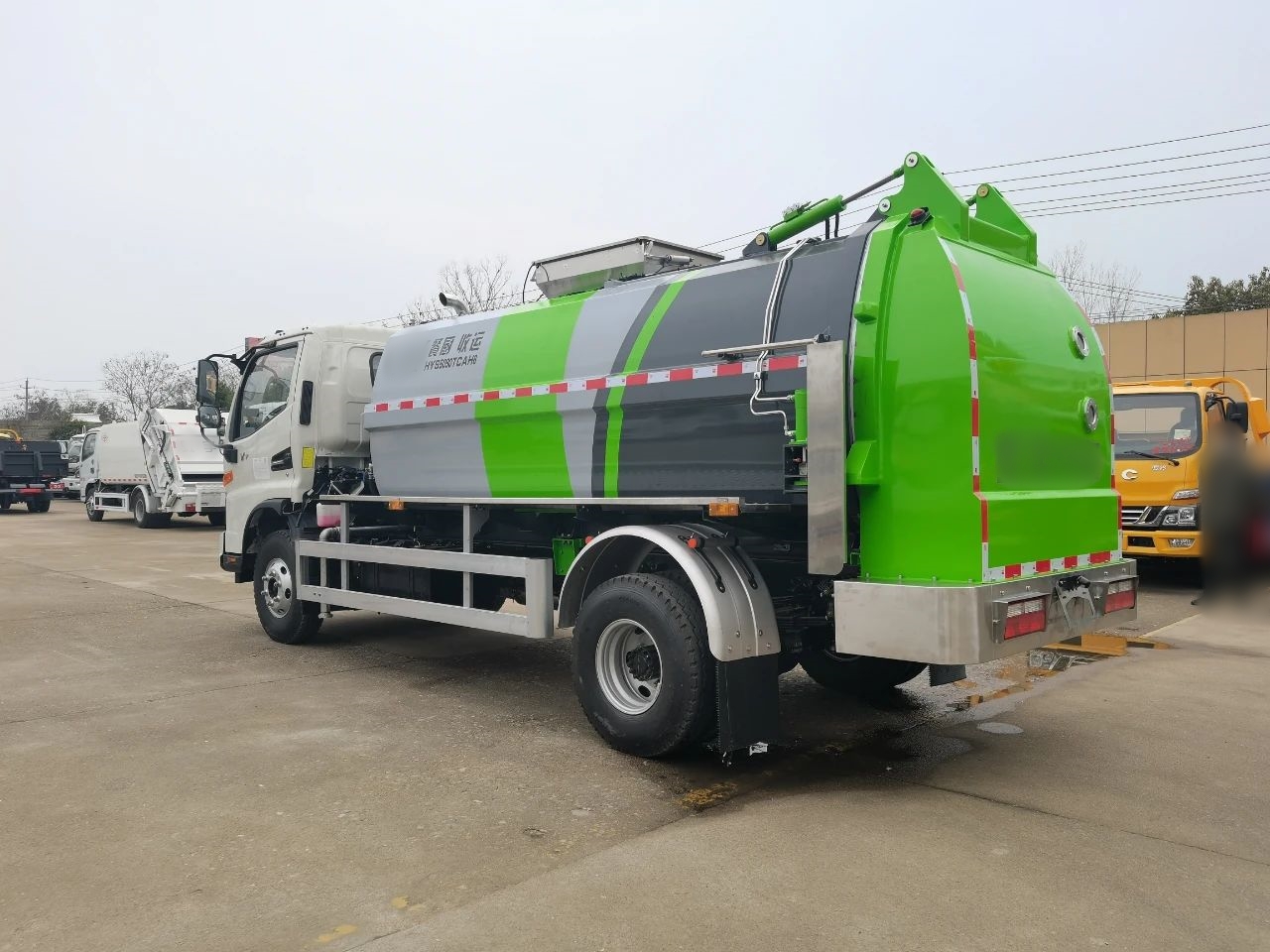

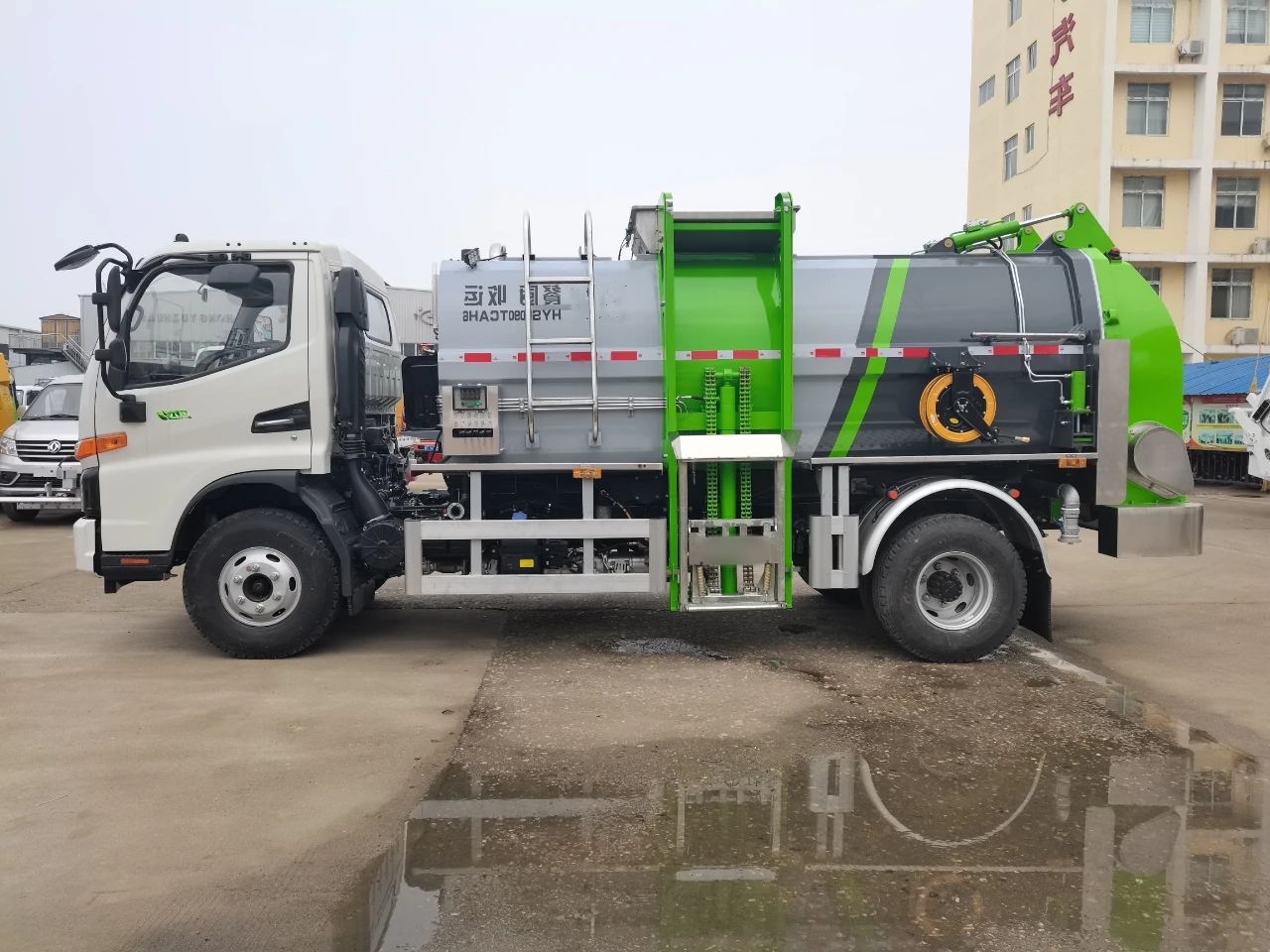

4X2 JAC Junling V7 Kitchen Refuse Truck
2024-10-07 09:54:11 Source：CLW
Chassis configuration:
Cab: Junling V7 Cab
Engine: Yunnedwei D30TCIF2, power: 120KW (163 horsepower)
Transmission: Anhui Xingrui Transmission, LC6T450， Six speed gearbox
Wheelbase: 3845mm
Front/rear axle (T): 3/7.2
Tire: 750R16LT 14PR steel wire tire
Frame section (mm): 214x70x (5+3) double-layer beam
Standard configuration: air brake, dynamic steering, original air conditioning, central locking, electric doors and windows, remote key, multifunction steering wheel, LED daytime running lights, boneless wipers ABS、Automatic arm adjustment, exhaust brake PTO
| Product Name |
4X2 JAC Junling V7 Kitchen Refuse Truck |
| Driving Type |
4×2 |
| Gross vehicle weight(Kg) |
8280(Kg) |
| Curb weight(Kg) |
4650,4850(Kg) |
| Rated weight(kg) |
4600,4850,5000(Kg) |
| Wheelbase(mm) |
3845(mm) |
| Overall Dimension(mm) |
5995×2150×2920,2820(mm) |
| Engine |
Yunnei Dewei 163hp |
| Axle Quantity |
2 |
| Transmission Type |
Anhui Xingrui 6-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Tire Spec. & size |
700R16LT 14PR steel wire tire, 6+1 spare |
| Cab |
JAC Junling V7 cab |
| Volume(m³) |
8m³ |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
4X2 JAC Junling V7 Kitchen Refuse Truck
Kitchen refuse truck, also known as meal waste truck, kitchen waste truck or swill truck,
is a type of garbage truck used for collecting and transporting household
waste, food waste (swill) and urban sludge.
Installation configuration :

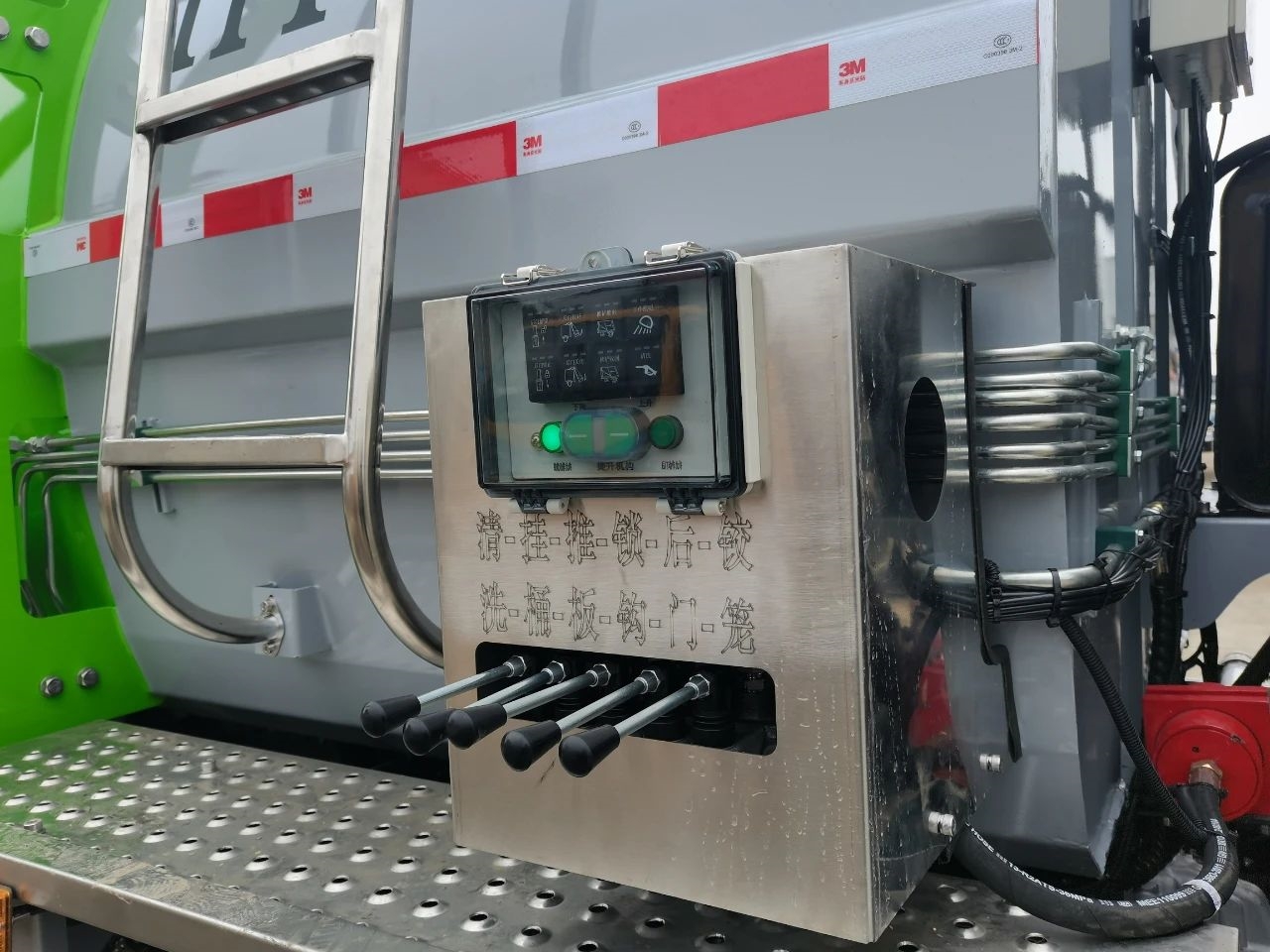

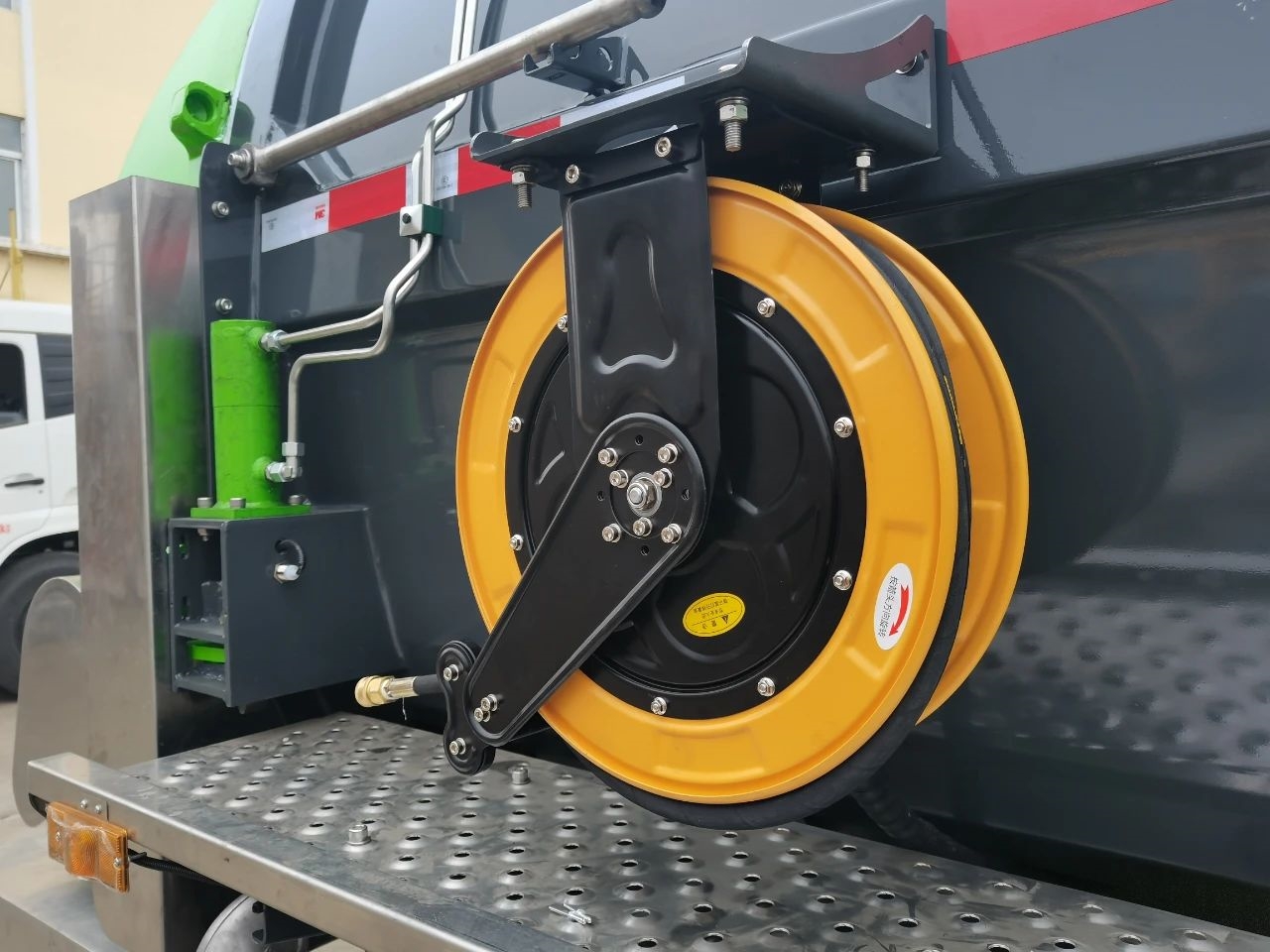

Using Q710 high-strength steel, with a 2mm edge and 4mm bottom, lightweight design and large capacity. The reinforced square tank body adopts a well-known domestic brand hydraulic system (domestic well-known oil pump, Hunan Changsha domestic well-known multi way valve, customized oil cylinder for kitchen and kitchen use, Zhejiang Jiashan power take-off), with a hydraulic opening and locking of the back cover, a sealing strip on the back cover, and an adjustable hydraulic locking pin to ensure no water leakage. The chain hoist can hang 120L/240L standard plastic trash cans with smooth loading.
Product parameters
