Chassis configuration:D30TCIF, Yunnei 170 horsepower engine, Fast 8-speed gearbox, 2020 single row cab, 3800mm wheelbase, 3.5T front axle, 7-ton rear axle, 188x6 double-layer beam, 8.25R20 steel wire tires, air brake, ABS， Air conditioning, electric doors and windows, central locking system.
Upper configuration:Made of Q710 high-strength steel, with 4 sides and 5 bottoms, reinforced square tank body, using well-known domestic hydraulic systems (domestic well-known oil pump, Hunan Changsha domestic well-known multi way valve, customized oil cylinder for kitchen use, Zhejiang Jiashan power take-off), hydraulic opening and locking of the back cover, with sealing strip and adjustable hydraulic locking pin to ensure no water leakage. The double chain elevator can hang 120L/240L standard plastic trash cans, ensuring smooth loading.
| Product Name | Dongfeng F7 4X2 Kitchen Waste Truck |
| Driving Type | 4×2 |
| Gross vehicle weight(Kg) | 11995(Kg) |
| Curb weight(Kg) | 6150(Kg) |
| Rated weight(kg) | 5650,5715(Kg) |
| Wheelbase(mm) | 3800(mm) |
| Overall Dimension(mm) | 6860,6360×2360×2950(mm) |
| Engine | D30TCIF1, Yunnei 170hp |
| Axle Quantity | 2 |
| Transmission Type | Fast 8-speed gearbox |
| Steering Type | LHD or RHD with power steering |
| Brake system | Air brake |
| Tire Spec. & size | 8.25R20 steel wire tire, 6+1 spare |
| Cab | Dongfeng F7 cab |
| Volume(m³) | 9m³ |
| Tank body | Q345 manganese steel high-strength plate circular tank body is used, with a thickness of 6mm, |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |

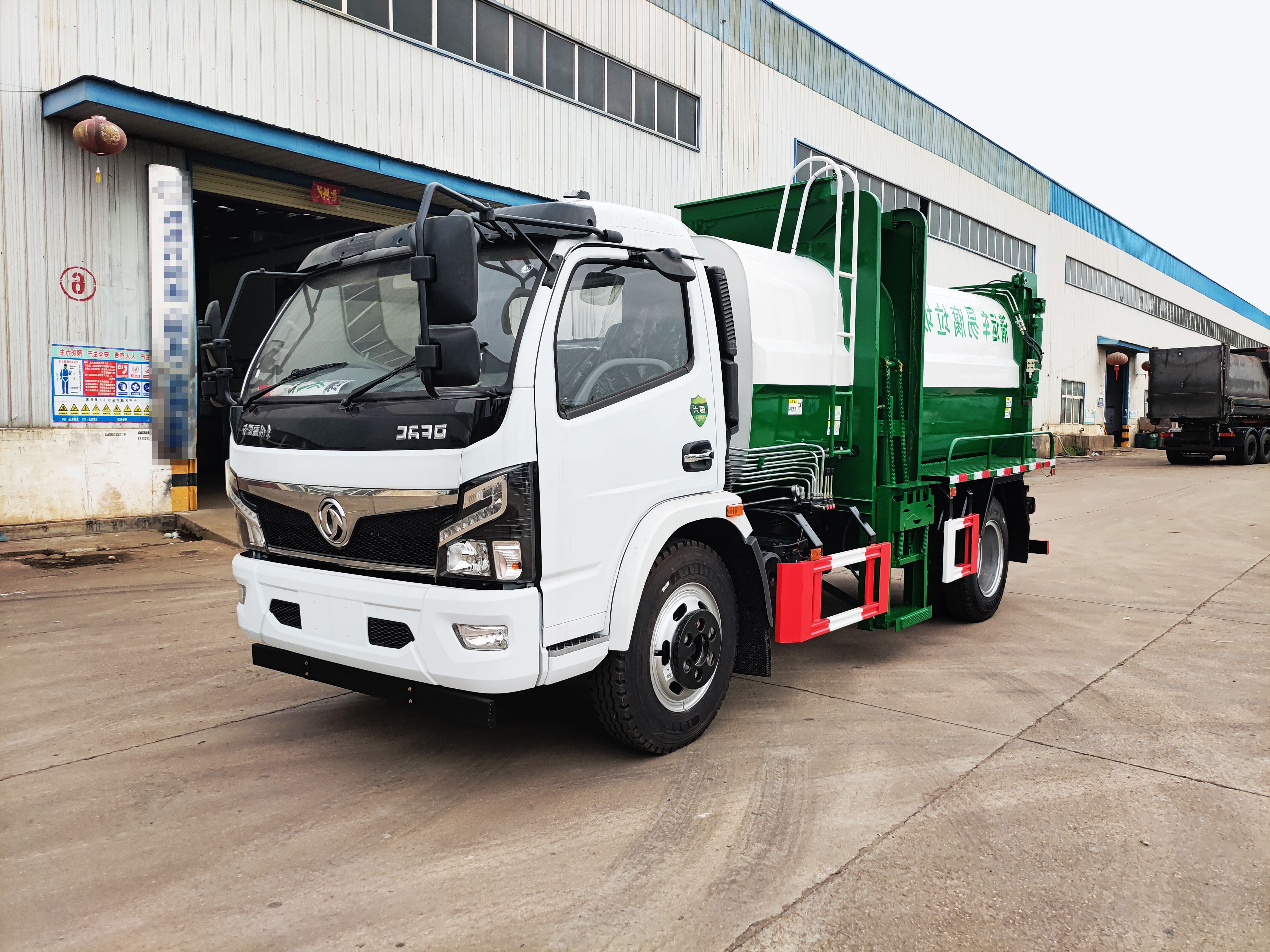

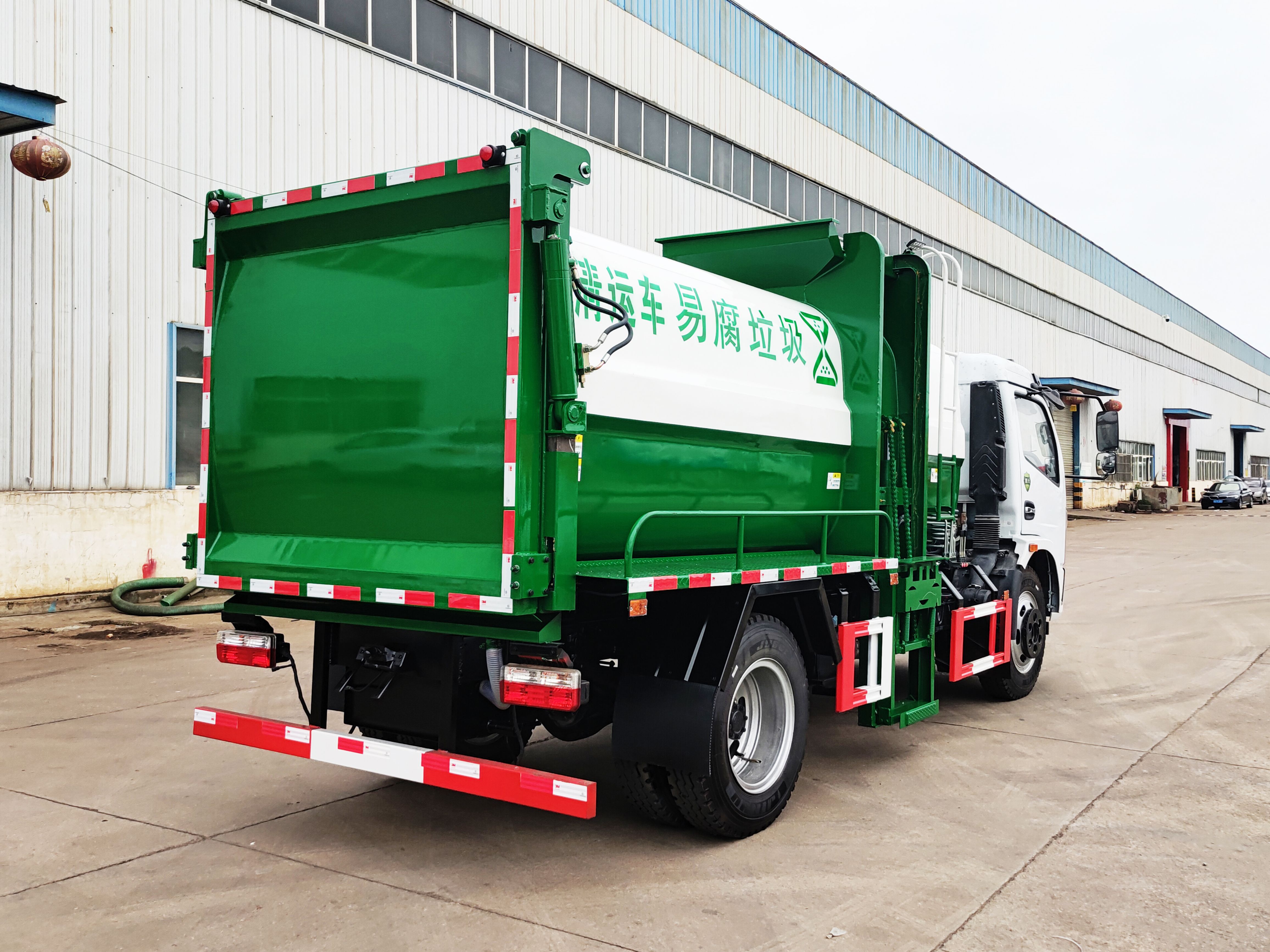

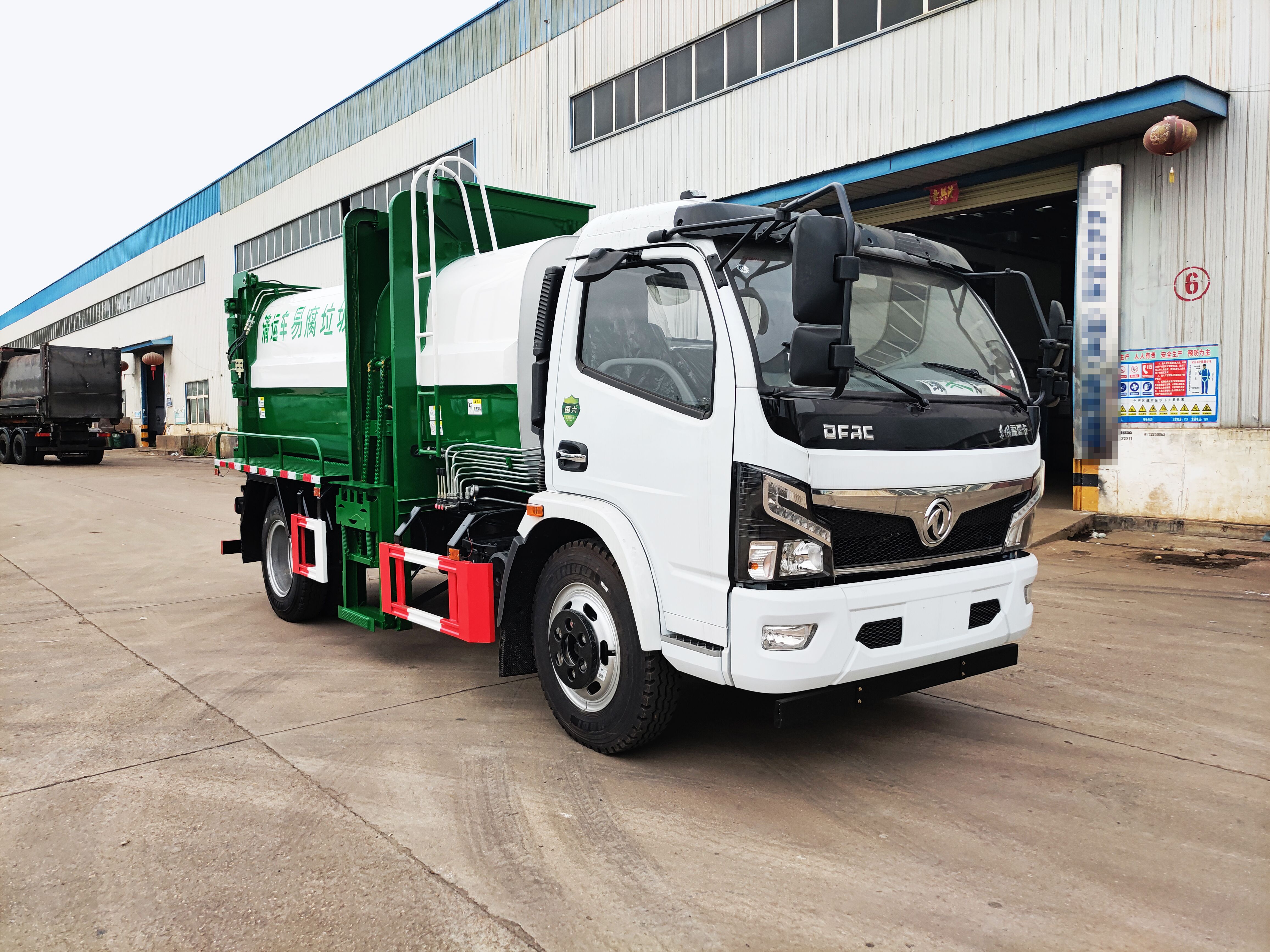

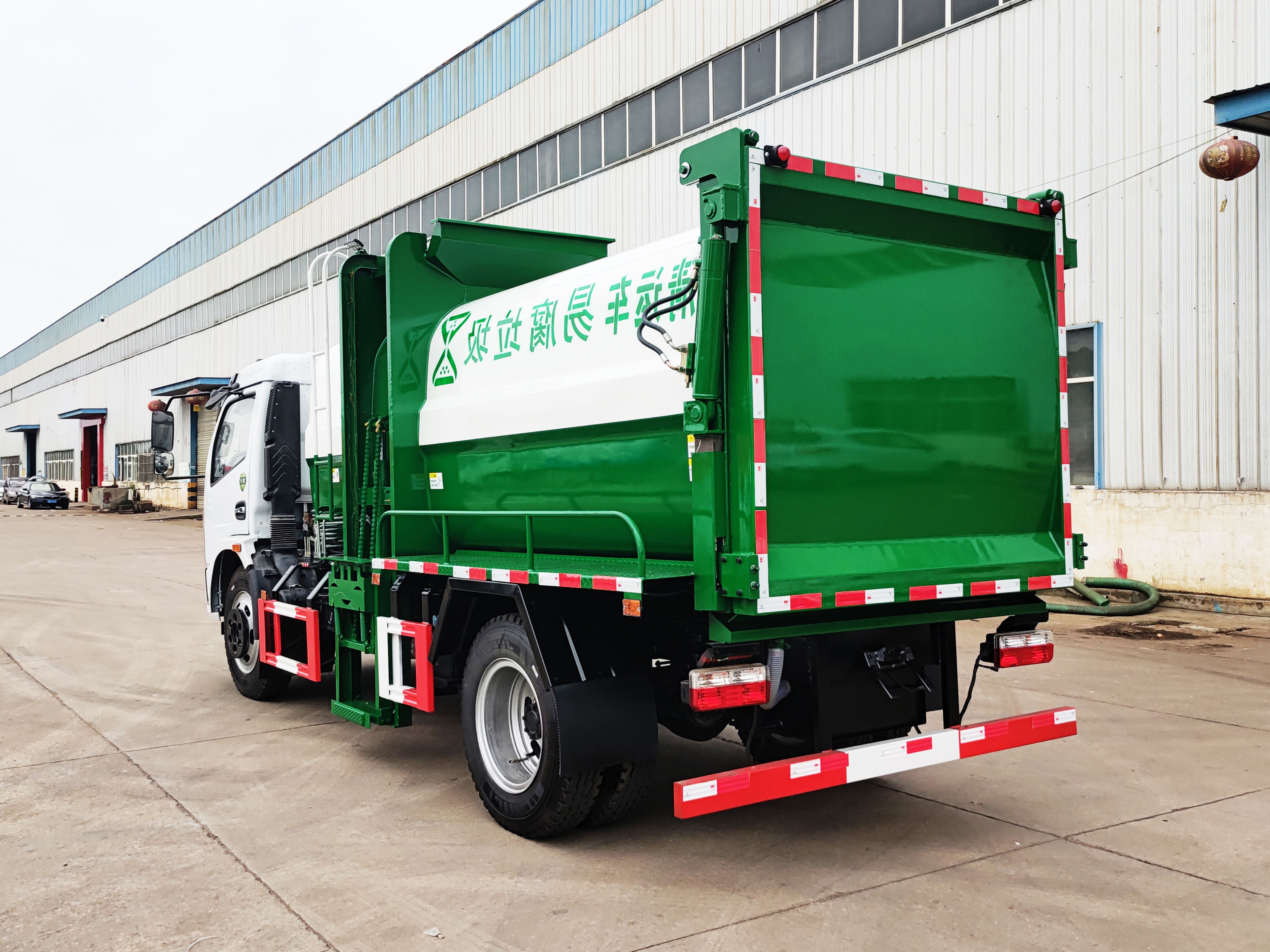

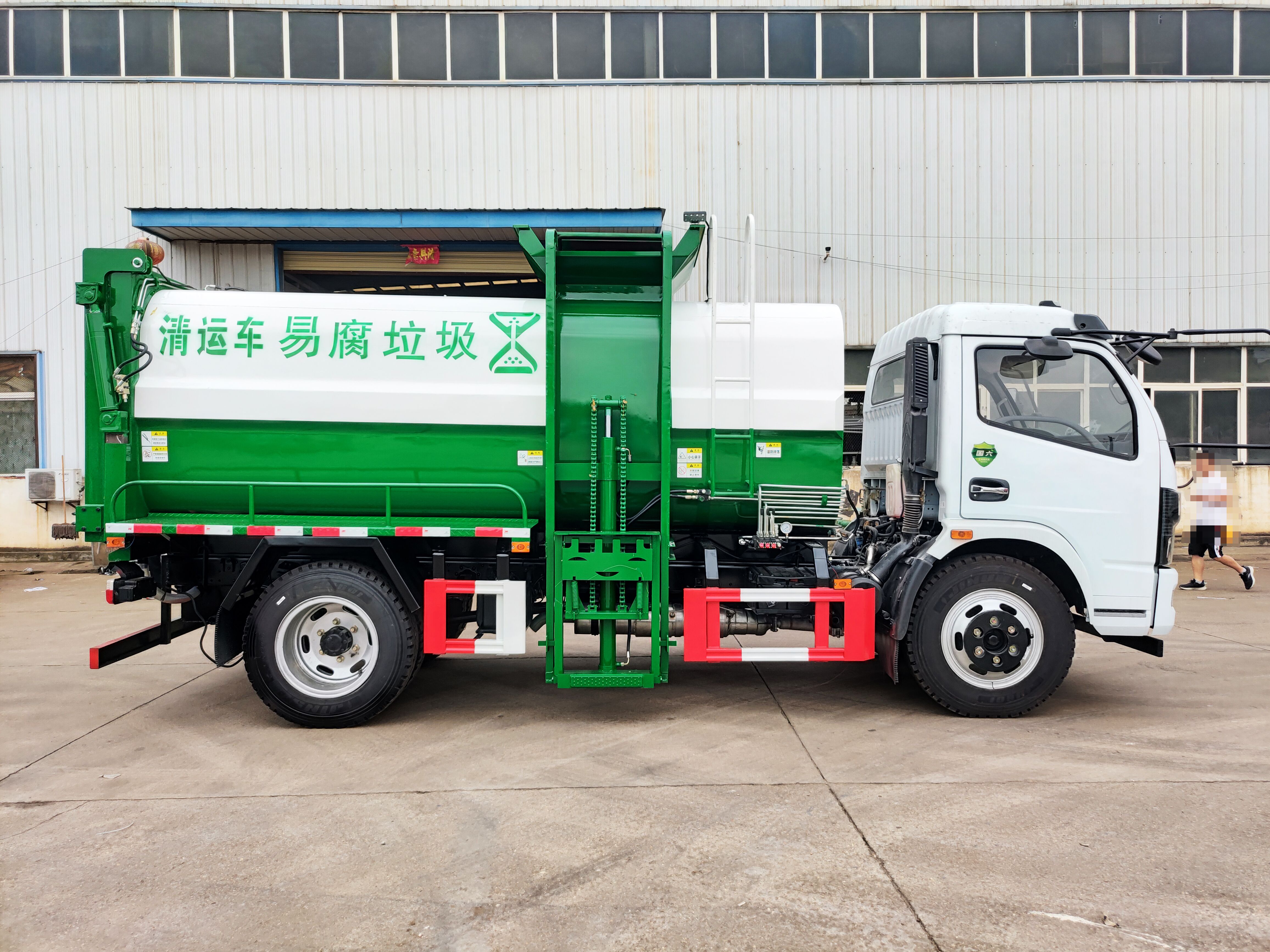

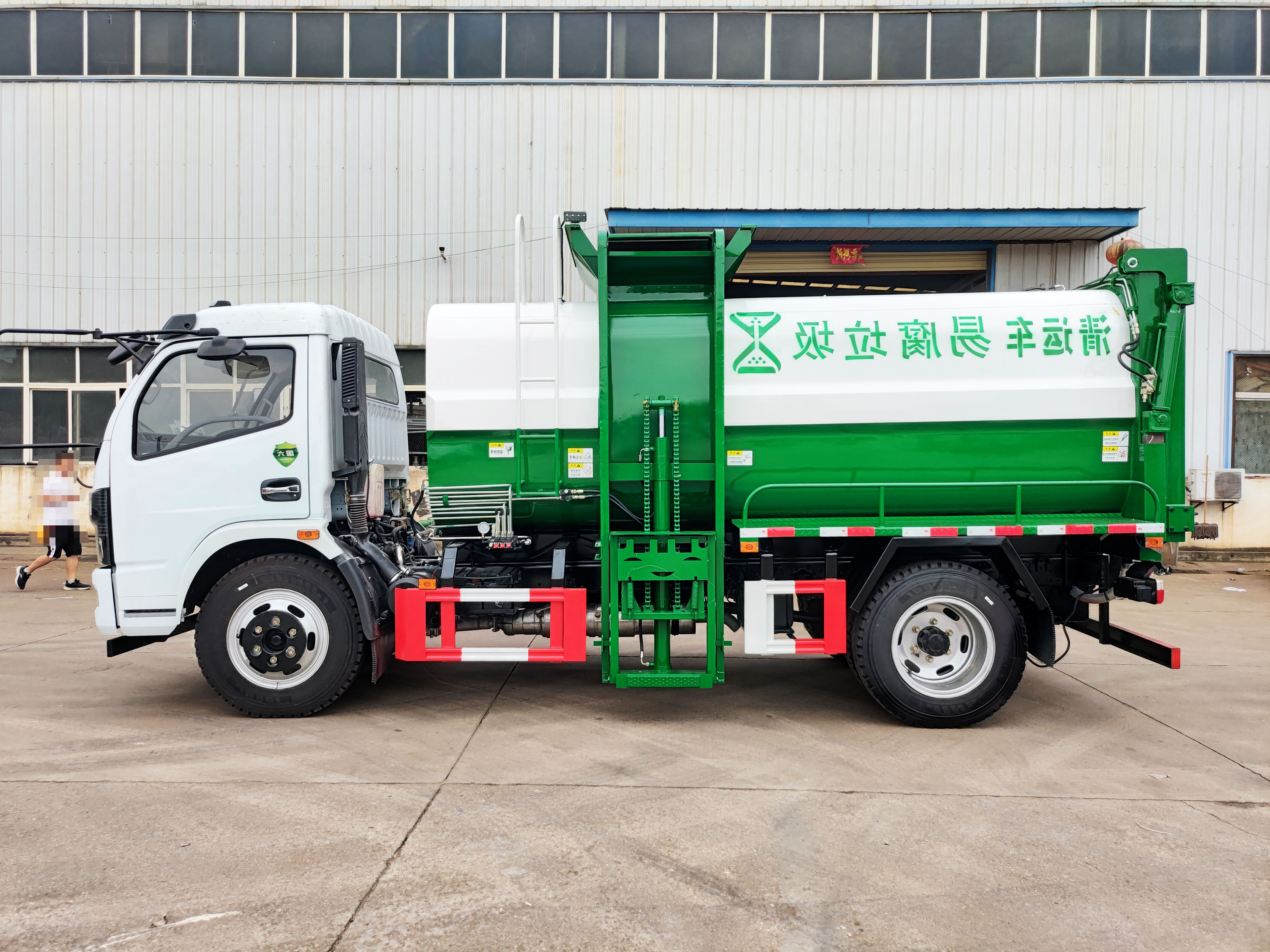

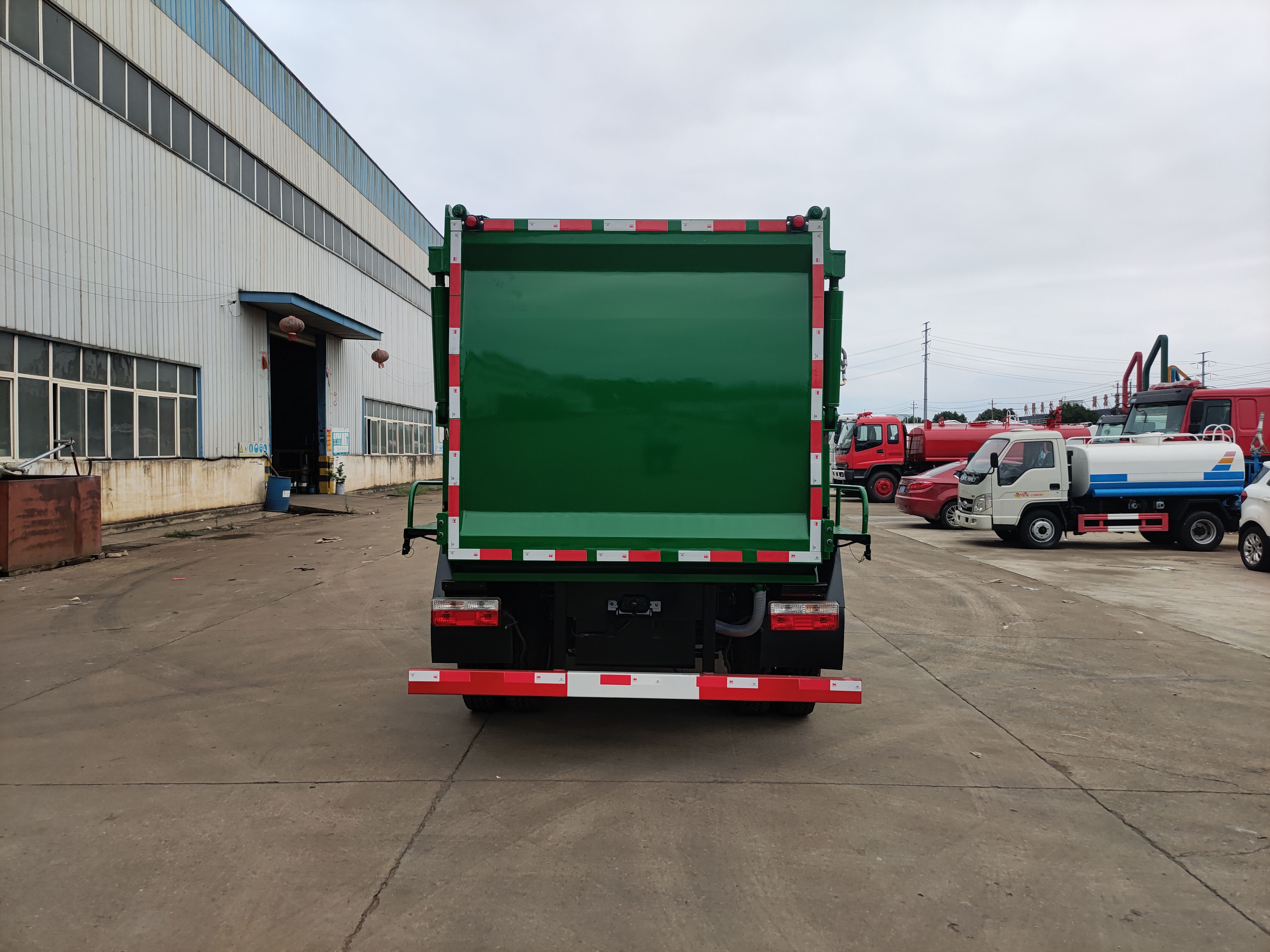

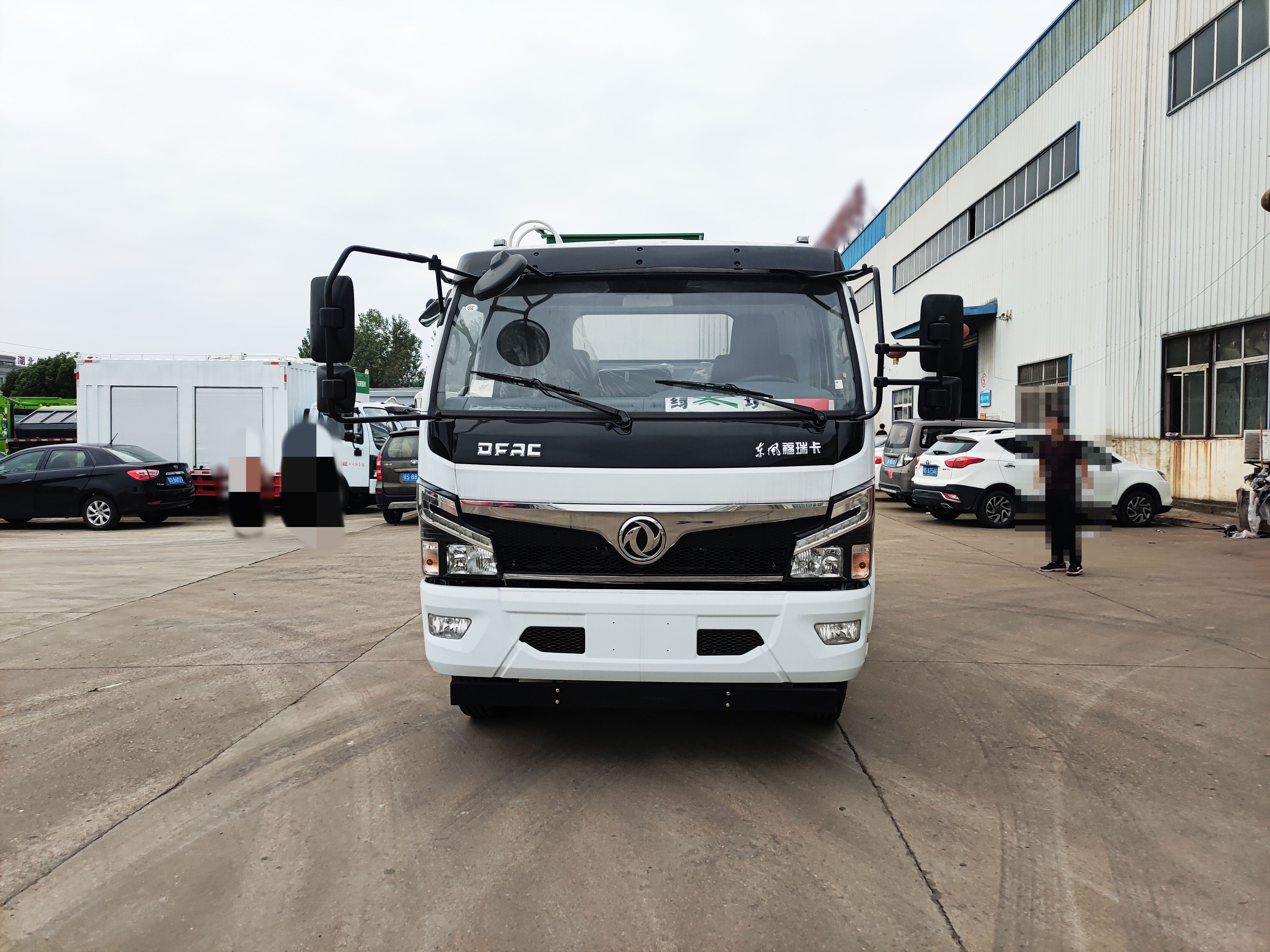

Dongfeng F7 4X2 Kitchen Waste Truck
Kitchen waste truck, also known as meal waste truck, kitchen waste truck or swill truck, is a type of garbage truck used for collecting and transporting household waste, food waste (swill) and urban sludge.
Product parameters
