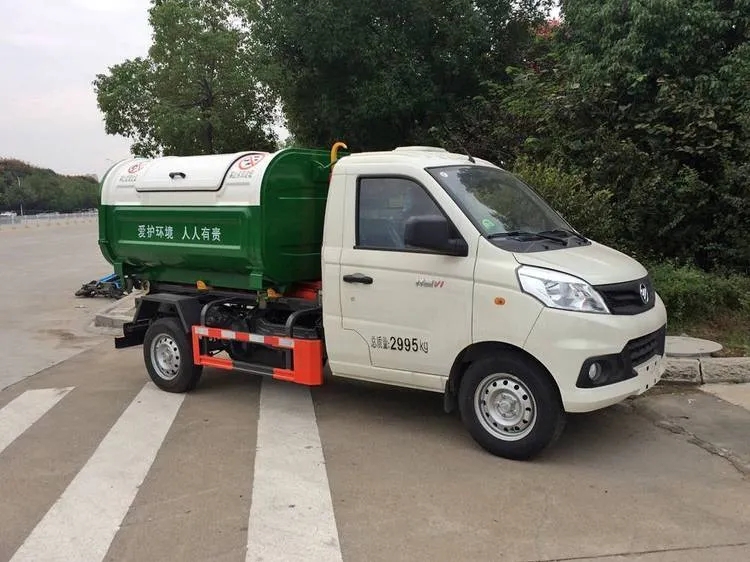

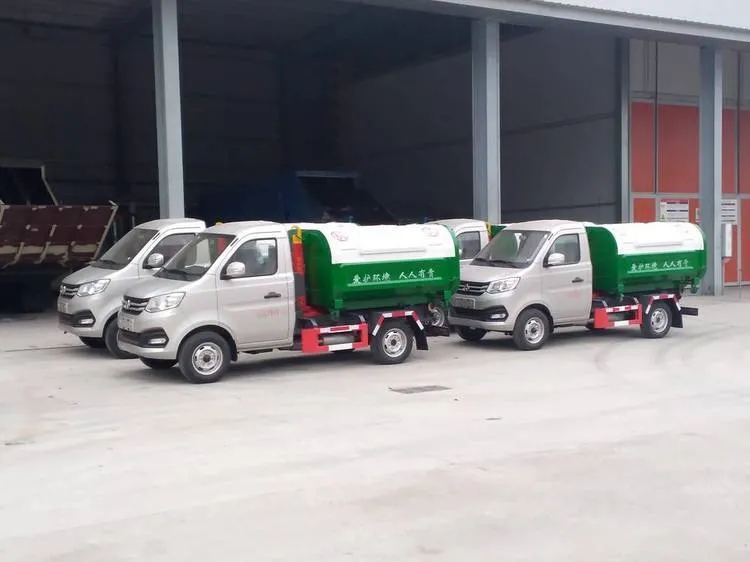

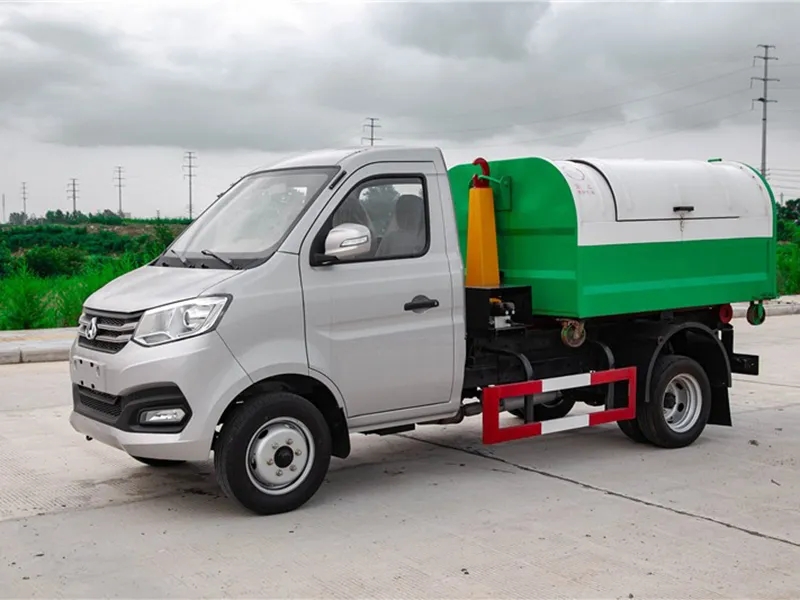

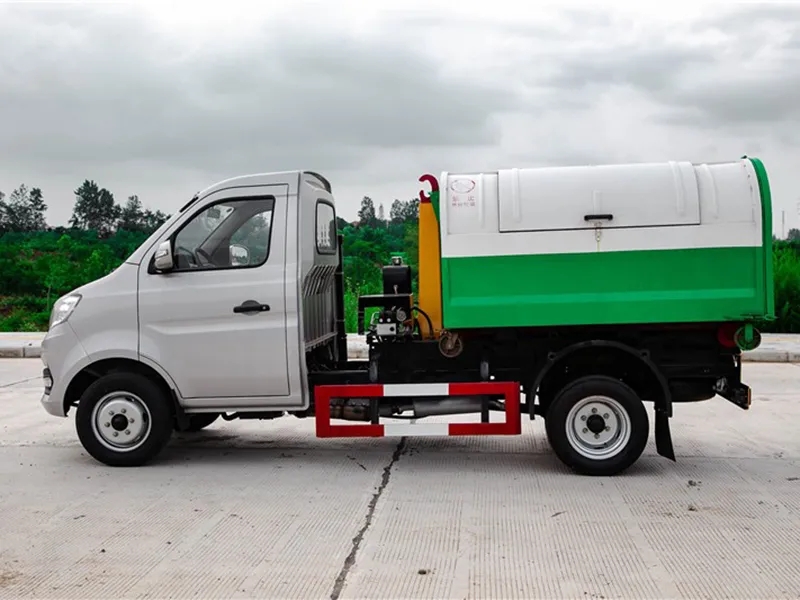

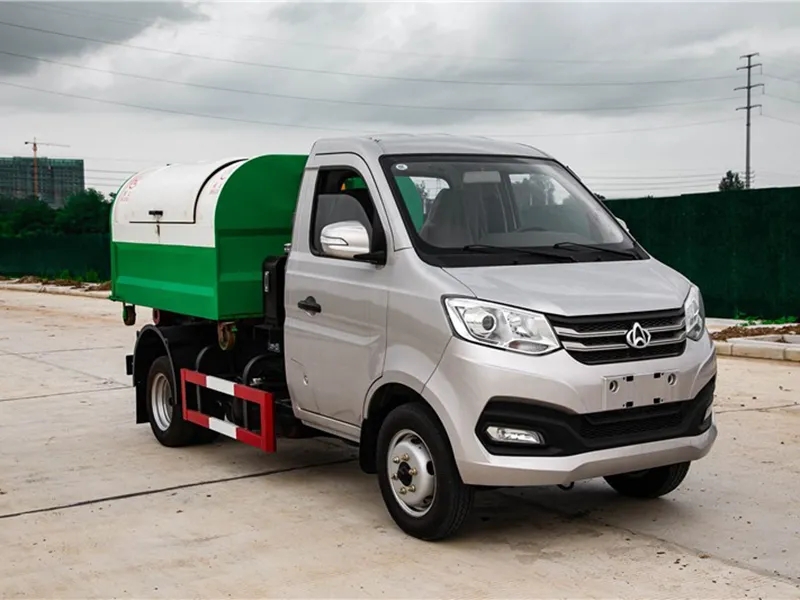

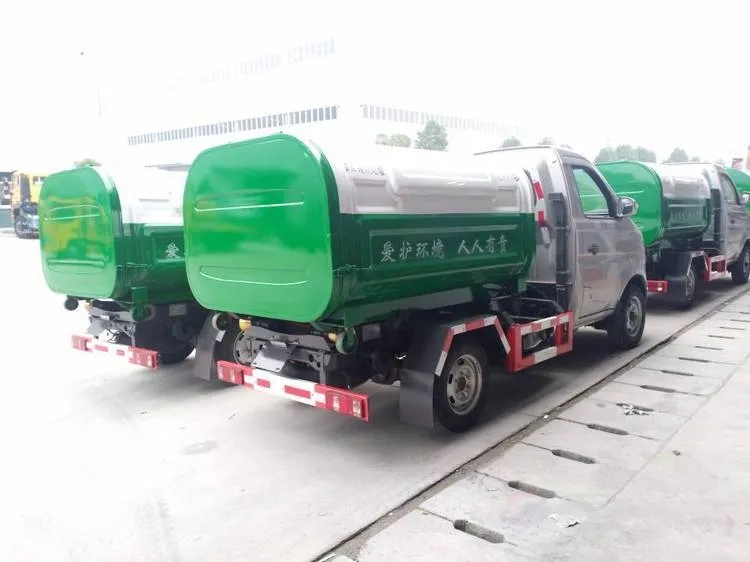

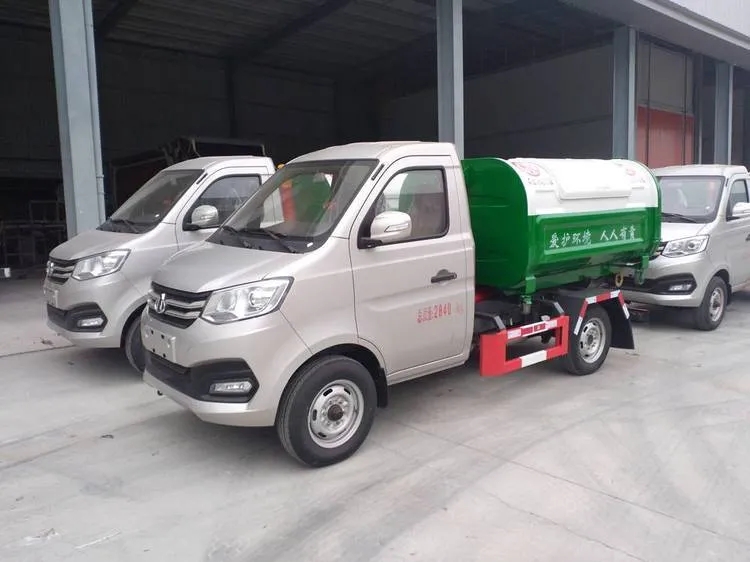

Chang'an 3.5 cbm hook arm garbage truck
Hook arm garbage truck is composed of hook arm hydraulic system, hook arm garbage box, etc. One hook arm garbage truck can be equipped with several hook arm garbage boxes, which can realize the joint operation of a vehicle and multiple garbage boxes and cyclic transportation,which fully improves the transportation capacity of the vehicle.
Hook arm garbage box is made of high quality carbon steel, strong anddurable. The garbage box can get on and off the vehicle by itself, and dump the garbage by itself, and the working cycle time of one loading andunloading is ≤50S.
| Product Name |
Chang |
| Driving Type |
4×2 |
| Weight /Volume |
|
| Garbage container volume(cbm) |
3.5 |
| Rated payload weight(kg) |
700 |
| Dimensions |
|
| Wheelbase(mm) |
2900 |
| Overall Dimension(mm) |
4260×1660×1920 |
| Engine |
|
| Engine brand & model |
JL473Q |
| Displacement(L)/Power(kw) |
1.243/92 |
| Chassis |
|
| Axle Quantity |
2 |
| Transmission Type |
5 forward gears and 1 rear gear |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
175/70R14LT, 6 with a spare |
| Cab |
|
| Standard configuration |
Chang An cab |
| Air conditioning |
YES |
| Performance parameter |
|
| Garbage container material |
carbon steel or stainless steel |
| Standard configuration |
1.The hook arm garbage bin is made up of a frame, an opening cylinder, pulleys, a rear door, and several frames welded to steel plates. 2.The garbage bin body can be made of carbon steel or stainless steel, and the interior is treated with epoxy resin for corrosion prevention. |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Chang'an 3.5 cbm hook arm garbage truck
The types of garbage trucks include: compression
garbage truck, self dumping garbage truck, swing arm garbage truck, pull arm
garbage truck, hook arm garbage truck (box detachable garbage truck), sealed
garbage truck, hanging bucket garbage truck (self loading and unloading garbage
truck)

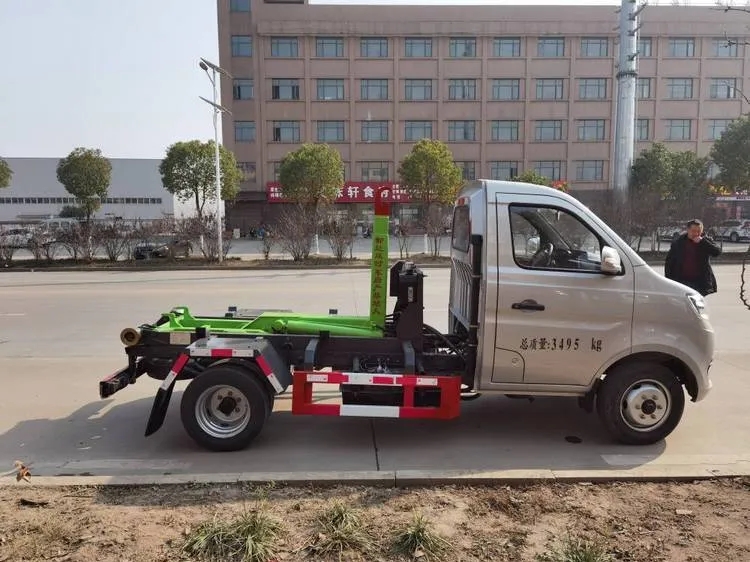

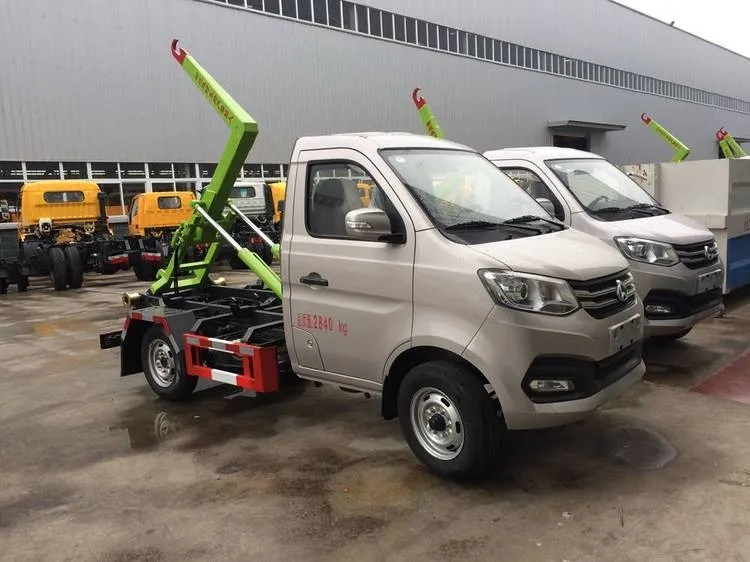

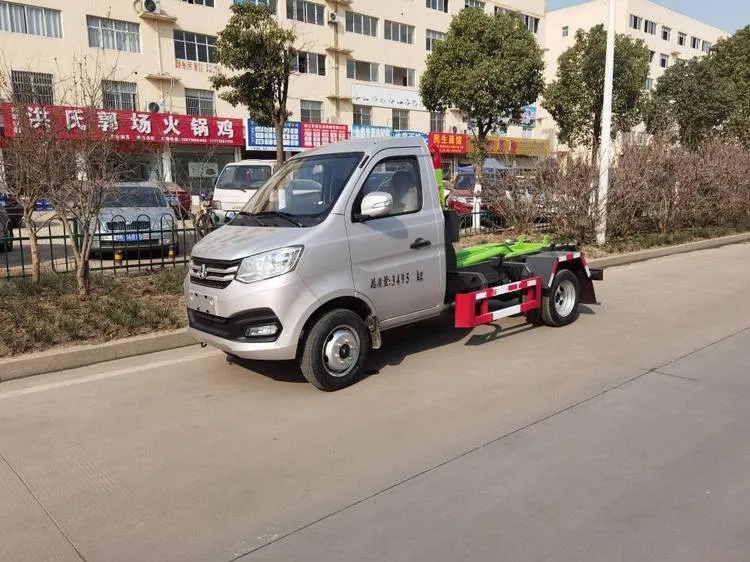

Hook arm garbage truck: also known as a
detachable garbage truck, the garbage compartment is connected or separated
from the chassis through a hook arm device. It can replace different garbage
compartments as needed, with high flexibility, suitable for garbage collection
in residential areas, schools, and other places.
Product parameters
