JAC Junling V7 swing arm garbage truck
2024-10-07 09:54:11 Source：CLW
Chassis configuration:
Wheelbase: 3845,4200,4550,4700(mm)
Engine: D30TCIF2,Yunnei 163 hp
Transmission Type:6-speed gearbox
Tire models: 7.50R16，8.25R20 , 6+1 spare
Other: Air brake, power steering, original air conditioning, central locking, electric doors and windows, remote key multifunction steering wheel, LED daytime running lights, boneless wipers, ABS, automatic adjustment arm, exhaust brake, PTO
| Product Name |
JAC Junling V7 swing arm garbage truck |
| Driving Type |
4x2 |
| Garbage container volume(cbm) |
5cbm-6cbm |
| Gross vehicle weight(Kg) |
11920(Kg) |
| Curb weight(Kg) |
4900,5100(Kg) |
| Rated weight(kg) |
6825,6625(Kg) |
| Wheelbase(mm) |
3845,4200,4550,4700(mm) |
| Overall Dimension(mm) |
6850,6900×2350,2450×3000(mm) |
| Engine |
D30TCIF2,Yunnei 163 hp |
| Axle Quantity |
2 |
| Transmission Type |
6-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Tire Spec. & size |
7.50R16，8.25R20 , 6+1 spare |
| Cab |
JAC Junling V7 cab |
| Material of swing arm bucket |
High quality WISCO materials |
| Component |
Composed of chassis, garbage bin, power take-off, multi way directional valve, swing arm, hydraulic system, operating system, etc. |
| Garbage bin |
divided into pit type swing arm garbage bin and ground type swing arm garbage bin (trapezoidal bucket, square bucket, sealed bucket) |
| Hydraulic system |
composed of oil tank, oil pump, multi way directional valve, hydraulic cylinder, oil filter and pipeline, this system can achieve various specialized functions for loading and unloading garbage. |
| Operating system |
Through this system, various functions can be converted. The loading and unloading work can be completed by manipulating the handle of the multi way directional valve. (When operating the multi way directional valve, a power take-off should be attached to drive the oil pump to work) |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |

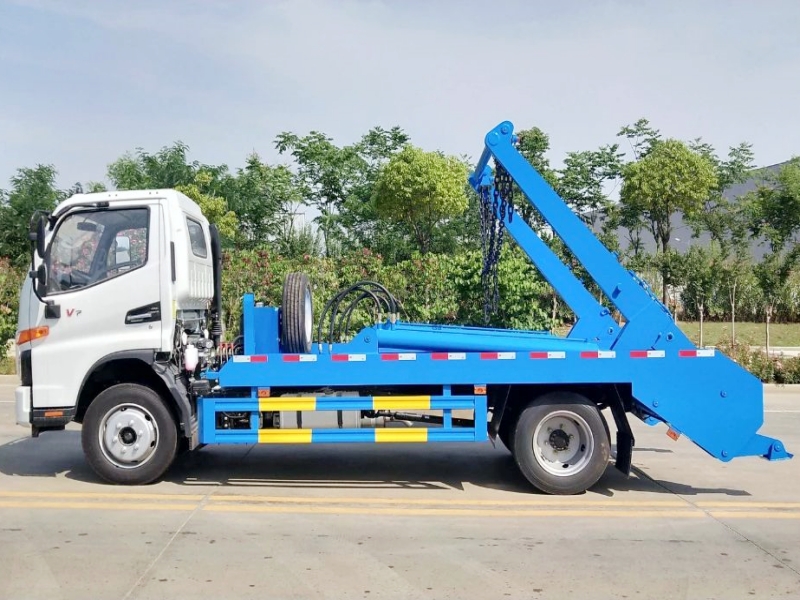

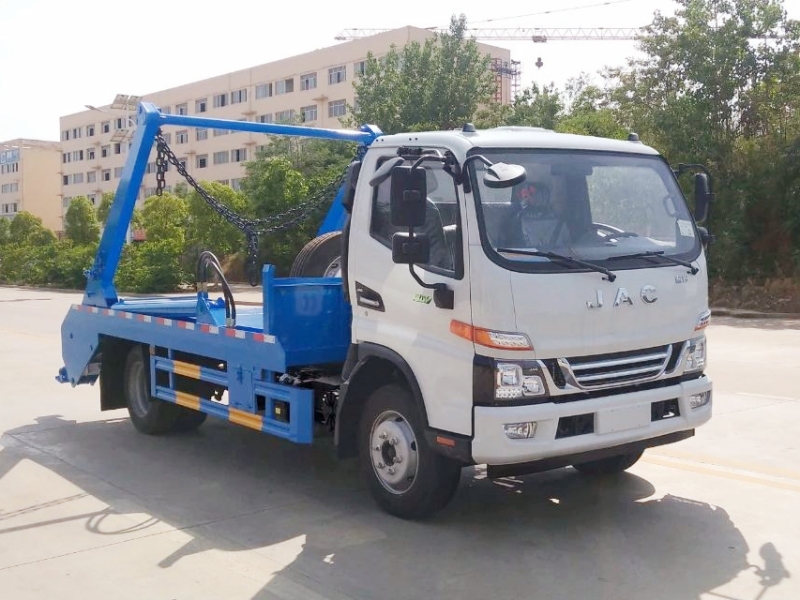

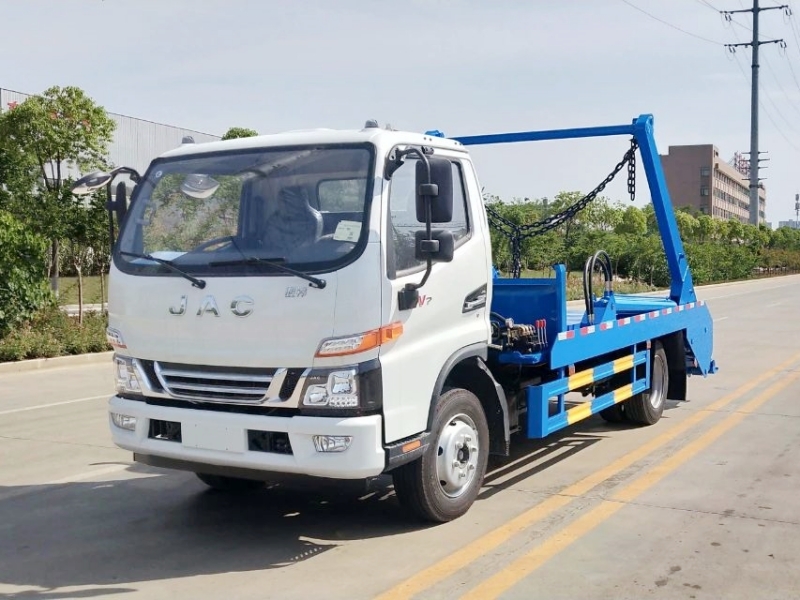

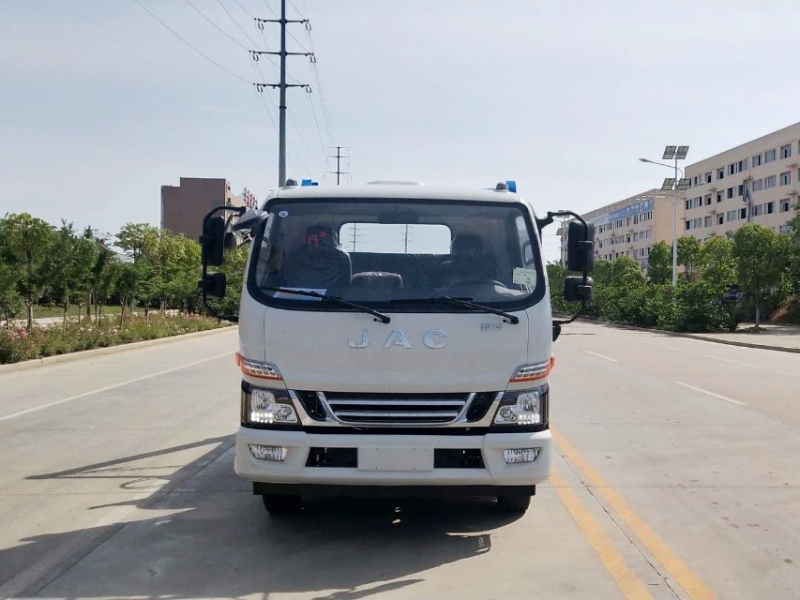

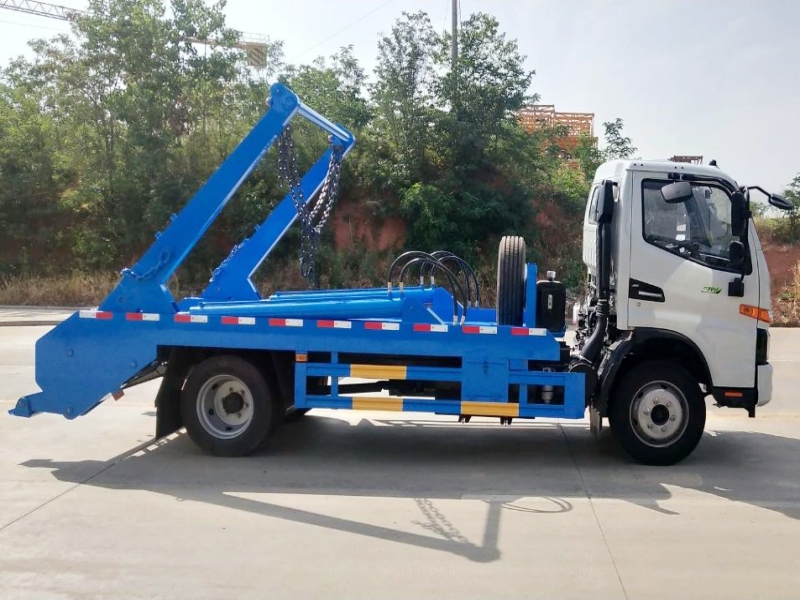

JAC Junling V7 swing arm garbage truck
Swing arm garbage truck: a garbage truck that
lifts the garbage hopper and pours it into the carriage through hydraulic or
mechanical swing arms. It can be equipped with multiple garbage bins for
continuous operation, suitable for garbage collection in urban streets and
residential areas.
Main features: The swing arm garbage truck has the advantages of simple and efficient garbage collection method, good environmental friendliness (no secondary pollution), reliable quality, low failure rate, easy maintenance, and low operating costs.
Product parameters
