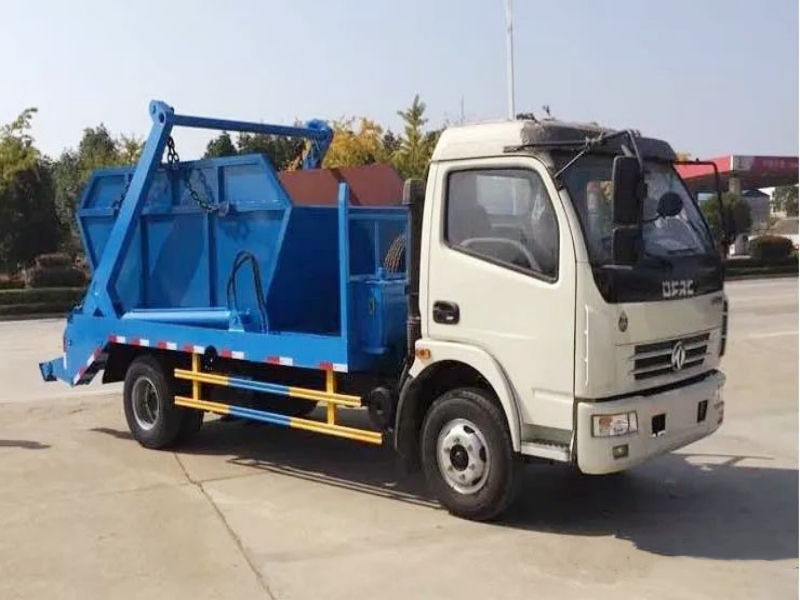

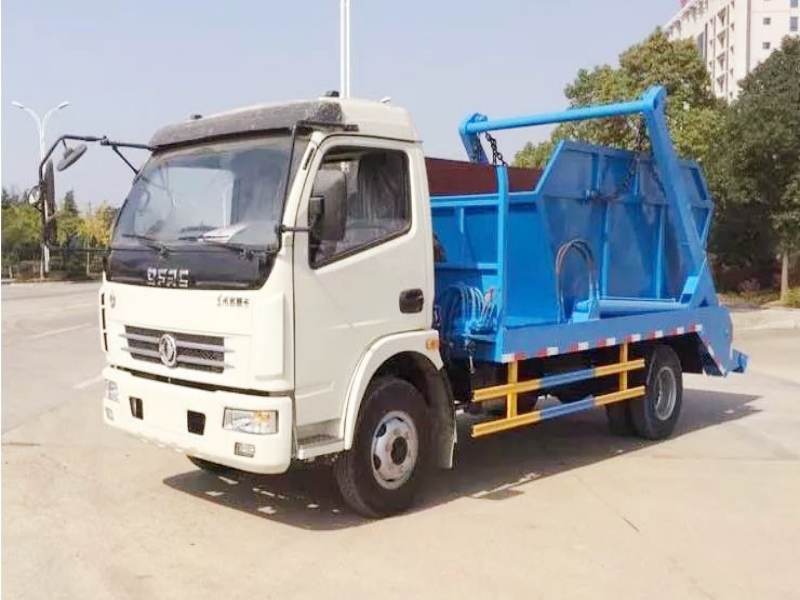

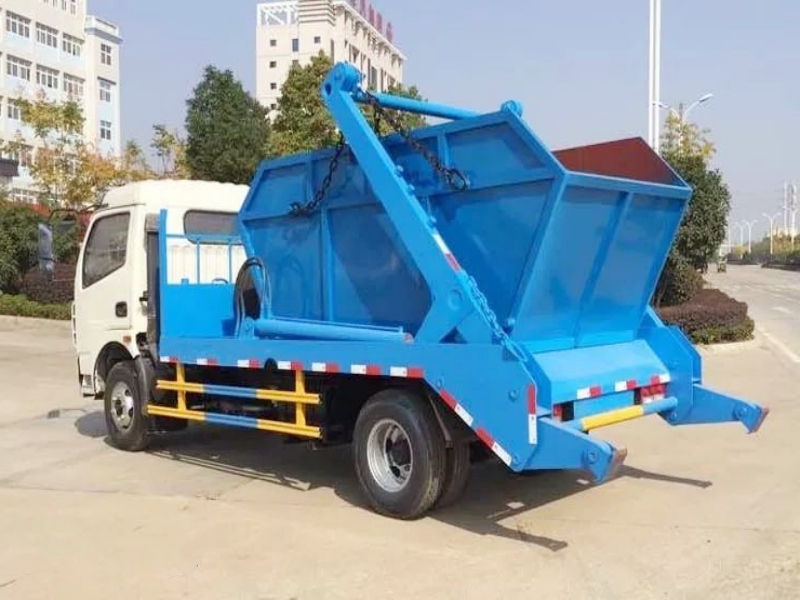

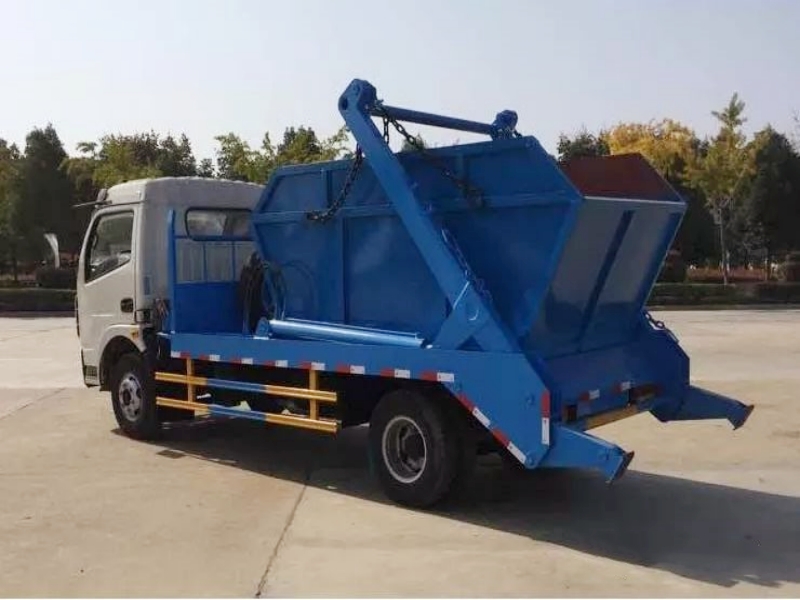

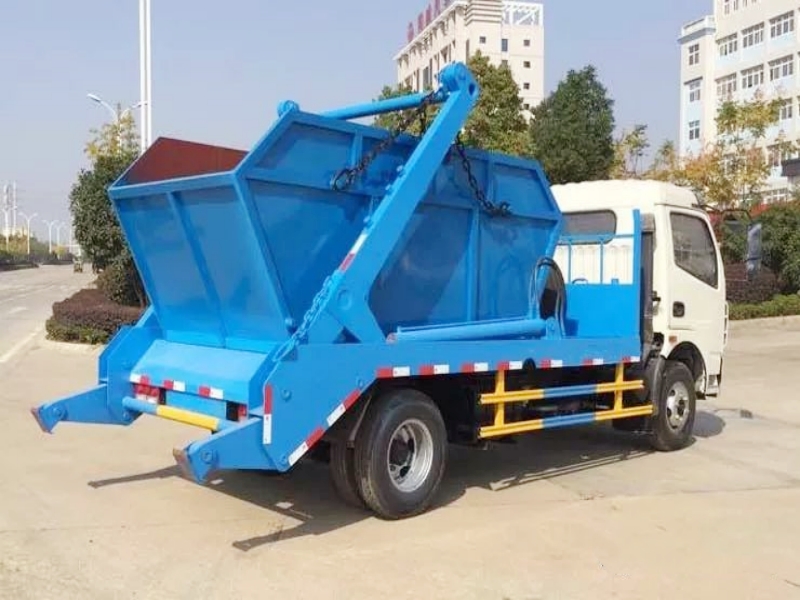

Dongfeng D7 5cbm-6cbm swing arm garbage truck
2024-10-07 09:54:11 Source：CLW
Chassis configuration:
Wheelbase: 3800mm
Dimensions: 6800/6780/6308/6288 × 2200 × 3000mm
Engine: Chaochai 156 hp, Yuchai 150 hp, Xichai 140 hpr, Yunnei 130 hp
Transmission Type:6-speed gearbox/8-speed gearbox
Tire models: 7.50R16, 8.25R20
| Product Name |
Dongfeng D7 5cbm-6cbm swing arm garbage truck |
| Driving Type |
4x2 |
| Garbage container volume(cbm) |
5cbm-6cbm |
| Gross vehicle weight(Kg) |
8275(Kg) |
| Curb weight(Kg) |
5100,4900(Kg) |
| Rated weight(kg) |
2980,3180(Kg) |
| Wheelbase(mm) |
3800(mm) |
| Overall Dimension(mm) |
6800,6780,6308,6288×2200×3000(mm) |
| Engine |
Chaochai 156 horsepower, Yuchai 150 horsepower, Xichai 140 horsepower, Yunnei 130 horsepower |
| Axle Quantity |
2 |
| Transmission Type |
6-speed gearbox/8-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Tire Spec. & size |
7.50R16，8.25R20 , 6+1 spare |
| Cab |
Dongfeng D7 cab |
| Material of swing arm bucket |
High quality WISCO materials |
| Component |
Composed of chassis, garbage bin, power take-off, multi way directional valve, swing arm, hydraulic system, operating system, etc. |
| Garbage bin |
divided into pit type swing arm garbage bin and ground type swing arm garbage bin (trapezoidal bucket, square bucket, sealed bucket) |
| Hydraulic system |
composed of oil tank, oil pump, multi way directional valve, hydraulic cylinder, oil filter and pipeline, this system can achieve various specialized functions for loading and unloading garbage. |
| Operating system |
Through this system, various functions can be converted. The loading and unloading work can be completed by manipulating the handle of the multi way directional valve. (When operating the multi way directional valve, a power take-off should be attached to drive the oil pump to work) |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng D7 5cbm-6cbm swing arm garbage truck

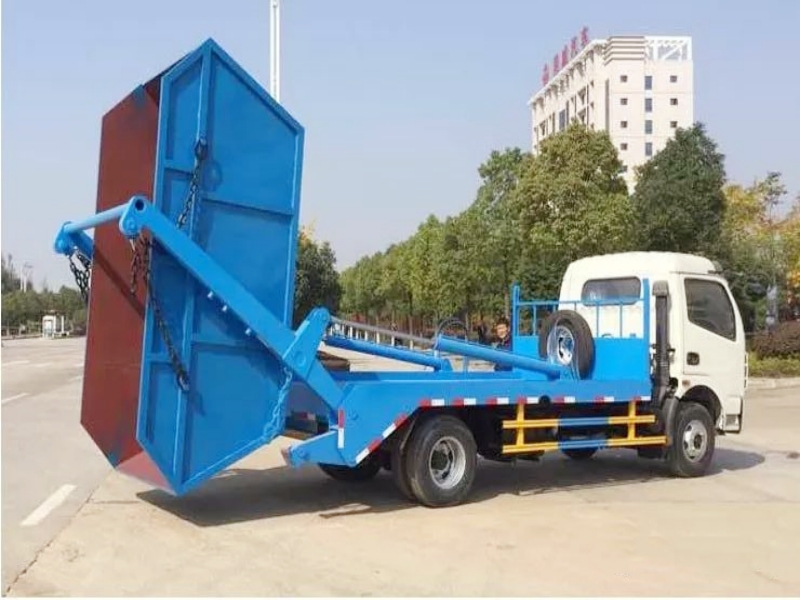

Swing arm garbage truck: a garbage truck that
lifts the garbage hopper and pours it into the carriage through hydraulic or
mechanical swing arms. It can be equipped with multiple garbage bins for
continuous operation, suitable for garbage collection in urban streets and
residential areas.
Main features: The swing arm garbage truck has the advantages of simple and efficient garbage collection method, good environmental friendliness (no secondary pollution), reliable quality, low failure rate, easy maintenance, and low operating costs.
Product parameters
