Chassis configuration:
1.Engine: TZ290XS025, 136kw 2.Transmission type: 5-speed gearbox 3.Wheelbase:2850(mm) 4.Tyre:185R15LT 8PR, 6+1 spare 5.Other: SAIC Yuejin cab
| Product Name | SAIC Yuejin electric 4m³ self loading and unloading garbage truck |
| Driving Type | 4×2 |
| Gross vehicle weight(Kg) | 4495(Kg) |
| Curb weight(Kg) | 3180(Kg) |
| Rated weight(kg) | 1185(Kg) |
| Wheelbase(mm) | 2850(mm) |
| Overall Dimension(mm) | 5250×1780×2200(mm) |
| Vehicle cargo box size | 3190×1600×1046(mm) |
| Engine | TZ290XS025, 136kw |
| Total electricity consumption (KWh) | 55.7 |
| Battery type | CATL lithium iron phosphate |
| Battery energy density (wh/kg) | 146.3 |
| Range (Km) | 250 |
| Axle Quantity | 2 |
| Transmission Type | Wanliyang 5-speed gearbox |
| Steering Type | LHD or RHD with power steering |
| Tire Spec. & size | 185R15LT 8PR, 6+1 spare |
| Cab | SAIC Yuejin cab |
| Volume(m³) | 4m³ |
| Tank body | Reinforced square tank body, Q710 high-strength steel |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |

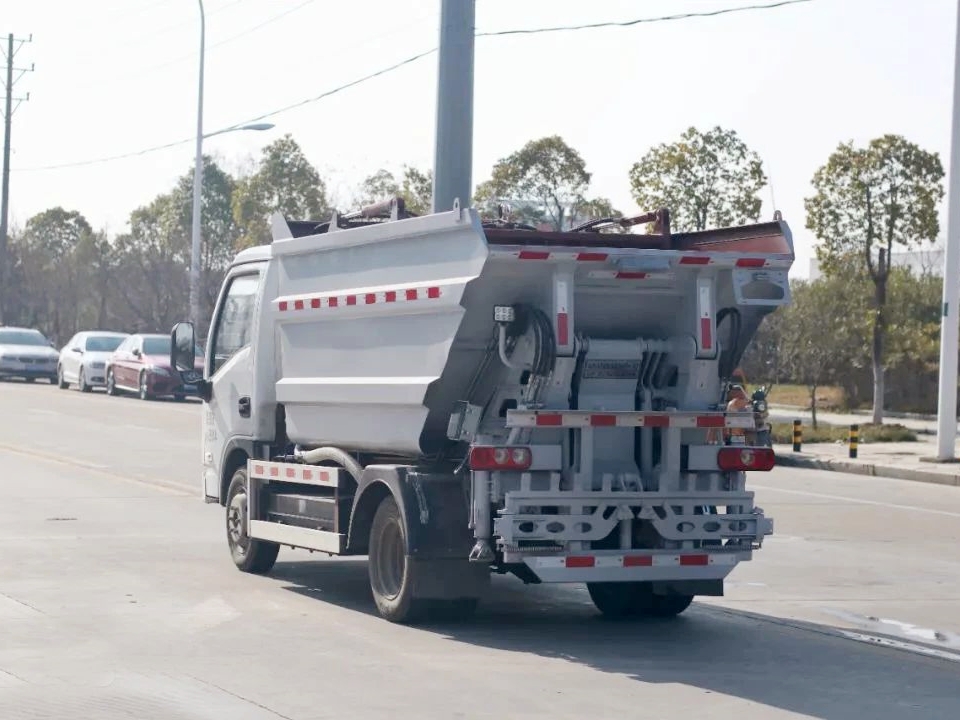

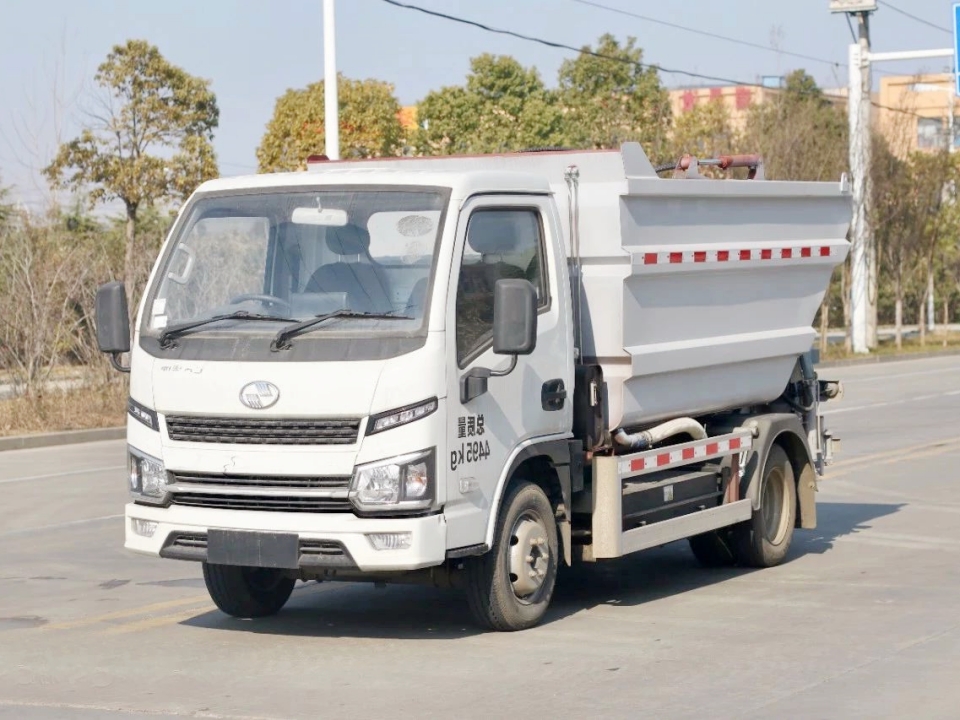

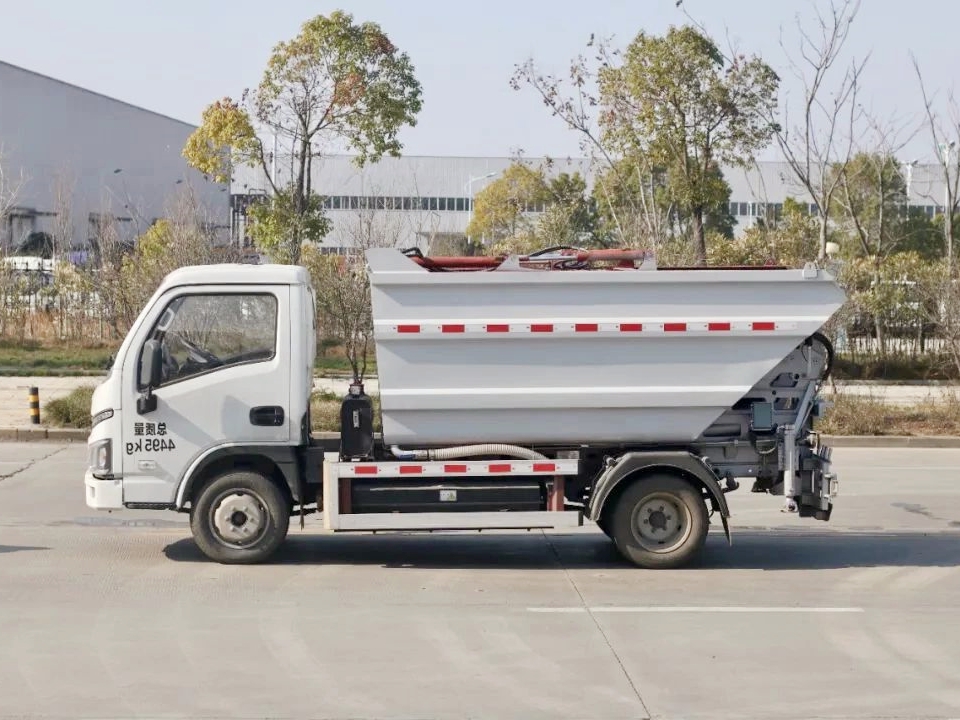

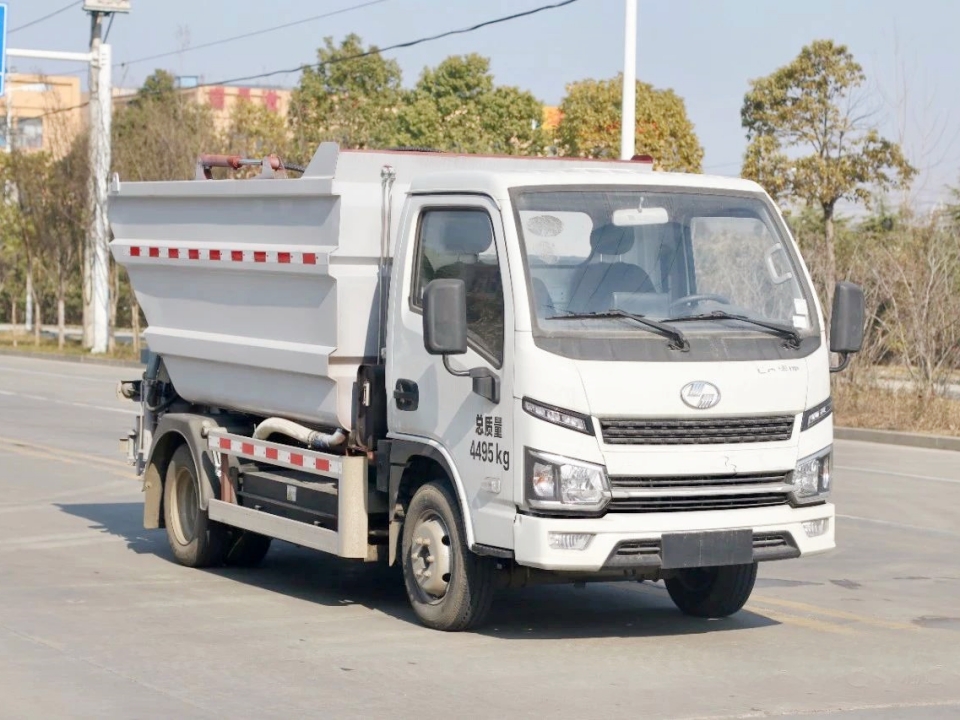

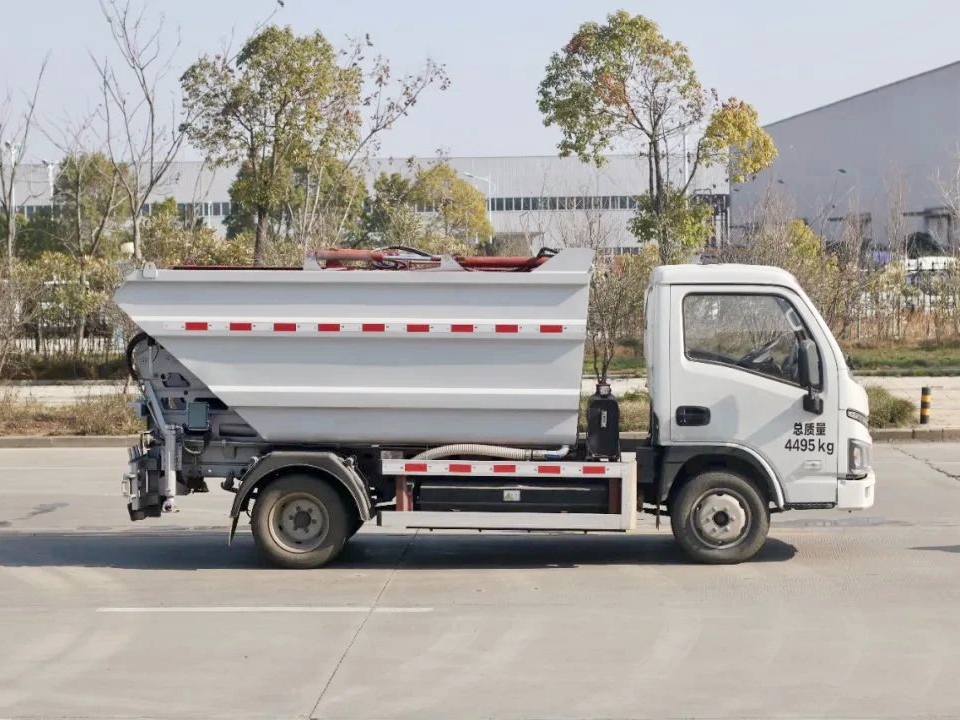

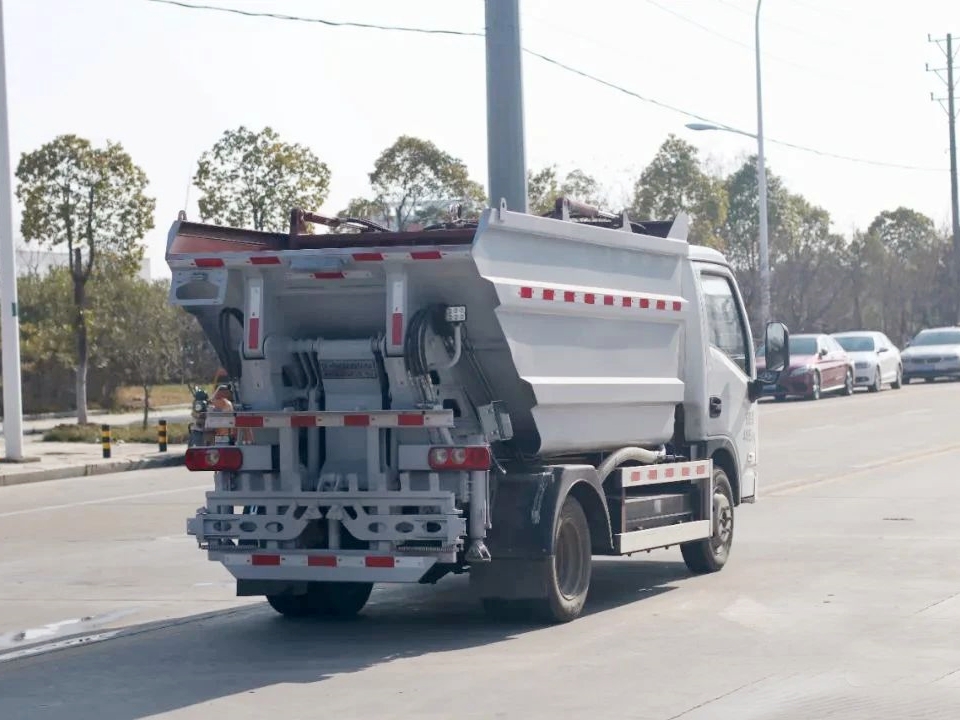

SAIC Yuejin electric 4m³ self loading and unloading garbage truck
Self loading and unloading garbage truck: also known as bucket hanging garbage truck, refuse collecting truck ,it pours the garbage in the garbage bin into the carriage through a specialized bucket hanging device. This garbage truck is easy to operate and suitable for collecting garbage from scattered trash cans.
