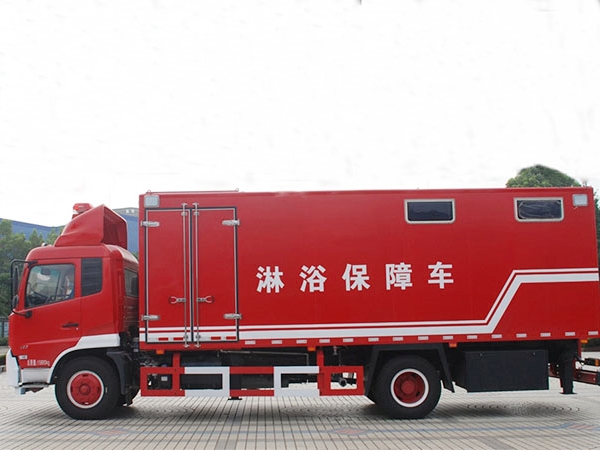

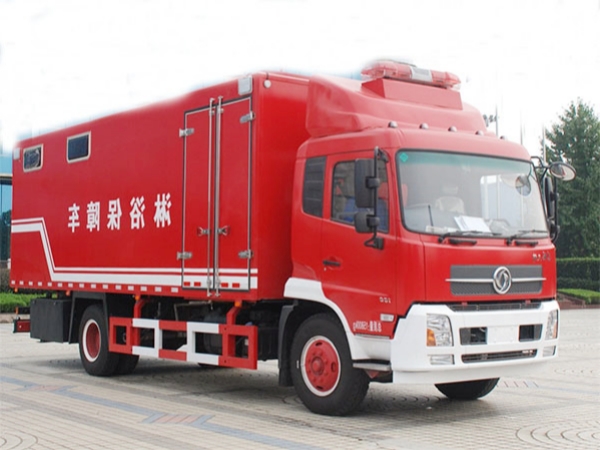

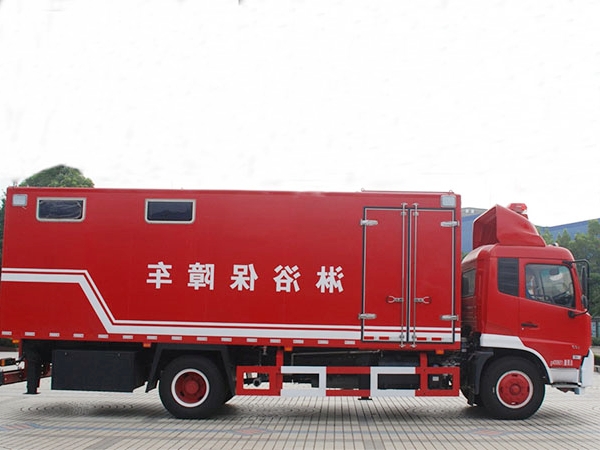

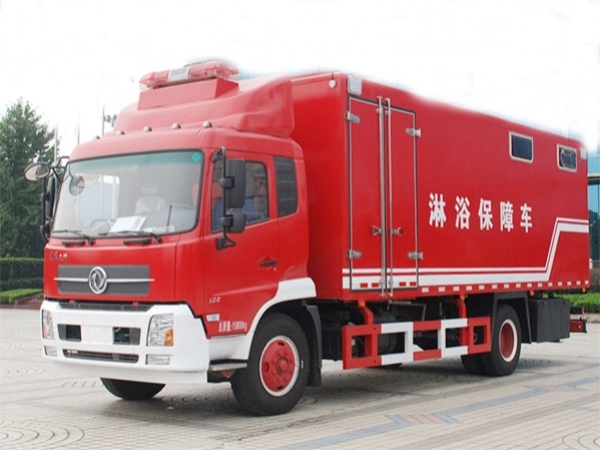

Dongfeng Tianjin 12-person mobile shower vehicle

Product description

The Dongfeng Tianjin shower truck has unique characteristics and excellent performance. Its design is unique and innovative, including independent changing rooms and bathing rooms, fully automatic control of fuel boilers to provide hot water for bathing, and the use of standard surface water or municipal water to ensure bathing needs. This car has efficient bathing capacity, meeting the demand of 72 people per hour, and the shower water temperature is suitable, with relative humidity controlled within an appropriate range. The whole vehicle has good sealing performance and is heated by a warm air blower in cold regions to ensure comfortable bathing.

Product Name	Dongfeng Tianjin 12-person mobile shower vehicle
Engine	DDi50E190-60, 190hp
Gearbox	Fast 8-speed gearbox
Wheelbase(mm)	5800(mm)
Vehicle dimension(mm)	10700×2550×3980(mm)
Tyre	275/80R22.5 18PR (6+1)
Facilities and information inside the vehicle	As follows
Power supply	The Tianjin shower car is equipped with a built-in generator set (KDE3500E) and can also be connected to an external power source to ensure the normal operation of onboard equipment. This design ensures the vehicle's applicability in different environments without worrying about power supply issues.
Water source flexibility	The vehicle is equipped with a stainless steel water tank that can draw surface water that meets wartime drinking water standards. These water sources have undergone water purification treatment to ensure bathing needs, and can also be directly used as municipal water. This multifunctional water source system provides greater operational flexibility.
Bath hot water	A fully automated fuel boiler is used to provide bath hot water. This hot water system can provide hot water at a comfortable temperature in a short period of time, ensuring a comfortable bathing experience for users.
Heating equipment	In cold regions, the vehicle is equipped with a built-in heater to provide heating for the bathing environment. This provides additional comfort, especially in low temperature environments..
Performance indicators	The vehicle has excellent performance indicators, such as a bathing capacity of 72 people per hour, which can meet large-scale bathing needs. At the same time, its shower water temperature, water source requirements, and deployment/retraction time are all within the standard range, ensuring high-quality service.

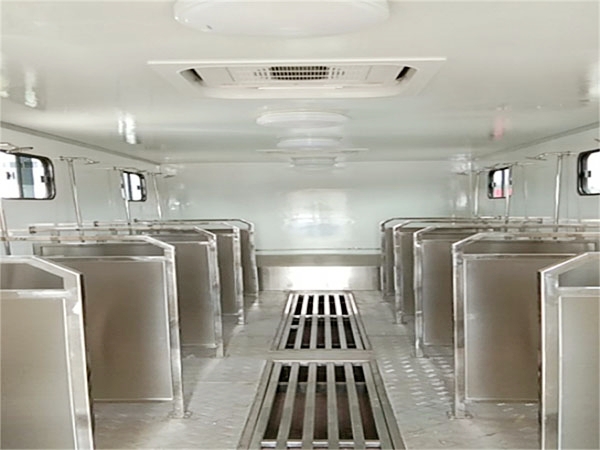

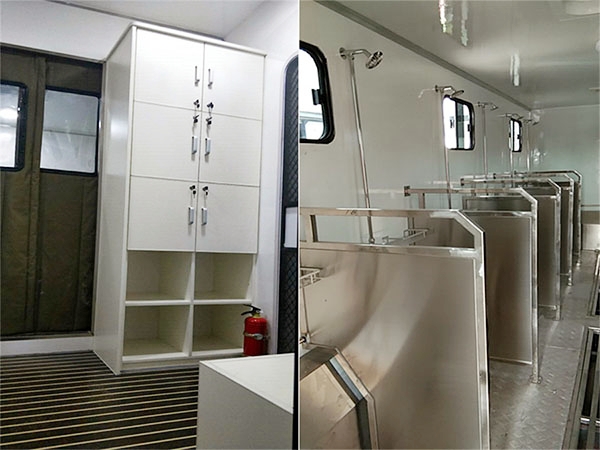

Construction and equipment	The Tianjin shower car adopts an insulated compartment with good sealing, which can work under various climatic conditions. Its internal equipment includes a fuel fired hot water boiler, diesel generator, water pump, precision filter, heater, etc., which ensure the normal operation of the shower car. The shower room is equipped with 12 shower heads and stainless steel water tanks, while the changing room provides necessary facilities such as changing cabinets.
Electrical system	The vehicle electrical system adopts dual power supply, which can achieve automatic control without the need for personnel on duty. This feature enables the vehicle to operate stably in various emergency situations.
Overall configuration	The Tianjin shower truck has a diverse range of configurations, including chassis, power supply, water source system, bath hot water, heating equipment, and electrical system. This makes it a high-performance, multifunctional emergency bathing vehicle.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
