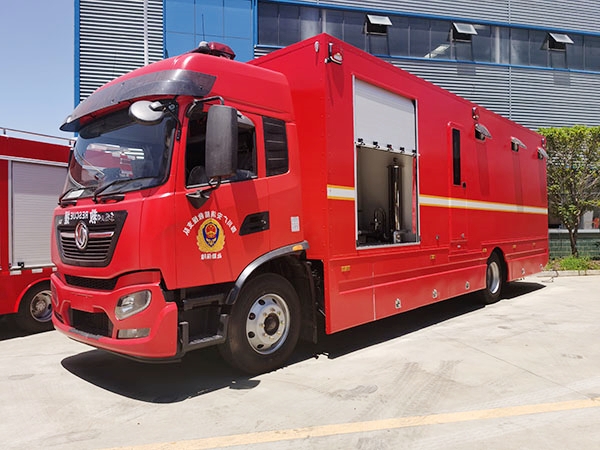

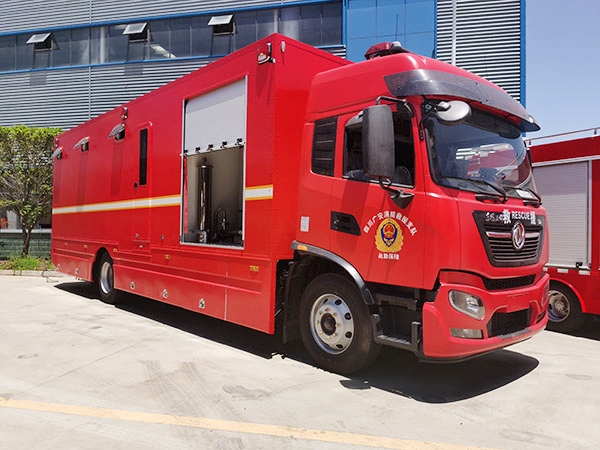

Dongfeng Tianjin 4X2 8-person mobile shower vehicle

Product description

1. Driver and Performance: The 4X2 drive system can reach a speed of up to 89KM/h.
2. Engine performance: Equipped with the Dongfeng DDi50E190-60 engine, the maximum horsepower reaches 190 horsepower.
3. Transmission: Equipped with the Fast 8JS85E-C model transmission, it has 8 forward gears and 2 reverse gears.
4. Cab: Equipped with the D560 standard top model cab, providing a spacious and comfortable driving environment. The vehicle can carry 3 people and adopts a half row seating arrangement, balancing cargo transportation and passenger demand.
5. Chassis performance: The front axle can withstand 3.6T, and the rear axle can withstand 8T, with excellent cargo load capacity. The speed ratio is 4.33
6. Tire configuration: 275/80R22.5 18PR tires are used to adapt to various road conditions and load situations.

Product Name	Dongfeng Tianjin 4X2 8-person mobile shower vehicle
Engine	DDi50E190-60, 190hp
Gearbox	Fast 8-speed gearbox
Wheelbase(mm)	5800(mm)
Vehicle dimension(mm)	10700×2550×3980(mm)
Tyre	275/80R22.5 18PR (6+1)
Facilities and information inside the vehicle	As follows
Box configuration	The cabin configuration includes important elements such as escape skylights, ventilation fans, fire extinguishers, and activity ladders to improve safety and convenience. The escape skylight and activity ladder provide additional escape routes, and the ventilation fan ensures air circulation.

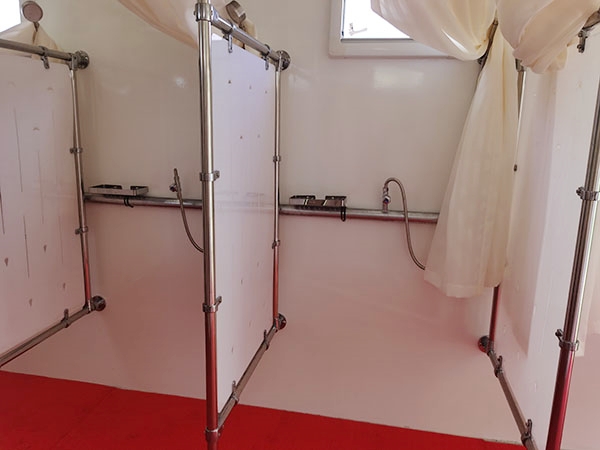

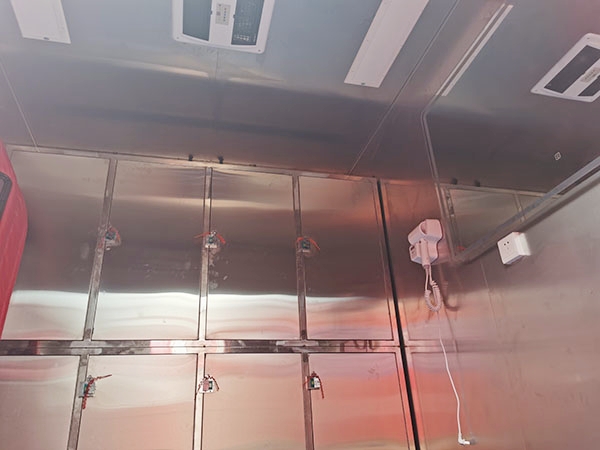

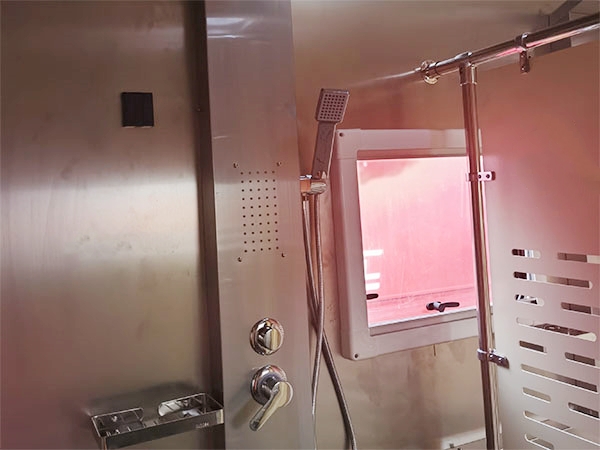

Specialized functional system	The dedicated functional system includes elements such as hot water boilers, changing cabinets, shower heads, etc., providing convenience and comfort. Hot water boilers provide heating water, while changing cabinets and shower heads enhance the vehicle
Distribution system	The power distribution system includes elements such as generators, distribution cabinets, charging equipment, etc., to ensure power support. The generator and auxiliary battery provide backup power for charging the machine and manage the power distribution cabinet.
Auxiliary system	The auxiliary system includes a driving recorder, warning lights, strobe lights, etc. to improve safety and emergency response. The driving recorder records the driving process, while the warning lights and strobe lights provide warning and emergency signals.
Waterway system	The waterway system includes clean water tanks, sewage tanks, water pumps, filters, and other equipment. Ensure the cleanliness and recycling of internal water resources. The materials of the clean water tank and sewage tank are safe, and the water pump and filter ensure the supply and recycling of water resources.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
