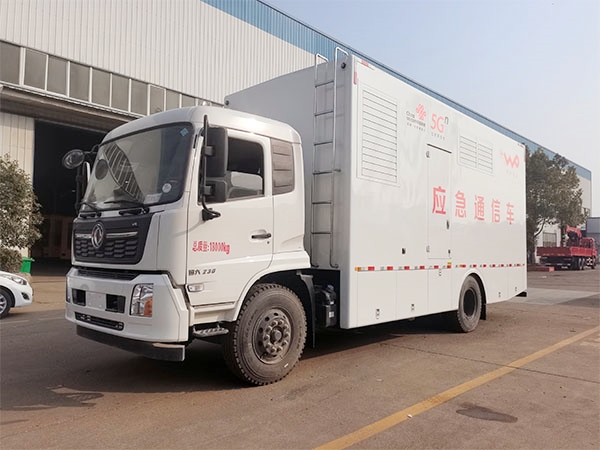

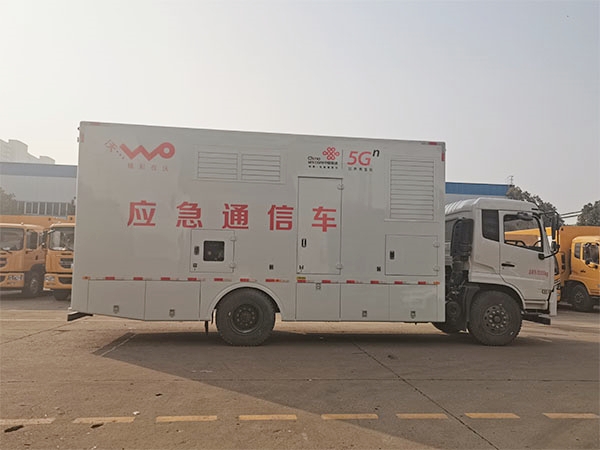

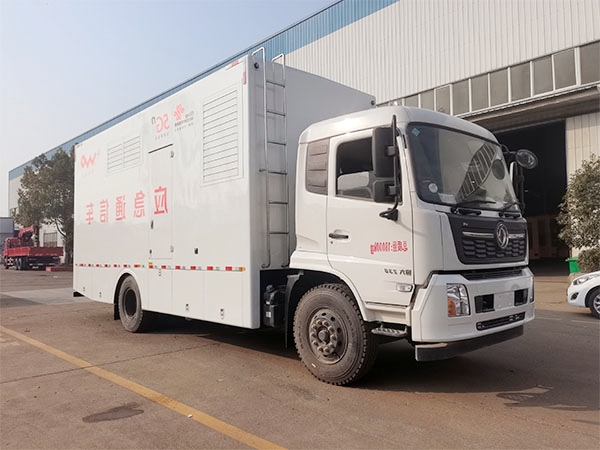

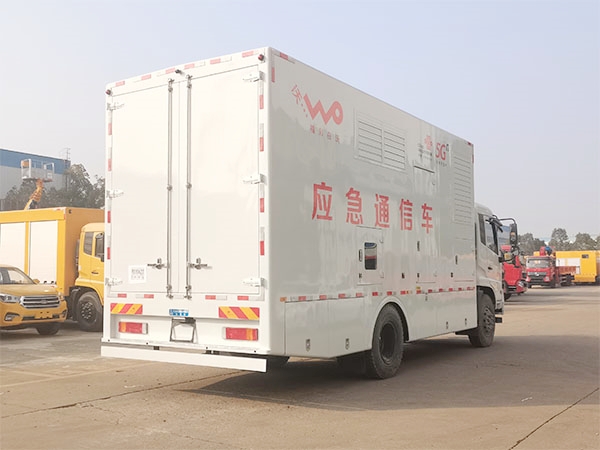

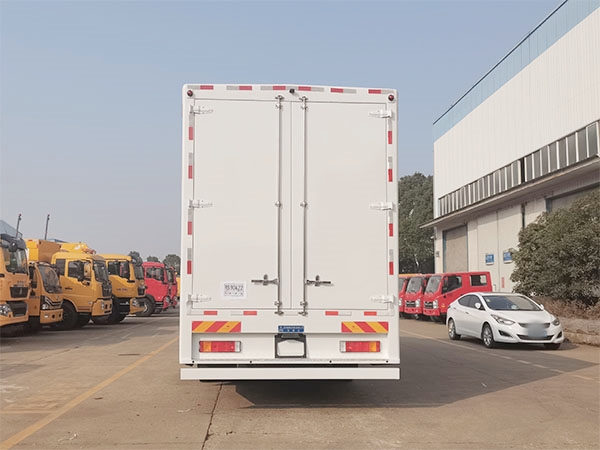

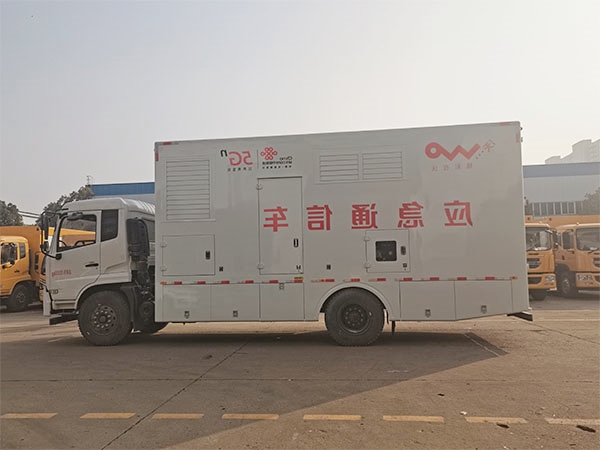

Dongfeng Tianjin 4X2 Communication Command Vehicle

Dongfeng Tianjin 4X2 Communication Command Vehicle

2024-12-21 13:33:41 Source：CLW

Product description

The Dongfeng Tianjin Communication Command Vehicle is a highly professional mobile communication and command platform with a sturdy structure and multifunctional configuration. It adopts a composite panel structure, including steel frame and fiberglass skin manufacturing process, providing superior stability and durability. The vehicle has various devices inside, including cabinets, operation consoles, LCD TVs, air conditioning, etc., to meet communication and command needs. This vehicle plays an important role in emergency command, communication support, and other fields.

Product Name

Dongfeng Tianjin 4X2 Communication Command Vehicle

Engine

B6.2NS6B210, Cummins 210hp

Gearbox

FAST 8-speed gearbox

Wheelbase(mm)

5800(mm)

Vehicle dimension(mm)

9500×2505×3795(mm)

Tyre

10.00R20 18PR(6+1)

Internal equipment

As follows

Cabin modification

The cabin modification adopts a composite panel structure, including a sturdy steel frame, a 1.5mm thick fiberglass outer skin, and a fiberglass interior panel. The skeleton is made of 2mm wall thickness, 40mm × 80mm square steel pipes, and high-strength aluminum profiles are used at the four corners to provide reliable support. The box is filled with insulation and thermal insulation materials, providing silent treatment. The vehicle is equipped with various doors, windows, sunshades, and hydraulic systems.

Interior

The interior includes storage cabinets, seats, air conditioning ducts, TV walls, flooring, interior panels, etc. These elements provide interior functionality and aesthetics for the vehicle. Storage cabinets provide storage space, seats provide seating, and interior elements enhance the texture of the interior. The vehicle also has equipment such as television and air conditioning, providing more convenience and entertainment.

Equipment

Vehicle equipment cabinets, operation consoles, level gauges, LCD TVs, air conditioners, and other equipment. These devices provide work and entertainment functions. Cabinets and workstations provide installation and operation space for electrical equipment, while air conditioning provides indoor comfort.

Vehicle accessories

The accessories of the vehicle include alarm devices, fire extinguishers, etc. The alarm device is used for smoke and fire alarm in the car to ensure safety. Fire extinguishers are used to respond to emergencies such as fires.

Electrical system

The electrical system includes a power supply system, a dedicated distribution panel, a lighting system, grounding, power cables, waterproof plugs, antennas, and cable reels. These systems ensure that vehicles have functions such as power supply, lighting, power sockets, while providing functions such as waterproofing and antennas to meet various needs.

Notice

The above information is for reference only, and vehicles can be customized depending on your requirements.

Dongfeng Tianjin 4X2 Communication Command Vehicle

A command vehicle is a vehicle specifically designed for command and control, typically modified from light off-road vehicles or other types of vehicles. The vehicle is equipped with necessary communication equipment and technical devices for commanding personnel to carry out command operations at mobile or fixed locations. Command vehicles play a crucial role in various emergency situations and military operations, providing real-time communication and command support.

Parameter
