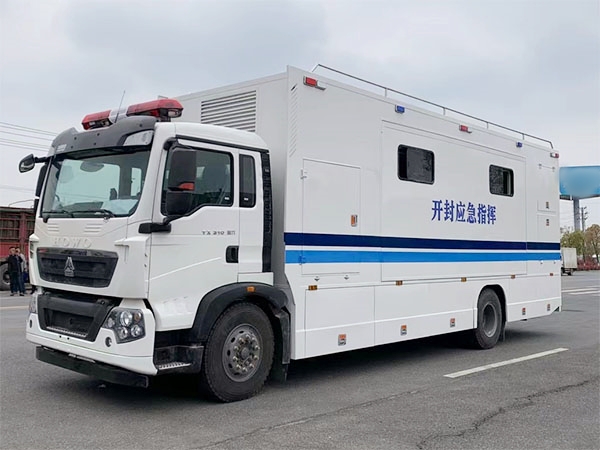

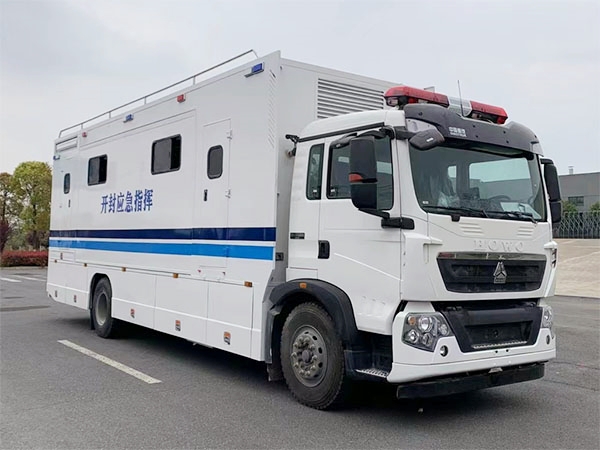

Sinotruk Howo 4X2 Communication Command Vehicle

Product description

The Sinotruk Howo Communication Command Vehicle is a vehicle designed specifically for emergency command and communication needs, equipped with advanced wireless private network communication systems, high-definition monitoring equipment, and multifunctional load-bearing platforms to ensure fast and flexible on-site command and dispatch. The body structure adopts insulation box and anti rust aluminum plate, and the roof is equipped with warning lights and communication antennas. The interior layout is reasonable, including equipment area, conference and office area, and living facilities area, providing comprehensive support

Product Name	Sinotruk Howo 4X2 Communication Command Vehicle
Engine	WP7H245E62, Weichai 245hp,
Gearbox	Sinotruk 8-speed gearbox, manual,8 forward gears and 2 reverse gears
Seat	/
Wheelbase(mm)	5800(mm)
Vehicle dimension(mm)	10630,10430×2550×3980(mm)
Tyre	295/80R22.5 18PR (6+1)
Internal equipment	As follows
Body structure and exterior design	The body of the car is made of polyurethane foam technology for insulation box, with an outer skin of 1.5mm thick anti rust aluminum plate and an inner skin of 2.5mm thick fiberglass plate. The composite panel of the box adopts an outer aluminum skin and an inner fiberglass skin, with a metal skeleton in the middle structure and filled with insulation materials.
Vehicle layout and functional division	The carriage is divided into two compartments, front and rear. The front compartment is independent and non expandable, and the equipment area functions independently, without affecting the comfort of office and life. The rear compartment is an expandable structure that is achieved through hydraulic expansion, providing additional space to accommodate a meeting of 18 people. Internally divided into equipment area, conference and office area, and living facilities area, providing useful work and life support for staff. The conference area can accommodate 18 long seats and a long conference table to meet the needs of multiple occasions.

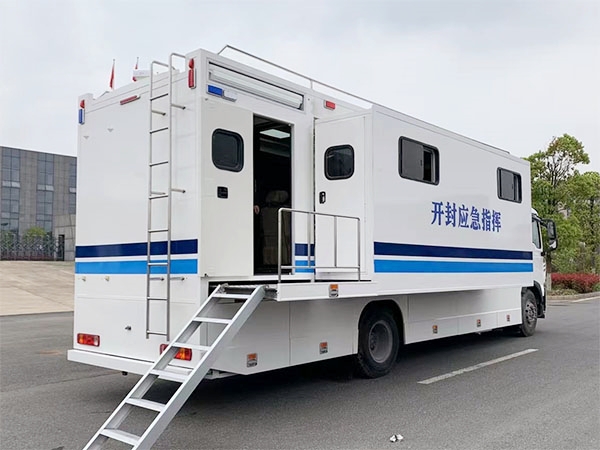

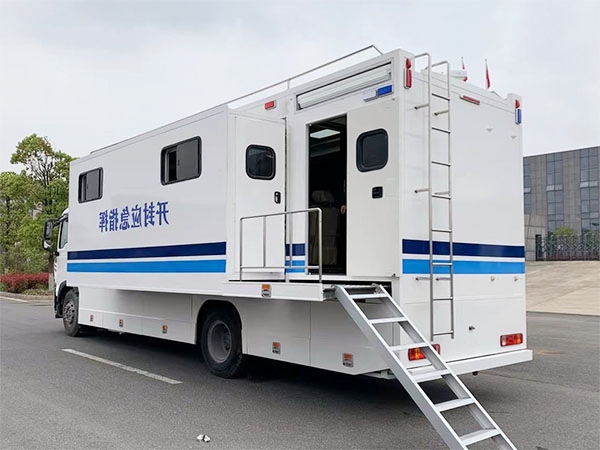

Roof equipment and maintenance platform:	The roof is designed with a multifunctional load-bearing platform and equipped with a stainless steel platform device. The rear stainless steel staircase facilitates the inspection and maintenance of various equipment on the roof.
Electrical equipment and power supply system	The vehicle is equipped with a 20KW diesel silent generator, which has stable power supply capability. At the same time, dedicated high-capacity batteries, intelligent chargers, and online UPS power supplies are used to provide AC and DC power for the equipment in the car. The car air conditioning adopts a 2P seismic design to ensure stable temperature in different working environments and meet the needs of the staff.
Communication and monitoring system	The vehicle is equipped with a wireless private network communication system, which enables communication between the command center and the command vehicle through the private network onboard station. At the same time, there is a wireless public network communication system connected to the command center. The on-site monitoring system achieves all-weather, multi-directional, and large-scale monitoring through high-definition and low light vehicle mounted pan tilt cameras. These systems ensure fast and flexible on-site command and dispatch, improving work efficiency.
Safety warning system	The vehicle is equipped with a long row of explosive flashing alarm lights specifically designed for public security, and dual color explosive flashing lights are installed around the roof, providing useful and reliable warning effects.
Image transmission and navigation system	The vehicle achieves image transmission with the command center through 4G image transmission equipment, so that the center can understand the on-site situation. In addition, the vehicle is equipped with a reverse navigation monitoring system, including a camera, controller, and 7-inch display screen, which improves the vehicle
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
