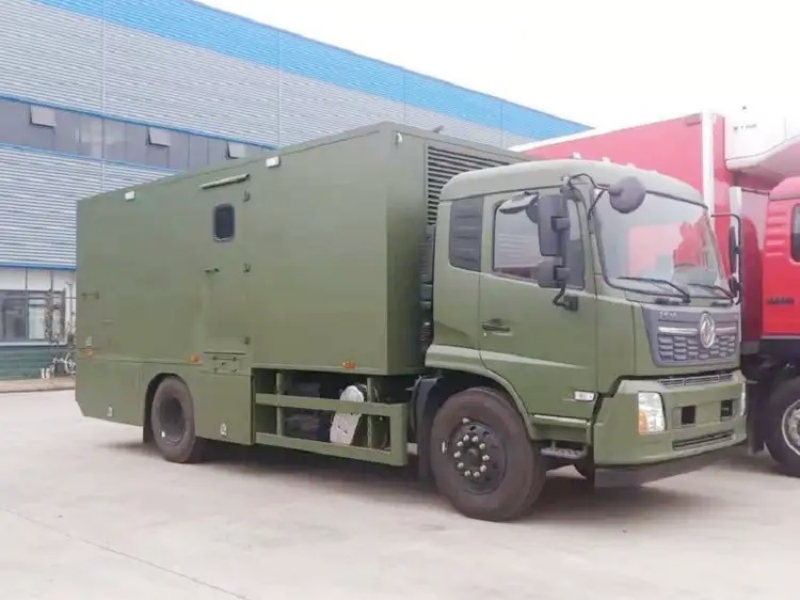

Dongfeng Tianjin 4X2 emergency laundry truck

Chassis configuration:

1.Engine: Cummins 220hp

2.Transmission type: 9-speed /10-speed gearbox

3.Wheelbase: 4700(mm)

4.Tyre: 10.00R20, 6+1 spare

5.Other: Dongfeng Tianjin cab

Product Name	Dongfeng Tianjin 4X2 emergency laundry truck
Engine	Cummins 220hp
Wheelbase(mm)	4700(mm)
Gearbox	9-speed /10-speed gearbox
Vehicle dimension(mm)	8690x2540x3600(mm)
Axle load	6500/11500
Tire	10.00R20, 6+1 spare
Drive type	4X2

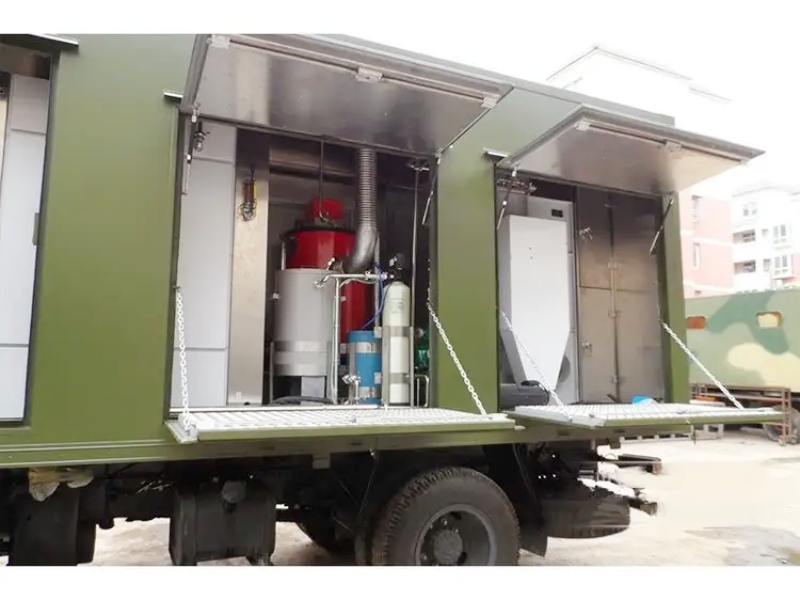

Upper configuration	Laundry system, drying system, heat source system, drainage system, onboard power generation system, electrical control system
Vehicle compartments	1 set of ventilation sunroof, 1 set of pull-out ladder (made of 304 stainless steel), 2 sets of movable ladder (made of aluminum alloy material), 1 set of hydraulic power unit, and 4 sets of spiral support legs.

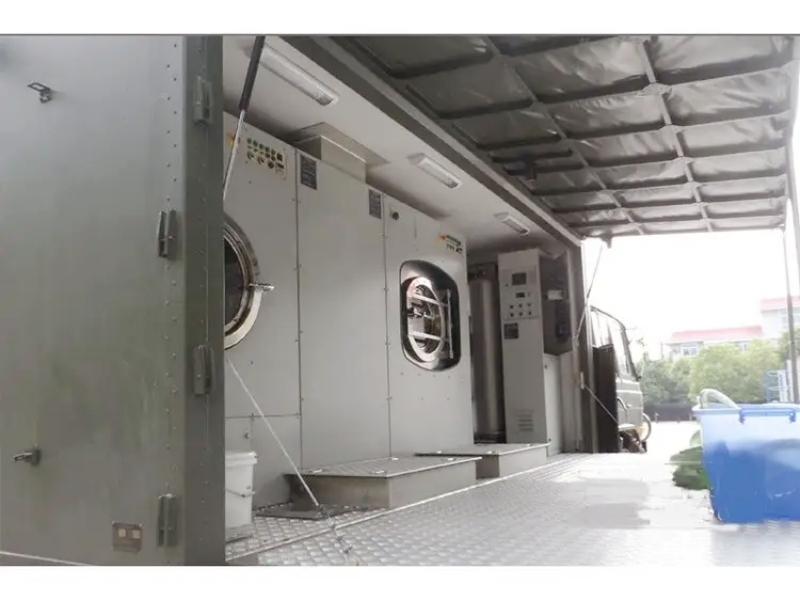

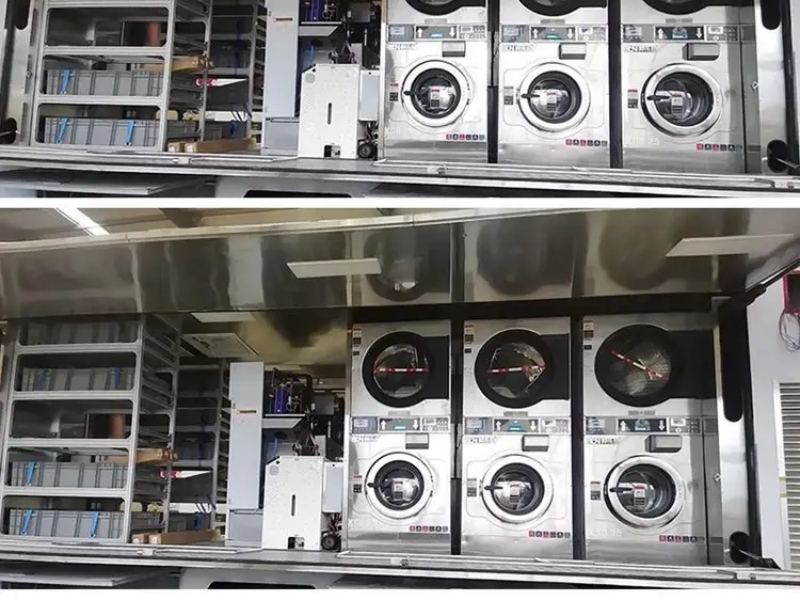

Specialized functional system	3 washing machines, 1 set of 10kg dry cleaning machine, 1 set of ultrasonic cleaning machine, 1 set of ironing table, 1 set of washing machine, 4 folding tables (304 stainless steel), 100 drying racks (304 stainless steel), 6 sets of mobile drying racks,
Electrical distribution system	40KW diesel generator, distribution cabinet, 30 meter winding reel (optional electric winding reel), 100A auxiliary battery, 2kw charging inverter integrated machine, 360 degree driving recorder, automatic charging and inflation device
Auxiliary system	Lightning protection grounding system, lightning rod, heater, clothing storage rack, oil pump, automatic charging and inflation device, fire extinguisher (2KG)
Waterway system	1500L clean water tank (304 stainless steel), 200L dirty water tank (304 stainless steel), soft water bag (1 ton), water purifier, booster pump
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
