| Product Name |
Sinotruk Howo 4X2 clothing washing vehicle |
| Engine |
MC07H.35-60, Sinotruk 350hp,257kW, 7.36L displacement |
| Wheelbase(mm) |
6050(mm) |
| Gearbox |
Howo 9-speed /10-speed gearbox |
| Vehicle dimension(mm) |
10470,9260,8500×2510,2500×3800,3700(mm) |
| Axle |
MAN Technology 7.5T disc front axle, 11T rear axle |
| Tire |
295/80R22.5 18PR,12R22.5 18PR,11.00R20 18PR,10.00R20 18PR,275/80R22.5 18PR , 6+1 spare |
| Drive type |
4X2 |
| Upper configuration |
Laundry system, drying system, heat source system, drainage system, onboard power generation system, electrical control system |
| Vehicle compartments |

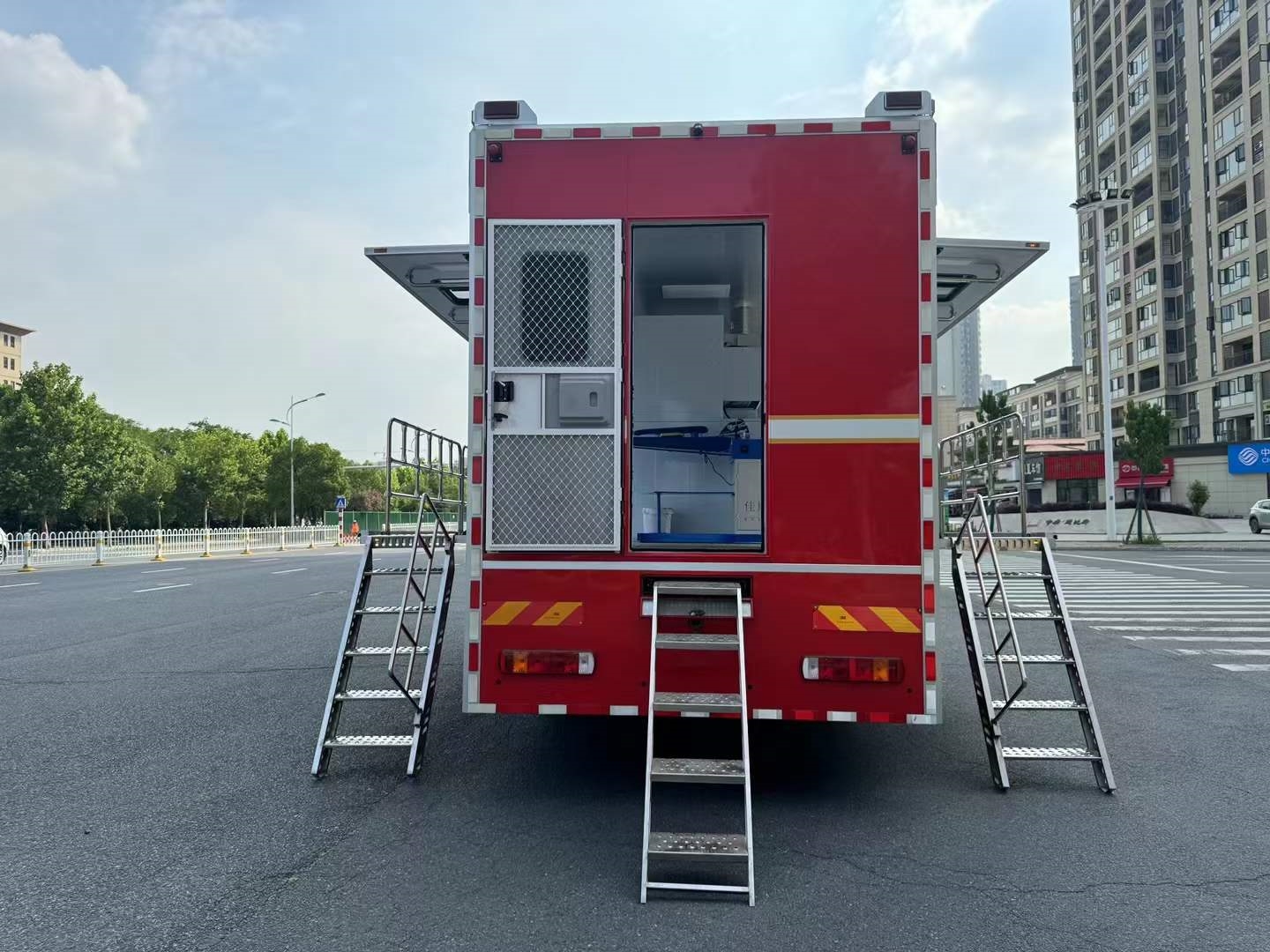

1 set of ventilation sunroof, 1 set of pull-out ladder (made of 304 stainless steel), 2 sets of movable ladder (made of aluminum alloy material), 1 set of hydraulic power unit, and 4 sets of spiral support legs. |
| Specialized functional system |

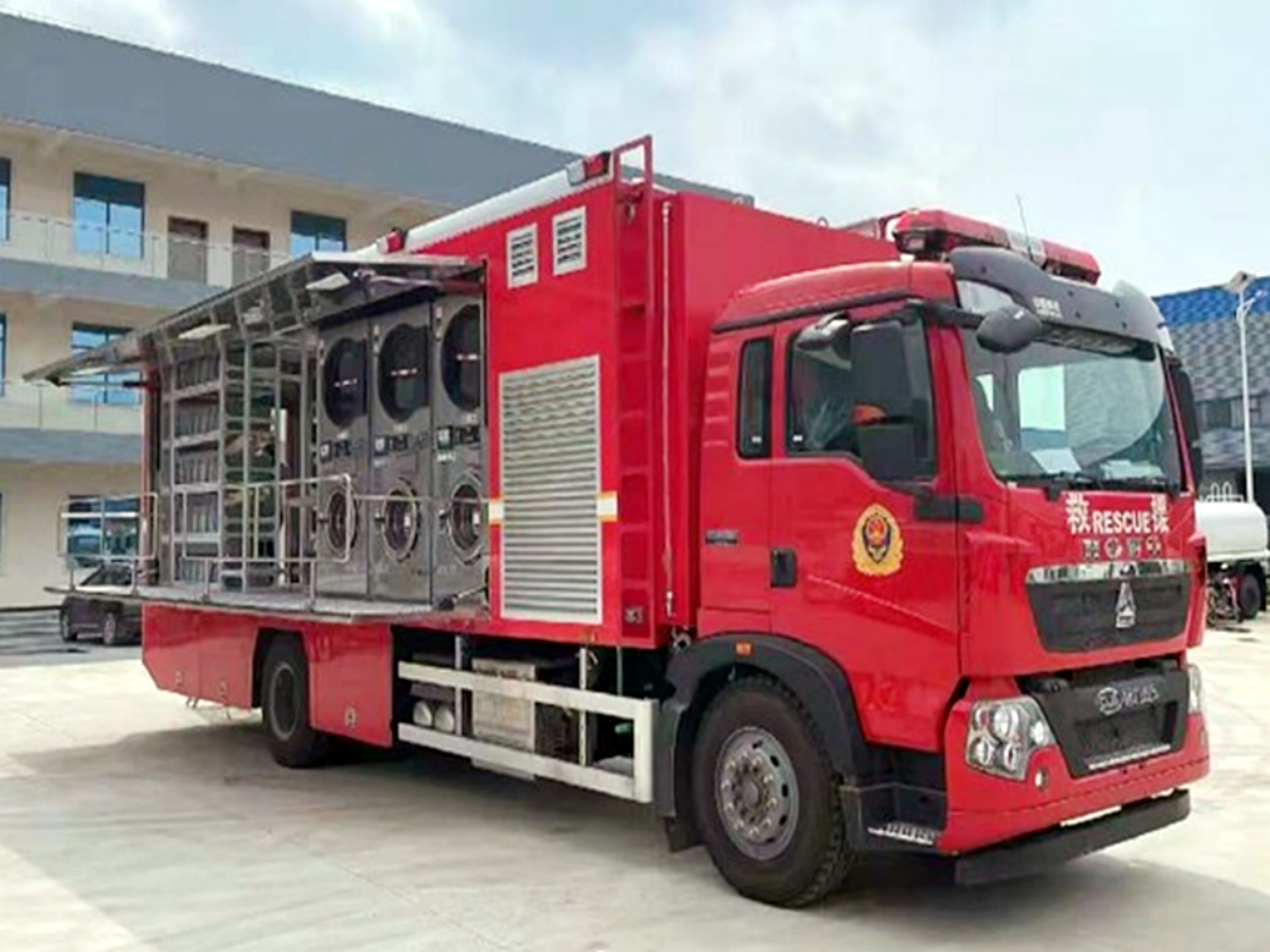

3 washing machines, 1 set of 10kg dry cleaning machine, 1 set of ultrasonic cleaning machine, 1 set of ironing table, 1 set of washing machine, 4 folding tables (304 stainless steel), 100 drying racks (304 stainless steel), 6 sets of mobile drying racks, |
| Electrical distribution system |
40KW diesel generator, distribution cabinet, 30 meter winding reel (optional electric winding reel), 100A auxiliary battery, 2kw charging inverter integrated machine, 360 degree driving recorder, automatic charging and inflation device |
| Auxiliary system |
Lightning protection grounding system, lightning rod, heater, clothing storage rack, oil pump, automatic charging and inflation device, fire extinguisher (2KG) |
| Waterway system |
1500L clean water tank (304 stainless steel), 200L dirty water tank (304 stainless steel), soft water bag (1 ton), water purifier, booster pump |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |

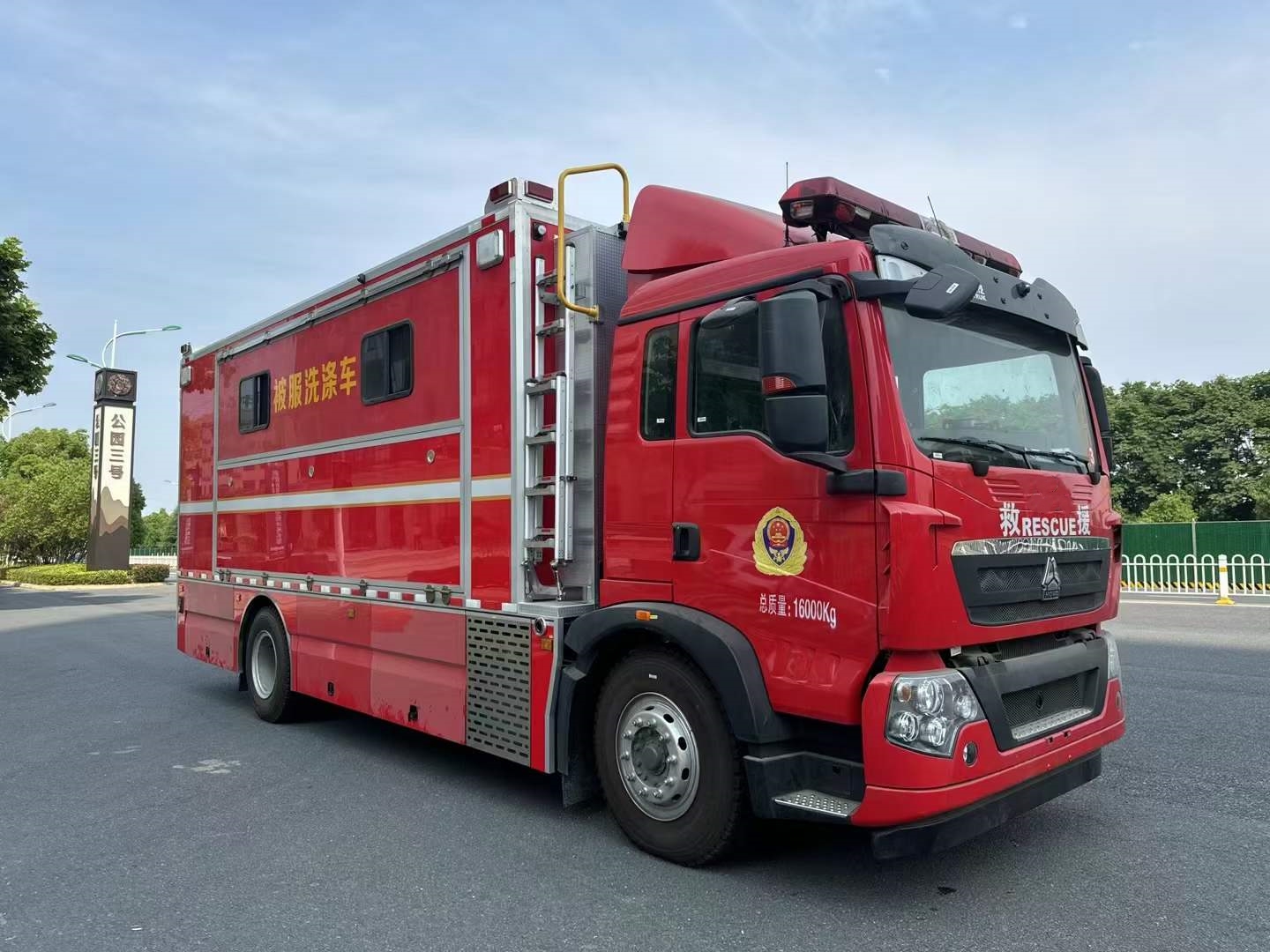

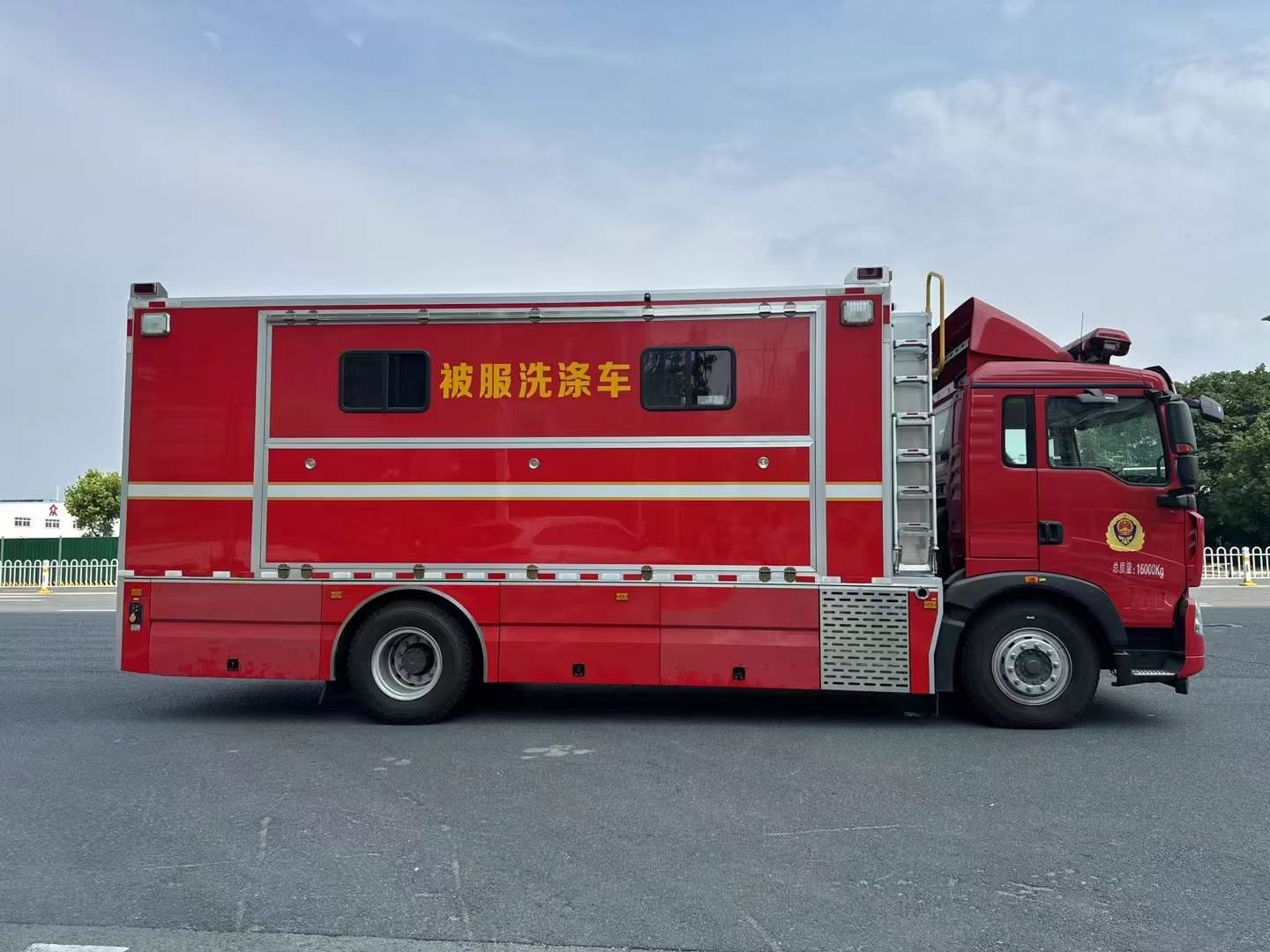

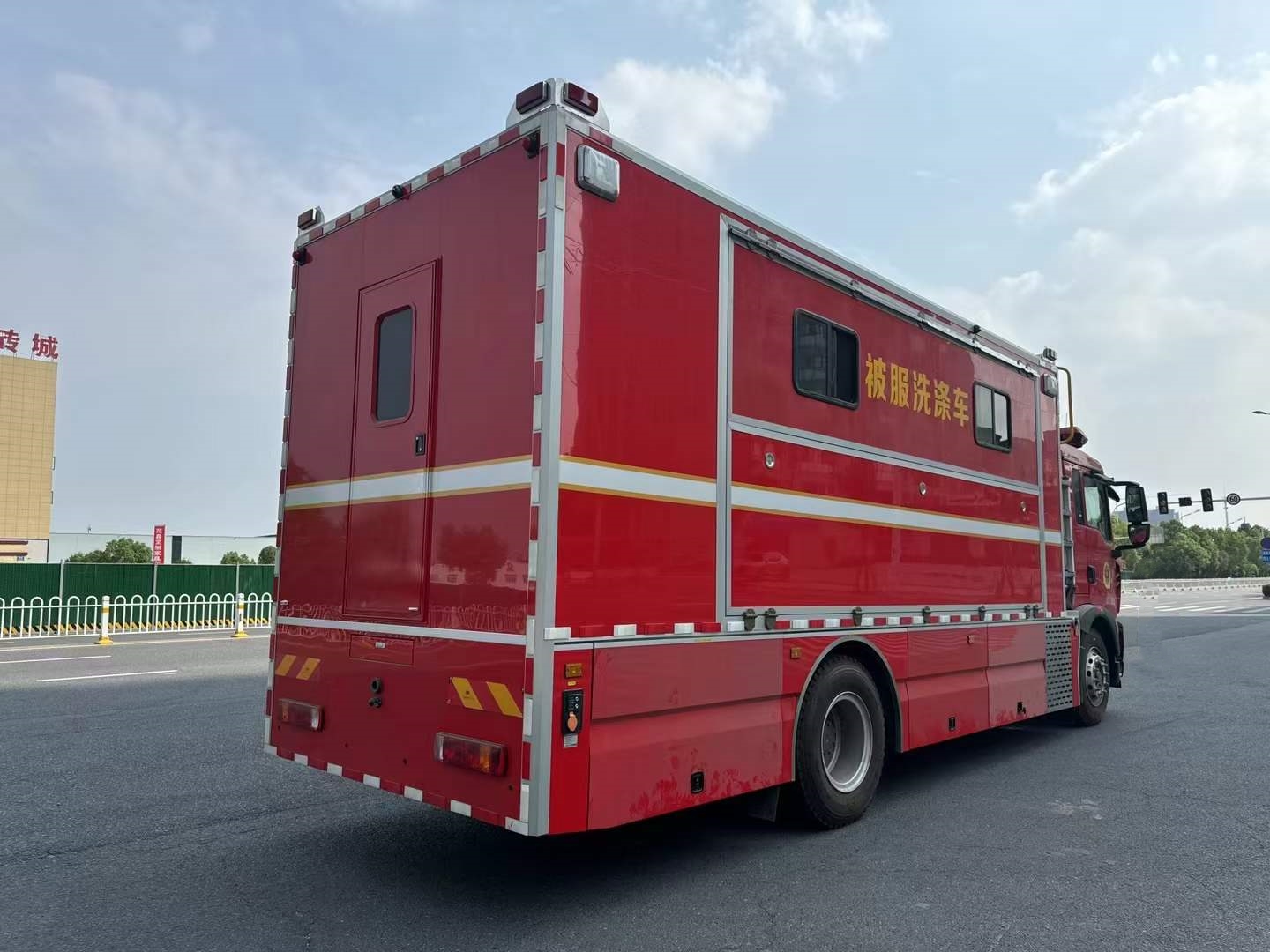

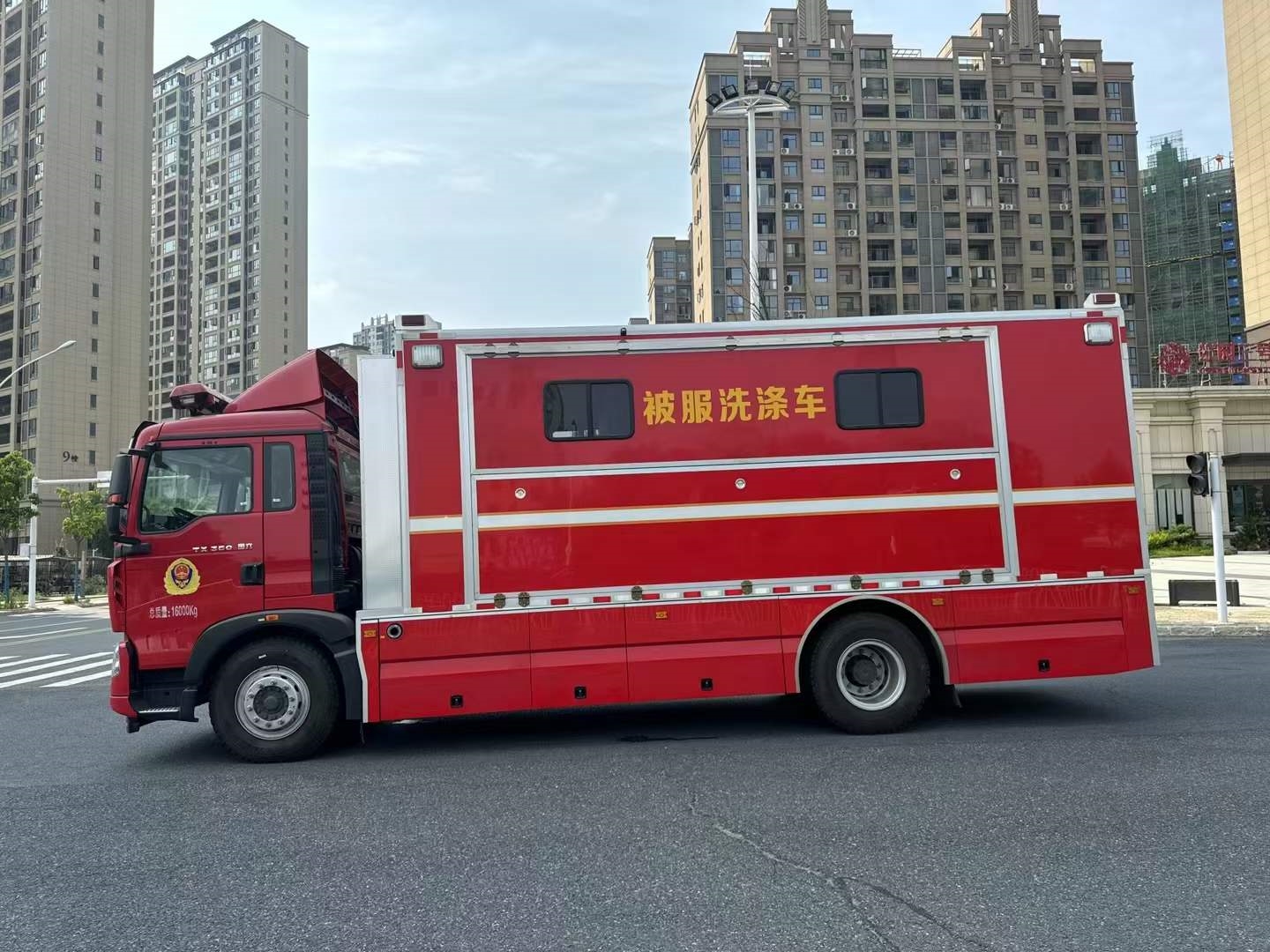

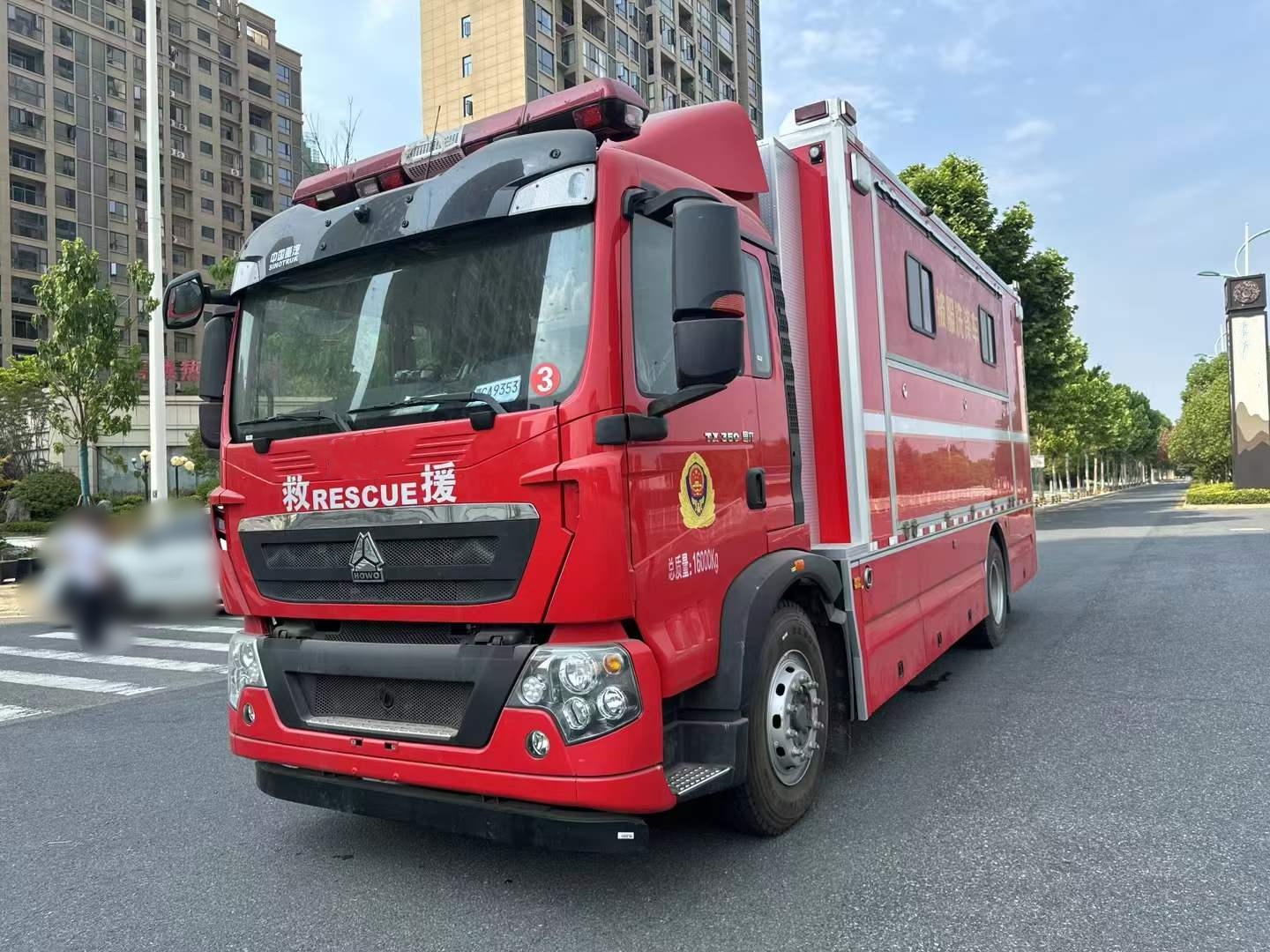

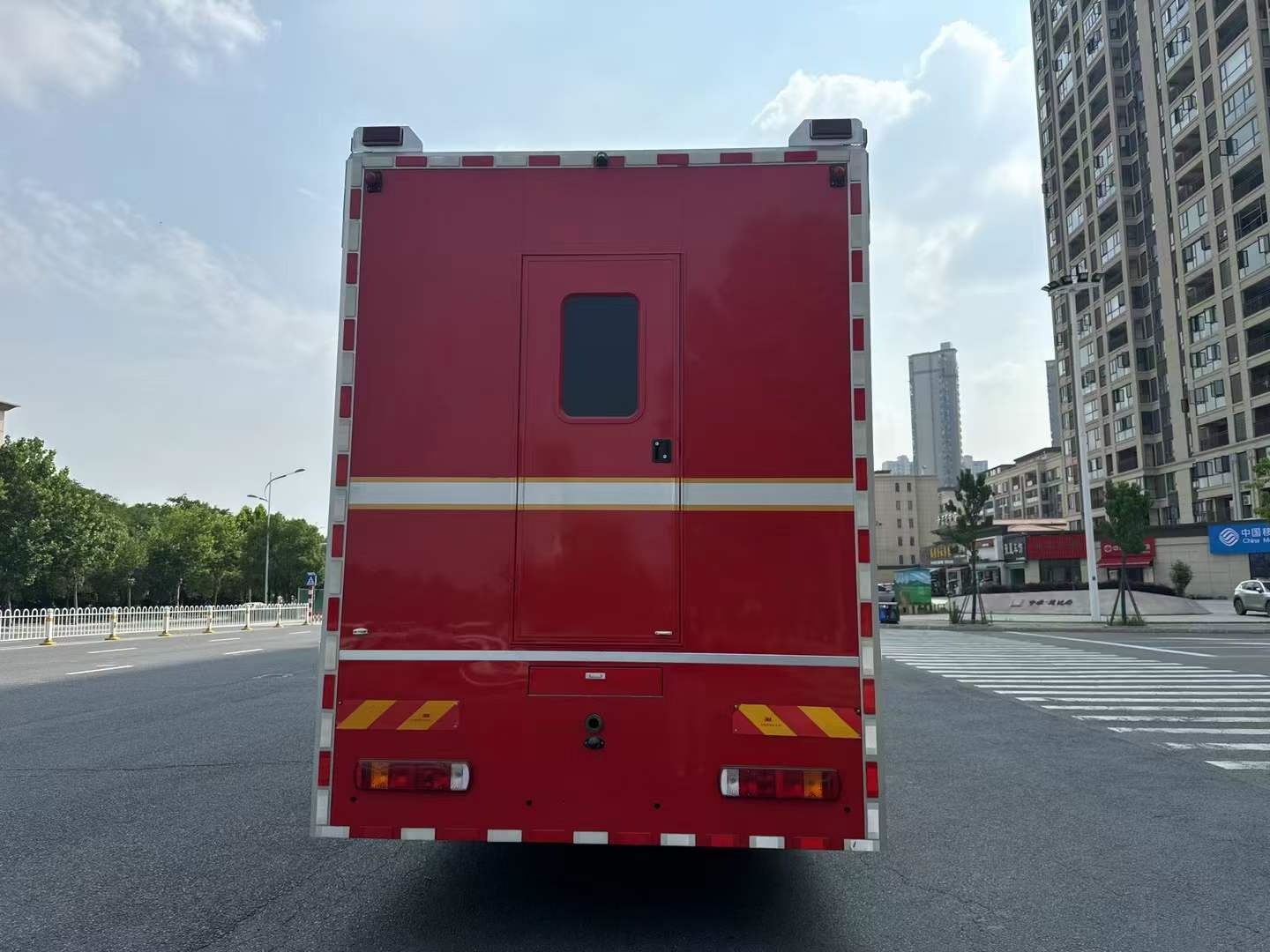

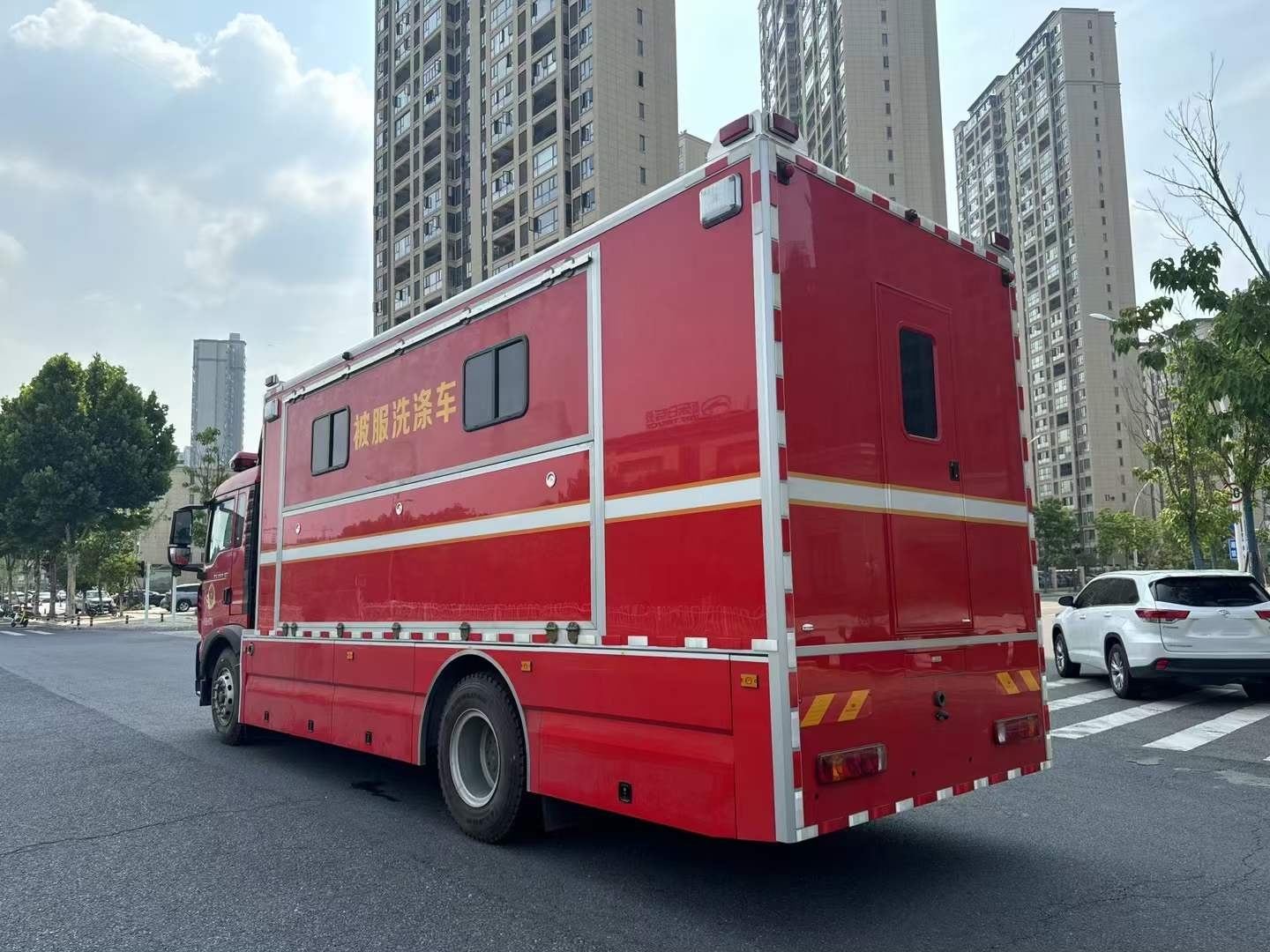

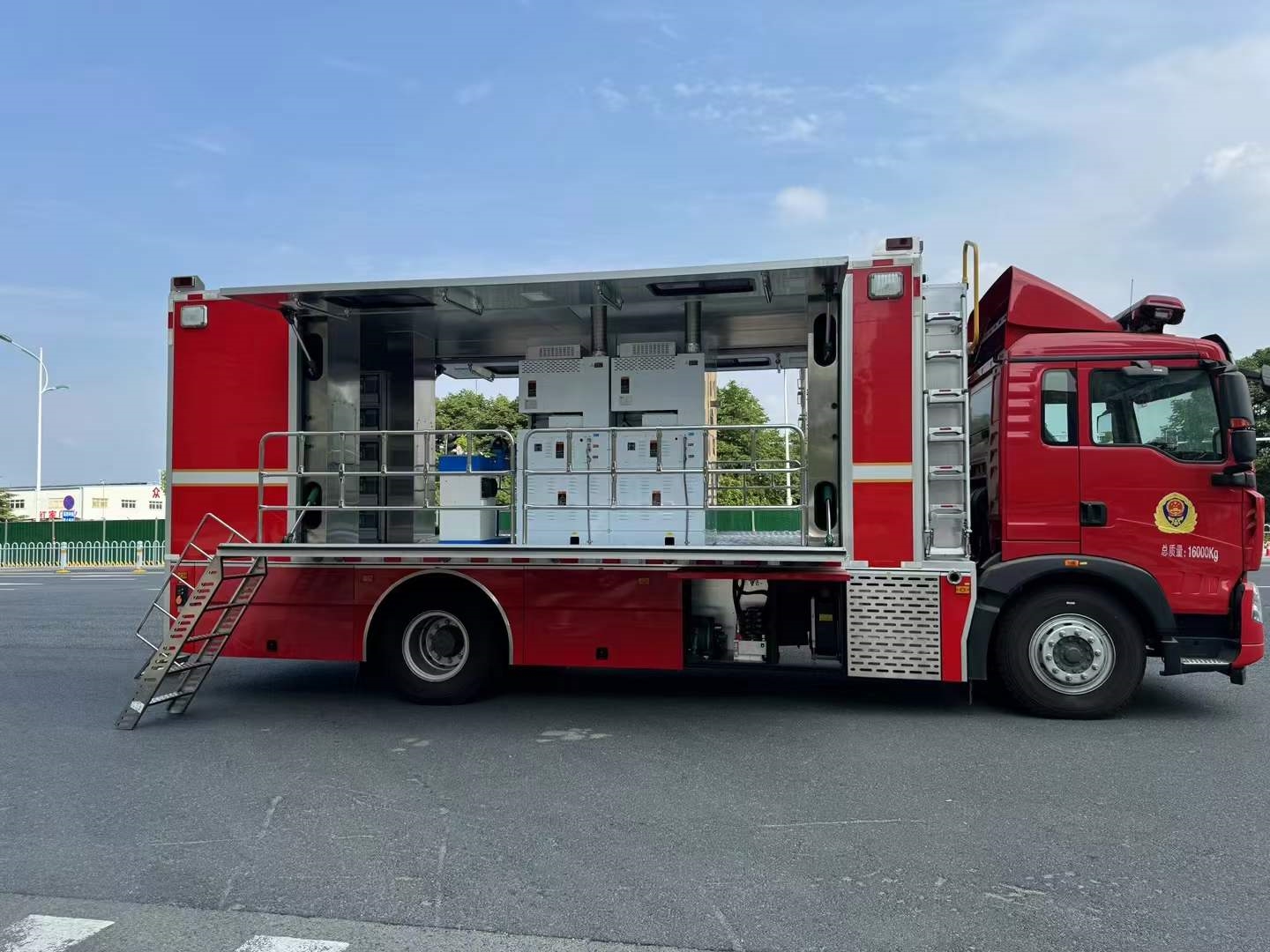

Sinotruk Howo 4X2 clothing washing vehicle
Clothing washing vehicle, also known as washing support vehicle or emergency washing vehicle, is mainly equipped with clothing washing and drying equipment. It integrates multiple functions such as washing, drying, and hanging ironing, and is easy to operate and use with a high degree of automation. It provides clothing cleaning for firefighters and the public at the scene of fire rescue, floods, and other disasters, and can wash up to 100kg of dry weight clothing in one hour; Drying takes 40-50 minutes.
