| Product Name |
Isuzu 4X2 flood control and rescue vehicle |
| Drive type |
4X2 |
| Gross vehicle weight(Kg) |
4495(Kg) |
| Curb weight(Kg) |
4170(Kg) |
| Rated weight(kg) |
/ |
| Wheelbase(mm) |
3360,2800(mm) |
| Overall Dimension(mm) |
5980,5940×1960,2010×2720,2820,2920(mm) |
| Engine brand & model |
4KH1CN6LB, Qingling Isuzu 120HP |
| Axle Quantity |
2 |
| Transmission Type |
6-speed gearbox |
| Brake system |
air brake |
| Tire Spec. & size |
7.00R16 8PR,6.50R16LT 10PR, 6+1 spare |
| Cab |
Double row cab, air conditioning |
| Standard configuration |
The dedicated devices inside the cabin include the generator unit, long-distance transmission device, and drainage function, which are used for rescue operations |
| High pressure hand lift water pump |
Lift ≥ 500m, range ≥ 25m. |
| Water strip storage rack |
The storage water hose can be laid for a length of ≥ 3000m, |
| Box body |
1. The exterior steel of the cabin is made of high-quality cold-rolled steel plate, and the inner lining is made of high-quality cold-rolled steel plate bent skeleton, with advanced technology and strong strength. 2. The cabin is a fully sealed structure that meets the requirements of transportation, rain protection, corrosion prevention, fire prevention, and rust prevention. 3. Install aluminum alloy rolling shutter doors at the rear of the carriage. 4. Doors are installed on both sides of the carriage, with rain proof louvers for the generator inlet and outlet. Hidden pull-out ladders are installed under the working door and at the rear, connected to the carriage floor frame. |
| External lighting fixtures |
Install lifting lighting fixtures on the top of the rear of the carriage, with a power of 150 × 2=300W; Light source form: LED light (dual spotlight, dual floodlight); The lamp post is lifted to a height of 1800mm with a horizontal rotation angle of 360 °; Vertical rotation angle 330 °; |
| Long warning lights |
There are long rows of engineering warning lights with loudspeakers on the front of the truck. |
| Firefighting |
Equipped with two portable dry powder fire extinguishers, placed in an easily accessible location on the vehicle. |
| Step ladder |
Aluminum alloy pedals are beautiful and convenient. |
| Emergency light: |
Portable emergency lighting, convenient for temporary illumination. |
| Interior lighting device |
AC/DC fluorescent lamp |
| Toolbox |
Onboard toolbox for easy access |
| Painting and labeling |
can be sprayed according to requirements |
| Kind reminder |
The above information is for reference only. Vehicles can be customized according to customer needs. |

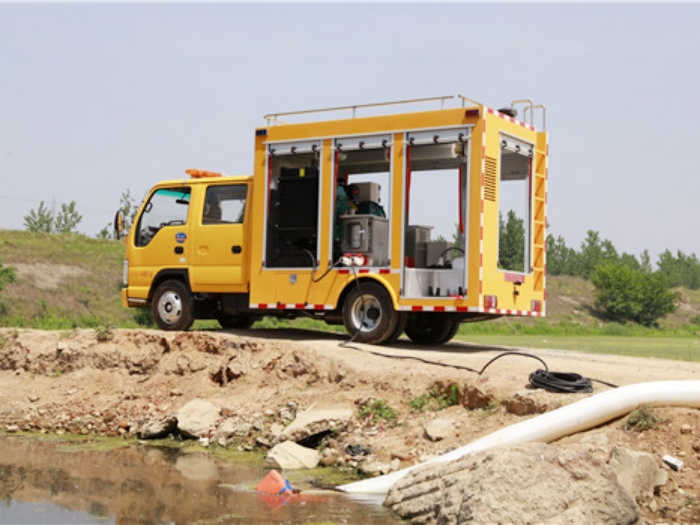

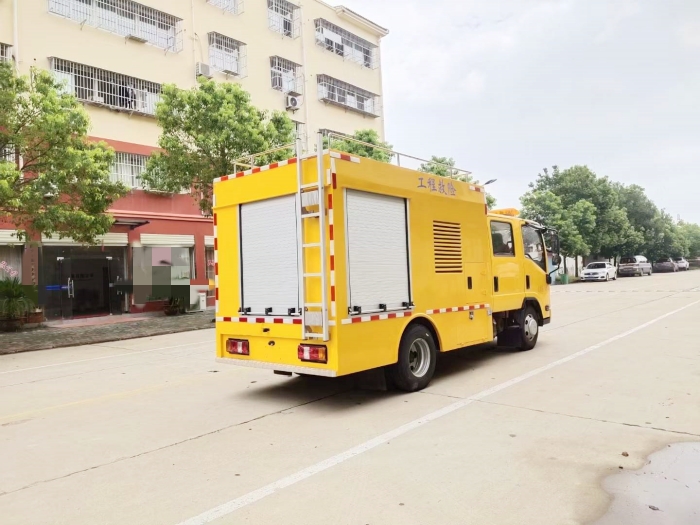

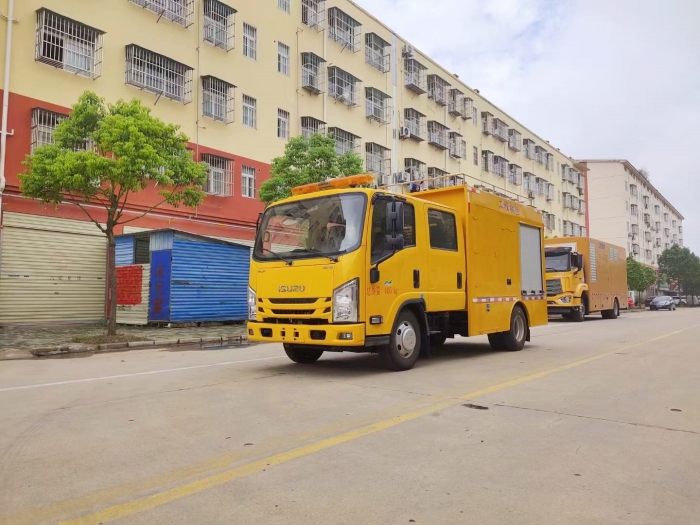

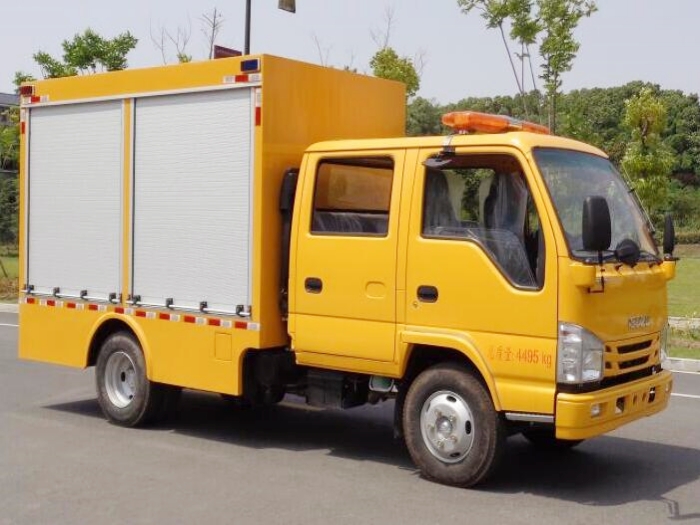

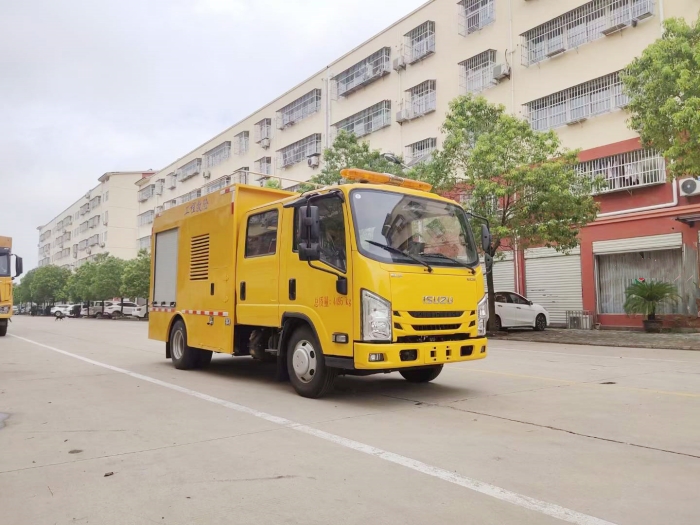

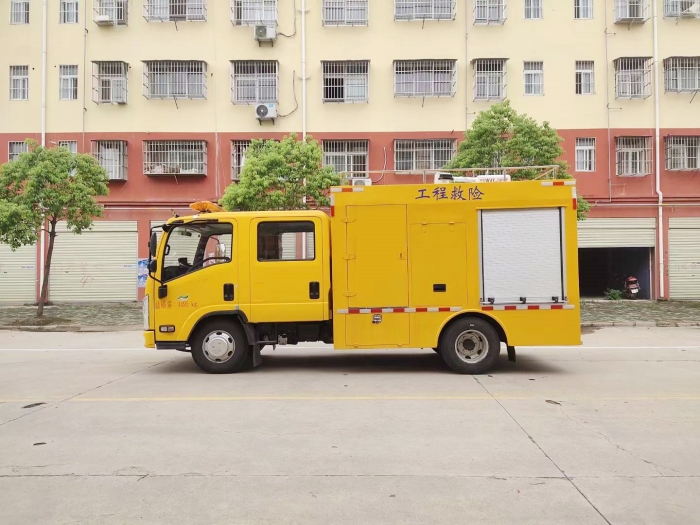

Isuzu 4X2 flood control and rescue vehicle
Isuzu rescue vehicle is a professional emergency vehicle that can carry construction power, gas, tools, materials, and personnel. The main scope of application includes emergency repair of urban water supply and drainage pipelines, power supply, heating, gas pipelines, petrochemicals, etc. It is essential for emergency rescue in municipal engineering.
Installation configuration of Isuzu 4X2 flood control and rescue vehicle
1. The exterior steel of the cabin is made of high-quality cold-rolled steel plate, and the inner lining is made of high-quality cold-rolled steel plate bent skeleton, with strong craftsmanship and strength. The cabin is a fully sealed structure that meets the requirements of transportation, rain protection, corrosion prevention, fire prevention, and rust prevention. Install aluminum alloy rolling shutter doors at the rear of the carriage. The intake and exhaust air of the generator set are treated with noise reduction, and the muffler is treated with noise reduction. Both sides of the carriage water pump are equipped with open doors, rain proof louvers for the generator inlet and outlet, and hidden pull-out ladders under the working door and at the rear, which are connected to the carriage floor frame.
2. The carriage can be equipped with 1-2 portable ultra light high-speed stainless steel submersible pumps, with a total flow rate of 500-1000 cubic meters per hour. Each pump has a flow rate of 500 cubic meters per hour, a power of 18.5KW, and a weight of 32KG. Each pump is equipped with two 200MM diameter fire-fighting water pipes, each with a length of 25 meters, and a cable line of 30 meters.
