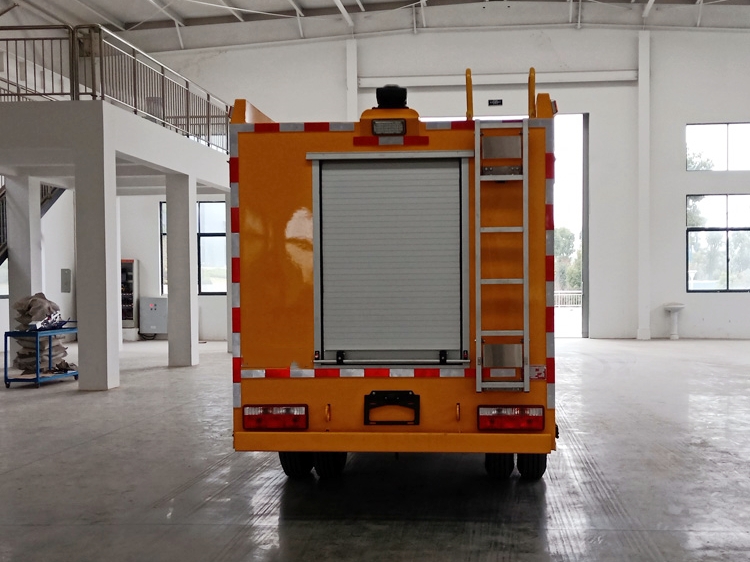

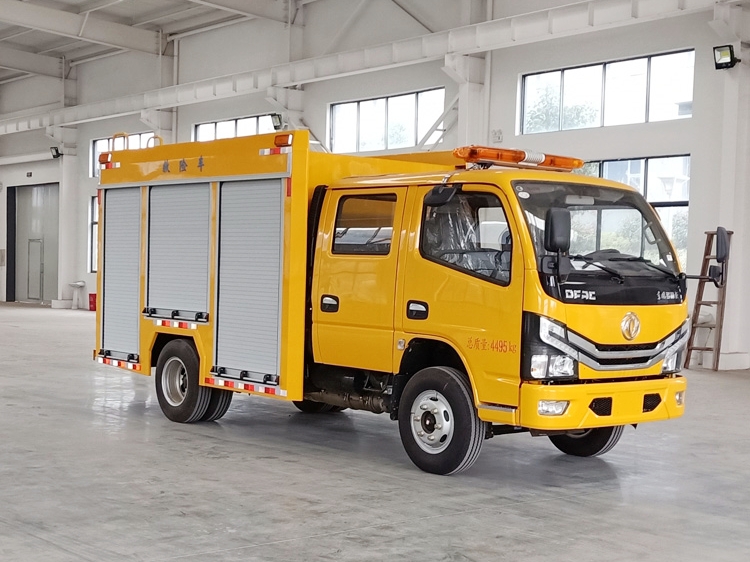

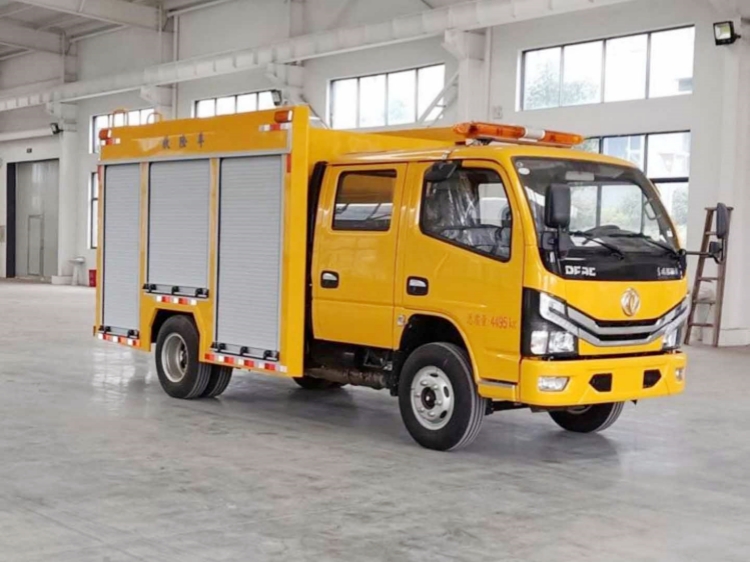

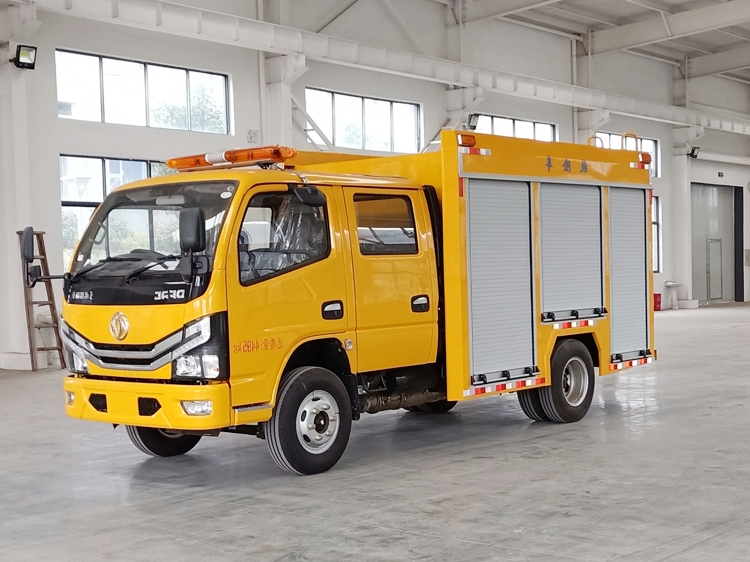

Dongfeng 4X2 remote water supply pipeline truck

Dongfeng 4X2 remote water supply pipeline truck

Chassis configuration:

1. Engine: YCY24140-60, Yuchai 140hp

2.Transmission type: 6 forwards,1 reverse gear

3.Wheelbase: 3308,2950(mm)

4.Tyre: 7.00R16 8PR,6.50R16LT 10PR, 6+1 spare

Product Name	Dongfeng 4X2 remote water supply pipeline truck
Drive type	4X2
Gross vehicle weight(Kg)	4495(Kg)
Curb weight(Kg)	4170(Kg)
Rated weight(kg)	/
Wheelbase(mm)	3308,2950(mm)
Overall Dimension(mm)	5998 ×2000× 2710(mm)
Engine brand & model	YCY24140-60, Yuchai 140hp
Axle Quantity	2
Transmission Type	6 forwards,1 reverse gear
Brake system	air brake
Tire Spec. & size	7.00R16 8PR,6.50R16LT 10PR, 6+1 spare
Cab	Double row cab

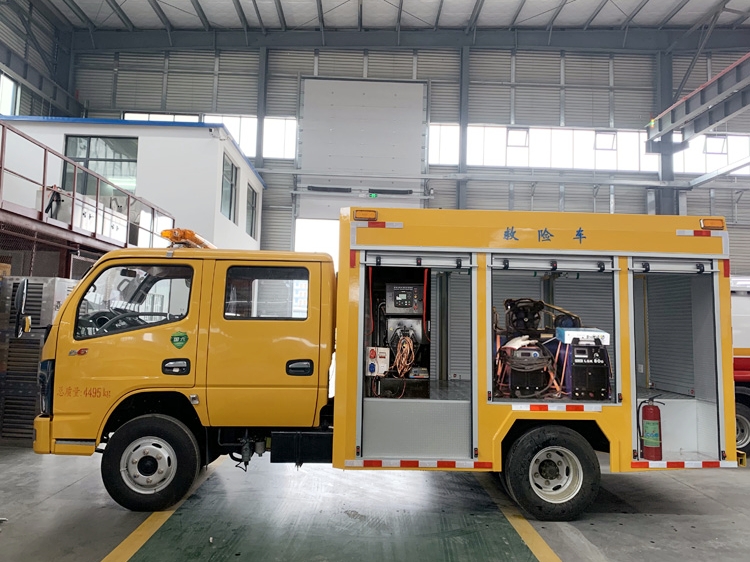

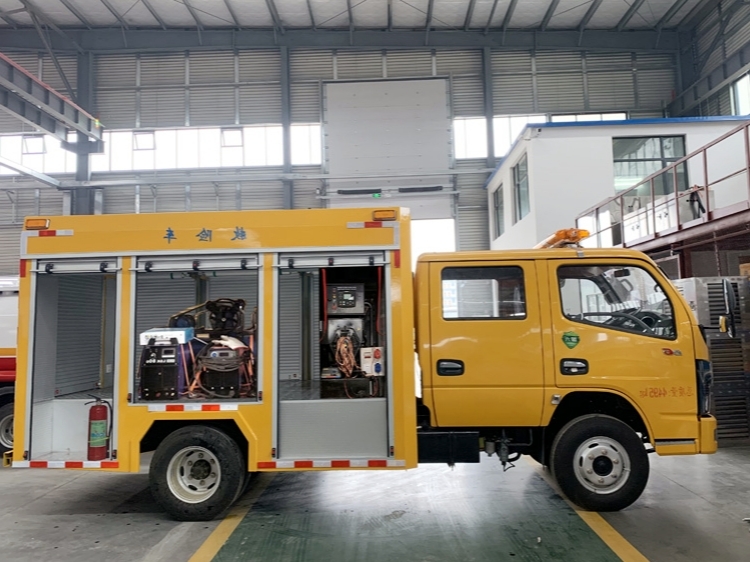

Standard configuration	The dedicated devices inside the cabin include the generator unit, long-distance transmission device, and drainage function, which are used for rescue operations
High pressure hand lift water pump	Lift ≥ 500m, range ≥ 25m.
Water strip storage rack	The storage water hose can be laid for a length of ≥ 3000m,
Box body	1. The exterior steel of the cabin is made of high-quality cold-rolled steel plate, and the inner lining is made of high-quality cold-rolled steel plate bent skeleton, with advanced technology and strong strength. 2. The cabin is a fully sealed structure that meets the requirements of transportation, rain protection, corrosion prevention, fire prevention, and rust prevention. 3. Install aluminum alloy rolling shutter doors at the rear of the carriage. 4. Doors are installed on both sides of the carriage, with rain proof louvers for the generator inlet and outlet. Hidden pull-out ladders are installed under the working door and at the rear, connected to the carriage floor frame.
External lighting fixtures	Install lifting lighting fixtures on the top of the rear of the carriage, with a power of 150 × 2=300W; Light source form: LED light (dual spotlight, dual floodlight); The lamp post is lifted to a height of 1800mm with a horizontal rotation angle of 360 °; Vertical rotation angle 330 °;
Long warning lights	There are long rows of engineering warning lights with loudspeakers on the front of the truck.
Firefighting	Equipped with two portable dry powder fire extinguishers, placed in an easily accessible location on the vehicle.
Step ladder	Aluminum alloy pedals are beautiful and convenient.
Emergency light:	Portable emergency lighting, convenient for temporary illumination.
Interior lighting device	AC/DC fluorescent lamp
Toolbox	Onboard toolbox for easy access
Painting and labeling	can be sprayed according to requirements
Kind reminder	The above information is for reference only. Vehicles can be customized according to customer needs.
