Sinotruk HOWO 4 ton dry powder fire truck
2024-10-07 09:54:11 Source：CLW
Sinotruk HOWO 4 ton dry powder fire truck

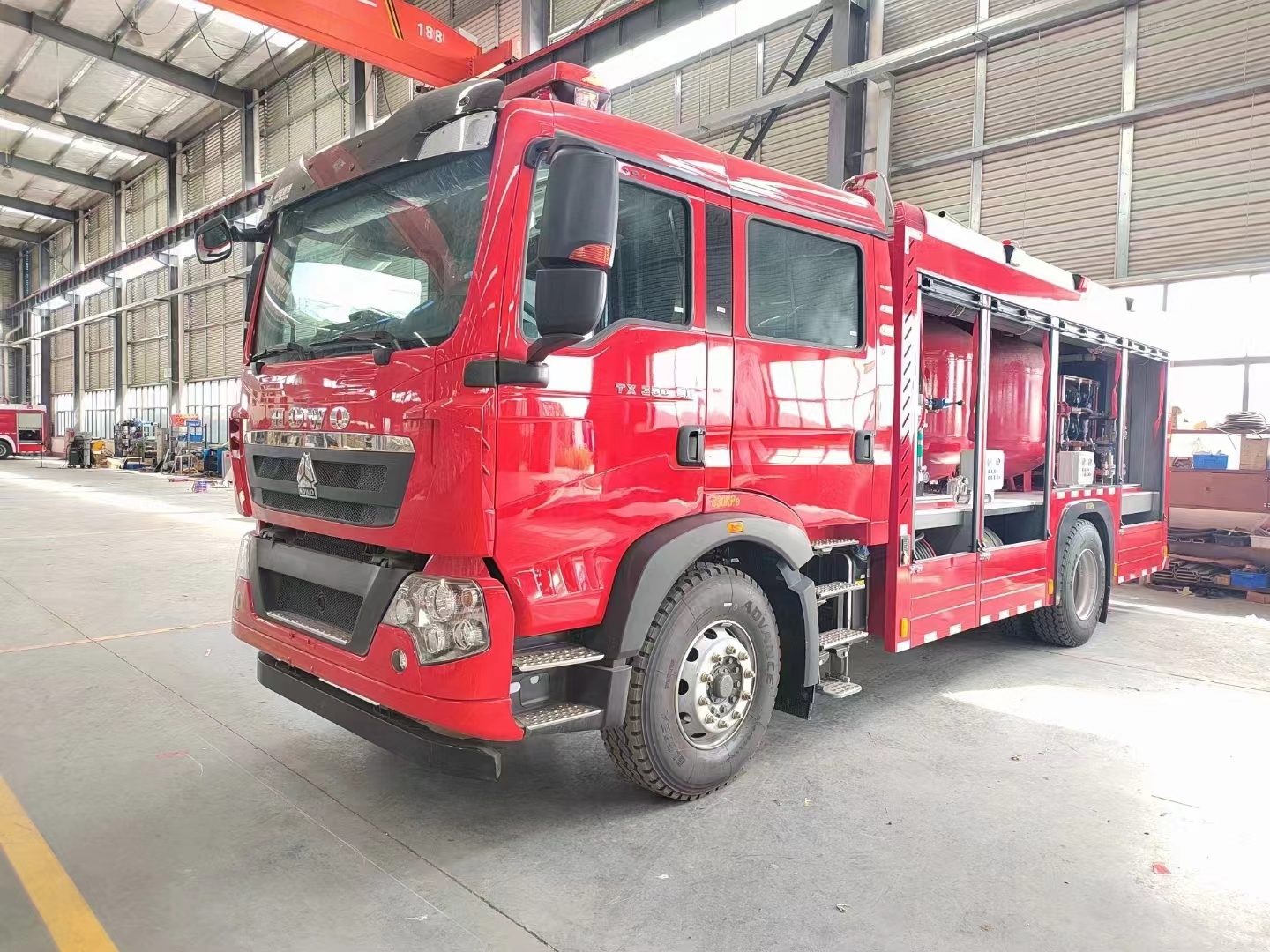

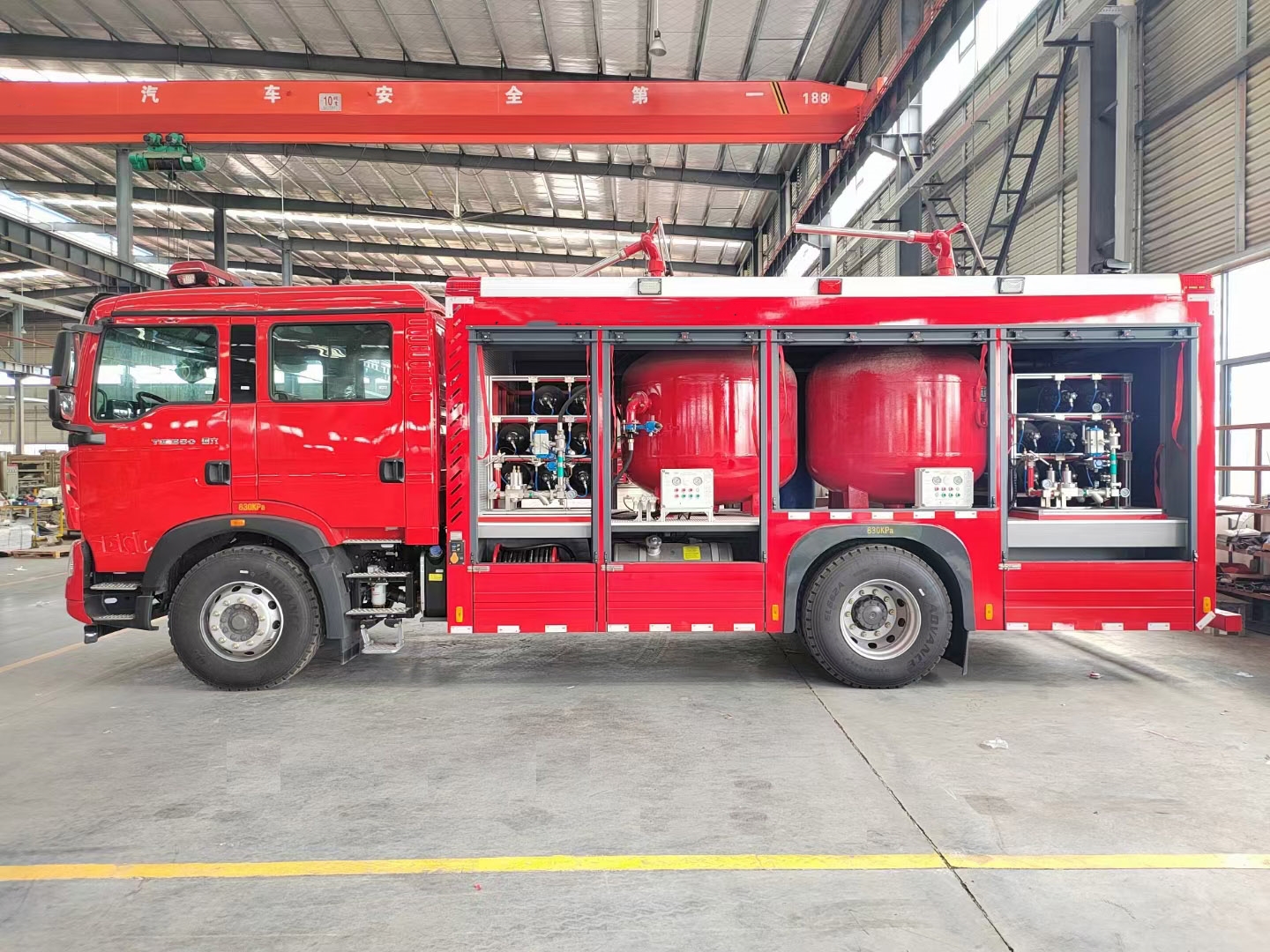

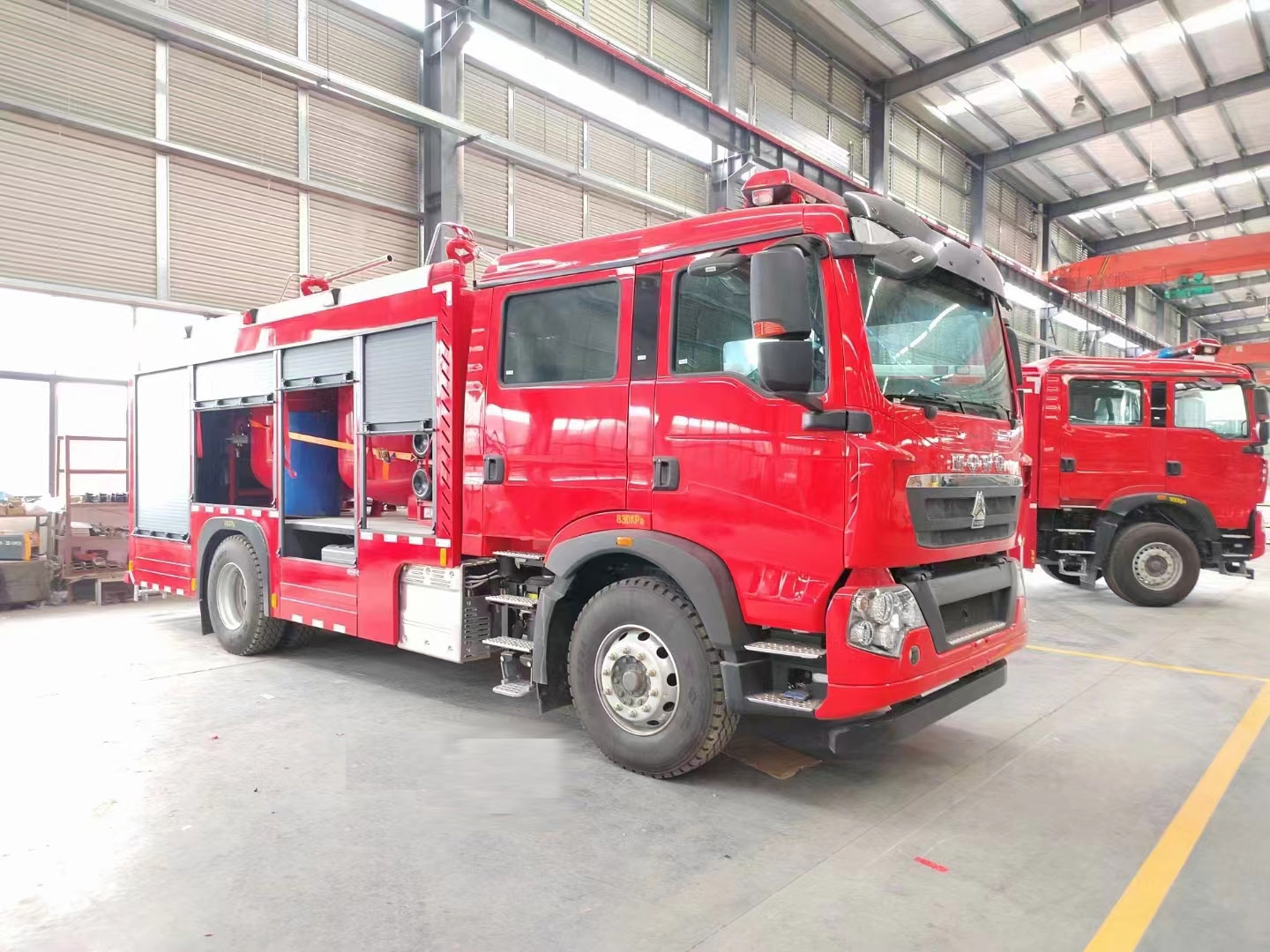

Sinotruk HOWO4-ton 4x2 dry powder fire truck adopts the Haowo type heavy-duty truck second-class chassis produced by Jinan Truck Co., Ltd. of China National Sinotruk Group. The cab can be flipped for easy engine maintenance. The upper part includes equipment box and dry powder tank, and the whole vehicle is loaded with 4000L of dry powder. The material of the dry powder tank is Q345R. Equip 2 PF5-15/30 dry powder guns. This vehicle has the characteristics of high power, high speed, and easy operation: it can be widely used in public security fire brigades, petrochemicals, factories, mines, ports, and docks in large and medium-sized cities. It can extinguish large oil fires and general material fires, and is an ideal medium-sized fire-fighting equipment.
Drive type: 4x2
Wheelbase: 4700 mm
Maximum speed: 101km/h
Engine model: MCO7H35-60
Rated power: 257KW
Net power: 254KW
Total weight: 20100kg
Structure: Flat head, four door double row cab, with four air breathing apparatus brackets installed on the rear seats
Seating arrangement: 2 people in the front row (including the driver)+4 people in the back row.
Equipment: In addition to the original vehicle equipment, it is equipped with a 100W alarm and a power take-off switch.
Dry powder quantity: 2000 L * 2
Spray rate of dry powder cannon: 30 kg/s ≤ E<35kg/s
Dry powder cannon range: ≥ 35m
| Product Name |
Sinotruk HOWO 4 ton dry powder fire truck |
| Driving Type |
4X2 |
| Total weight（Kg) |
17450(Kg) |
| Curb weight(kg) |
4000(Kg) |
| Rated weight(kg) |
13000(Kg) |
| Wheel base(mm) |
4700(mm) |
| Overall dimension(mm) |
8630 x2530x3800mm |
| Engine brand & model |
MCO7H.35-60, Sinotruk 350hp |
| Displacement(L)/Power(kw) |
257kw |
| Axle Quantity |
2 |
| Transmission Type |
10-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
air brake |
| Tire Spec. & size |
315/80R22.5,12.00R20, 6 +1 spare |
| Cab |
Flat head, four door double row cab, with four air breathing apparatus brackets installed on the rear seats |
| Extinguishing Media |
water/foam/dry-powder |
| Tank material |
carbon steel /304 stainless steel |
| Tank volume（L） |
4cbm dry power tank |
| Configuration and performance |
Dry powder cannon: model: PF5-15/30, working pressure (MPa): 0.5-1.5, spray rate (kg/s): 30 kg/s ≤ E<35 kg/s, range (meters): 235, quantity (pieces): 2 |
| Onboard equipment |
Onboard equipment Fire hose, water injection hose, DC water gun, multifunctional water gun, dry powder fire extinguisher, water collector, water separator, suction pipe wrench, rubber hammer, protective belt bridge, above ground fire hydrant wrench, underground fire hydrant wrench, water hose strap, water hose hook, fire axe, fire suction pipe, suction pipe filter, reducer interface |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Sinotruk HOWO 4 ton dry powder fire truck
A fire engine, also known as a fire truck,
refers to a vehicle designed and manufactured according to needs, suitable for
firefighters to use, equipped with various fire-fighting equipment or agents,
for firefighting, auxiliary firefighting, or firefighting rescue. It is the
main tool for firefighting and is also the most basic mobile firefighting
equipment.
A dry powder fire truck is a specialized firefighting vehicle used for extinguishing fires, mainly equipped with dry powder fire extinguishing agent tanks, dry powder spraying devices, fire pumps, and firefighting equipment. Dry powder fire trucks usually use high-pressure nitrogen as the driving force for launching dry powder fire extinguishing agents. By filling the powder storage tank with gas and expanding it to work, the dry powder is driven to spray out from the gun mouth, forming a mist like airflow and shooting it towards the fire source for extinguishing.
