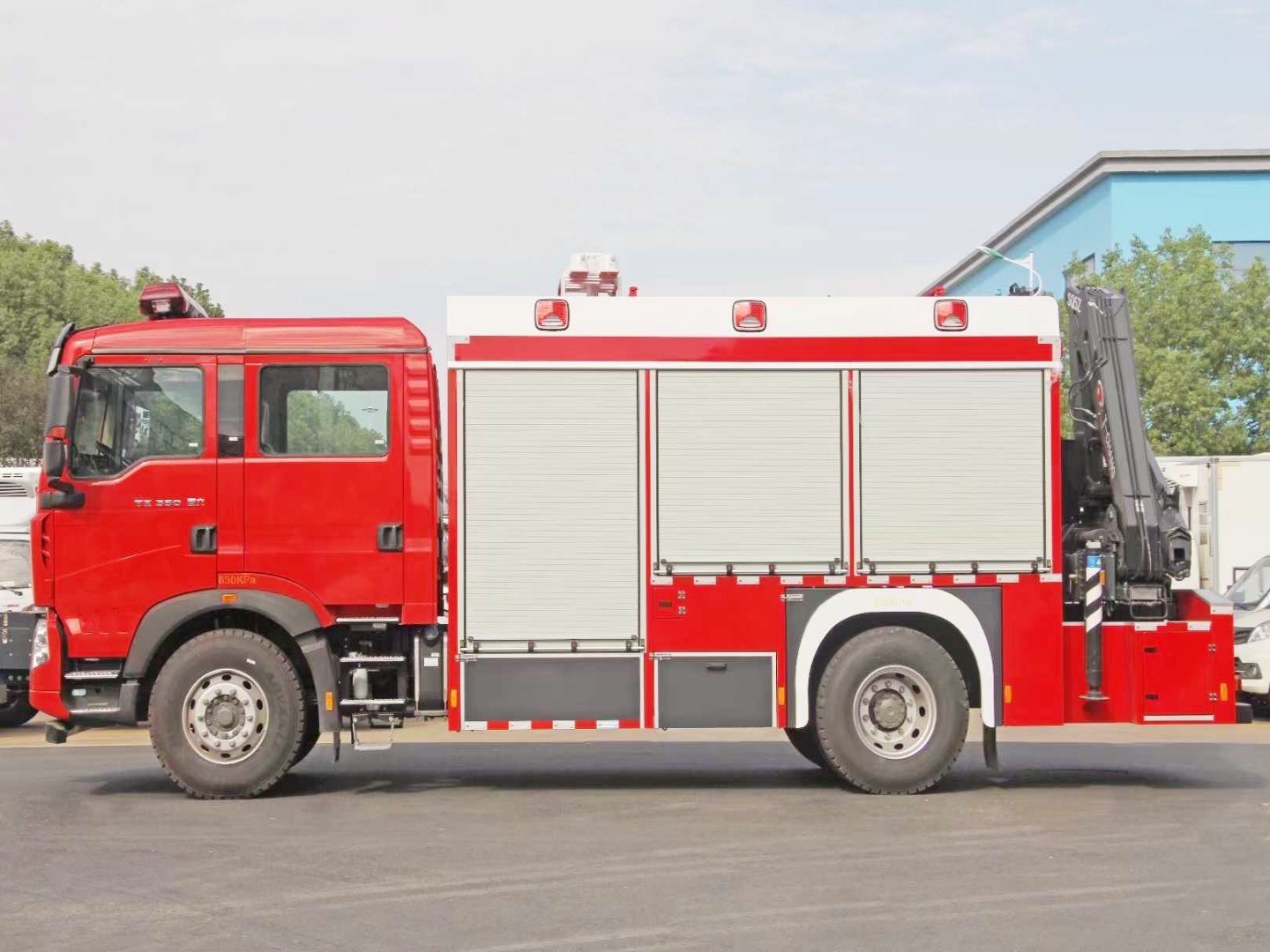

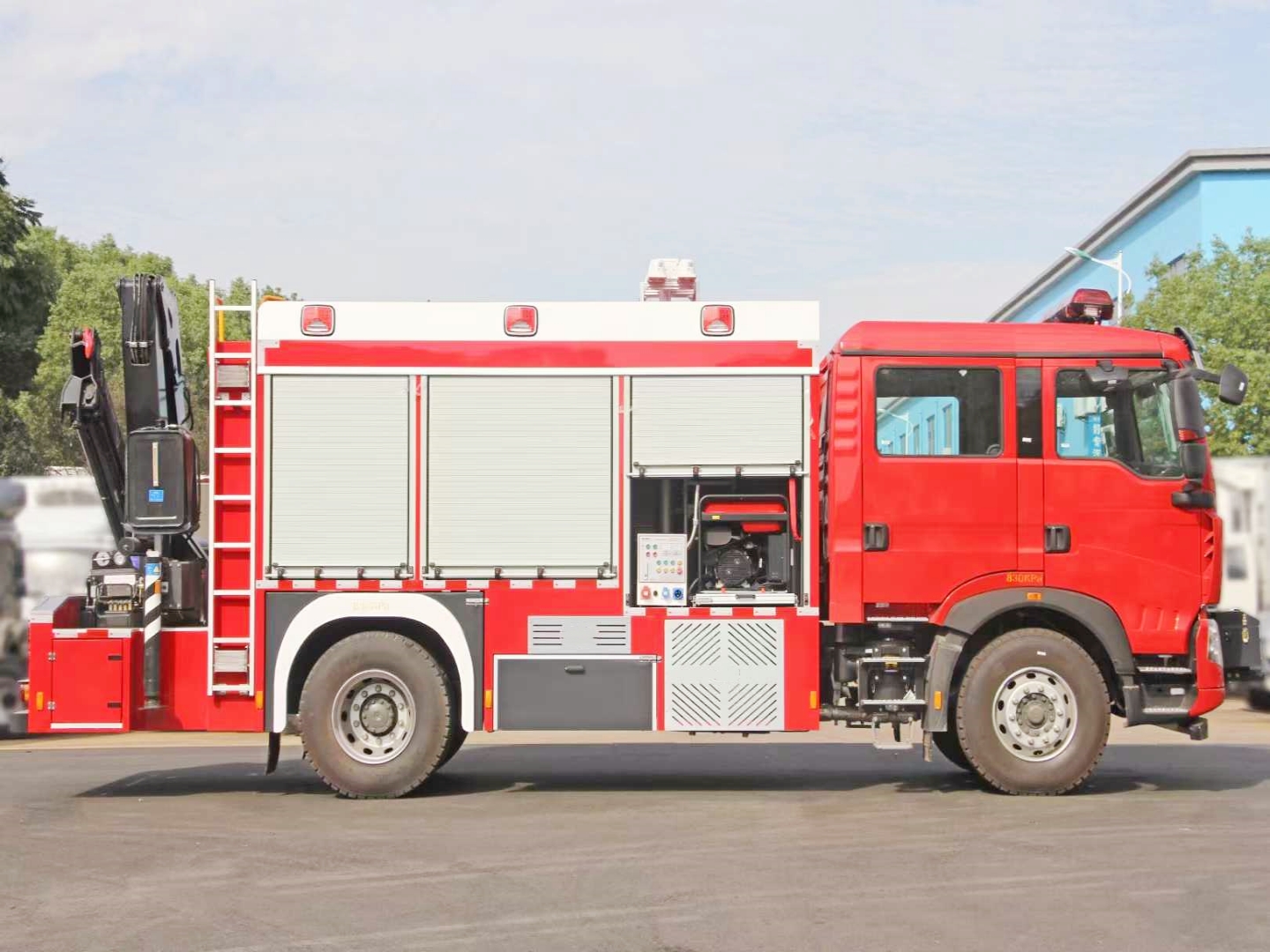

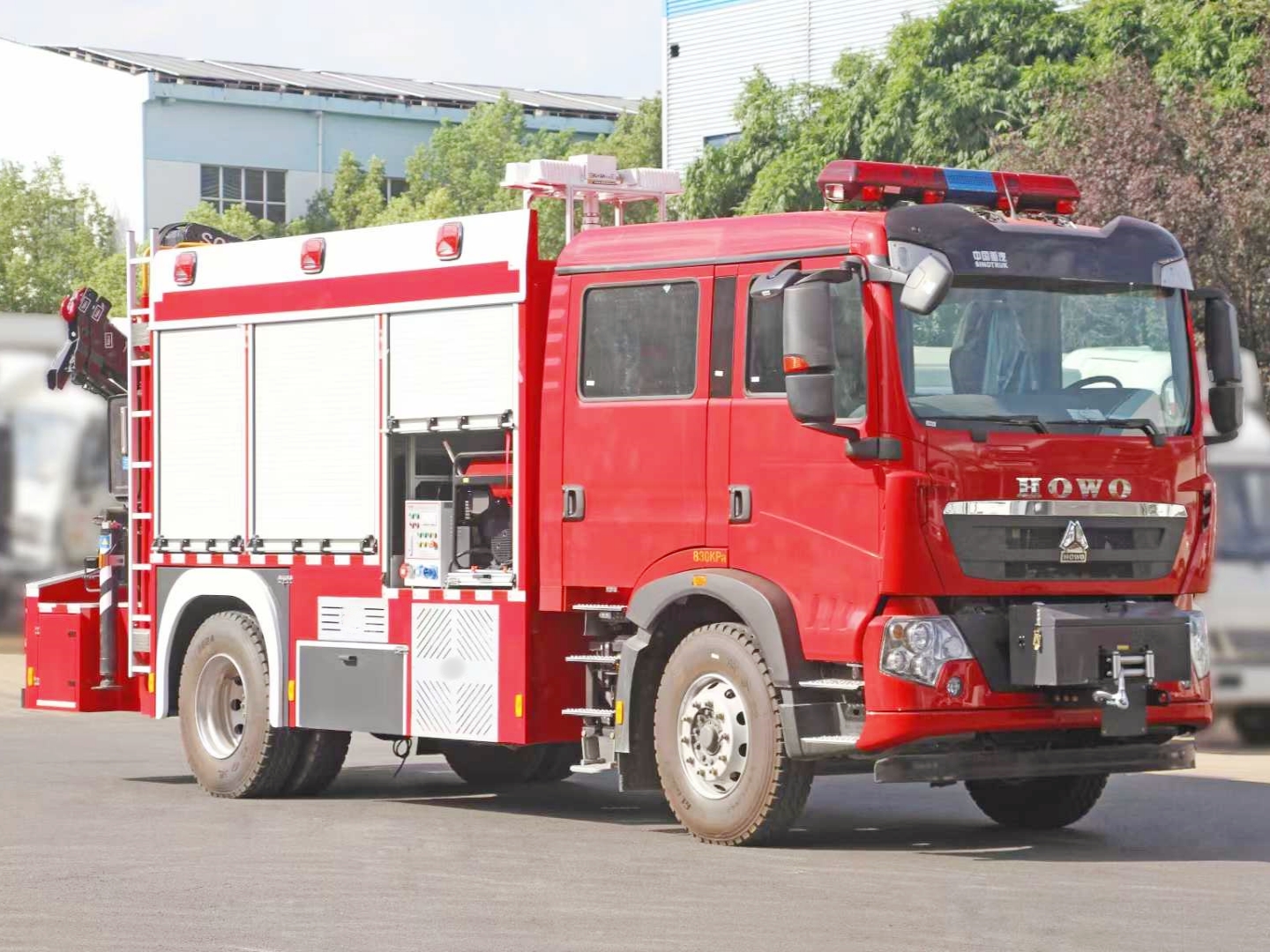

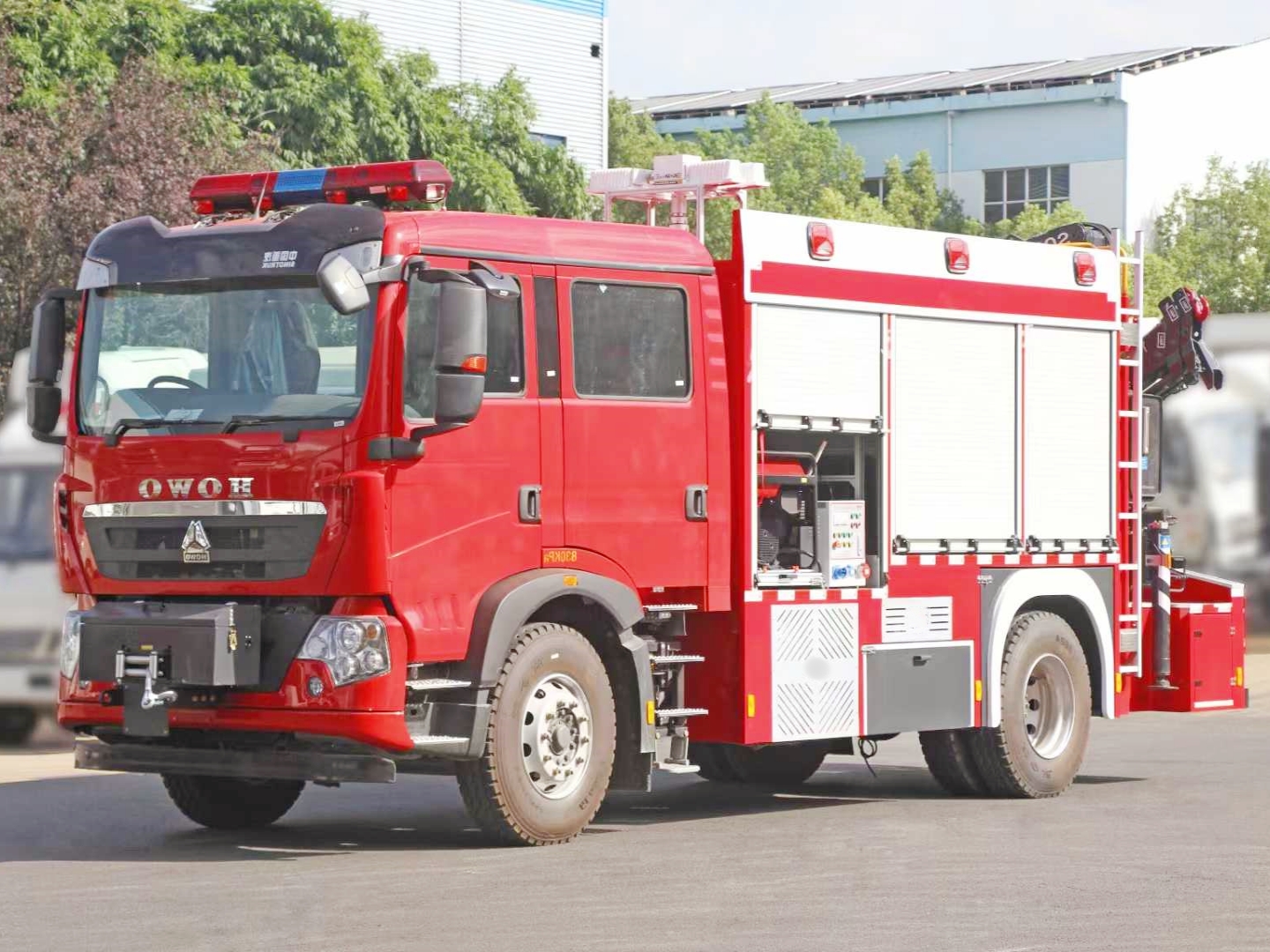

Sinotruk Howo 4X2 emergency rescue fire truck
2024-10-07 09:54:11 Source：CLW
Chassis configuration:
1. Engine: MC07.34-50, 340hp
2.Transmission type: 9-speed gearbox
3.Tyre: 315/80R22.5,12.00R20 (6+1)
4.Wheelbase:4200,4500,4600,4700,5000,5600,5600(mm)
5.Other: Sinotruk Howo cab
| Product Name |
Sinotruk Howo 4X2 emergency rescue fire truck |
| Driving Type |
4X2 |
| Total weight（Kg) |
14000(Kg) |
| Curb weight(kg) |
13550(Kg) |
| Rated weight(kg) |
/ |
| Wheel base(mm) |
4200,4500,4600,4700,5000,5600,5600(mm) |
| Overall dimension(mm) |
9100×2550×3550(mm) |
| Engine brand & model |
MC07.34-50, 340hp |
| Axle Quantity |
2 |
| Transmission Type |
9-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Tire Spec. & size |
315/80R22.5,12.00R20 (6+1) |
| Cab |
Sinotruk Howo cab |
| Lift lighting system |
As below |
| Main light |
4X1000W |
| Lifting height |
≥7.6m |
| Generator |
220V/380V |
| Winch parameters |
As below |
| Voltage |
24V |
| Installation form |
Under the front bumper of the truck |
| Drive form |
electric-driven |
| Maximum traction length |
≥35m |
| Maximum traction force |
≥6100kg |

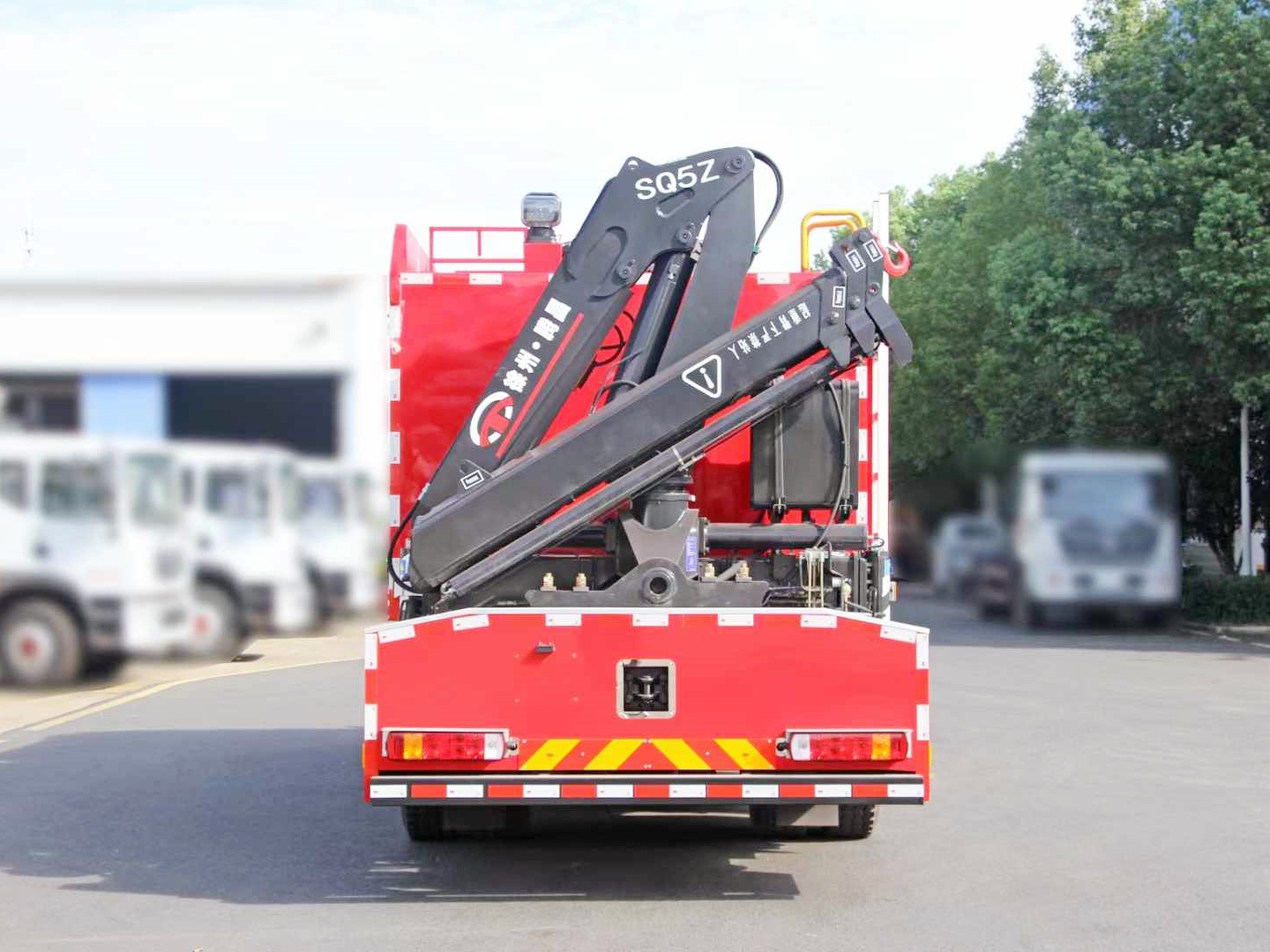

| Truck mounted crane |
As below |
| Maximum lifting weight |
≥5000kg |
| Installation location |
Rear of fire truck |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Sinotruk Howo 4X2 emergency rescue fire truck
Emergency rescue fire truckis a type of fire truck specially designed for emergency rescue tasks, usually equipped with various fire-fighting equipment and tools, and has multiple functions.
Emergency rescue fire trucks(also known as emergency rescue vehicles, rescue fire trucks, emergency rescue special vehicles, etc.) are mainly used to respond to various natural disasters, emergencies, and rescue tasks. It is equipped with functions such as lifting, self rescue/traction, obstacle clearing, power generation, lighting, etc., and can also be equipped with a large number of firefighting equipment or tools such as demolition, inspection, leak plugging, and protection. These vehicles typically have a reasonable spatial layout and convenient tool access design, ensuring quick response and operation in emergency situations.
