Mercedes Benz 12 ton water tank fire truck
2024-10-07 09:54:11 Source：CLW
Vehicle Overview

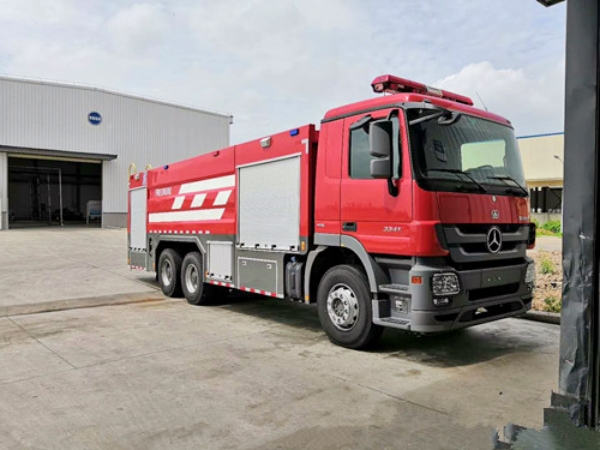

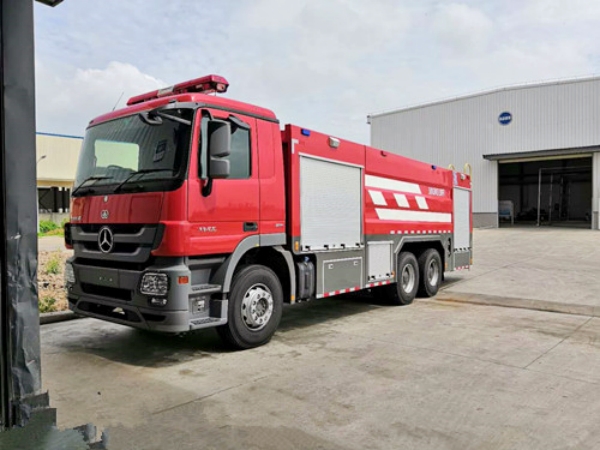

The Mercedes Benz 12 ton water tank fire truck is modified from the original chassis Actros of Daimler AG by our factory, with a compact overall structure; The dedicated part consists of a liquid tank, pump room, equipment box, power output and transmission system, pipeline system, electrical system, etc. It is widely used in urban public security fire brigades, petrochemicals, factories and mines, forests, ports, docks and other departments. It can quickly approach the fire scene to carry out firefighting battles and extinguish various fires, making it an ideal firefighting equipment.
| Product Name |
Mercedes Benz 12 ton water tank fire truck |
| Driving Type |
6X4 |
| Total weight（Kg) |
27000(Kg) |
| Curb weight(kg) |
12200(Kg) |
| Rated weight(kg) |
14650(Kg) |
| Wheel base(mm) |
4500+1350(mm) |
| Overall dimension(mm) |
10110x2500x3380(mm) |
| Engine brand & model |
OM501LA.V/3, 408hp |
| Axle Quantity |
3 |
| Transmission Type |
10-speed gearbox /12-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
air brake |
| Tire Spec. & size |
315/80 R22.5, 10+1 spare |
| Cab |
The cab is a fully steel frame welded structure, made of high-quality carbon steel (Q235) with a plate thickness of 4mm |
| Extinguishing Media |
water/foam/dry-powder |
| Tank material |
Carbon steel or stainless steel and aluminum alloy plate |
| Tank volume |
12000L water tank |
| Onboard equipment |
Onboard equipment Fire hose, water injection hose, DC water gun, multifunctional water gun, dry powder fire extinguisher, water collector, water separator, suction pipe wrench, rubber hammer, protective belt bridge, above ground fire hydrant wrench, underground fire hydrant wrench, water hose strap, water hose hook, fire axe, fire suction pipe, suction pipe filter, reducer interface |
| Fire Cannon |
1. Model: PLKD80-7400EXM+SM-1250E (Elk, USA) electric remote control fire monitor, rated flow rate: 80L/s @ 1.0MPa; 2. Range: 375m |
| Fire pump |
1. Fire pump model: CB10/100-RSD vehicle fire pump (Hill, USA), flow rate: 100L/s, pressure: 1.0MPa 2. Water intake time ≤ £ 80s (7m suction depth), centrifugal full power take-off |
| Equipment box |
The equipment compartment door adopts an aluminum alloy curtain door, guided by rollers and sliding grooves, with easy opening and closing and low noise; The flip type pedals on both sides and the rear of the equipment compartment are double fixed with gas springs and door stop limit devices, ensuring reliable safety performance; |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Mercedes Benz 12 ton water tank fire truck
A fire engine, also known as a fire truck,
refers to a vehicle designed and manufactured according to needs, suitable for
firefighters to use, equipped with various fire-fighting equipment or agents,
for firefighting, auxiliary firefighting, or firefighting rescue. It is the
main tool for firefighting and is also the most basic mobile firefighting
equipment.
Water tank fire truck: The fire extinguishing agent equipped on this vehicle is mainly water. It has a large capacity water storage tank, water gun, water cannon, etc., which can be used for extinguishing conventional fire accidents. It can be directly extinguished using a water source, or it can be directly extinguished by absorbing water from the water source. It can also be used to supply water to other fire extinguishing spraying equipment in the fire scene. Suitable for extinguishing general fire accidents, it is a firefighting vehicle regularly used by the public security fire brigade.
