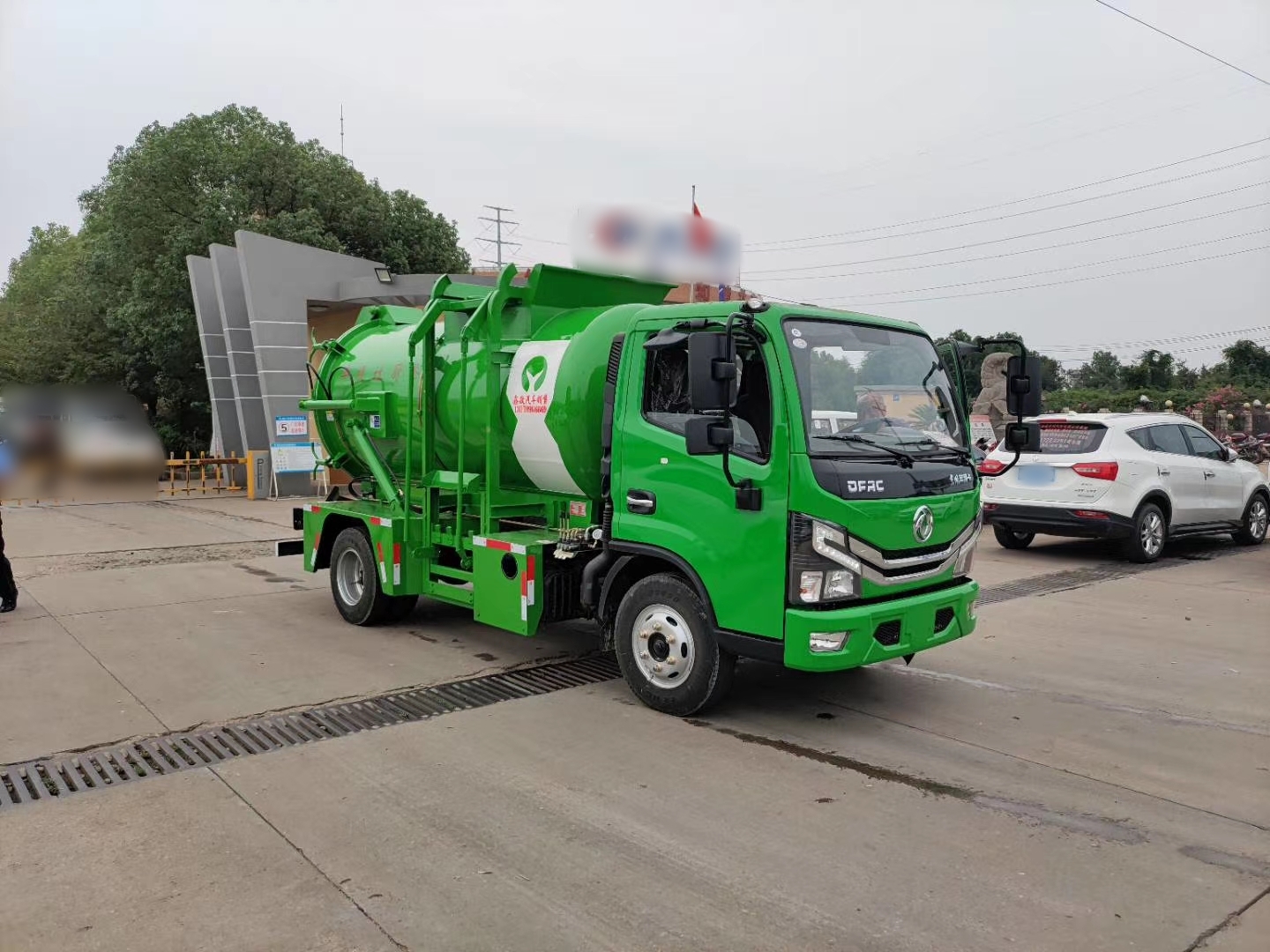

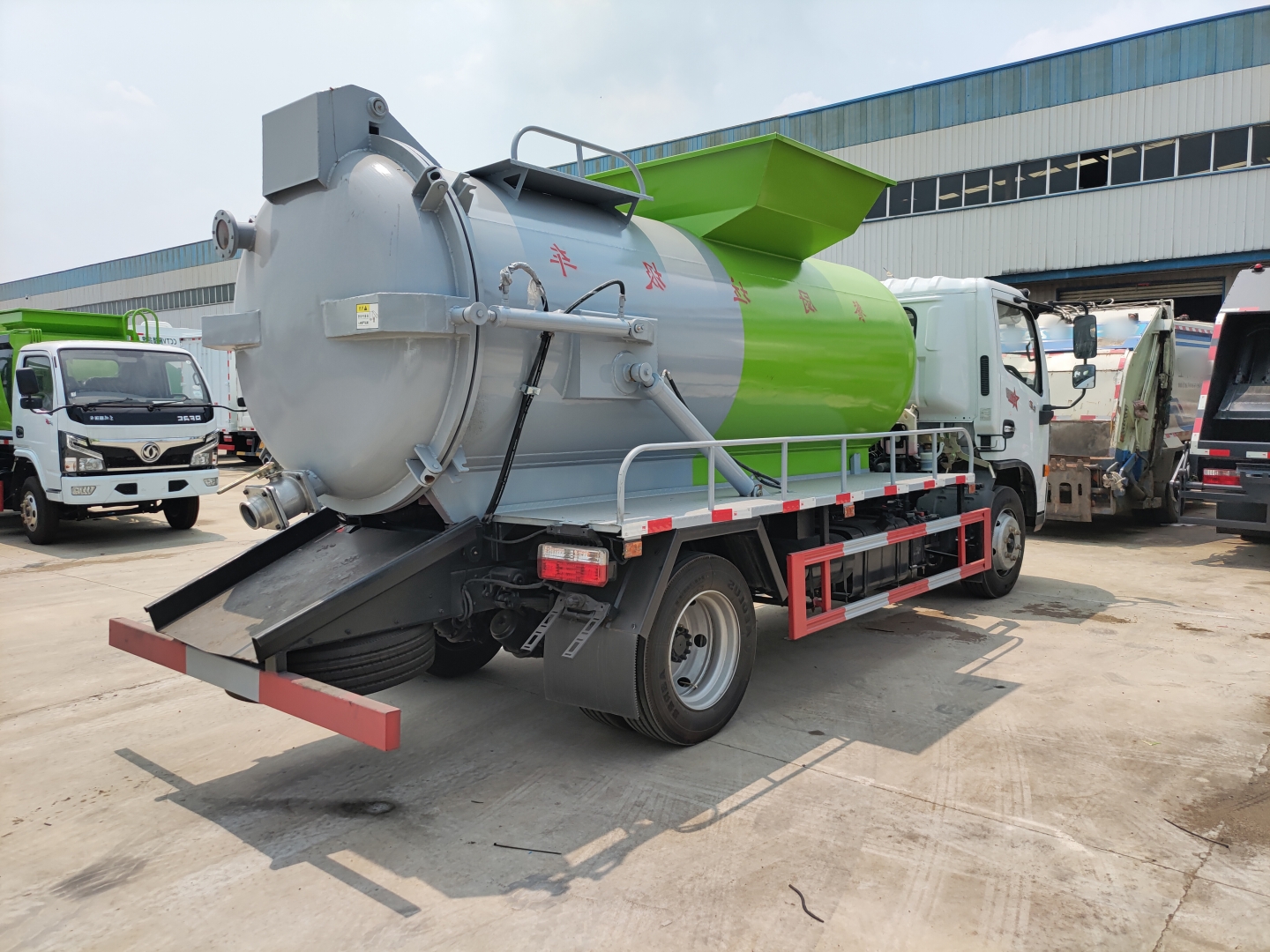

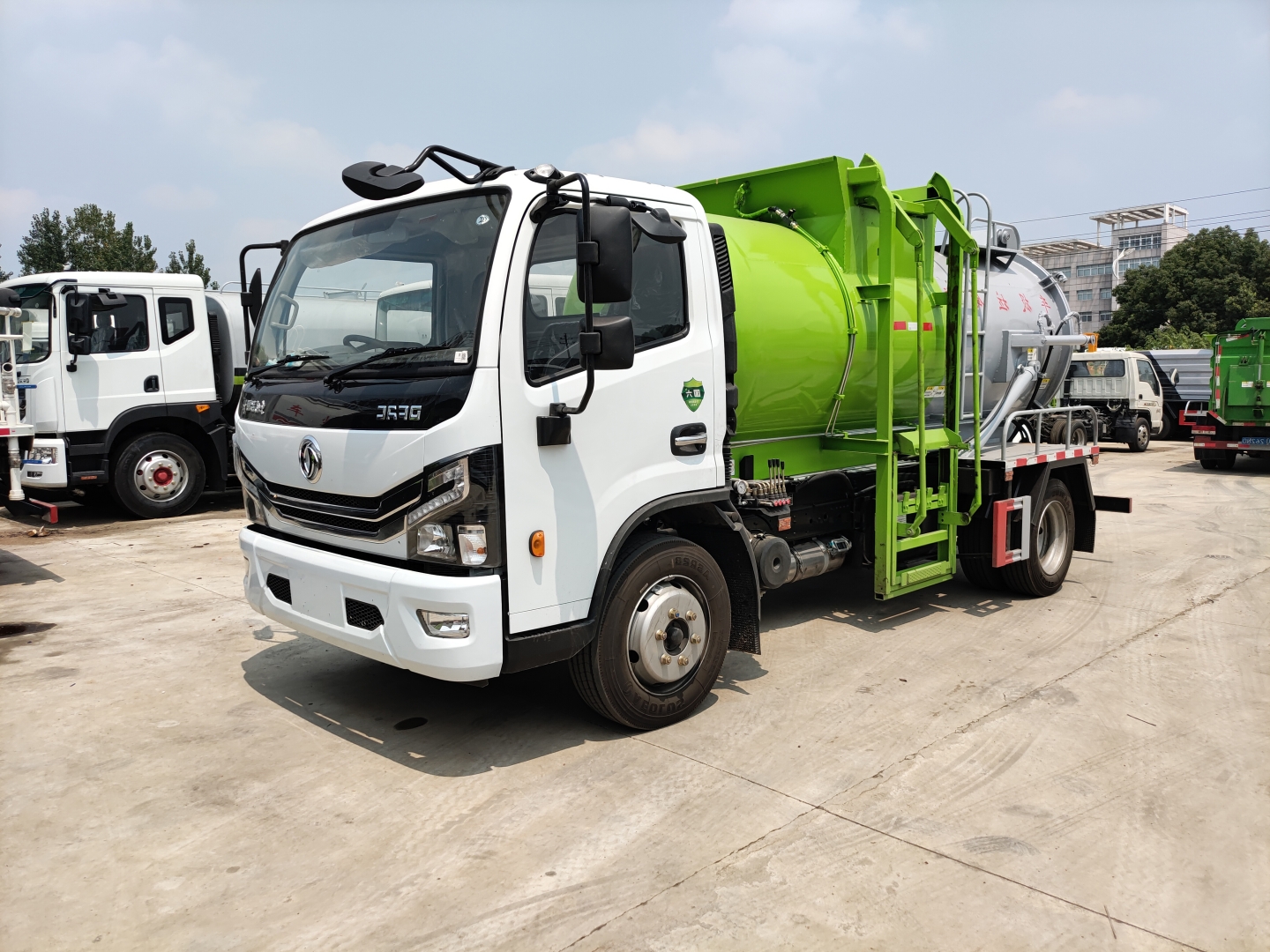

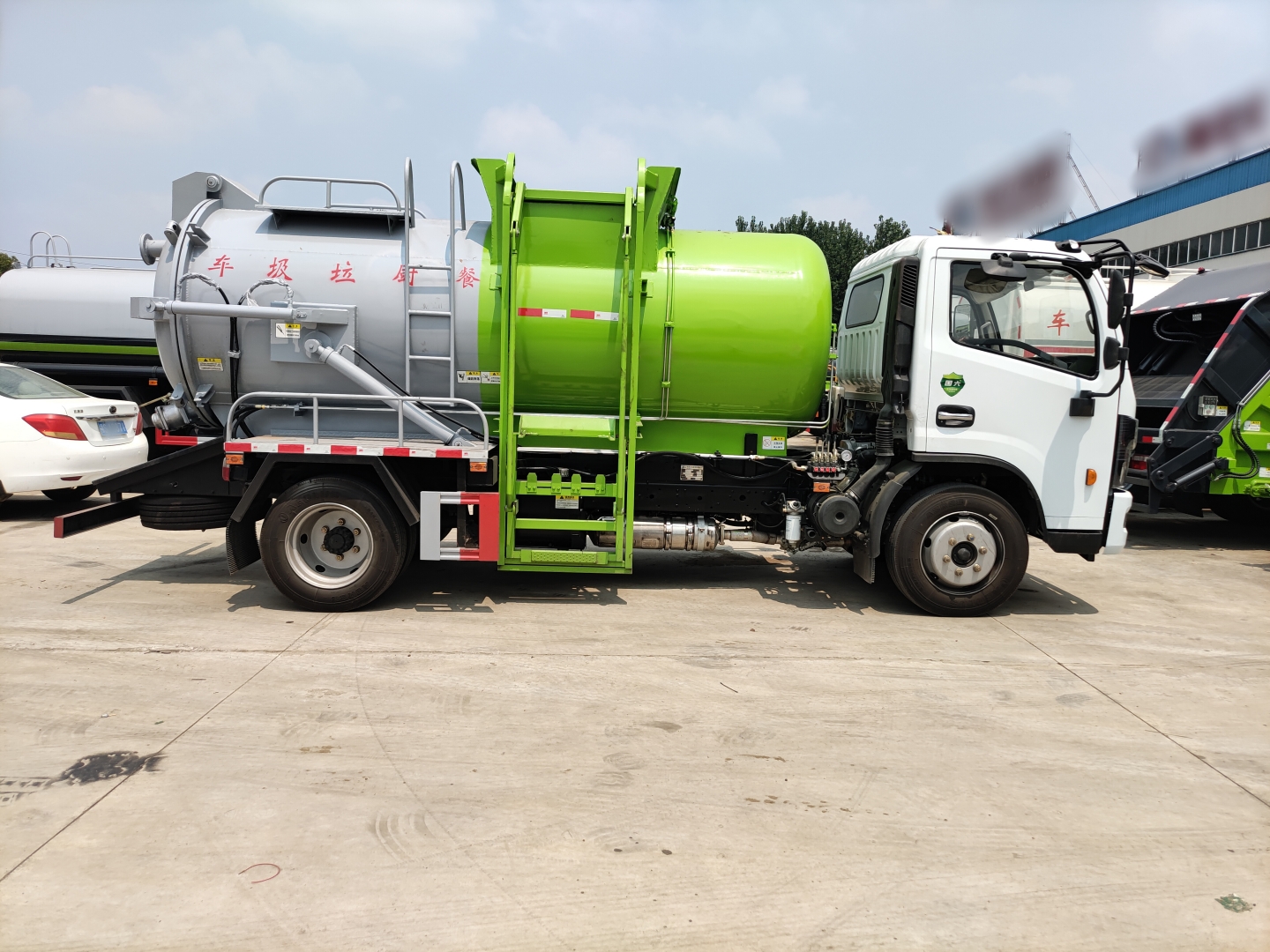

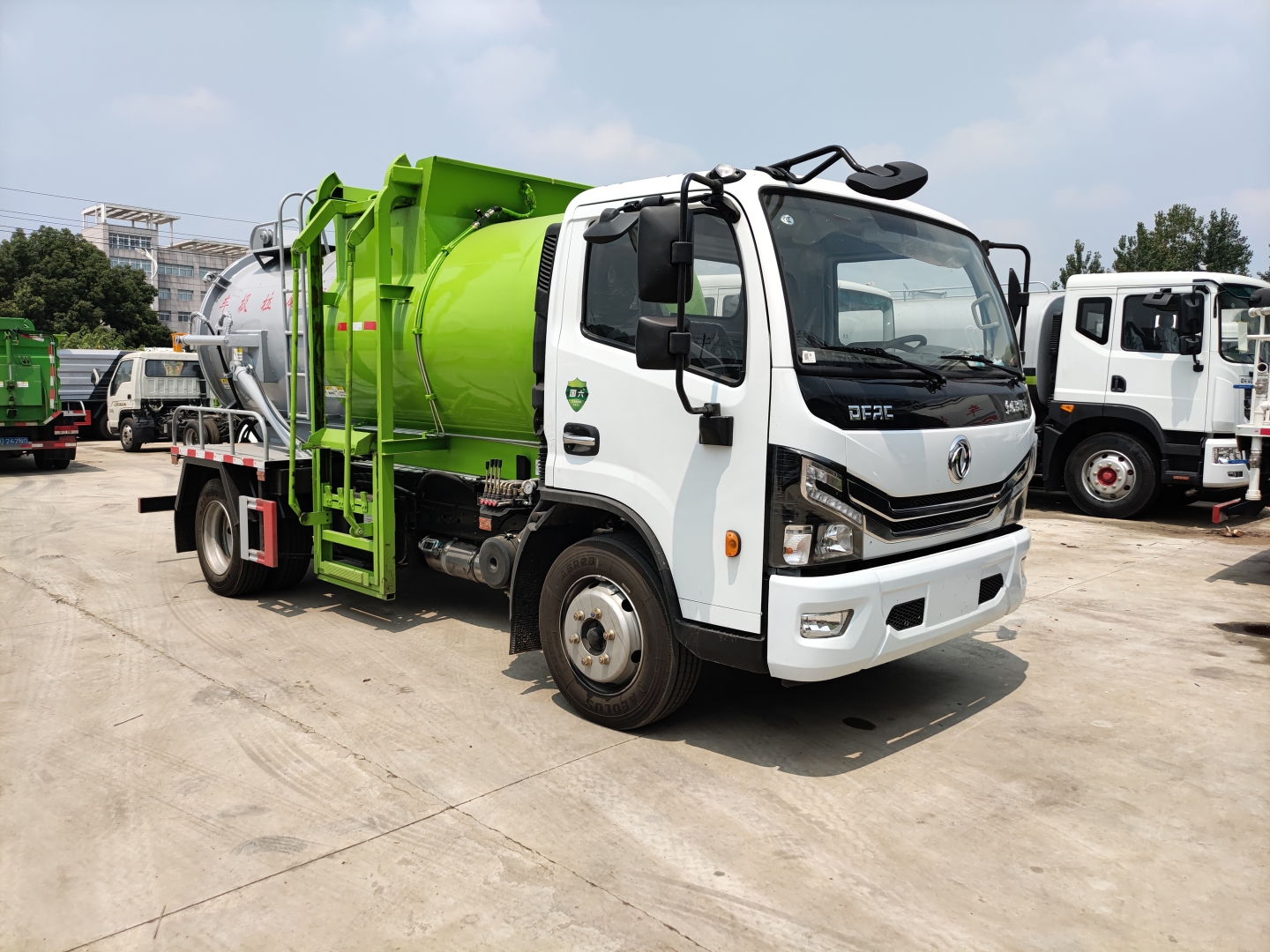

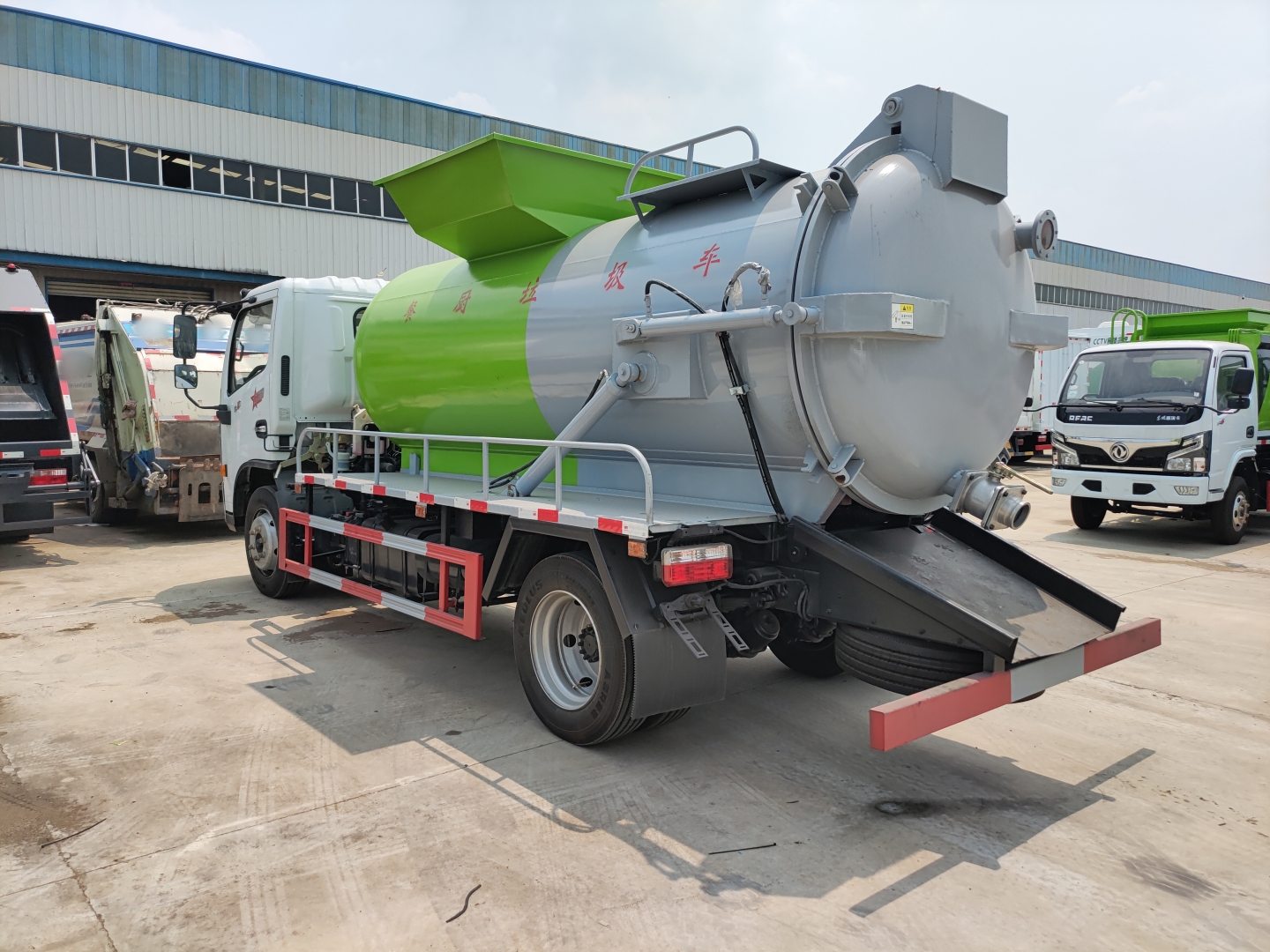

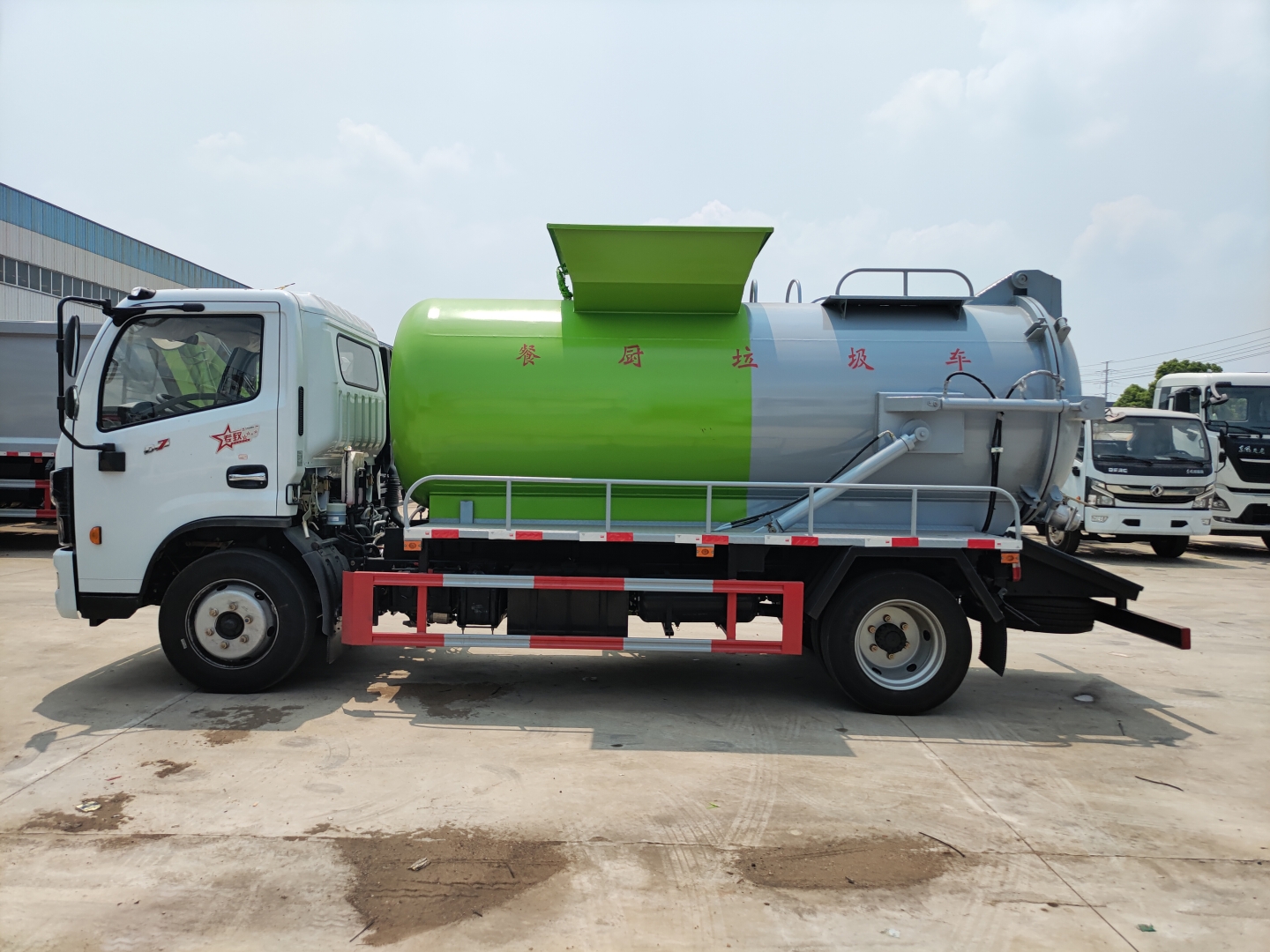

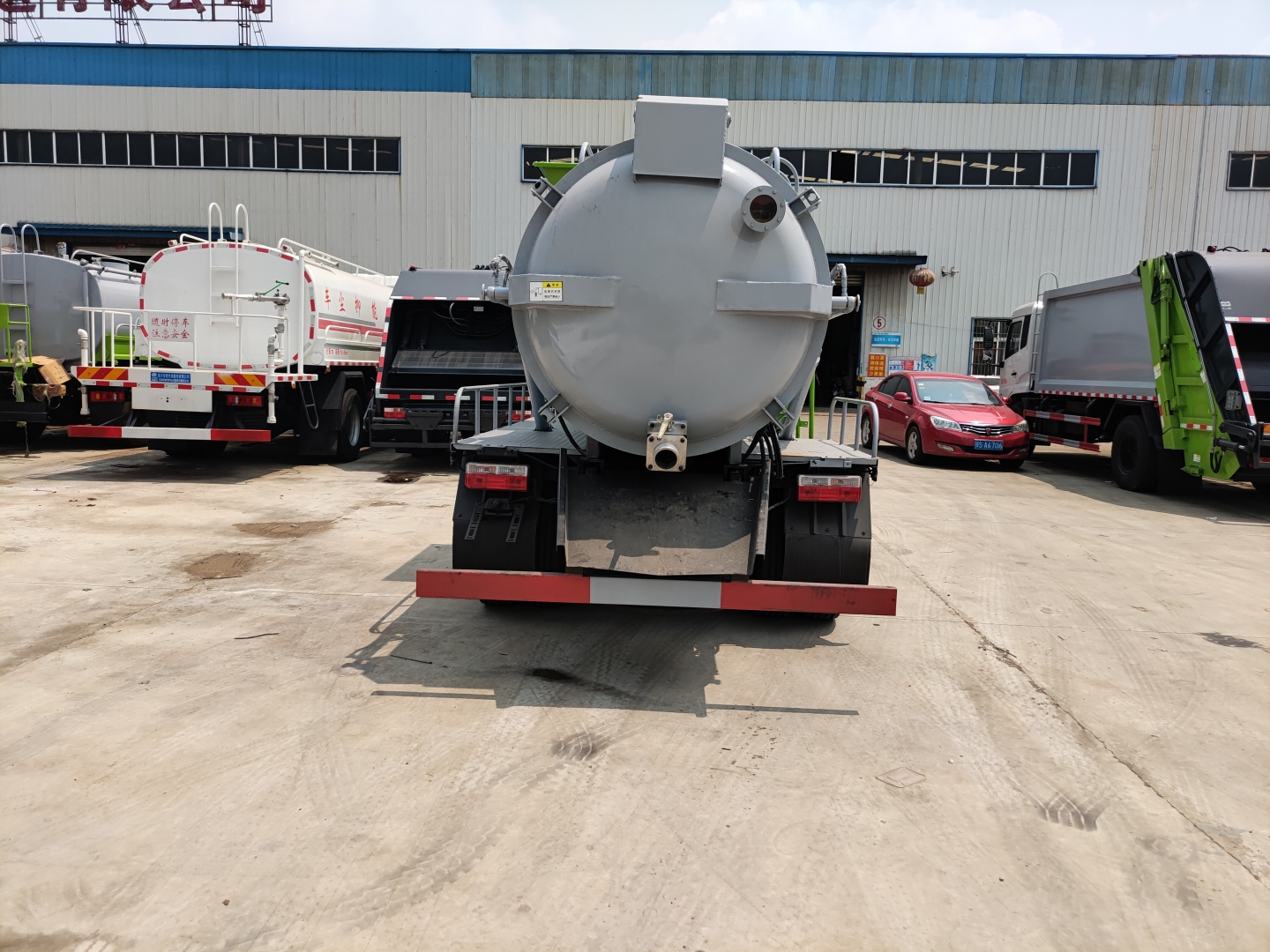

Dongfeng D7 4X2 Kitchen Waste Truck
2024-10-07 09:54:11 Source：CLW
Chassis configuration:
1.Engine: Quanchai 156HP/Yuchai 165 HP
2.Transmission type: Wanliyang 6-speed gearbox
3.Wheelbase: 3800(mm)
4.Tyre: 245/70R19.5,8.25R20,245/70R19.5 16PR,8.25R20 16PR,8.25R20 14PR,255/70R22.5 16PR, 6+1 spare
5.Other: Double layer straight through beam, air brake, factory air conditioning, electrician doors and windows, central locking system, multifunctional steering wheel, factory power take-off.
| Product Name |
Dongfeng D7 4X2 Kitchen Waste Truck |
| Driving Type |
4×2 |
| Gross vehicle weight(Kg) |
11995(Kg) |
| Curb weight(Kg) |
6150(Kg) |
| Rated weight(kg) |
5650,5715(Kg) |
| Wheelbase(mm) |
3800(mm) |
| Overall Dimension(mm) |
6860,6360×2360×2950(mm) |
| Engine |
Quanchai 156HP/Yuchai 165 HP |
| Axle Quantity |
2 |
| Transmission Type |
Wanliyang 6-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
245/70R19.5,8.25R20,245/70R19.5 16PR,8.25R20 16PR,8.25R20 14PR,255/70R22.5 16PR, 6+1 spare |
| Cab |
Dongfeng D7 cab |
| Volume(m³) |
8m³ |
| Tank body |
Q345 manganese steel high-strength plate circular tank body is used, with a thickness of 6mm, |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng D7 4X2 Kitchen Waste Truck
Kitchen waste truck, also known as meal waste truck, kitchen waste truck or swill truck,
is a type of garbage truck used for collecting and transporting household
waste, food waste (swill) and urban sludge.
Installation configuration :
The circular tank body is made of Q345 manganese steel high-strength plate, with a thickness of 6mm. It adopts a well-known domestic brand hydraulic system (domestic well-known oil pump, Hunan Changsha domestic well-known multi way valve, customized oil cylinder for kitchen and dining, Zhejiang Jiashan power take-off),
①Side lifting machine for loading, capable of hanging 120L/240L standard plastic trash cans, with a lid sealed with silicone sealing strip.
②Mid mounted double top hydraulic lifting, the tank body is lifted and unloaded after the back cover is opened.
③The design of the back cover flange head includes hydraulic opening and hydraulic locking. The back cover is equipped with a sealing strip, and the straight through drain ball valve provides better sealing effect.
Product parameters
