Dongfeng F6 7.5m³ Kitchen Waste Truck - kitchen garbage truck -

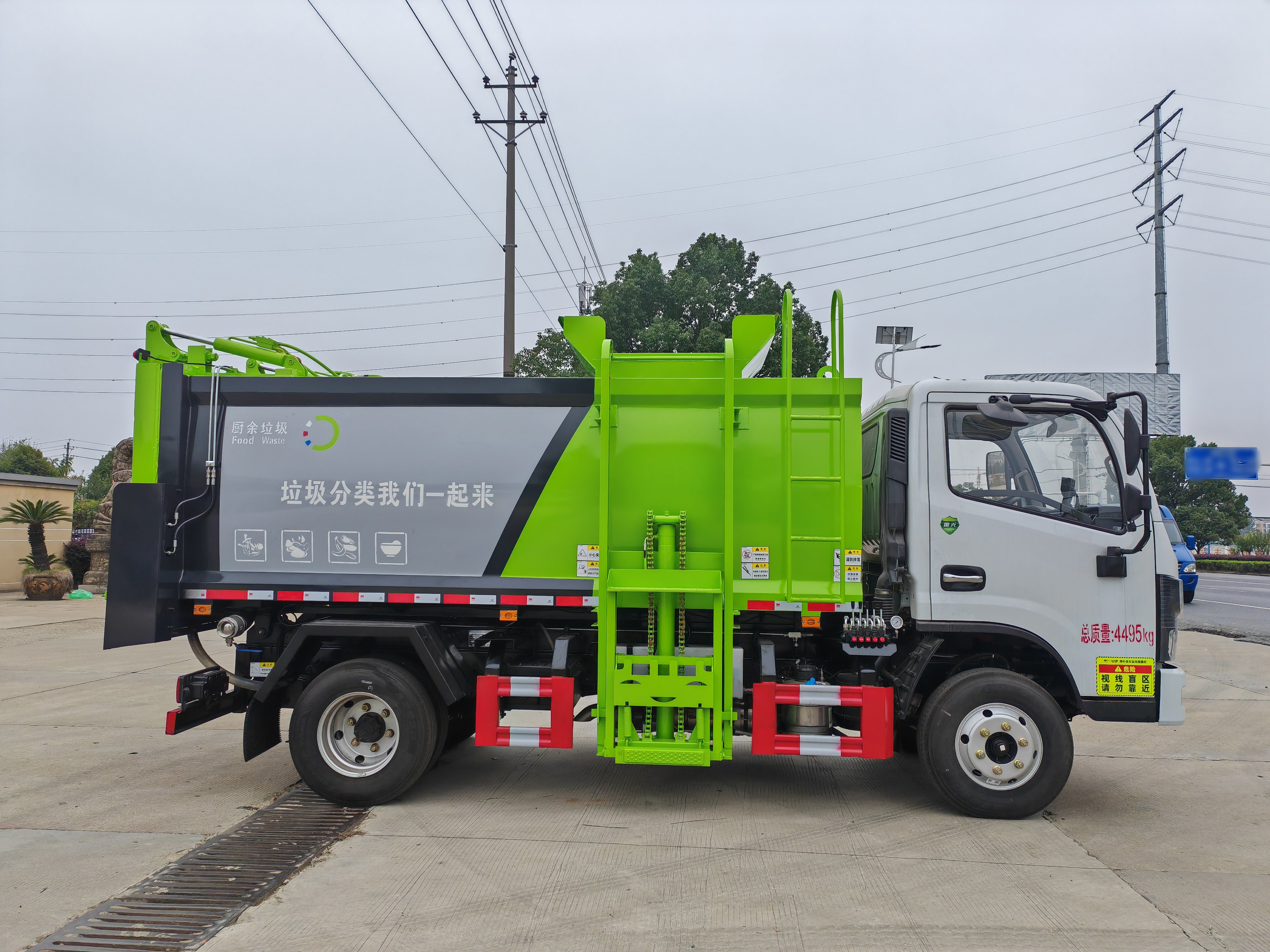

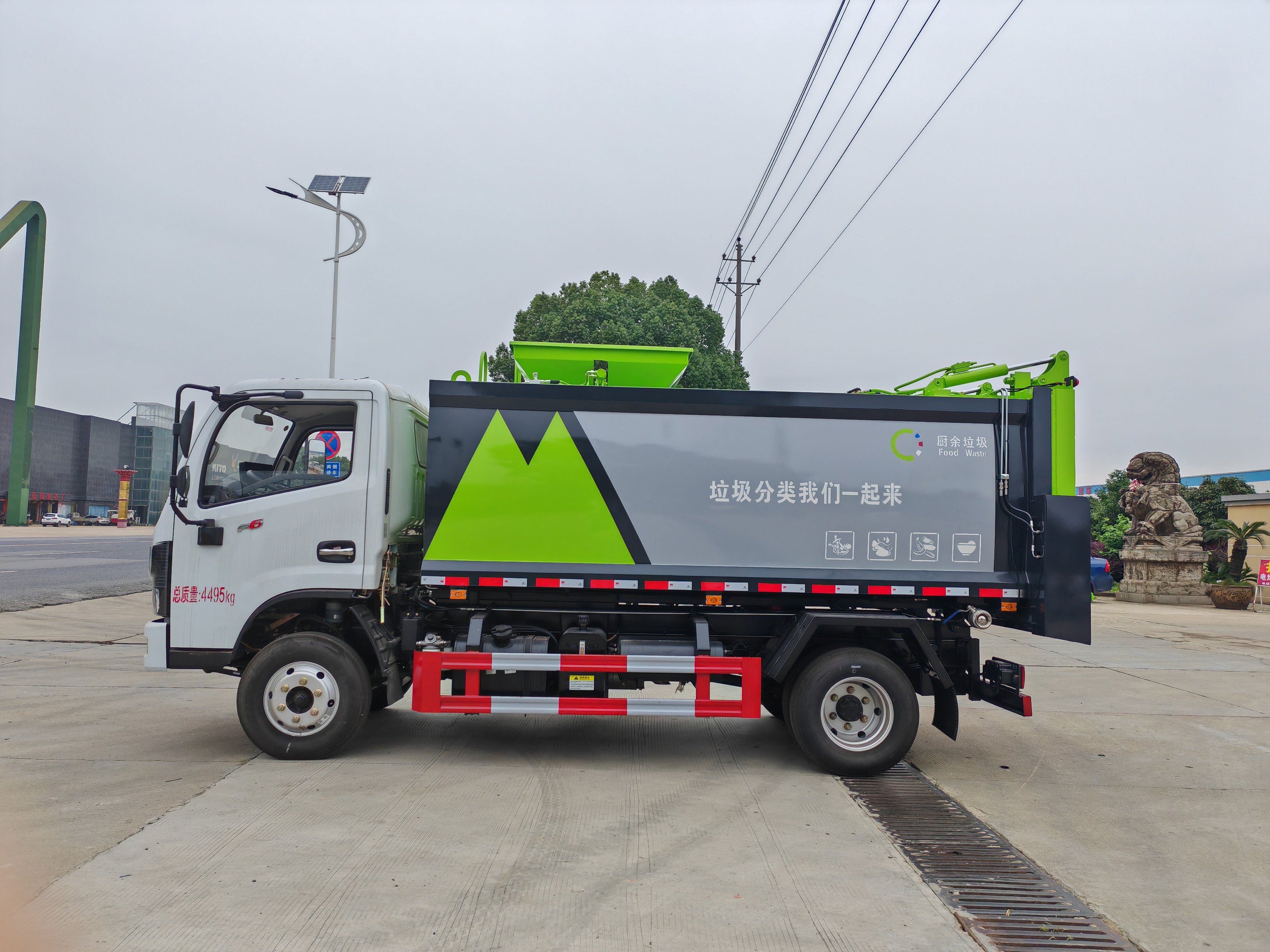

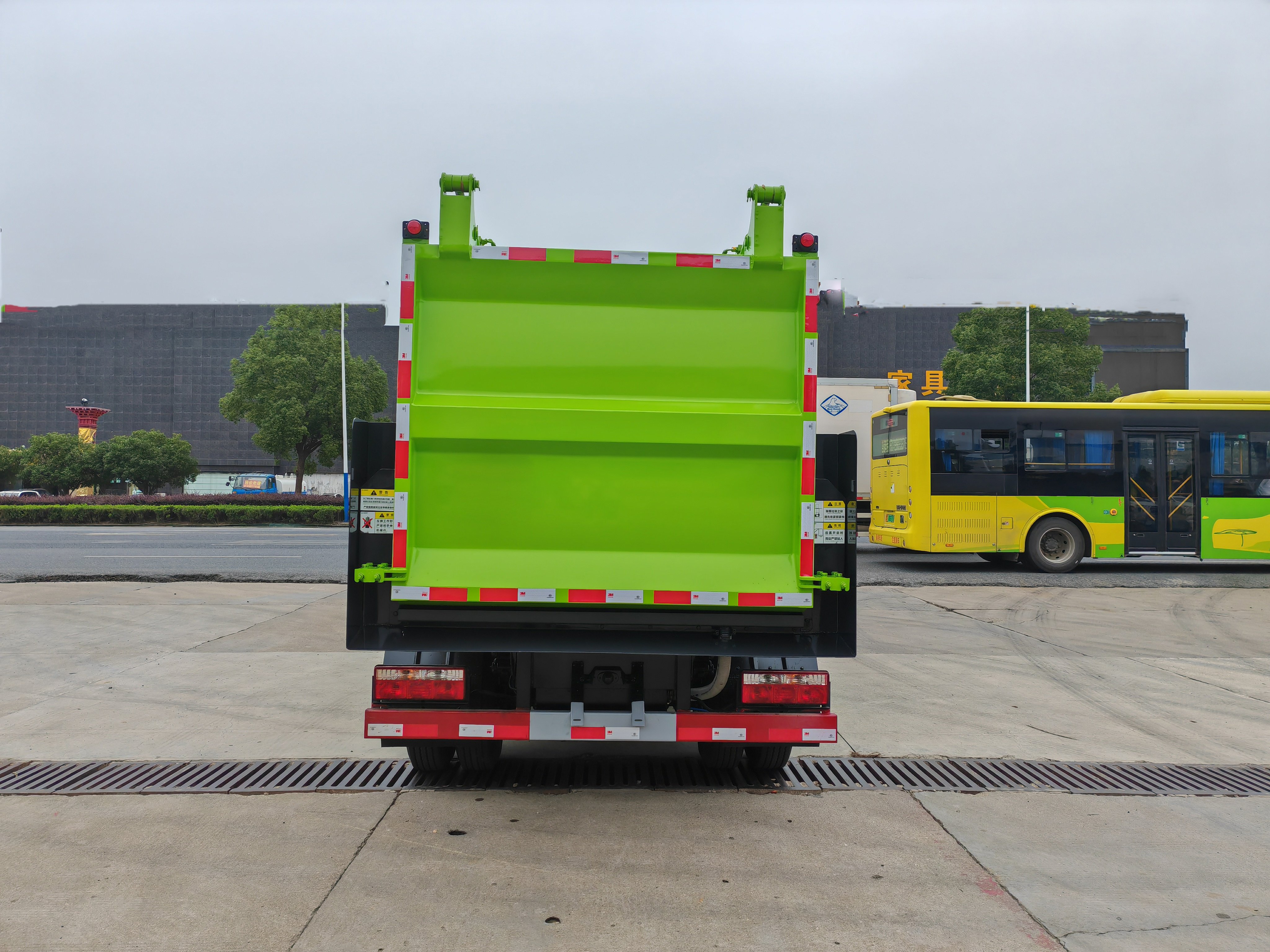

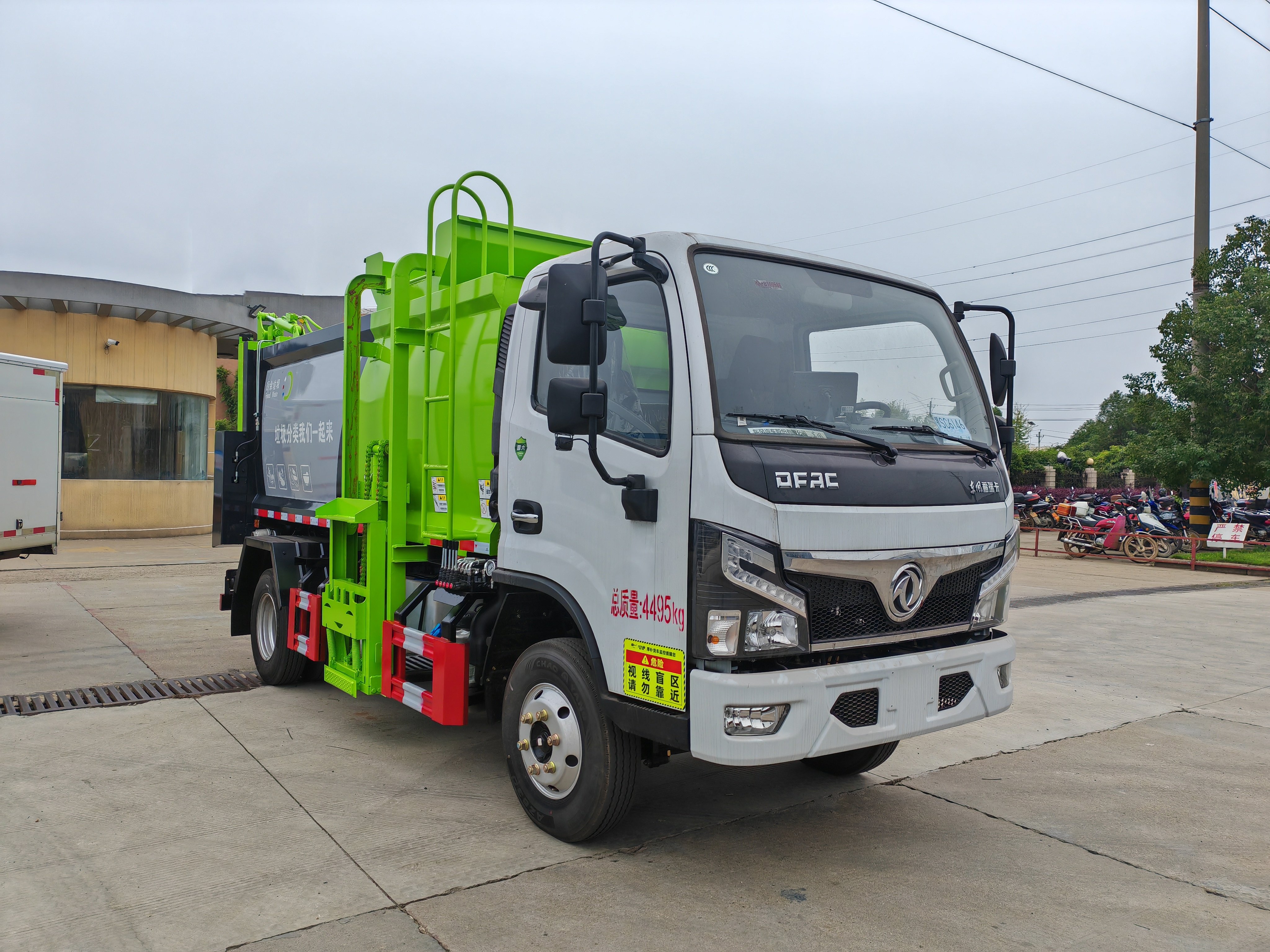

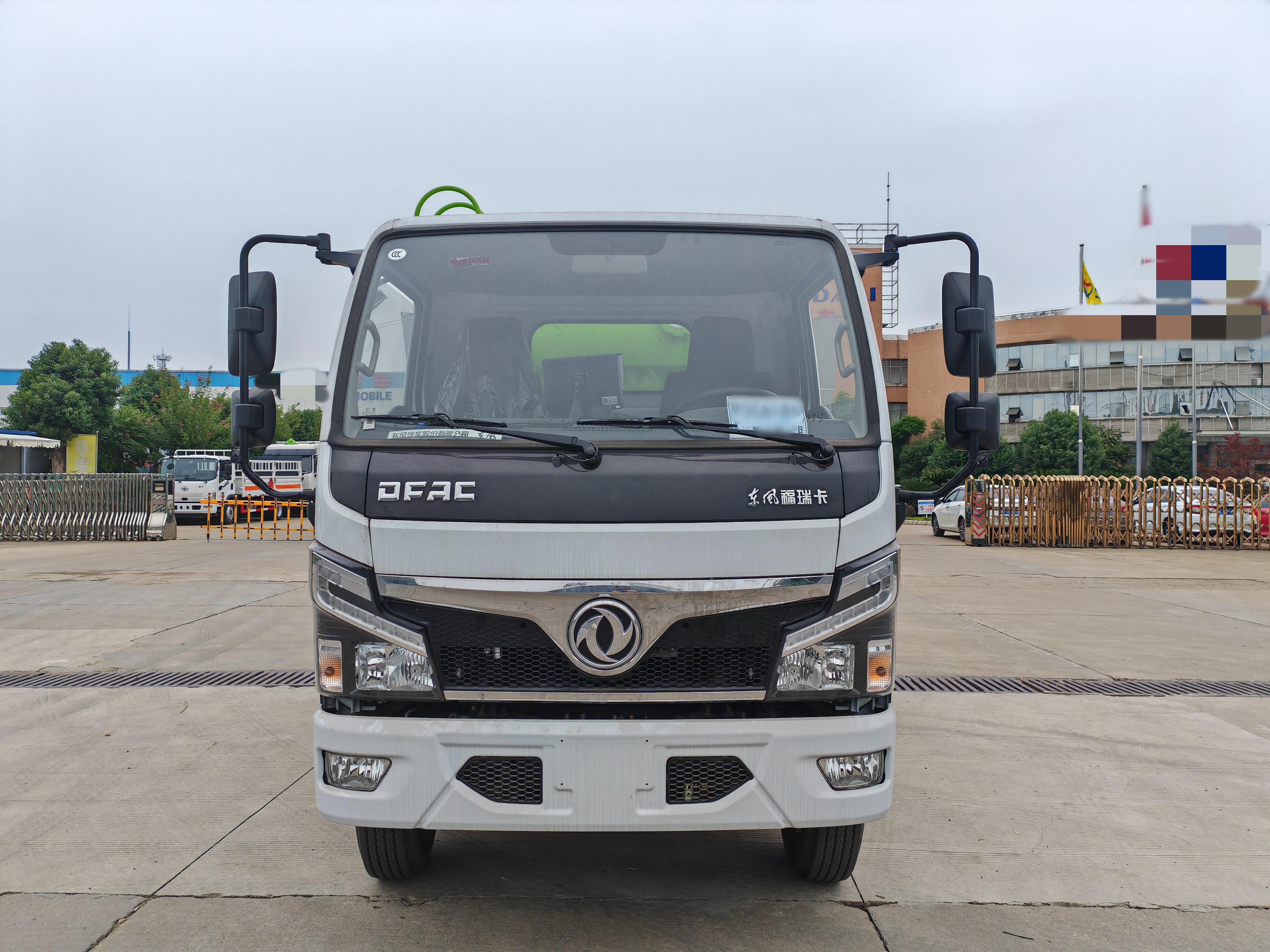

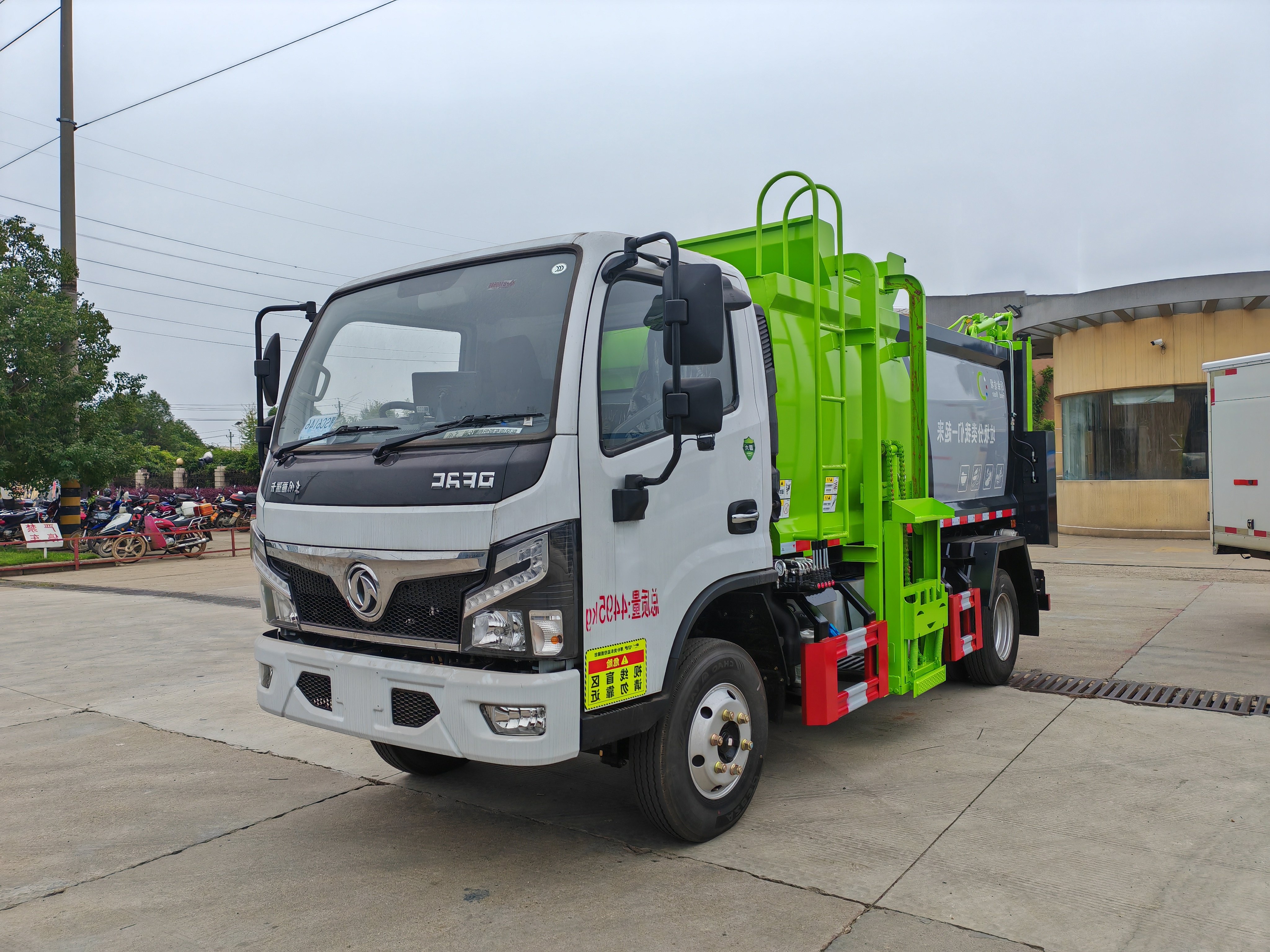

Dongfeng F6 7.5m³ Kitchen Waste Truck

2024-10-07 09:54:11 Source：CLW

Chassis configuration:

Dongfeng F6 cab, CA4DB1-113E, Xichai 130 horsepower engine, Wanliyang 6-speed gearbox, 3308mm wheelbase, 1730 single row cab, 2T front axle, 3.5T rear axle, 7.00R16 steel wire tires, 188X (5+3) X750mm double-layer beam, air brake, ABS， Electric doors and windows, central locking.

Product Name

Dongfeng F6 7.5m³ Kitchen Waste Truck

Driving Type

4×2

Gross vehicle weight(Kg)

4495(Kg)

Curb weight(Kg)

3850(Kg)

Rated weight(kg)

515(Kg)

Wheelbase(mm)

3308(mm)

Overall Dimension(mm)

5780×2170×2780(mm)

Engine

CA4DB1-113E6, Xichai 130hp

Axle Quantity

Transmission Type

Wanliyang 6-speed transmission

Steering Type

LHD or RHD with power steering

Brake system

Air brake

Tire Spec. & size

7.00R16 steel wire tire, 6+1 spare

Cab

Dongfeng F6 cab

Volume(m³)

7.5m³

Tank body

Using Q710 high-strength steel, with a 2mm edge and a 4mm bottom

Notice

The above information is for reference only, and vehicles can be customized depending on your requirements.

Dongfeng F6 7.5m³ Kitchen Waste Truck

Kitchen waste truck, also known as meal waste truck, kitchen waste truck or swill truck, is a type of garbage truck used for collecting and transporting household waste, food waste (swill) and urban sludge.

Installation configuration :

Using Q710 high-strength steel, with a 2mm edge and 4mm bottom, lightweight design and large capacity. The reinforced square tank body adopts a well-known domestic brand hydraulic system (domestic well-known oil pump, Hunan Changsha domestic well-known multi way valve, customized oil cylinder for kitchen and kitchen use, Zhejiang Jiashan power take-off), with a hydraulic opening and locking of the back cover, a sealing strip on the back cover, and an adjustable hydraulic locking pin to ensure no water leakage. The chain hoist can hang 120L/240L standard plastic trash cans with smooth loading.
