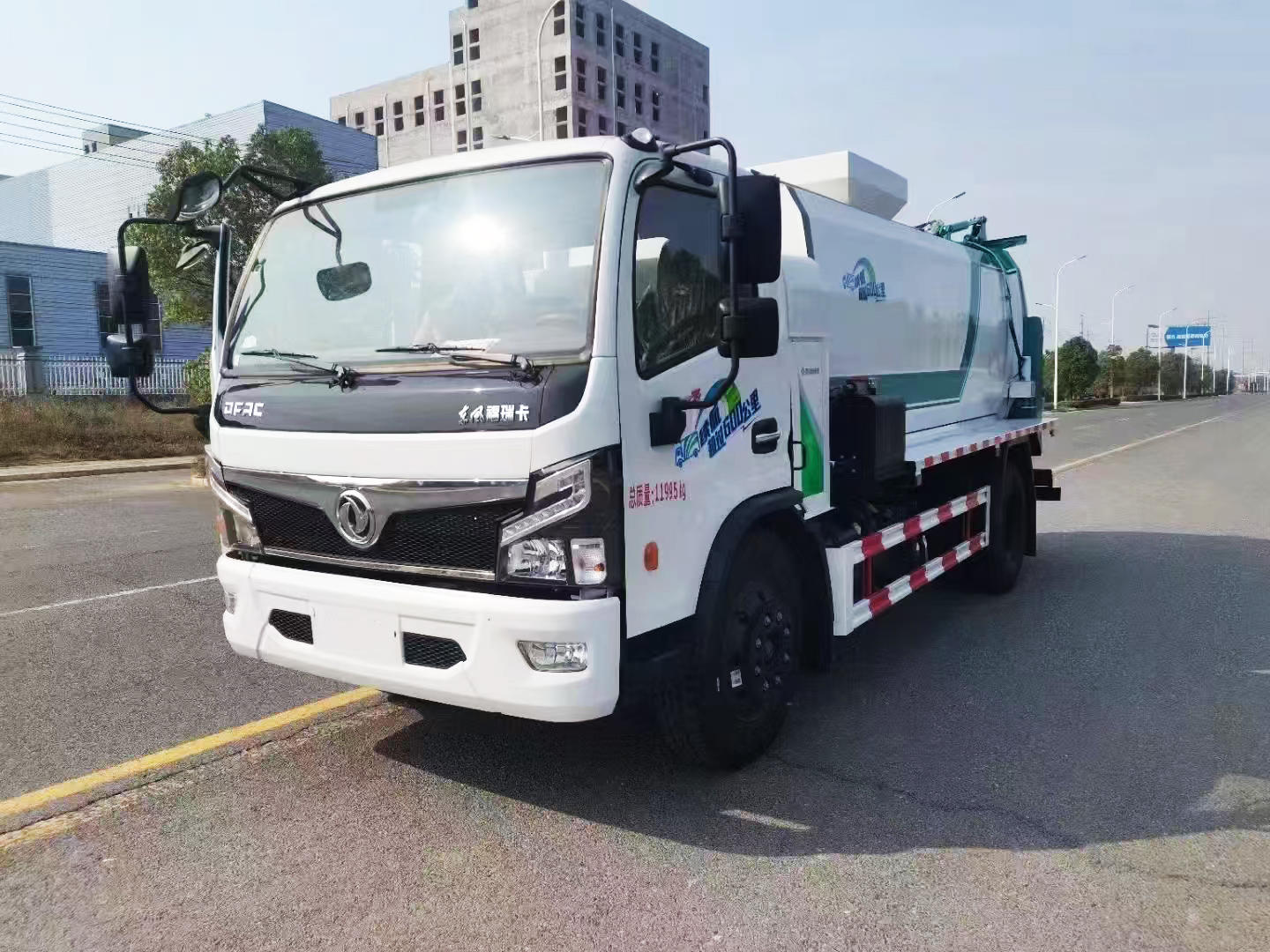

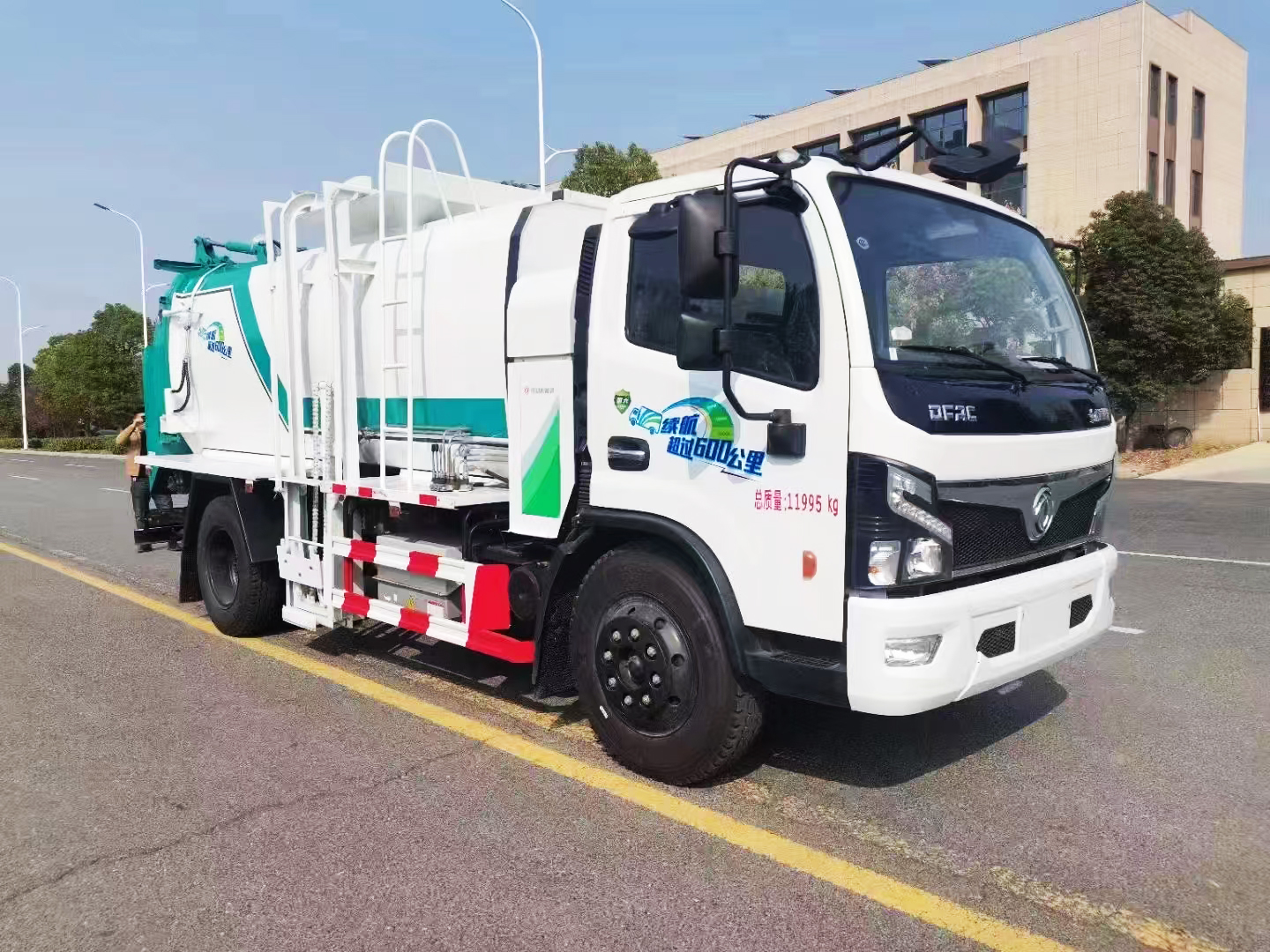

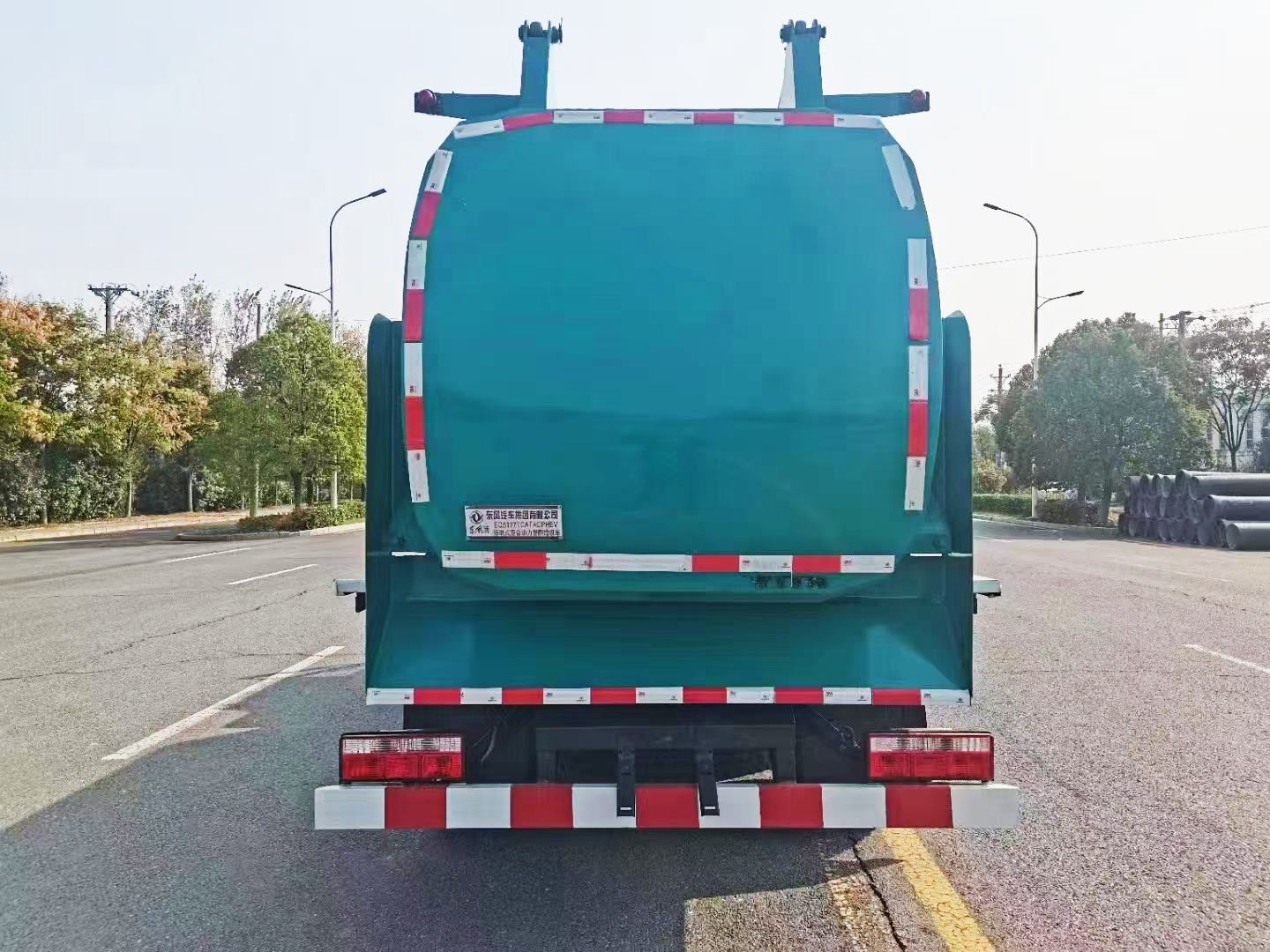

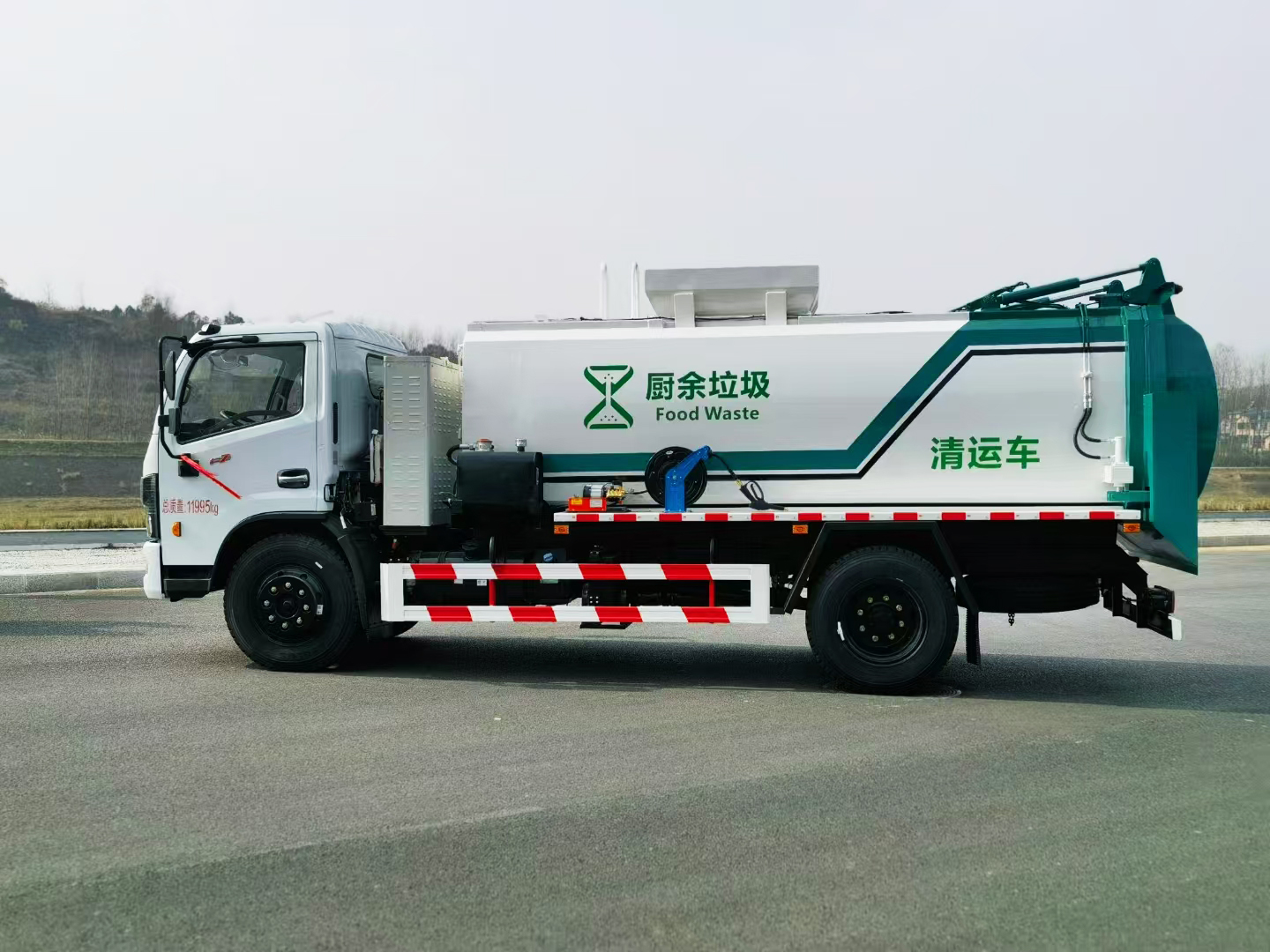

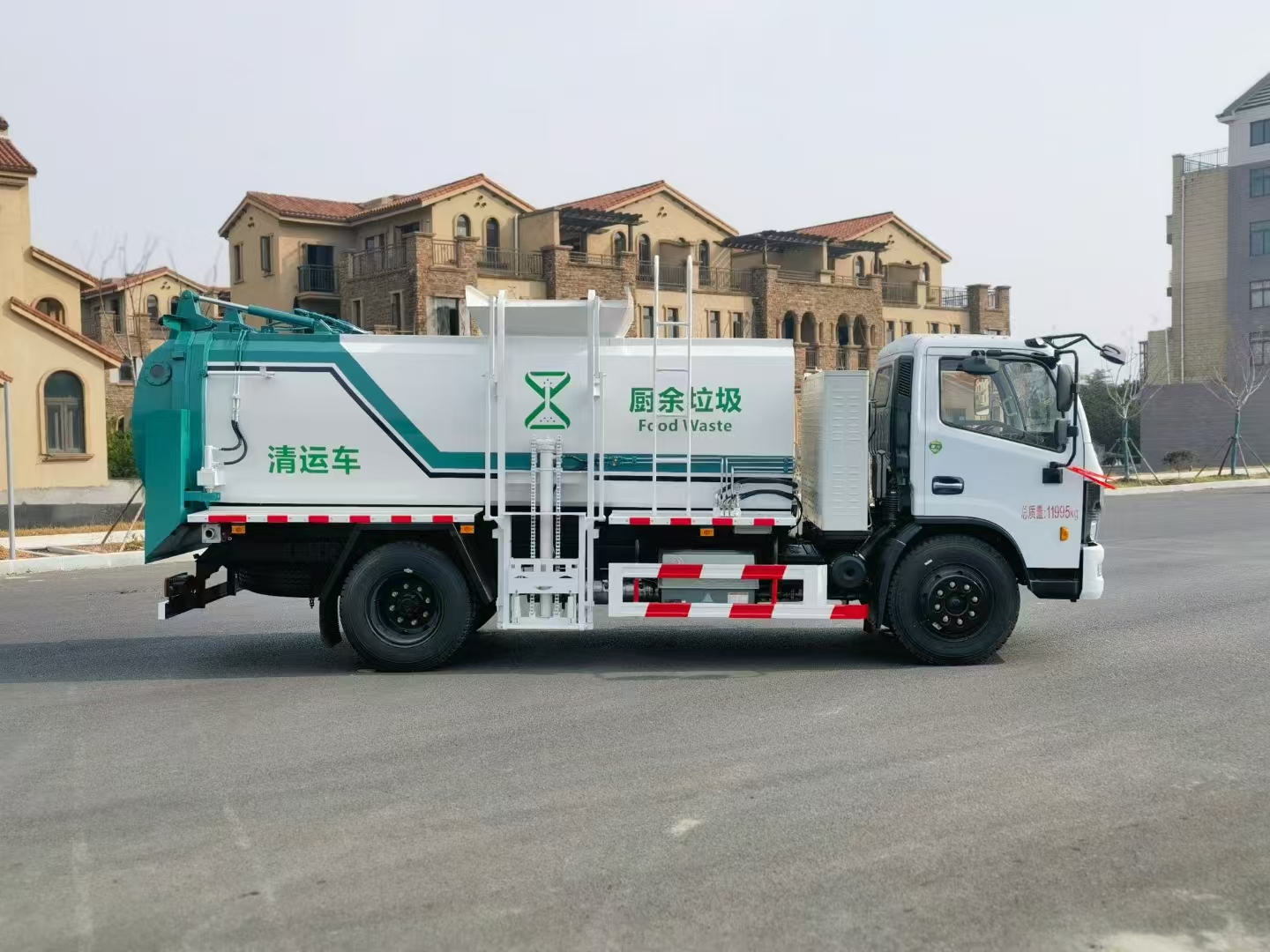

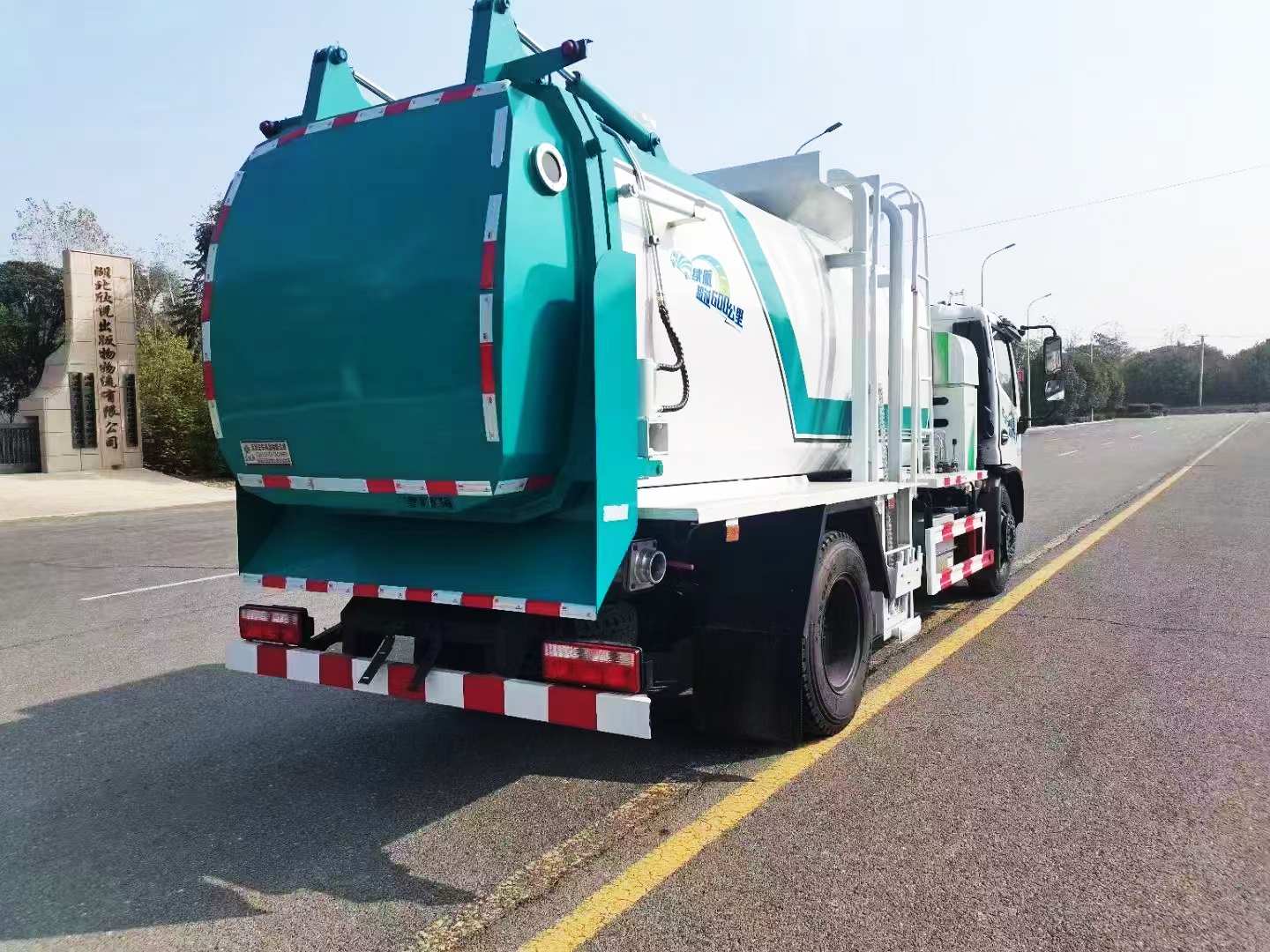

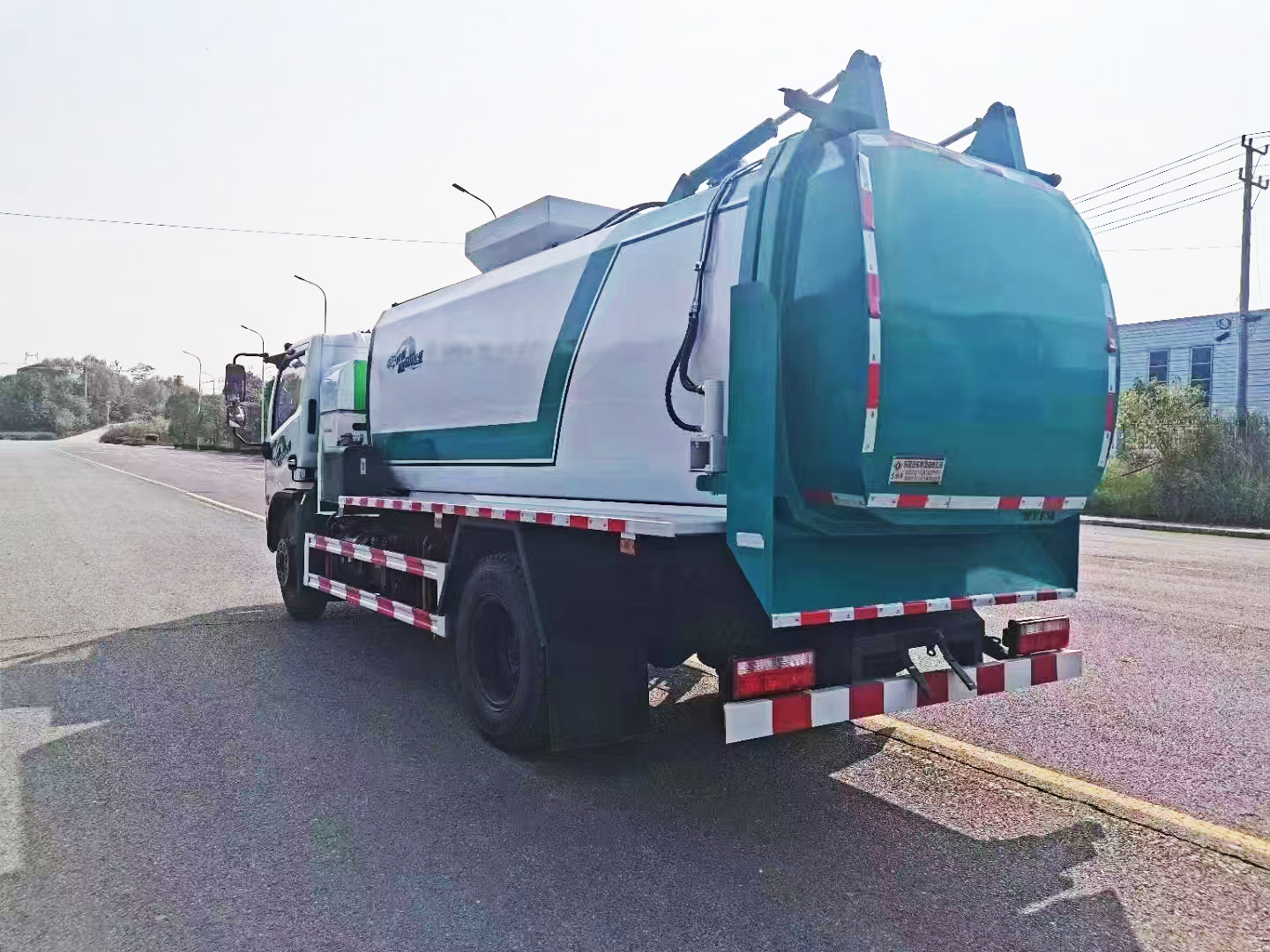

Dongfeng F7 12 ton diesel/electric hybrid power kitchen waste truck
2024-10-07 09:54:11 Source：CLW
Chassis configuration:
Chassis 3970 wheelbase, vehicle configuration: 2030mm single row cab, Yunnei D25 engine, 150P horsepower, 7-speed automatic transmission, front and rear axles: 2.7T/5.5T, 8/10+7, 8.25R20 tires, battery back, lithium iron phosphate 17.2 degrees, motor 25/55kw, 120/260N M. 188 * (6+4) frame, steel wheel rims, iron fuel tank, iron air storage tank, power steering, air conditioning, electric doors and windows, central locking system, ABS, and air brake. Equipped with power take-off and panoramic 360 function.
| Product Name |
Dongfeng F7 12 ton diesel/electric hybrid power kitchen waste truck |
| Driving Type |
4×2 |
| Gross vehicle weight(Kg) |
11995(Kg) |
| Curb weight(Kg) |
6500(Kg) |
| Rated weight(kg) |
5300(Kg) |
| Wheelbase(mm) |
39700(mm) |
| Overall Dimension(mm) |
7250×2250×3050(mm) |
| Engine |
Diesel/electric hybrid power |
| Axle Quantity |
2 |
| Transmission Type |
7-speed manual automatic transmission |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
8.25R20, 6+1 spare |
| Cab |
Dongfeng F7 |
| Volume(m³) |
9m³ |
| Tank body |
Using Q710 high-strength steel, with 3mm edge plates and 4mm bottom plates |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng F7 12 ton diesel/electric hybrid power kitchen waste truck
Food waste truck,also known as meal waste truck, kitchen waste truck or swill truck,
is a type of garbage truck used for collecting and transporting household
waste, food waste (swill) and urban sludge.
Installation configuration :
1. Made of Q710 high-strength steel, with a 3mm edge and 4mm bottom, reinforced square tank body,
2. Adopting well-known domestic brand hydraulic systems (domestic well-known oil pumps, Hunan Changsha domestic well-known multi way valves, customized oil cylinders for kitchen use, Zhejiang Jiashan power take-off),
3. ① Chain hoist, capable of hanging 120L/240L standard plastic trash cans. ② The back cover is hydraulically opened and locked, with a sealing strip and an adjustable hydraulic locking pin to ensure no water leakage Mid mounted double top lifting unloading, the unloading angle can be adjusted according to demand Having a wireless remote control is more convenient for operation.
Product parameters
