Dongfeng 4X2 Swing Arm Garbage Truck
2024-10-07 09:54:11 Source：CLW
Dongfeng 4X2 Swing Arm Garbage Truck
Chassis configuration:
1. Engine: YC4S150-50, Yuchai 150hp
2.Transmission type: 6-speed gearbox
3.Wheelbase: 3800,3308,4100(mm)
4.Tyre: 7.50R16,7.50R16,245/70R19.5 12PR, 6+1 spare
5 Other: Dongfeng cabInstallation configuration:① The swing arm bucket is made of high-quality Wuhan Iron and Steel materials, with an effective volume of 6 cubic meters. It is equipped with a unified hydraulic lifting assembly and can be used to transport the national unified swing arm garbage bucket through the left and right arms. It can carry multiple buckets in one truck and has a self dumping function, achieving safety, stability, and reliable performance
②The garbage bin body is divided into different forms of garbage bins configured according to swing arm and pit floor dual-use. It can be equipped with a sealing cover to prevent leakage, flying and pollution, to meet the requirements of different environments. It adopts advanced domestic technology and well-known industrial enterprise accessories, with reliable quality.
③ The rear of the vehicle is equipped with hydraulic support legs, enhancing the safety of the garbage hopper during unloading.④ There are four dedicated unloading steel chains with lifting rings installed on the swing arm, saving space and facilitating operation. Four high-strength lifting hooks are welded on both sides of each garbage bin for safe and stable lifting and unloading.
| Product Name |
Dongfeng 4X2 Swing Arm Garbage Truck |
| Driving Type |
4x2 |
| Garbage container volume(cbm) |
6 |
| Gross vehicle weight(Kg) |
8275(Kg) |
| Curb weight(Kg) |
5100,4900(Kg) |
| Rated weight(kg) |
2980,3180(Kg) |
| Wheelbase(mm) |
3800,3308,4100(mm) |
| Overall Dimension(mm) |
6800,6780,6308,6288×2200×3000(mm) |
| Engine brand & model |
YC4S150-50, Yuchai 150hp |
| Axle Quantity |
2 |
| Transmission Type |
6-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
7.50R16,7.50R16,245/70R19.5 12PR, 6+1 spare |
| Cab |
Dongfeng cab |
| Material of swing arm bucket |
High quality WISCO materials |
| Component |
Composed of chassis, garbage bin, power take-off, multi way directional valve, swing arm, hydraulic system, operating system, etc. |
| Garbage bin |
divided into pit type swing arm garbage bin and ground type swing arm garbage bin (trapezoidal bucket, square bucket, sealed bucket) |
| Hydraulic system |
composed of oil tank, oil pump, multi way directional valve, hydraulic cylinder, oil filter and pipeline, this system can achieve various specialized functions for loading and unloading garbage. |
| Operating system |
Through this system, various functions can be converted. The loading and unloading work can be completed by manipulating the handle of the multi way directional valve. (When operating the multi way directional valve, a power take-off should be attached to drive the oil pump to work) |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |

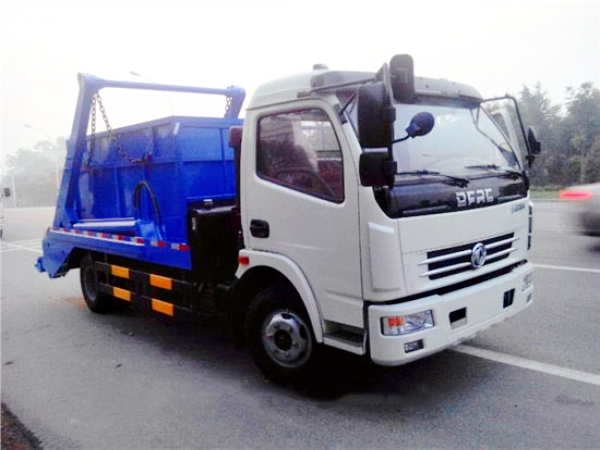

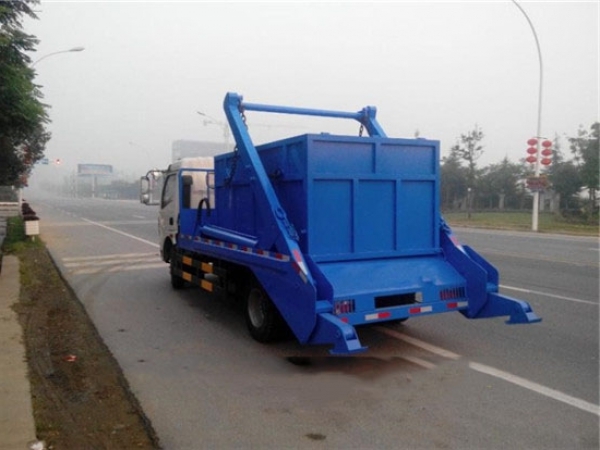

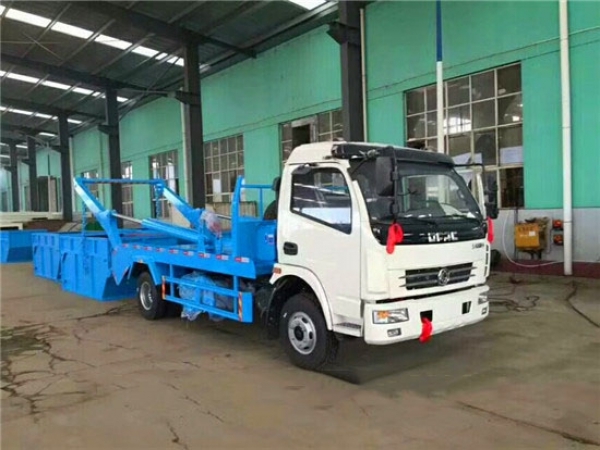

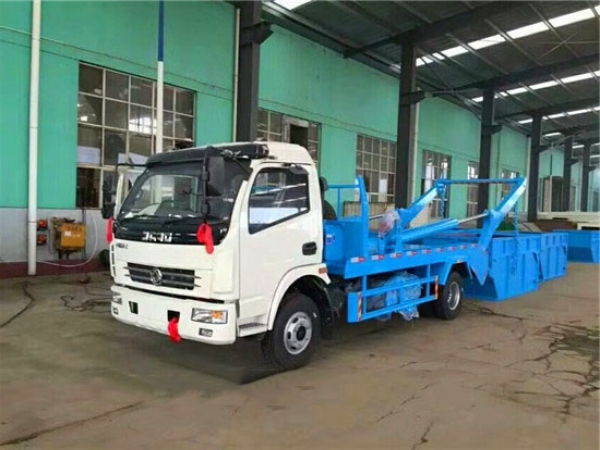

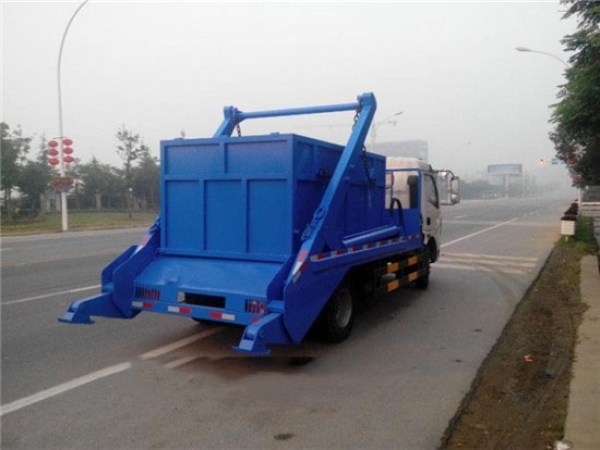

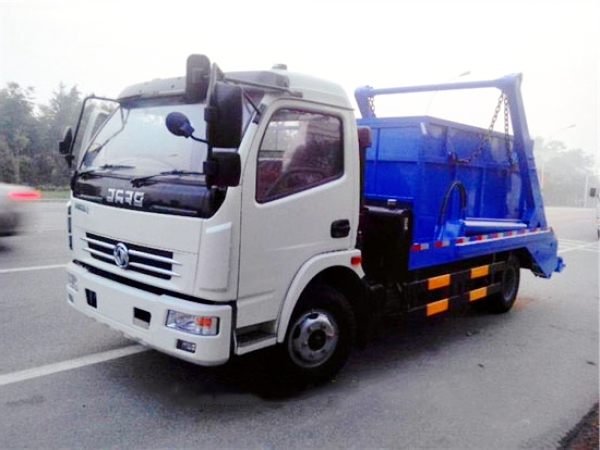

Dongfeng 4X2 Swing Arm Garbage Truck
Swing arm garbage truck: a garbage truck that
lifts the garbage hopper and pours it into the carriage through hydraulic or
mechanical swing arms. It can be equipped with multiple garbage bins for
continuous operation, suitable for garbage collection in urban streets and
residential areas.
Main features: The swing arm garbage truck has the advantages of simple and efficient garbage collection method, good environmental friendliness (no secondary pollution), reliable quality, low failure rate, easy maintenance, and low operating costs.
Product parameters
